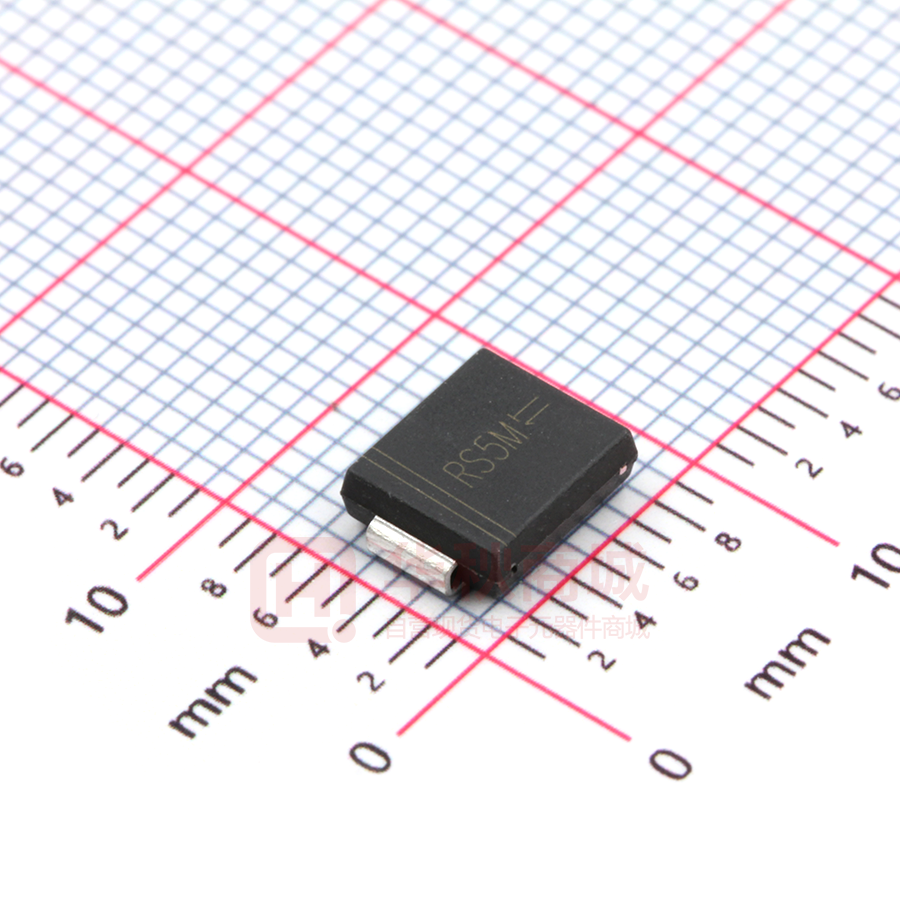

RS5ACG THRU RS5MCG Surface Mount Fast Recovery Rectifiers PINNING Reverse Voltage - 50 to 1000 V Forward Current - 5 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Marking Code: RS5A~RS5M Simplified outline SMC symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pp rox. Wei g ht: 0.22 g / 0 .0077oz Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols RS5ACG RS5BCG RS5DCG RS5GCG RS5JCG RS5KCG RS5MCG Units Parameter Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I F(AV) 5 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 120 A Maximum Forward Voltage at 3 A VF 1.3 V IR 5 100 μA Cj 50 pF Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range t rr 500 ns RθJA RθJC 35 13 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. REV.08 250 150 1 of 3 RS5ACG THRU RS5MCG Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Fig.1 Forward Current Derating Curve Average Forward Current (A) 7.0 6.0 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 2.5 Peak Forward Surage Current (A) 100 120 140 T J =25°C 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 10 1.0 10 Reverse Voltage (V) 100 Number of Cycles REV.08 80 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 60 1 0.5 Instaneous Forward Voltage (V) 00 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) 2 of 3 100 RS5ACG THRU RS5MCG PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) mm Unit ： (mil) REV.08 3 of 3 Type number Marking code RS5ACG RS5A RS5BCG RS5B RS5DCG RS5D RS5GCG RS5G RS5JCG RS5J RS5KCG RS5K RS5MCG RS5M
