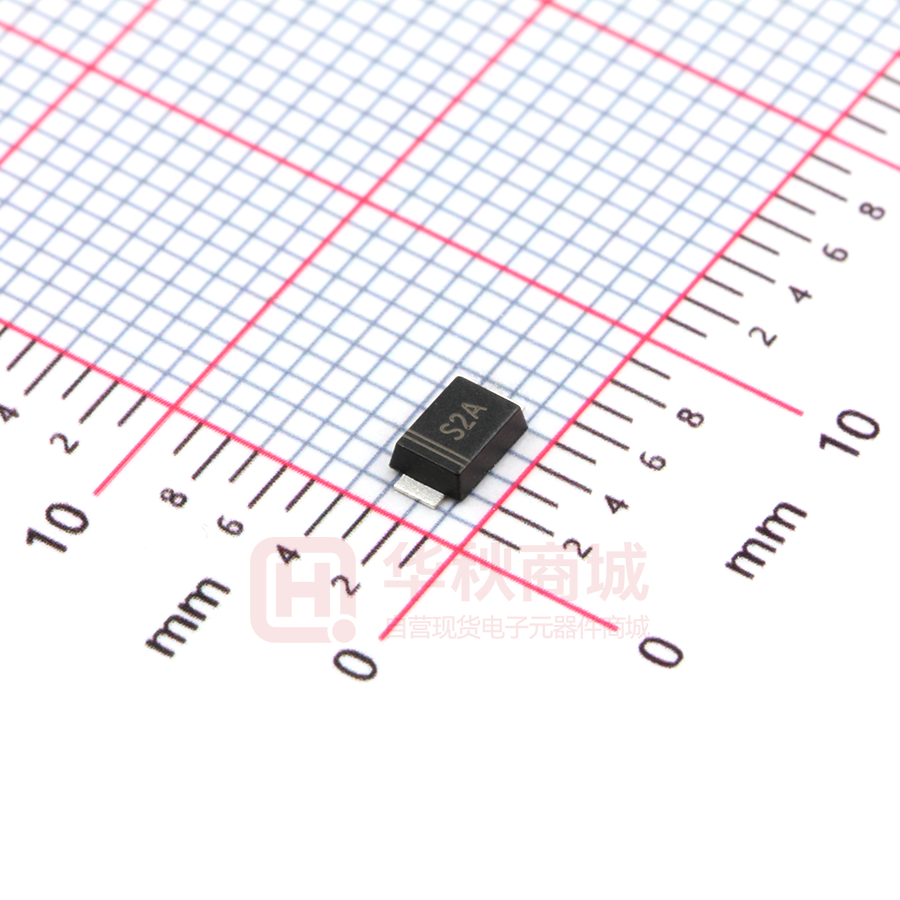

S2AF

Surface Mount General Purpose Silicon Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 2 A FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Juntion • Easy to pick and place • Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA • Case: SMAF • Terminals: Solderable per MIL-STD-750, 750, Method 2026 • Approx. Weight: 27mg 0.00086oz Maximum Ratings and Electrical characteristics char Ratings at 25℃ ambient temperature unless otherwise specified.Single phase half-wave wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. 1）Measured at 1 MHz and applied reverse voltage of 4 V D.C 2）Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, P.C.B. mounted 1 of 3 2 of 3 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMAF 3 of 3
