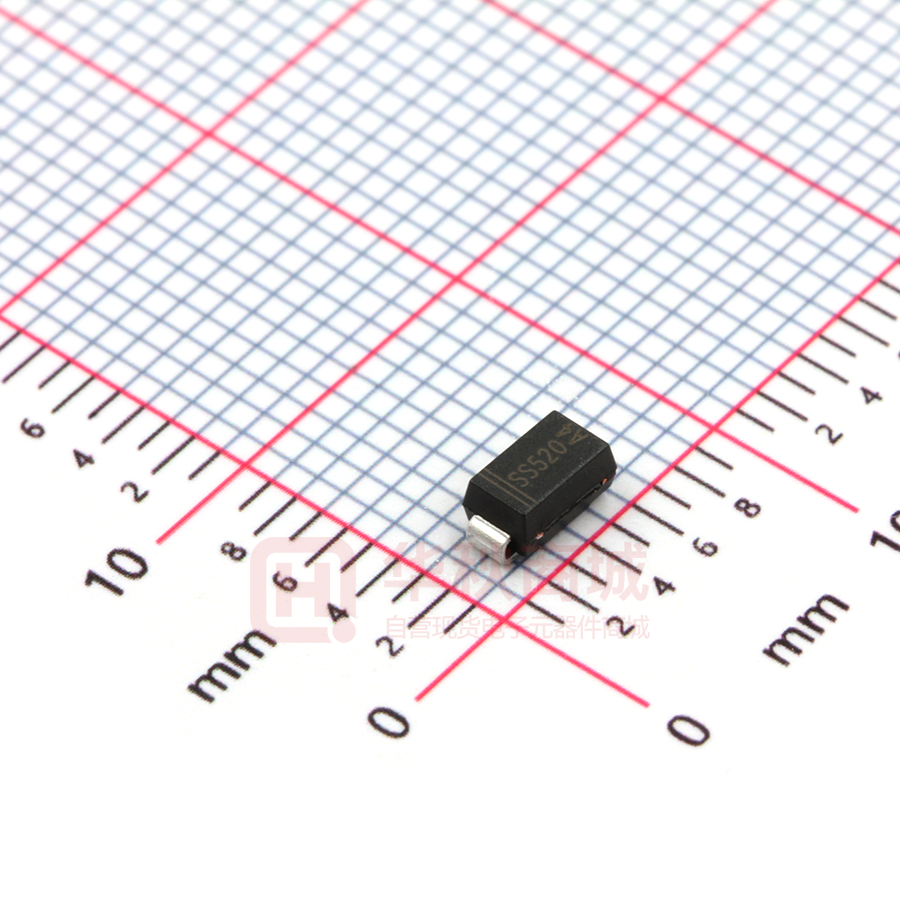

SS520G

SS52G THRU SS520G Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 5.0A PINNING Features • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case: SMA • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 60mg / 0.0021oz PIN DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code: SS52~SS520 Simplified outline SMA and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Symbols Parameter SS52G SS54G SS56G SS58G SS510G SS512G SS515G SS520G Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM Max Instantaneous Forward Voltage at 5 A VF 120 0.55 T a =100°C Typical Junction Capacitance （1） Typical Thermal Resistance （2） Operating Junction Temperature Range Storage Temperature Range IR Cj A 0.85 V 500 mA 300 pF RθJA 60 °C/W Tj -55 ~ +150 °C T stg -55 ~ +150 °C （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C REV.08 0.70 100 1.0 50 Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage A 5.0 （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 1 of 3 SS52G THRU SS520G Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Average Forward Current (A) Fig.1 Forward Current Derating Curve 6.0 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 10 4 T J =75°C 10 2 10 1 T J =25°C 10 0 0 Case Temperature (°C) 80 100 T J =25°C Junction Capacitance ( pF) 20 10 1 SS52G /SS54G SS56G /SS58G SS510G /SS520G 0.1 0 0.5 1.0 1.5 1000 500 100 SS52G /SS54G 20 SS56G ~SS520G 10 2.0 Transient Thermal Impedance（ °C /W） SS52G ~SS58G SS510G ~SS520G 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 10 Reverse Voltage (V) 160 140 1 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 60 Fig.4 Typical Junction Capacitance Instaneous Forward Voltage (V) 100 Number of Cycles at 60Hz REV.08 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Instaneous Forward Current (A) T J =100°C 10 3 Fig.6- Typical Transient Thermal Impedance 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 of 3 100 SS52G THRU SS520G PACKAGE OUTLINE Plastic surface mounted package; 2 leads A SMA c VM A HE e E g A D E HE c e g max 2.2 4.83 2.9 5.4 0.31 1.7 1.5 min 1.9 4.32 2.3 4.7 0.12 1.2 0.9 max 87 190 114 213 12 67 59 min 75 170 91 185 5 47 35 UNIT mm mil e g A D SS26F The recommended mounting pad size Marking Type number SS22F SS24F 2.2 (86) mm Unit ： (mil) REV.08 SS52G SS52 1.8 (71) 1.8 (71) 1.8 (71) Marking code 3 of 3 SS54G SS54 SS56G SS56 SS58G SS58 SS510G SS510 SS512G SS512 SS515G SS515 SS520G SS520
