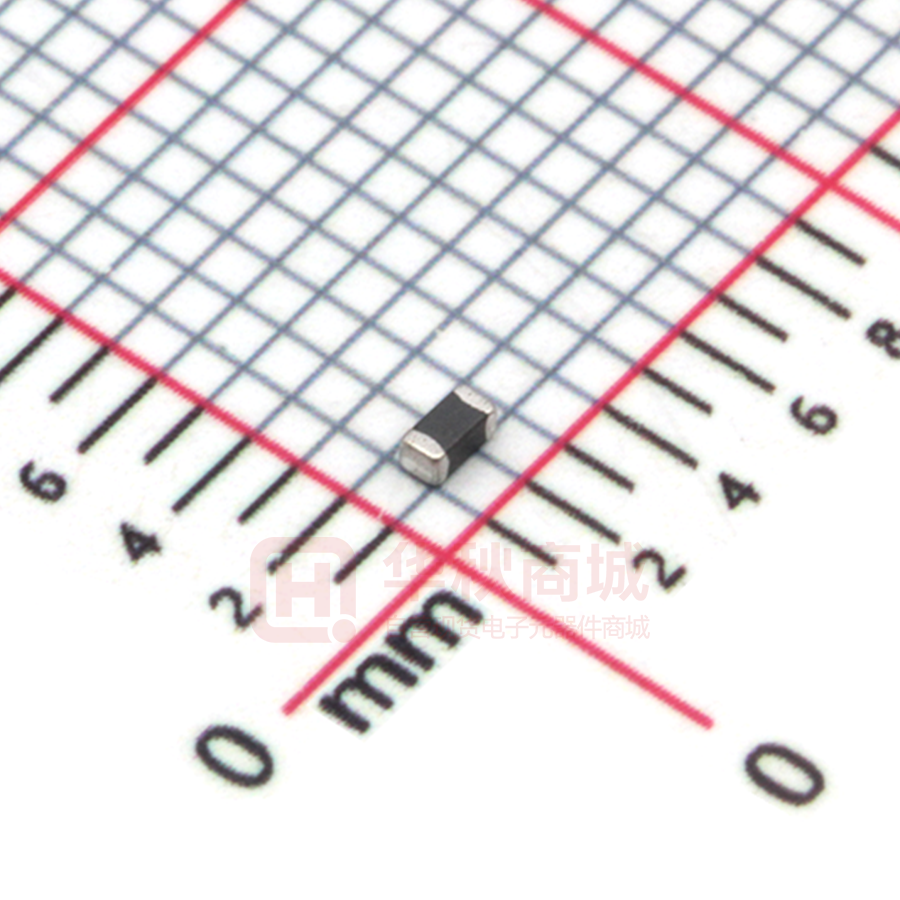

FCI1608F-2R2K

TAI-TECH TBM01-170800160 P1. Ferrite Chip Inductor(Lead Free) FCI1608F-2R2K ECN HISTORY LIST REV DATE DESCRIPTION 1.0 13/06/06 2.0 14/01/24 嬲㚜暣拵拓Ⰼ⍂⹎ 3.0um min.=>3.5um min. 3.0 14/08/01 嬲㚜 Reflow ⚾䣢 3.1 14/08/01 ᾖ㬋⊭墅ⷞ⯢⮠ 4.0 14/10/13 APPROVED CHECKED DRAWN 㣲䤍⾈ 㣲䤍⾈ 㣲䤍⾈ 㣲䤍⾈ 㣲䤍⾈ 㣲䤍⾈ 㣲䤍⾈ 伭➡⏃ 伭➡⏃ 伭➡⏃ 伭➡⏃ 伭➡⏃ 娡῱䈡 娡῱䈡 ⻝▱䍚 ⻝▱䍚 ⻝▱䍚 ⻝▱䍚 ⻝▱䍚 ⻝▱䍚 ⻝▱䍚 嬲㚜⎗月⹎㡅ẞ 5.0 妪㬋 1608 ⊭墅ⷞ Ao ⯢⮠ 16/01/26 ᾖ妪⎗月⹎ Life Test: 6.0 17/02/16 (Inductor) Temperature:85Ʋ2ɗ
105Ʋ2ɗ. ᾖ妪 Recommended PC Board Pattern ⁁ 姣 www.tai-tech.com.tw TAI-TECH TBM01-170800160 P2. Ferrite Chip Inductor(Lead Free) FCI1608F-2R2K 1.Features 1. Monolithic inorganic material construction. 2. Closed magnetic circuit avoids crosstalk. 3. S.M.T. type. 4. Suitable for reflow soldering. 5. Shapes and dimensions follow E.I.A. spec. 6. Available in various sizes. 7. Excellent solderability and heat resistance. 8. High reliability. 9. 100% Lead(Pb) & Halogen-Free and RoHS compliant. Halogen Pb Halogen-free Pb-free 2. Dimensions Chip Size A B C D 1.60±0.15 0.80±0.15 0.80±0.15 0.30±0.20 Units: mm 3. Part Numbering FCI 1608 F - 2R2 K A B C D A: Series B: Dimension C: Material D: Inductance E: Inductance Tolerance E LxW Lead Free Material 2R2=2.2uH K=Ʋ10%, L=Ʋ15%, M=Ʋ20% 4.Specification Tai-Tech Part Number FCI1608F-2R2K Inductance(uH) Tolerance Test Frequency (Hz) 2.2Ʋ10% Rated Current min. Q Test Frequency (MHz) (mA) max. (ȟ) max. (MHz) min. 30 10 15 1.15 45 60mV / 10M ˗ Rated current: based on temperature rise test ˗ In compliance with EIA 595
Inductance-Frequency Characteristics L vs. Freq. 4 3 ) H u ( E C N A T C U D N I 2R2 2 1 0 -1 1 10 100 FREQUENCY(MHz) www.tai-tech.com.tw 1000 DCR SRF
