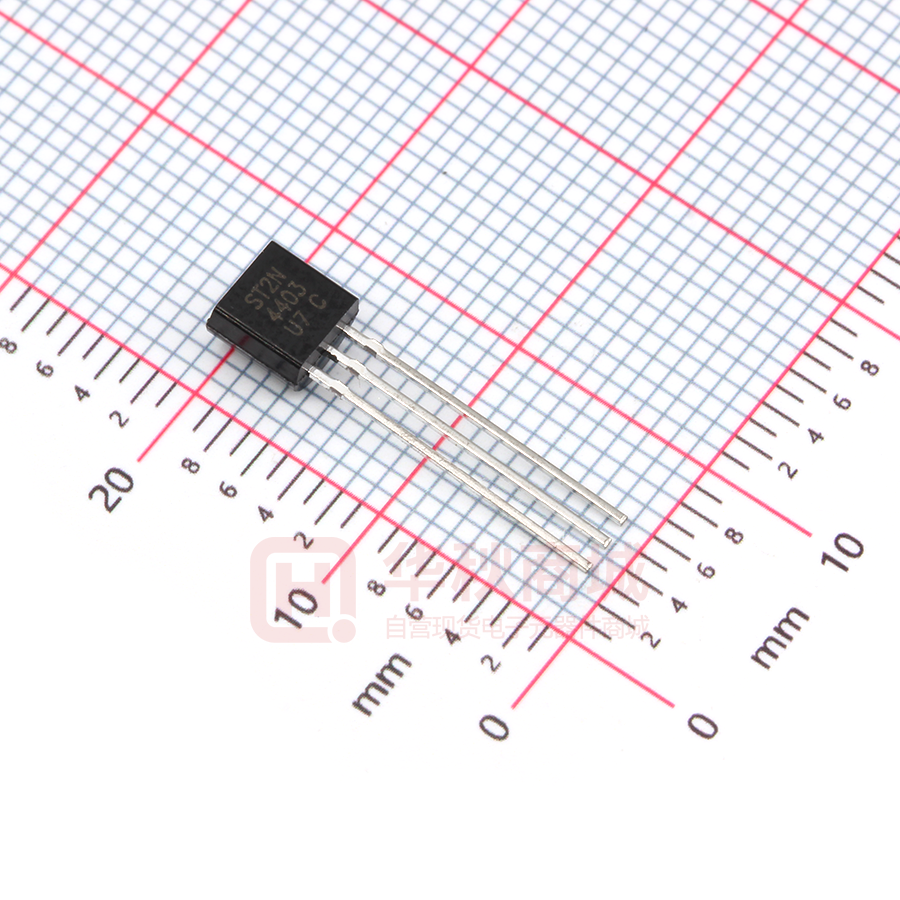

2N4403

2N4403

  • 厂商:

    ST(先科)

  • 封装:

    TO92-3

  • 描述:

    晶体管类型:PNP 集射极击穿电压(Vceo):40V 集电极电流(Ic):600mA 功率(Pd):625mW

  • 数据手册
  • 价格&库存
2N4403 数据手册
2N4402 / 2N4403 PNP Epitaxial Silicon Transistor General purpose transistor On special request, these transistors can be manufactured in different pin configurations. 1. Emitter 2. Base 3. Collector TO-92 Plastic Package Absolute Maximum Ratings (Ta = 25℃) Parameter Symbol Value Unit Collector Base Voltage -VCBO 40 V Collector Emitter Voltage -VCEO 40 V Emitter Base Voltage -VEBO 5 V Collector Current -IC 600 mA Power Dissipation Ptot 625 mW Tj 150 ℃ Tstg - 55 to + 150 ℃ Junction Temperature Storage Temperature Range SEMTECH ELECTRONICS LTD. ® Dated: 12/08/2016 Rev: 02 2N4402 / 2N4403 Characteristics at Ta = 25℃ Parameter Symbol Min. Max. Unit hFE hFE hFE hFE hFE hFE hFE hFE 30 30 60 50 100 50 100 20 150 300 - - -ICBO - 100 nA -IEBO - 100 nA Collector Base Breakdown Voltage at -IC = 100 µA -V(BR)CBO 40 - V Collector Emitter Breakdown Voltage at -IC = 1 mA -V(BR)CEO 40 - V -V(BR)EBO 5 - V -VCE(sat) - 0.4 0.75 V -VBE(sat) 0.75 - 0.95 1.3 V fT 150 200 - MHz Collector Output Capacitance at -VCB = 10 V, f = 140 MHz Cob - 8.5 pF Turn On Time at -VCC = 30 V, -VBE = 2 V, -IC = 150 mA, -IB1 = 15 mA ton - 35 ns Turn Off Time at -VCC = 30 V, -IC = 150 mA, -IB1 = -IB2 =15 mA toff - 255 ns DC Current Gain at -VCE = 1 V, -IC = 0.1 mA at -VCE = 1 V, -IC = 1 mA at -VCE = 1 V, -IC = 10 mA at -VCE = 1 V, -IC = 150 mA 2N4403 2N4402 2N4403 2N4402 2N4403 2N4402 2N4403 at -VCE = 2 V, -IC = 500 mA Collector Base Cutoff Current at -VCB = 35 V Emitter Base Cutoff Current at -VEB = 5 V Emitter Base Breakdown Voltage at -IE = 100 µA Collector Emitter Saturation Voltage at -IC = 150 mA, -IB = 15 mA at -IC = 500 mA, -IB = 50 mA Base Emitter Saturation Voltage at -IC = 150 mA, -IB = 15 mA at -IC = 500 mA, -IB = 50 mA Gain Bandwidth Product at -VCE = 10 V, -IC = 20 mA, f = 100 MHz 2N4402 2N4403 SEMTECH ELECTRONICS LTD. ® Dated: 12/08/2016 Rev: 02 2N4402 / 2N4403 Figure 1. Figure 2. Figure 3. Figure 4. Figure 5. SEMTECH ELECTRONICS LTD. ® Dated: 12/08/2016 Rev: 02 2N4402 / 2N4403 Figure 6. Figure 7. Figure 8. Figure 10. Figure 9. Figure 11. SEMTECH ELECTRONICS LTD. ® Dated: 12/08/2016 Rev: 02 2N4402 / 2N4403 Figure 12. Figure 13. Figure 14. Figure 15. SEMTECH ELECTRONICS LTD. ® Dated: 12/08/2016 Rev: 02
