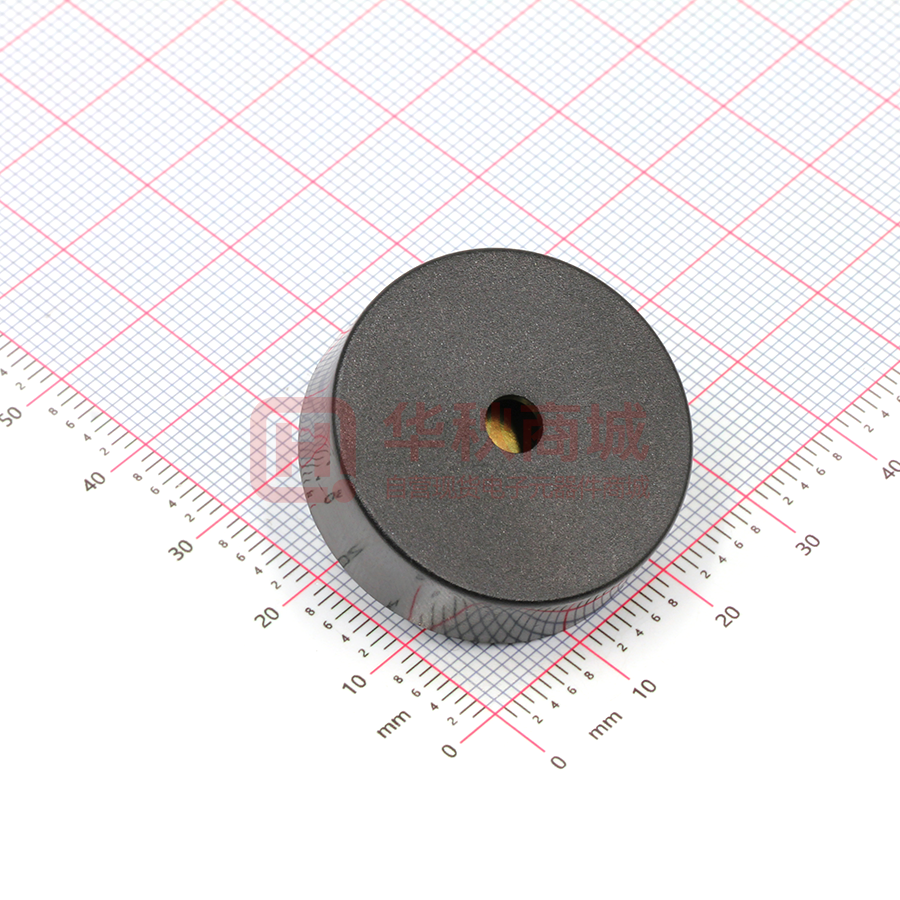

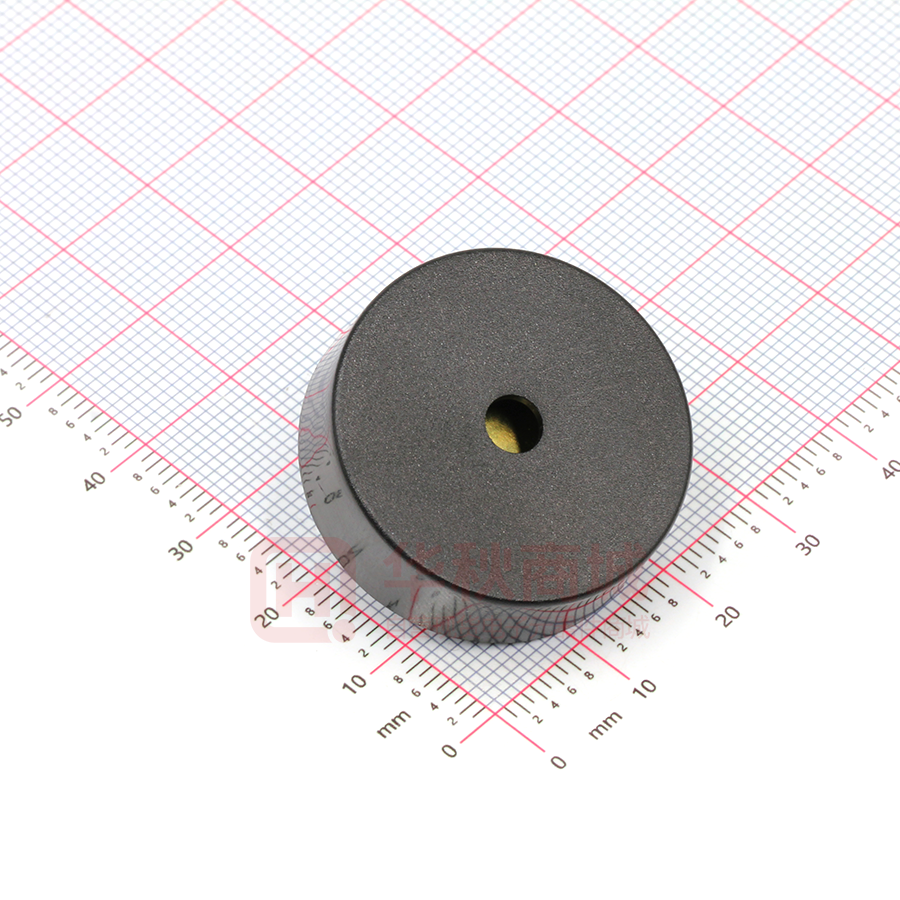

GPC3010YB-5V

規 格 承 認 書 PECIFICATION FOR APPROVAL 客 戶 CUSTOMER 項 目 ITEM 型 號 TYPE 描述 DESCRIPTION ： ： 压电无源蜂鸣器（外部驱动） ： GPC3010YB-5V3500 ： Φ30 x H10 mm 3500Hz 5V ≥85dB ABS 材质 P=15mm 客戶料號 CUSTOMER NO. ： 規 格 書 號 SPECIFICATION NO.： 版 本 EDITION NO. 日 期 DATE ： V1.1 ： 2012-12-07 客戶承認 CUSTOMER CONFIRM AND SIGN 檢查 審核 承認 TESTED BY CHECKED BY APPROVED BY 東莞市赢海電子有限公司 DONGUAN INGHAI ELECTRONICS CO.,LTD 製作 審查 確認 ISSUED BY CHECKED BY APPROVED BY 周明 李林 1/4 地址：廣東省東莞市長安鎮上沙管理區北橫路 8 號 電話 / TEL：0769-83060958 傳真 / FAX： 0769-81608993 網址：HTTP://WWW.INGHAI.COM DONGGUAN INGHAI ELECTRONICS CO.,LTD Model NO: GPC3010YB-5V3500 A: DIMEMSIONS Unit:mm B: SPECIFICATIONS Tolerance:±0.5 Model NO GPC3010YB-5V3500 Rated Voltage 5Vp-p Operating Voltage 3～28Vp-p Max.Rated Current Max.5mA sound Pressure level(dB/min)at 10cm Min. 85dB Resonant Frequency 3500±500Hz Capacitance 28000±30% Operating Temperature -20 ℃~+60 ℃ Storage Temperature -30 ℃~+70 ℃ Case material and color ABS / Black 2/4 Measuring condition Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure. C: Electrical And Acoustical Measuring Condition Mic. dB Buzzer 10 cm SPL 40 cm SM-1641 FUNC TION GENERATOR 信号发生仪 测试示意图 D: Reliability Test After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -10 dB from the initial value 1. 2. 3. 4. 5. 6. 7. Ordinary Temperature Life Test The part shall be subjected to 96 hours at 25±10℃. Input rated voltage Resonant frequency, 1/2 duty Square wave. High Temperature Test The part shall be capable of with standing a storage temperature of +70℃ for 96 hours. Low Temperature Test The part shall be capable of with standing a storage temperature of -30℃ for 96 hours. Humidity Test Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours and expose to room temperature for 6 hours Temperature Shock Test Temperature:60℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle) Total cycle: 10 cycles Drop Test Standard Packaging From 120mm(Drop on hard wood or board of 5cm thick, three sides, six plain.) Vibration Test Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes 3/4 Note: As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it. 4/4
