規 格 承 認 書
PECIFICATION FOR APPROVAL
客 戶
CUSTOMER
：
項 目
ITEM
： 贴片式电磁无源蜂鸣器（外部驱动）
型 號
TYPE
： GSC8540YA-16R2700
描述

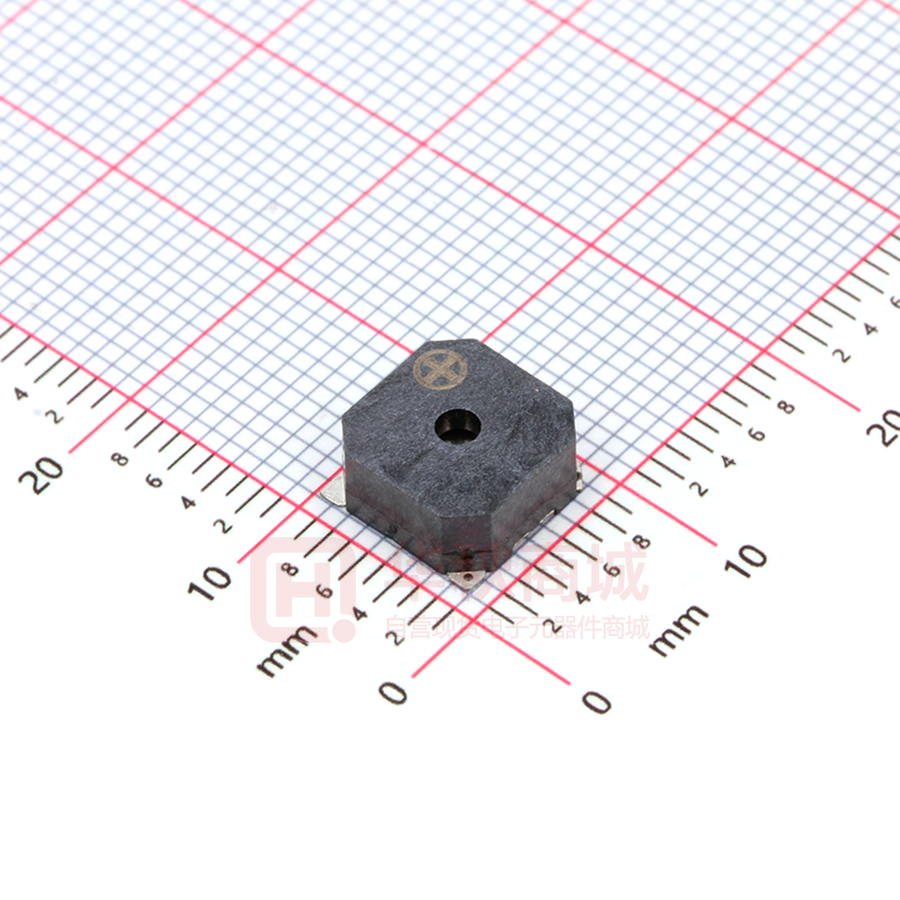

DESCRIPTION ： L8.5 x W8.5 x H4.0 mm 2700Hz 16Ω ≥80DB LCP 材质 正发音
客戶料號
CUSTOMER NO. ：
規 格 書 號
SPECIFICATION NO.：
版 本
EDITION NO.
日 期
DATE
：
V1.0
：
2013-7-26
客戶承認
CUSTOMER CONFIRM AND SIGN
檢查
審核
承認
TESTED BY
CHECKED BY
APPROVED BY
東莞市赢海電子有限公司
DONGUAN INGHAI ELECTRONICS CO.,LTD
製作
審查
確認
ISSUED BY
CHECKED BY
APPROVED BY
周明
李林
地址：廣東省東莞市長安鎮廈邊元灶頭工業區 16-6 號
電話 / TEL：0769-83060958
傳真 / FAX： 0769-81608993
1/6
網址：HTTP://WWW.INGHAI.COM
A. SCOPE
This specification applies SMD piezoelectric buzzer, GSC8540YA-16R2700
B. SPECIFICATION
No.
Item
Unit
Specification
Condition
1
Oscillation Frequency
Hz
2700
Vo-p=1/2duty , square
wave
2
Operating Voltage
Vo-p
2.0 ~ 4.5
3
Rated Voltage
Vo-p
3.6
4
Current Consumption
mA
MAX. 90
at Rated Voltage
5
Sound Pressure Level
dB
Min.80
at 10cm at Rated
Voltage
6
Coil Resistance
Ω
20±3
7
Operating Temperature
℃
-20 ~ +80
8
Storage Temperature
℃
-30 ~ +85
9
Dimension
mm
L8.5 x W8.5 x H4.0 mm
10
Environmental
Protection Regulation
See appearance
drawing
RoHS
C. APPEARANCE DRAWING
2/6
D:TEST METHOD:
E:FREQUENCY RESPONSE:
3/6
4/6
F. Soldering Condition
(1)Recommendable reflow soldering condition is as follows
(Reflow soldering is twice)
Note:It is requested that reflow soldering should be executed
after heat of product goes down to normal.
Heat resistant line
(Used when heat resistant reliability test is performed)
(2)Manual soldering
Manual soldering temperature 350 ºC within 5 sec.
5/6
G: Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -10 dB
from the initial value
1.
Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
2. High Temperature Test
The part shall be capable of with standing a storage temperature of +85℃ for 96
hours.
3. Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96
hours.
4. Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours
and expose to room temperature for 6 hours
5. Temperature Shock Test
Temperature:70℃ /1hour→ 25℃/3hours→-30℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
6. Drop Test
Standard Packaging From 120mm(Drop on hard wood or board of 5cm thick,
three sides, six plain.)
7. Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes
Measuring condition
Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H.,
Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃,
Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.
Note:
As this product is not protected from foreign material entering, please make sure that any
foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter
this product in your production processes. The functional degradation (e.g. SPL down)
may occur if foreign material enter it.
6/6
H:PACKING:
7/6
