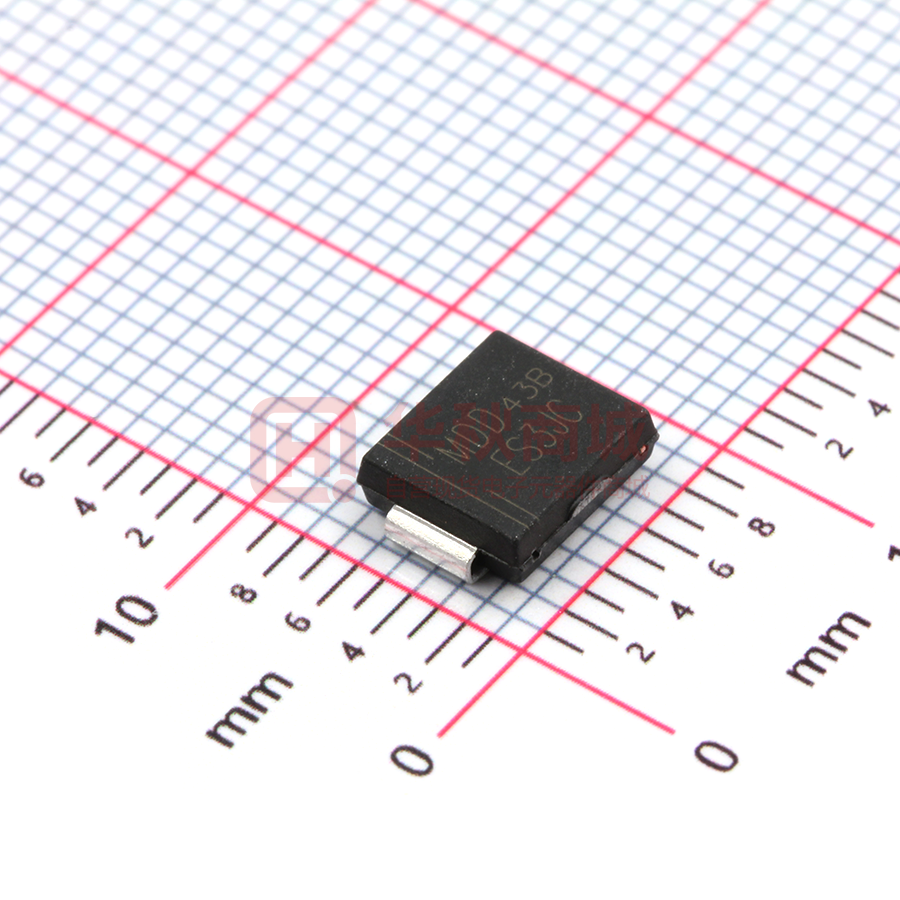

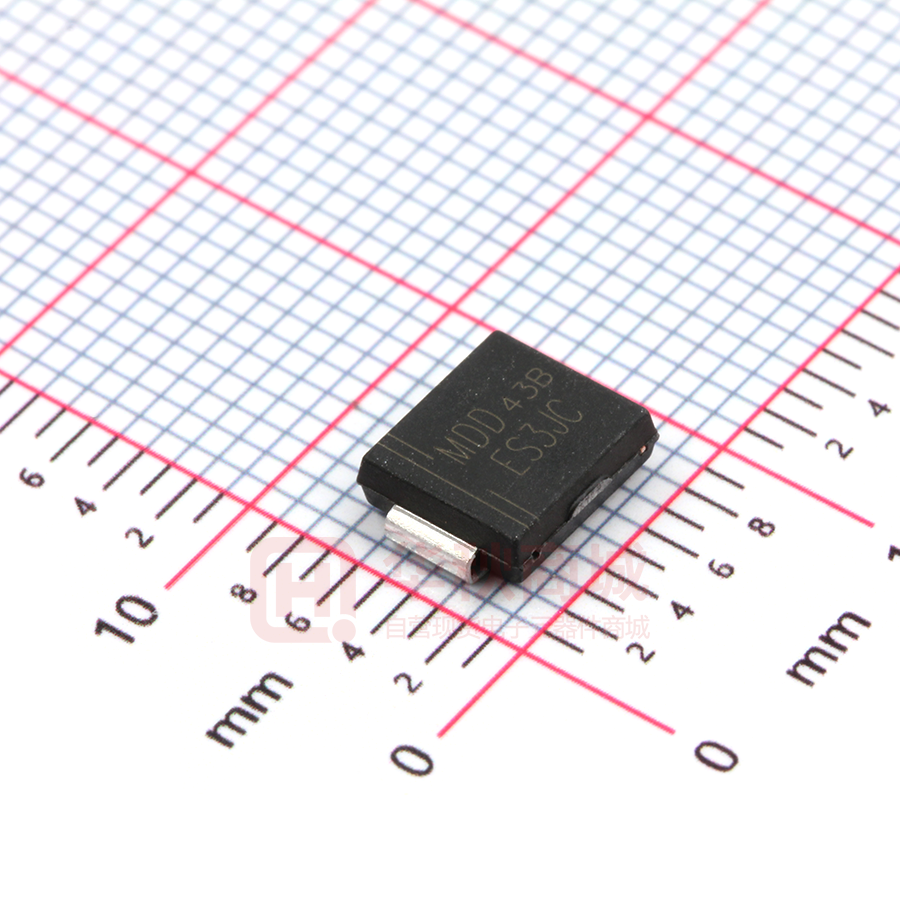

ES3JC

ES3AC THRU ES3JC Reverse Voltage - 50 to 600 Volts Forward Current - 3.0 Ampere SURFACE MOUNT SUPER FAST RECOVERY RECTIFIER Features  The plastic package carries Underwriters Laboratory DO-214AB/SMC Flammability Classification 94V-0  For surface mounted applications  Low reverse leakage  Built-in strain relief,ideal for automated  placement High forward surge current capability  High temperature soldering guaranteed: 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90) 0.280(7.11) 0.260(6.60)  250°C/10 seconds at terminals 0.012(0.305) 0.006(0.152) Glass passivated chip junction 0.103(2.62) 0.079(2.06) Mechanical Data 0.060(1.52) 0.030(0.76) Case : JEDEC DO-214AB/SMC Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.0077ounce, 0.22grams 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC MDD MDD MDD MDD ES3AC ES3BC ES3CC ES3DC 50 35 50 100 70 100 150 105 150 200 140 200 MDD MDD MDD ES3EC ES3GC ES3JC 300 210 300 400 280 400 600 420 600 UNITS V V V Maximum average forward rectified current at TL=125℃ I(AV) 3.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 90 A Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current at rated DCblocking voltage Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range VF IR trr 1 1.25 V 5.0 100 μA 35 ns pF CJ 40 RJA 40 RθJC 16 TJ,TSTG 1.68 ℃/W -55to+150 ℃ Rev:2024A2 Page :1 Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com ES3AC THRU ES3JC Reverse Voltage - 50 to 600 Volts Forward Current - 3.0 Ampere Ratings And Characteristic Curves Fig.1 Reverse Recovery Time Characteristic And Test Circuit Diagram 50 ohm Noninductive trr 10 ohm Noninductive +0.5 D.U.T + PULSE GENERATOR Note 2 25Vdc approx 0 - -0.25 1 ohm NonInductive OSCILLOSCOPE Note 1 -1.0 Note：1.Rise Time = 7ns, max. Input Impedance = 1megohm,22pF. 2. Ries Time =10ns, max. Source Impedance = 50 ohms. 10ns/div Set time Base for 10ns/div Fig.3 Typical Reverse Characteristics 3.5 300 3.0 100 I R - Reverse Current (μA) Average Forward Current (A) Fig.2 Maximum Average Forward Current Rating 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load TJ=125°C 10 TJ=75°C 1.0 TJ=25°C 0.1 0.0 25 50 75 100 125 150 0 175 20 Case Temperature (°C) 80 100 Fig.5 Typical Junction Capacitance 10 Junction Capacitance (pF) Instaneous Forward Current (A) 60 % of PIV.VOLTS Fig.4 Typical Forward Characteristics TJ=25°C 1.0 ES3AC~ES3DC ES3EC/ES3GC 0.1 40 ES3JC 0.01 TJ=25°C 100 10 TJ=25°C f = 1.0MHz Vsig = 50mVp-p 1 0.001 0 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 126 108 90 72 54 36 18 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 ES3AC THRU ES3JC Reverse Voltage - 50 to 600 Volts Forward Current - 3.0 Ampere Packing information P0 unit:mm P1 d Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 BOX (pcs) 6000 CARTON SIZE (mm) 365*365*340 CARTON (pcs) 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Unit (inch) Rev:2024A2 Page :3
