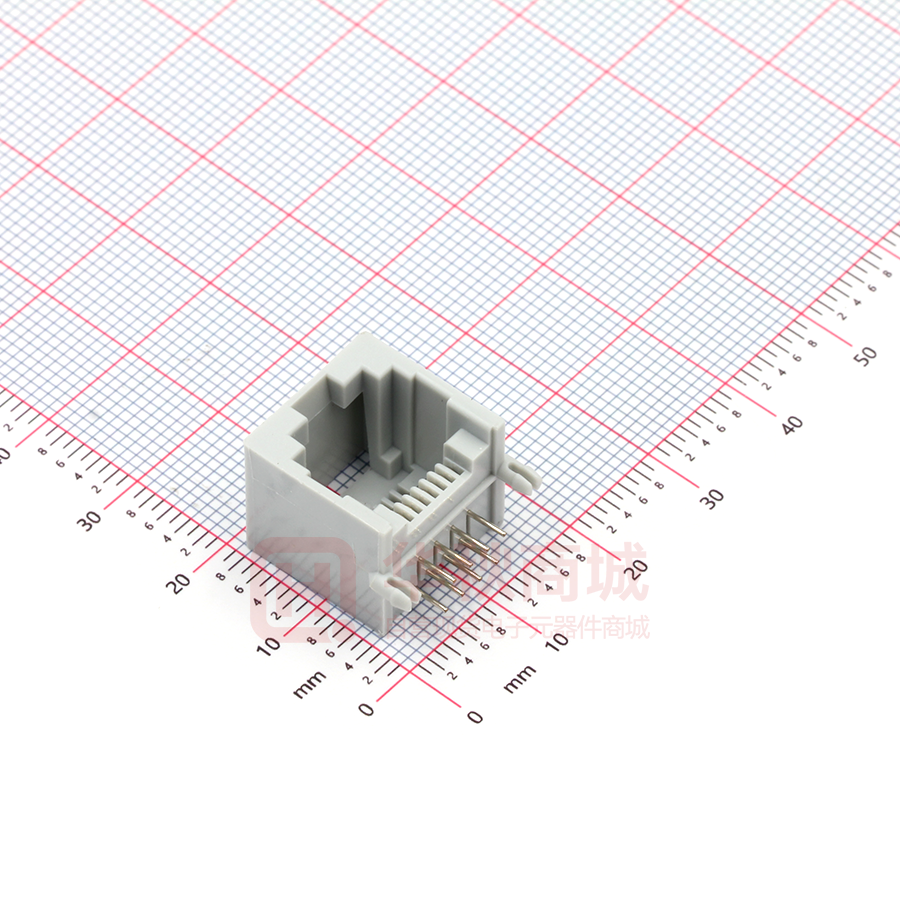

MT5521IWE1DY1017

1 2 3 5 4 6 7 REV. ECN. NO. APPD. A A A MATERIAL: HOUSING: PBT,UL94V-0,BLACK. TERMINAL: PHOSPHOR BRONZE Ø=0.46MM,G/FU" GOLD PLATING. MACHANICAL: DURABILITY: 750 CYCLES MIN,12.5MM/MINUTE. INSERTION FORCE: 2.2KG.F MAX. RETENTION STRENGTH : 7.7KG.F BETWEEN JACK AND PLUG . OPERATING TEMPERATURE: -40 ℃～+85℃. STORAGE TEMPERATURE: -40°C~+85°C. ALL CRITICAL DIMENSIONS WITH "*" B J1 FRONT VIEW C ELECTRICAL: VOLTAGE: 125 VOLTS AC. CURRENT RATING : 1.5AMP. DIELECTRIC STRENGTH : 1000 VAC RMS 50HZ OR 60HZ,1 MIN. INSULATION RESISTANCE: 500 MEGA OHMS MIN. INITIAL AFTER 500V DC FOR 1 MINUTE. CONTACT RESISTANCE: SINGLE TERMINAL 30 MILLIOHMS MAX. INITIAL 50 MILLIOHMS MAX. AFTER DURABILITY TEST. RIGHT SIDE VIEW D PCB SIDE TO PHY 8 6 4 2 7 5 3 1 7 5 3 1 8 6 4 2 BOTTOM VIEW RECOMMENDED PCB LAYOUT VIEWED FROM COMPONENT SIDE E 3 4 6 7 8 J6 J7 J8 X. ± 0.30 X.° ± 5° UNITS ± 0.20 .X° ± 2° MAT'L .XX ± 0.10 .XX° ± 1° .XXX° ± 0.5° FINISH JACK SOCKET CONNNECTOR 2 J1 J2 J3 J4 J5 .X .XXX ± 0.05 1 1 2 3 4 5 Q'TY mm NAME(INTENDED USE) 5 D MINTRON CO.,LTD. PART NO.(INTENDED USE) TITLE: APPD: SUNNY DWG NO.: CHKD: LISA DR: ZOE 6 C CABLE SIDE J8 B 2006-11-28 7 RJ45 直通 55 无灯全塑 黑 MT5521IWA1DY1017 SCALE 1/1 SHEET 1/1 REV. A E
