SESRV05-4
Low Capacitance TVS Diode Array
DESCRIPTION
The SESRV05-4 is a dual USB port protection array that features ultra low capacitance. This device can
be used in applications such as video cards, SMART phones, Gigabit Ethernet and other computer interfaces.Designed for ESD protection,the SESRV05-4 can clamp the effects of electrical fast transients on
the power bus.
The SESRV05-4 combines 8 low capacitance steering diodes for up to four individual data or transmission lines and one TVS diode for power bus protection. This device is available in the space-saving SOT-23-6 package configuration, which minimizes lead inductance to prevent overshoot voltages during high
ESD current events. The SESRV05-4 meets the IEC 61000-4-2, 61000-4-2 and 61000-4-5 requirements.

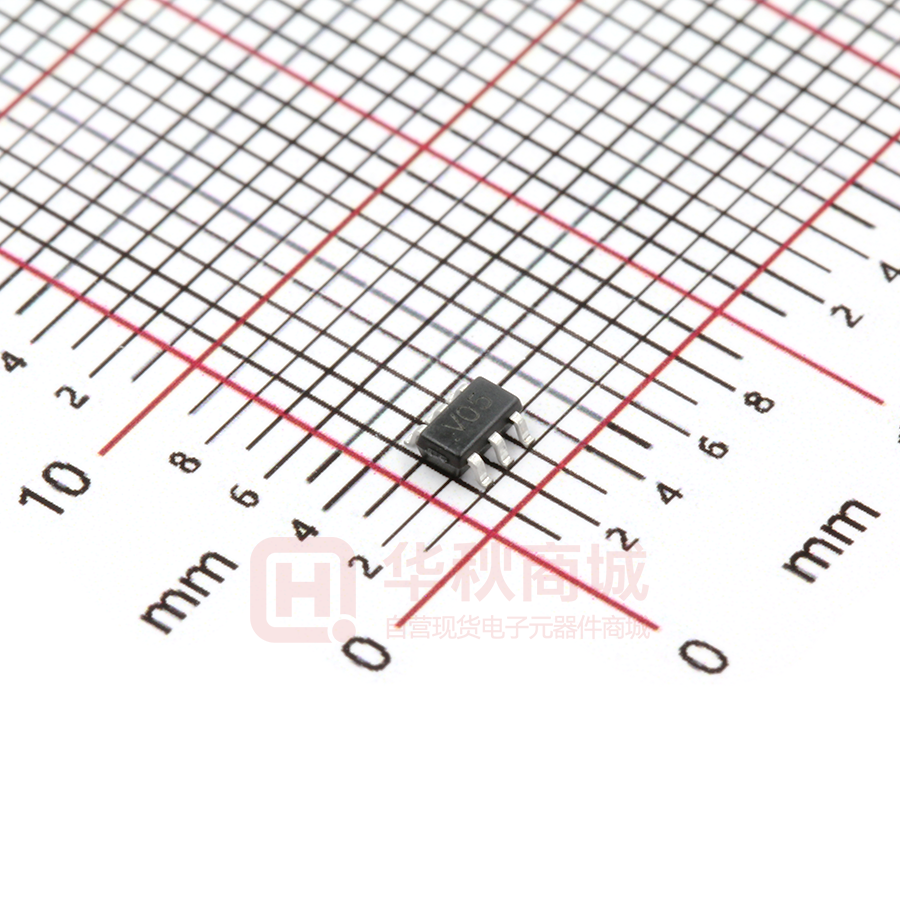

SOT-23-6 PACKAGE
FEATURES
>80 Watts peak pulse power(tp=8/20μs)
>Protects four I/O lines
>Low clamping voltage
>Small package: SOT23-6L
>Low leakage current
>Weight 16 Millgrams
PIN CONFIGURATIONS
APPLICATIONS
>USB 2.0 Power and Data Line Protection
>Video Graphics Cards
>Monitors and Flat Panel Displays
>Digit Video Interface (DVI)
>10/100/1000 Ethernet
>Notebook Computers
>ATM Interfaces
IEC COMPATIBILITY
>IEC 61000-4-2(ESD)±15KV(air),±8KV(contact)
>IEC61000-4-4 (EFT) 40A (5/50ns)
>IEC61000-4-5 (Lightning) 5A (8/20μs)
MAXIMUM RATINGS AND CHARACTERISTICS Rangs at 25°C ambient temperature unless otherwise specified.
MAXIMUM RATINGS @ 25°C UNLESS OTHERWISE SPECIFIED
SYMBOL
VALUE
UNIT
Peak Pulse Power (tp=8/20μs waveform)
P PP
80
Wa s
Operang Temperature Range
TJ
-55~125
°C
T STG
-55~150
°C
PARAMETER
Storage Temperature Range
ELECTRICAL CHARACTERISTICS
ELECTRICAL CHARACTERISTICS PER LINE @ 25°C UNLESS OTHERWISE SPECIFIED
PART
NUMBER
DEVICE
MARKING
V RWM
(V)
Max.
SESRV05-4
V05
5.0
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 1
VB
(V)
Min.
IT
(mA)
6.0
1
VC
@1A
Max.
Max.
12.5
17.5
@A
IR
(uA)
Max.
CT
I/O-GND
( pF)
Typ.
CT
I/O-I/O
( pF)
Typ.
5
1
0.8
0.4
VC
SESRV05-4
Low Capacitance TVS Diode Array
CHARACTERISTIC CURVES
120
tr
100
Test
Waveform
Parameters
t r =8us
t d =20us
Peak Value I pp
90
80
100%
Percent of Peak Pulse Current %
I PP -Peak Pulse Current - %of I PP
110
70
60
50
40
t d =t/( I PP /2)
30
20
10
0
0
5
10
15
20
25
30
8/20μs Pulse Waveform
Lead–free assembly
Temperature Min (Ts(min))
150°C
Temperature Max (Ts(max)
200°C
Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp ( T L ) to peak
3°C/second max
T S (max)to T L - Ramp-up Rate
3°C/second max
Temperature ( T L ) (Liquidus)
217°C
Time (min to max) (t L )
60 – 150 seconds
Reflow
Peak Temperature ( T P )
260°C
Time within 5°C of actual peak Temperature (tp)
20 – 40 seconds
Ramp-down Rate
6°C/second max
Time 25°C to peak Temperature ( T P )
8 minutes Max.
Do not exceed
260°C
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 2
Time(ns)
t r =0.7~1ns
30ns
ESD Pulse Waveform (according to IEC 61000-4-2)
REFLOW PROFILE
Pre Heat
10%
60ns
t-Time(μs)
Reflow Condion
90%
SESRV05-4
Low Capacitance TVS Diode Array
TYPICAL APPLICATIONS
Video Interface Protection
SIM Port
Dual USB Port Protection
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 3
SESRV05-4
Low Capacitance TVS Diode Array
TYPICAL APPLICATIONS
Digital Video Interface (DVI) Protection
10/100 Ethernet Differential Protection
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 4
SESRV05-4
Low Capacitance TVS Diode Array
TYPICAL APPLICATIONS
10/100 Ethernet Differential and Common Mode Protection
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 5
SESRV05-4
Low Capacitance TVS Diode Array
SOT-23-6 PACKAGE INFORMATION
D
OUTLINE DIMENSIONS
DIM
MILLIMETERS
E
INCHES
MIN
MAX
MIN
MAX
A
2.80
3.05
0.110
0.120
B
1.50
1.75
0.059
0.070
C
0.90
1.30
0.036
0.051
D
0.30
0.40
0.012
0.016
E
0.85
1.05
0.033
0.040
G
0.90
1.45
0.036
0.057
J
0.09
0.20
0.003
0.008
K
2.60
3.00
0.102
0.118
L
0.0
0.15
0.0
0.006
M
0.30
0.60
0.012
0.024
6
4
5
0° - 8°
K
1
3
2
L
J
M
B
A
C
G
RECOMMENDED PAD LAYOUT DIMENSIONS
PAD LAYOUT DIMENSIONS
B
MILLIMETERS
INCHES
NOMINAL
NOMINAL
A
0.70
0.028
B
1.90
0.074
C
0.95
0.037
D
2.40
0.094
E
1.00
0.039
DIM
C
E
D
A
ORDERING INFORMATION
Part Number
Component Package
QTY/Reel
Reel Size
SESRV05-4
SOT-23-6
3000PCS
7"
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 6
SESRV05-4
Low Capacitance TVS Diode Array
CONTACT US
Headquarters
A Building Caohejing I&E Park Pujiang Minhang Shanghai
China
Hotline
400-021-5756
Web
h p://www.semiware.com.cn
By Telephone
Sales: 86-21-3463-7345
Customer Service: 86-21-3463-7172-8810/8826
Technical Support: 86-21-3463-7173-8811
By Email
Sales: sales03@semiware.com.cn
Customer Service: sales17@semiware.com.cn
Technical Support: fae03@semiware.com.cn
By Fax
General: 86-21-3965-0654
Sales: 86-21-3463-7458
COPYRIGHT ©Semiware 2009 - This literature is subject to all applicable copyright laws and is not for resale in any manner.
SPECIFICATIONS: Semiware reserves the right to change the electrical and or mechanical characteriscs described herein without noce.
DESIGN CHANGES : Semiware reserves the right to disconnue product lines without noce and that the final judgement concerning selecon and specificaons is the buyer’s and that in furnishing engineering and technical assistance.
Semiware assumes no responsibility with respect to the selecon or specificaons of such products.Semiware makes no warranty,representaon or guarantee regarding the suitability of its products for any parcular purpose,
nor does Semiware assume any liability arising out of the applicaon or use of any product or circuit and specifically disclaims any and all liability without limitaon special,consequenal or incidental damages.
LIFE SUPPORT POLICY: Semiware products are not authorized for use in life support systems without wri en consent from the factory.
Product Datasheet/Rev.H20161025A1
H p://www.semiware.com.cn
Page 7
