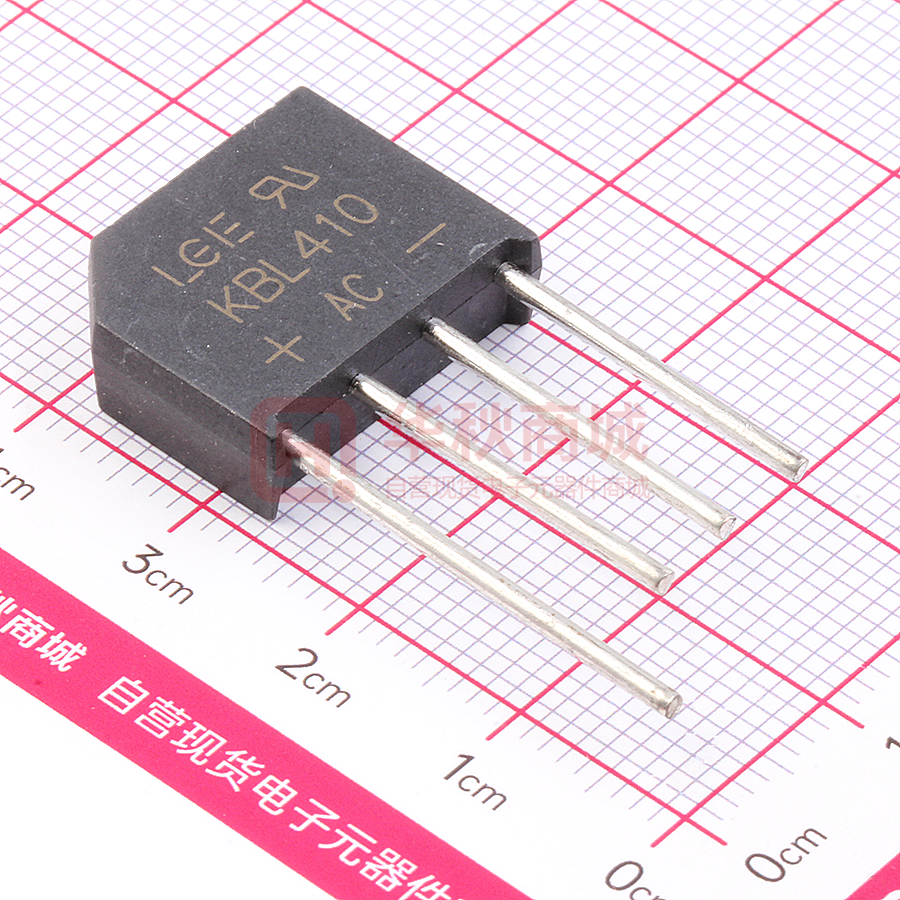

KBL410

KBL4005-KBL410 Silicon Bridge Rectifiers KBL FEATURES Dim Min Max A 18.85 19.25 B 15.70 16.10 Rating to 1000V PRV B1 14.65 15.05 C 5.90 6.30 z Surge overload rating to 150 Amperes peak C1 3.95 4.25 E Ø1.20 z Ideal for printed circuit board z Reliable low cost construction utilizing molded z F F1 4.00min K plastic technique results in inexpensive product z Ø1.40 19.00min 4.70 5.30 All Dimensions in mm Lead solderable per MIL-STD-202 method 208 Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol KBL KBL KBL KBL KBL KBL KBL KBL 4005 401 402 403 404 406 408 410 UNITS Maximum recurrent peak reverse voltage VRRM 50 100 200 300 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 210 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 300 400 600 800 1000 V Maximum average forward Output current @TA=50℃ IF(AV) 4.0 A IFSM 150 A I²t 93 A²S Peak forward surge current 8.3ms single half-sine-wave superimposed on rated load I²t Rating for fusing @Tj=25℃ Thermal Characteristics Characteristic Symbol Typical thermal resistance Operating junction temperature range Storage temperature range KBL KBL KBL KBL KBL KBL KBL KBL 4005 401 402 403 404 406 408 410 RθJ A RθJC 19 Rθ JL 2.4 0.8 UNITS ℃/W TJ - 55 ---- + 150 ℃ TSTG - 55 ---- + 150 ℃ Electrical Characteristics (@TA = 25°C unless otherwise specified) Characteristic Symbol Maximum instantaneous forward voltage @2.0A VF KBL KBL KBL KBL KBL KBL KBL 4005 401 402 403 404 406 408 410 1.0 UNITS V 1.1 @4.0A Maximum KBL reverse current @TA=25℃ at rated DC blocking voltage @TA=100℃ Revision:20170701-P1 IR ht t p : // 10 μA 1.0 mA www.lgesemi .c o m mail:lge@lgesemi.com KBL4005-KBL410 Silicon Bridge Rectifiers RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) FIG. 2 TYPICAL REVERSE CHARACTERISTICS FIG.1 FORWARD CURRENT DERATING CURVE 100 AVERAGE FORWARD A CURRENT (A) 4 3 2 RESISTIVE OR INDUCTIVELOAD WITH HEATSINK 1 0 0 20 40 60 80 100 120 AMBIENT TEMPERATURE 140 160 (oC) INSTANTANEOUS REVERSE CURRENT (μA) 5 10 TJ=125℃ 1 TJ=25℃ 0.1 0 20 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) FIG. 3 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 250 FIG. 4 TYPICAL FORWARD CHARACTERISTICS 225 10 200 175 150 125 100 75 50 25 0 1 10 100 1000 NUMBER OF CYCLES AT 60 Hz INSTANTANEOUS FORWARD CURRENT (A) PEAK FORWARD SURGE CURRENT (A) 40 1 0.1 0.4 0.6 0.8 1 1.2 1.4 1.6 FORWARD VOLTAGE (V) Revision:20170701-P1 Device Package Shipping KBL4005--KBL410 KBL 500 Units/Box ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com
