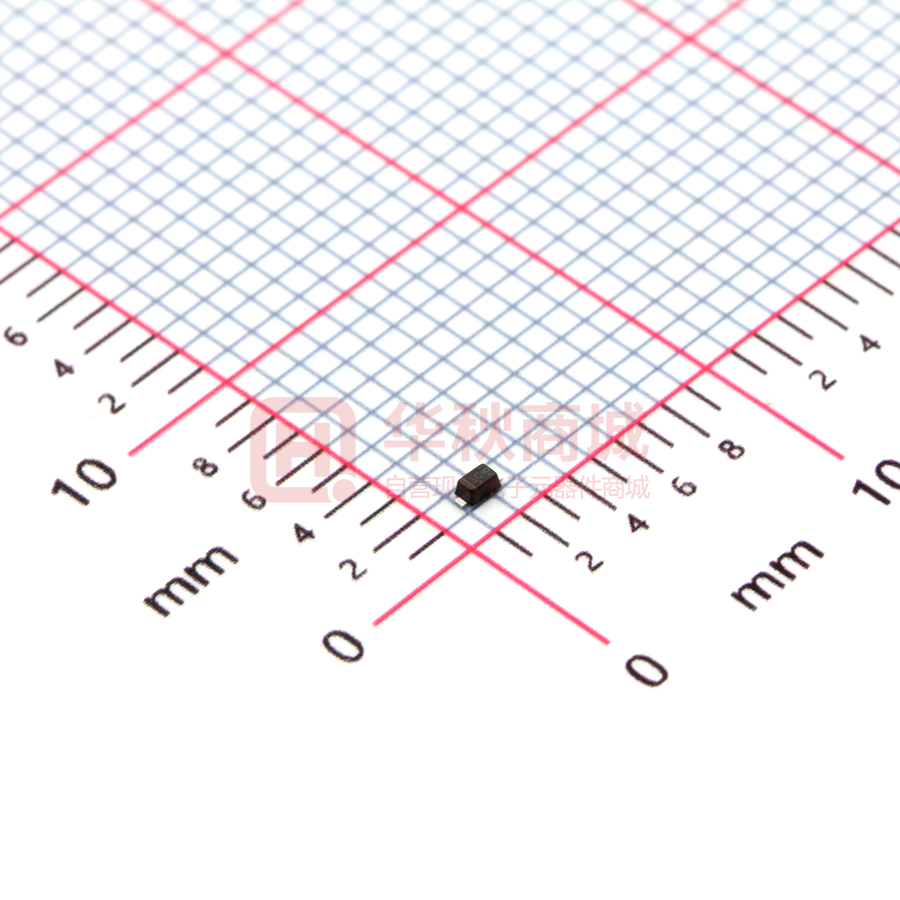

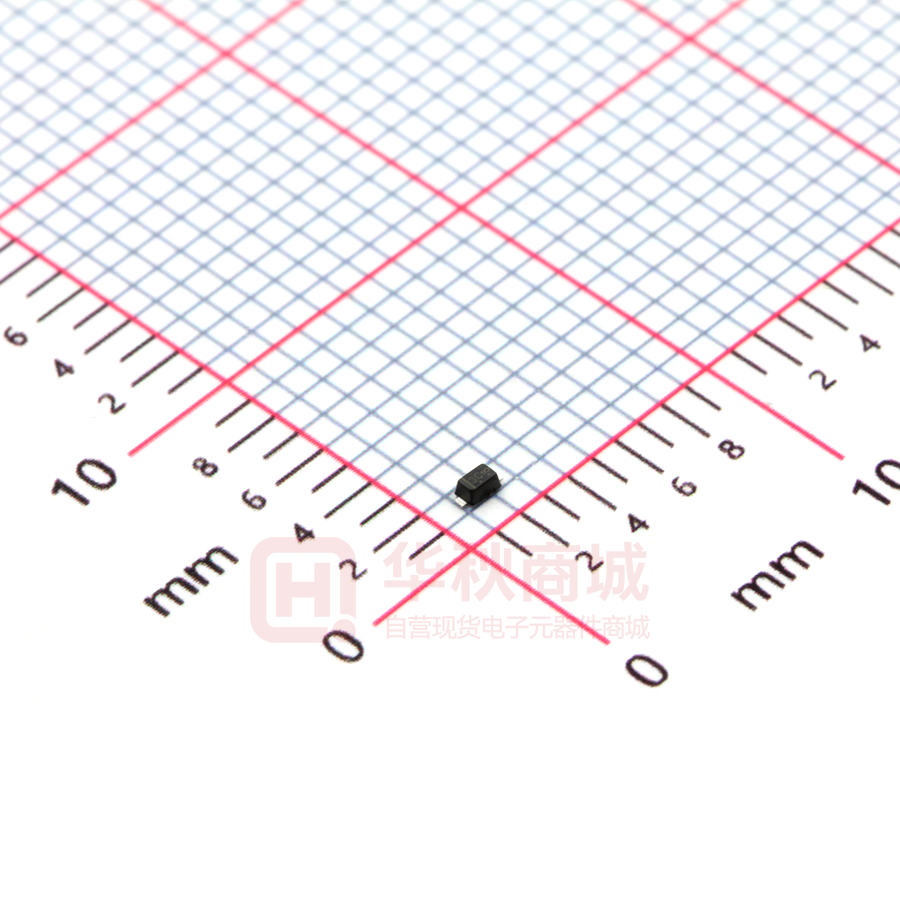

ESD5Z3.3C

(6'=3.3C 7UDQVLHQW9oOWDJH 6XSSUeVVRUVfor ESD protection 62'3ODVWLF(QFDSVXODWH(6'3URWHFWLRQDLRGHV DESCRIPTION The ESD5Z3.3C is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients). Features  IEC61000-4-2 ( ESD) ± 30KV (Air) ± 30KV(contact)  IEC61000-4-4 ( EFT) 40A (5/50ns)  Peak power dissipation: 60W (8/20us)  Protects one directional I/O line  Low clamping voltage  Working voltages : 3.3V  Low leakage current 3in Configuration &LUFXLW'LDJUDP 2 1 0DUNLQJ Applications        High Speed Line :USB1.0/2.0, VGA, DVI, SDI, Serial and Parallel Ports Notebooks, Desktops, and Servers Cellular handsets and accessories Portable Instrumentation Projection TV Peripherals Mechanical Characteristics  Package: SOD-523  Flammability Rating: UL 94V-0  Terminals: Gold plated, solderable per MIL-STD-750, method 2026  Packaging: Tape and Reel Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit VESD ± 30 ± 30 KV Peak Pulse Power (8/20μs) PPP 60 W Operating Temperature TOPT −40 to +150 °C Storage Temperature TSTG −40 to +150 °C ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) The above data above is for reference only. http://www.microdiode.com Rev:2024A2 Page :1 (6'=3.3C 7UDQVLHQW9oOWDJH 6XSSUeVVRUVfor ESD protection Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Parameter Test Condition Min Typ Max Units 3.3 V IR Reverse Working Voltage Reverse Breakdown Voltage Reverse Leakage Current VRWM = 3.3V 1.0 μA VC Clamping Voltage IPP = 1A, tp = 8/20μs 6.5 V VC Clamping Voltage IPPmax = 5A , tp = 8/20μs 12.0 V VCTLP TLP Clamping Voltage IPP = 16A IEC61000-4-2 Level 4 equivalent (±8kV Contact, ±15kV Air) CJ Junction Capacitance VR = 0V, f = 1MHz VRWM VBR IT = 1mA 3.6 V 9 V 16.5 pF The above data are for reference only. http://www.microdiode.com Rev:2024A2 Page :2 (6'=3.3C 7UDQVLHQW9oOWDJH 6XSSUeVVRUVfor ESD protection ELECTRICAL CHARACTERISTICS CURVE The above data are for reference only. http://www.microdiode.com Rev:2024A2 Page :3 (6'=3.3C 7UDQVLHQW9oOWDJH 6XSSUeVVRUVfor ESD protection Outlitne Drawing SOD-523 Package Outline Dimensions 6\PERO A A1 b c D E E1 E2 L Κ 'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF 'LPHQVLRQV,Q,QFKHV 0D[ 0LQ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOD-523 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) 178 3000 183×188×80 7' http://www.microdiode.com QTY/Box (pcs) 18,000 Carton Size (mm) Q'TY/Carton (pcs) 386×265×215 108,000 Rev:2024A2 Page :4
