ESD5Z24

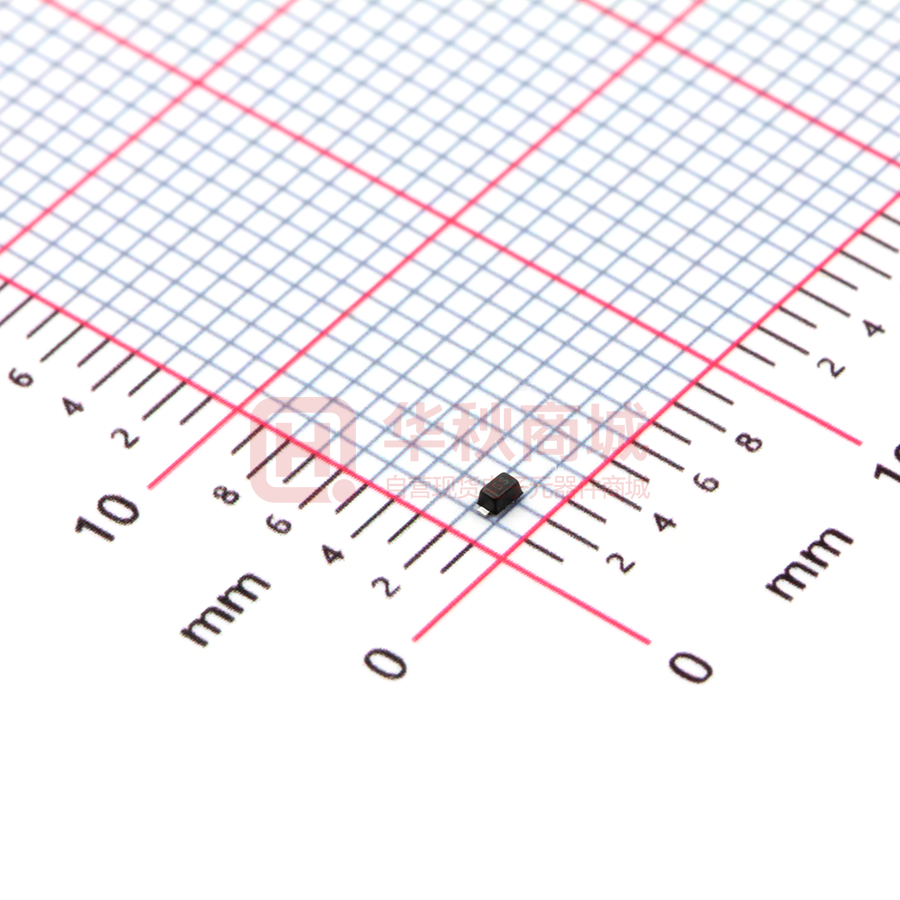

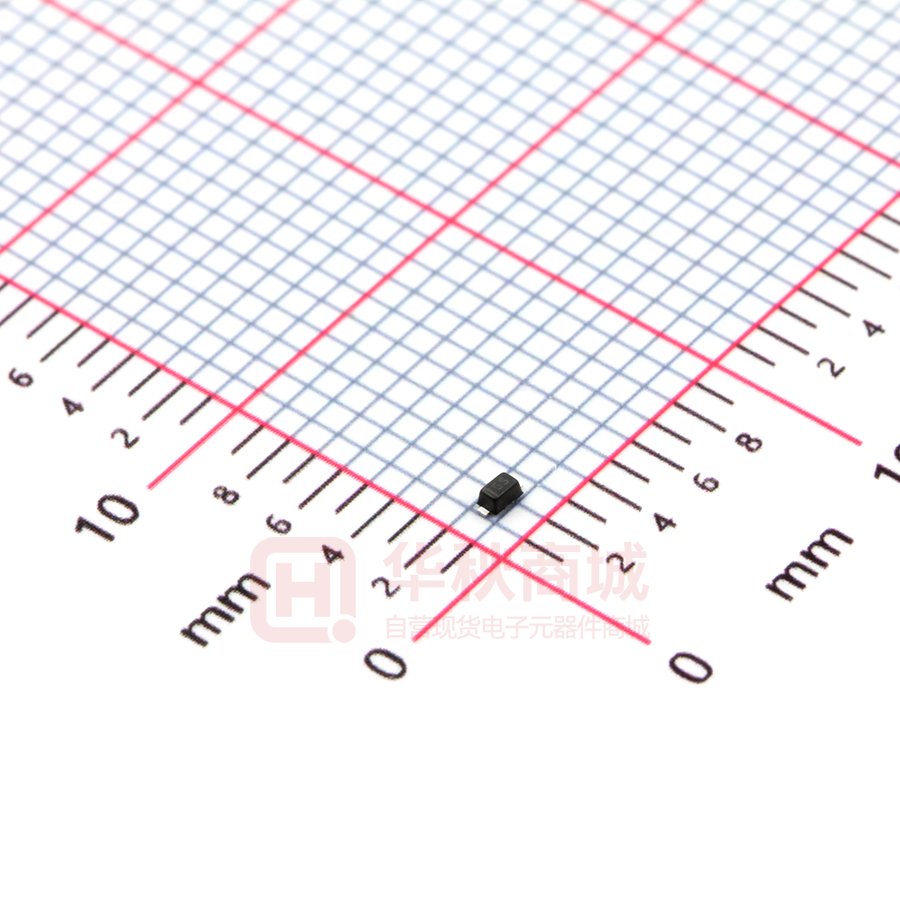

(6'= 7UDQVLHQW9oOWDJH 6XSSUeVVRUV 62'3ODVWLF(QFDSVXODWH(6'3URWHFWLRQDLRGHV DESCRIPTION The ESD5Z24 is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications. Features      3in Configuration IEC61000-4-2 Level 4 ESD Protection Protects one directional I/O line Low clamping voltage Working voltages : 24V Low leakage current &LUFXLW'LDJUDP 0DUNLQJ 6 Applications       Microprocessor based equipment Personal Digital Assistants (PDA’s) Notebooks, Desktops, and Servers Portable Instrumentation Peripherals Pagers 2 1 Mechanical Characteristics  Package: SOD-523  Flammability Rating: UL 94V-0  High temperature soldering guaranted: 260℃/10s  Packaging: Tape and Reel Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit VESD ± 15 ±8 KV Total Power Dissipation on FR-5 Board (Note 1) @ Ta=25°C PD 150 mW Operating Temperature TOPT −55 to +125 °C Storage Temperature TSTG −55 to +150 °C TL 260(10S) °C ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Lead Solder Temperature – Maximum (10 Second Duration) hese ratings are limiting values above which the serviceability of the diode may be impaired 1RWH1.FR-5=1.0x0.75x0.62 in 2.The above data above is for reference only. DN:T20317A0 http://www.microdiode.com Rev:2024A1 Page :1 ESD5Z24 Transient Voltage Suppressors Electrical Characteristics (TA=25°C unless otherwise specified) Symbol bol Param Test Condition Min Typ Max Units 24 V VRWM Reverse Working Voltage VBR Reverse Breakdown Voltage IT = 1mA IR Reverse Leakage Current VRWM = 24V 5 μA VC Clamping Voltage IPP = 1A, tp = 8/20μs 35 V CJ Junction Capacitance VR = 0V, f = 1MHz 50 pF 26 V The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :2 ESD5Z24 Transient Voltage Suppressors ELECTRICAL CHARACTERISTICS CURVE The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :3 ESD5Z24 Transient Voltage Suppressors Outlitne Drawing SOD-523 Package Outline Dimensions 6\PERO A A1 b c D E E1 E2 L Κ 'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF 'LPHQVLRQV,Q,QFKHV 0D[ 0LQ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOD-523 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) 178 3000 183×188×80 7' http://www.microdiode.com QTY/Box (pcs) 18,000 Carton Size (mm) Q'TY/Carton (pcs) 386×265×215 108,000 Rev:2024A1 Page :4
