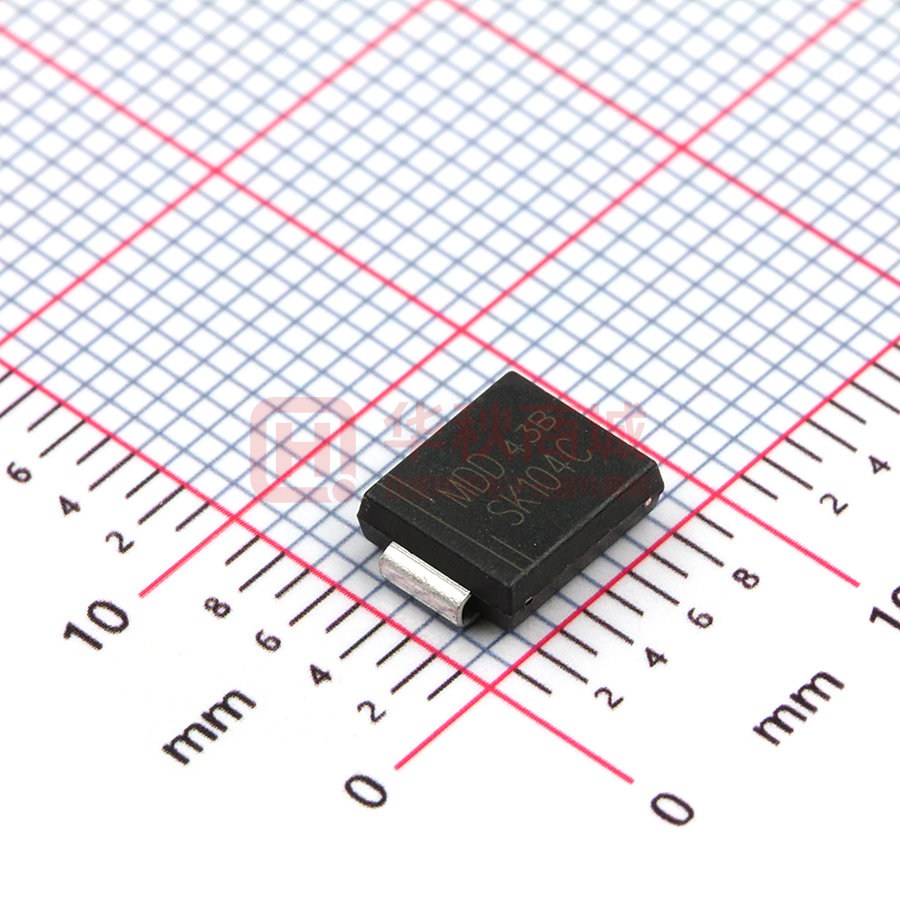

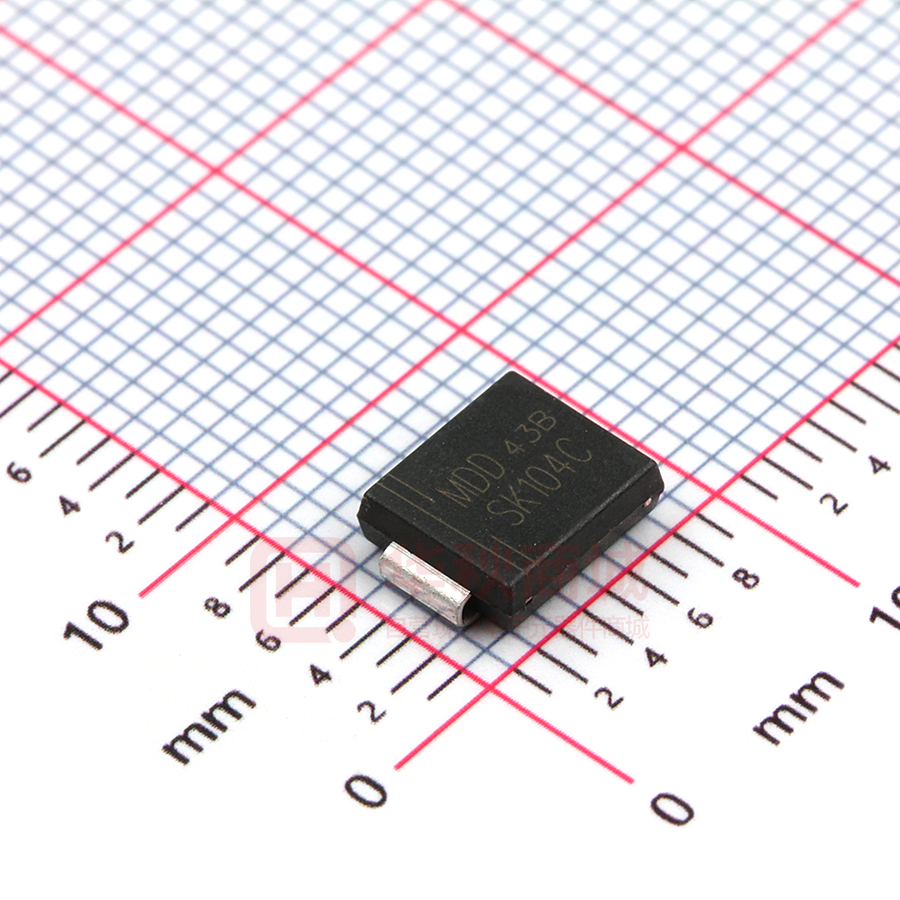

SK104C

SK102C THRU SK1010C Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90)  Built-in strain relief,ideal for automated placement 0.280(7.11) 0.260(6.60)  High forward surge current capability  High temperature soldering guaranteed: 0.012(0.305) 0.006(0.152) 250 °C/10 seconds at terminals 0.103(2.62) 0.079(2.06) 0.060(1.52) 0.030(0.76) Mechanical Data 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Case: JEDEC DO-214AB/SMC molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight : 0.007 ounce, 0.25 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) VRRM VRMS VDC MDD MDD MDD MDD MDD MDD SK102C SK103C SK1035C SK104C SK1045C SK106C 20 14 20 30 21 30 35 24.5 35 40 28 40 45 31.5 45 60 42 60 MDD SK108C 80 56 80 MDD SK1010C UNITS 100 70 100 V V V I(AV) 10.0 A IFSM 250 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 10.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range VF IR 0.65 0.85 V 1.0 mA CJ 20 500 RJA 18.0 ℃/W TJ -50 to +150 ℃ TSTG -50 to +150 ℃ pF Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas DN:T22214A1 http://www.microdiode.com Rev:2022A1 Page :1 SK102C THRU SK1010C Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere Typical Characterisitics Figure 1 Typical Forward Characteristics 100 Figure 2 Forward Derating Curve 600 12 400 10 200 100 8.0 60 6.0 40 Amps SK102C-SK1045C 20 4.0 SK105C-SK1010C Amps 10 2.0 Single Phase, Half Wave 60Hz Resistive or Inductive Load 6 4 0 60 80 100 2 120 140 160 180 °C 25°C Average Forward Rectified Current - Amperes versus 1 Lead Temperature - C .6 .4 .2 .1 .2 .4 .6 .8 1.0 1.4 1.2 Volts Instantaneous Forward Current - Amperes versus Instantaneous Forward Voltage - Volts Figure 3 Junction Capacitance 100 600 400 200 pF TJ=25°C 100 60 40 20 10 .1 .2 .4 1 2 4 10 20 40 100 200 400 1000 Volts Junction Capacitance - pF versus The curve above is for reference only. http://www.microdiode.com Rev:2022A1 Page :2 SK102C THRU SK1010C Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere Typical Characterisitics Figure 4 Typical Reverse Characteristics Figure 5 Peak Forward Surge Current 600 10 500 6 4 400 2 300 100°C Amps 1 200 .6 100 .4 mAmps 0 .2 1 2 4 6 8 10 20 40 60 80 100 75°C mAmps Cycles .1 Peak Forward Surge Current - Amperes versus Number Of .06 Cycles At 60Hz - Cycles .04 .02 25°C SK102C-SK1045C SK105C-SK1010C .01 .006 .004 .002 .001 20 40 60 80 100 120 140 Volts Instantaneous Reverse Leakage Current - MicroAmperes versus Percent Of Rated Peak Reverse Voltage - Volts The curve above is for reference only. http://www.microdiode.com Rev:2022A1 Page :3 SK102C THRU SK1010C Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere Packing information unit:mm P0 P1 Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 d E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 BOX (pcs) 6000 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 CARTON SIZE (mm) CARTON (pcs) 365*365*340 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Unit (inch) Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Rev:2022A1 Page :4
