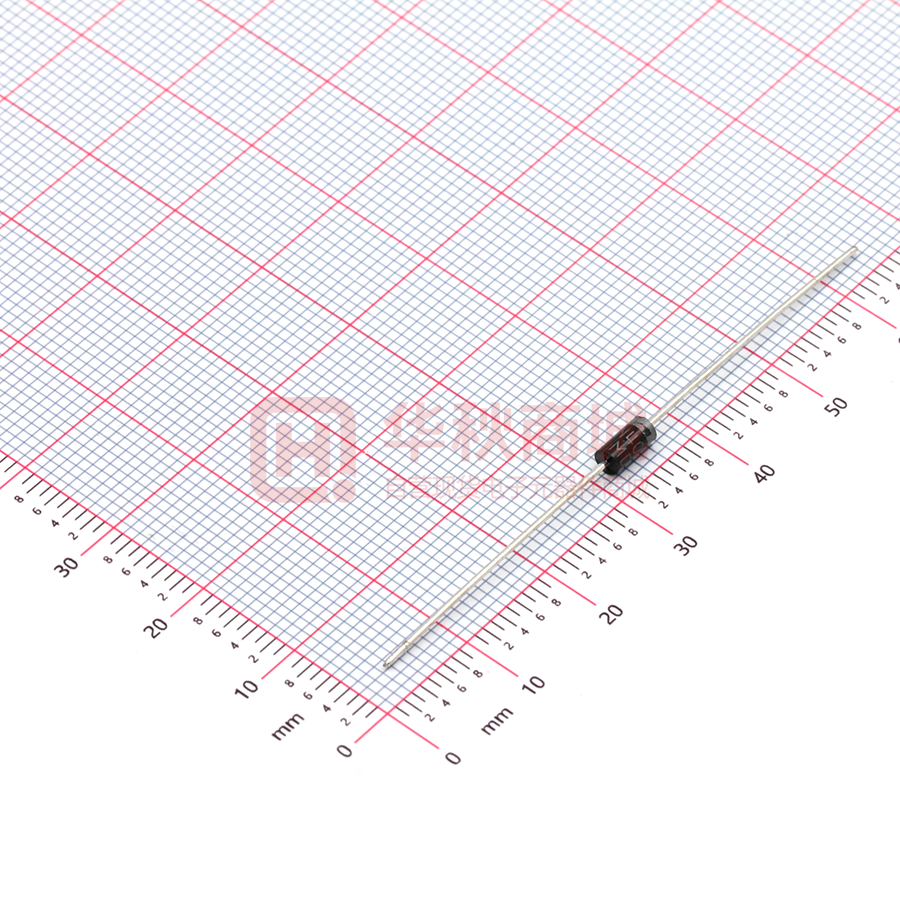

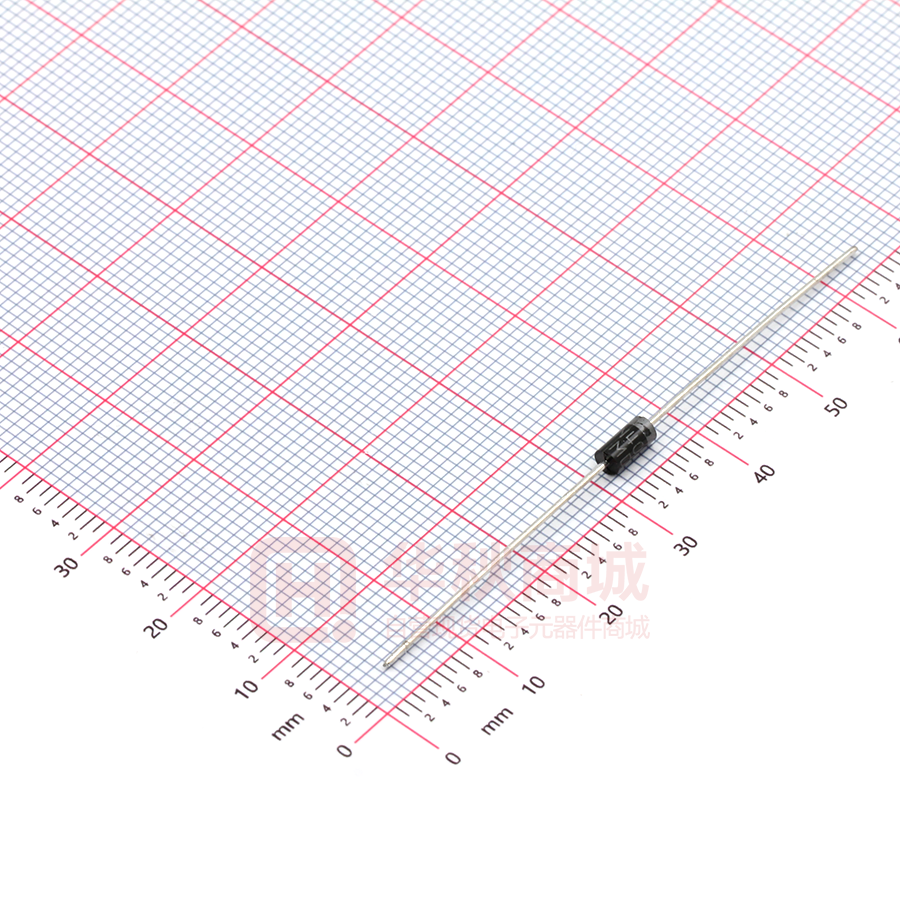

1N4007G

1N4001G THRU 1N4007G Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere GLASS PASSIVATED RECTIFIER Features DO-41/A-405  Flammability Classification 94V-0  Construction utilizes void-free molded plastic technique  Low reverse leakage  Glass passivated junction 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.3) DIA.  High forward surge current capability  High temperature soldering guaranteed 250℃/ 10 seconds at terminals 0.205(5.2) 0.166(4.2) Mechanical Data 1.0 (25.4) MIN. Case : JEDEC DO-41 Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Color band denotes cathode end Mounting Position : Any Weight : 0.012 ounce, 0.33 grams 0.025 (0.65) 0.021 (0.55) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=110℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) MDD MDD MDD MDD MDD MDD MDD 1N4001G 1N4002G 1N4003G 1N4004G 1N4005G 1N4006G 1N4007G VRMM 50 VRMS VDC 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 1.0 A IFSM 30 A Maximum instantaneous forward voltage at 1.0A VF V Maximum DC reverse current at rated DC blocking voltage IR 1.10 5.0 50.0 TA=25℃ TA=100℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range μA CJ RθJA 15.0 pF 50.0 TJ,TSTG -65 to +150 ℃/W ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to ambient at 0.375 (9.5mm)lead ” length,P.C.B. mounted http://www.microdiode.com Rev:2024A2 Page :1 1N4001G THRU 1N4007G Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 1.0 0.8 0.6 Single Phase Half Wave 60Hz Resistive or inductive Load 0.4 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 25 20 15 10 175 5.0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 10 1 AMBIENT TEMPERATURE, C 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.01 0.6 0.8 1.0 1.2 1.4 1.5 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 1,000 100 TJ=100 C 1 0.1 TJ=25 C 0.01 0 20 40 60 80 100 200 TJ=25 C 10 TRANSIENT THERMAL IMPEDANCE, C/W PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=150 C 10 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 100 100 NUMBER OF CYCLES AT 60 Hz FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 1 0.1 1.0 10 REVERSE VOLTAGE,VOLTS 100 t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2
