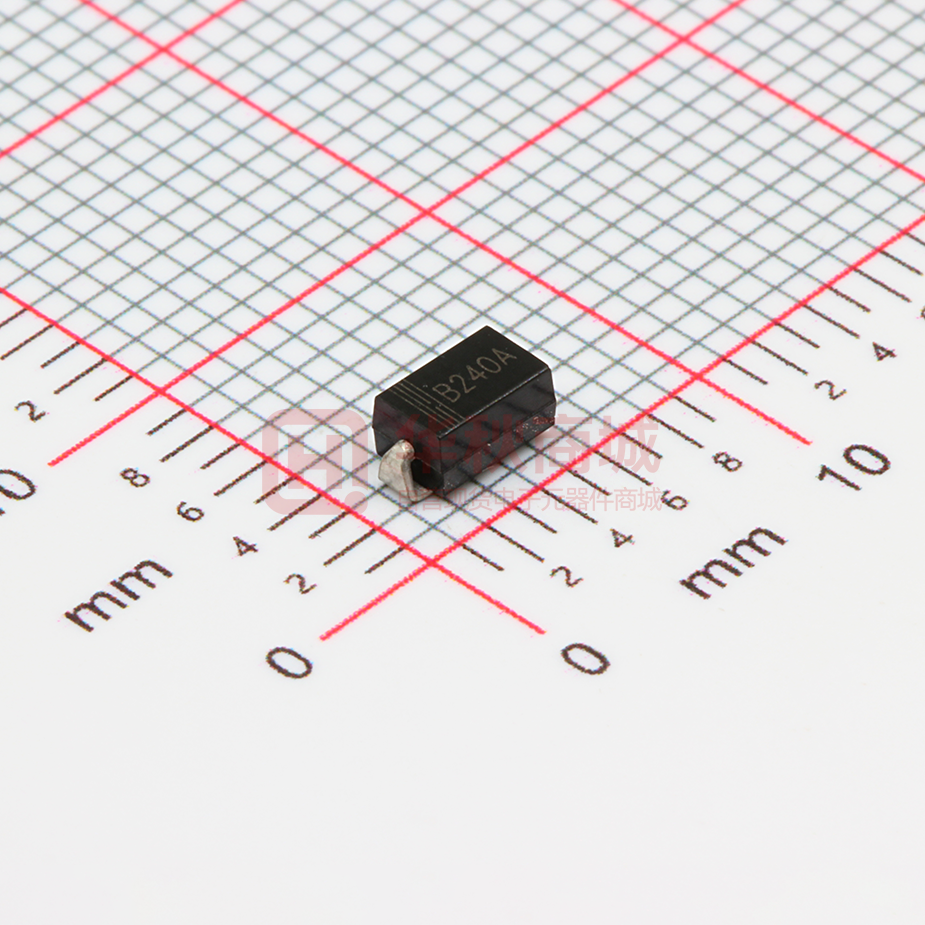

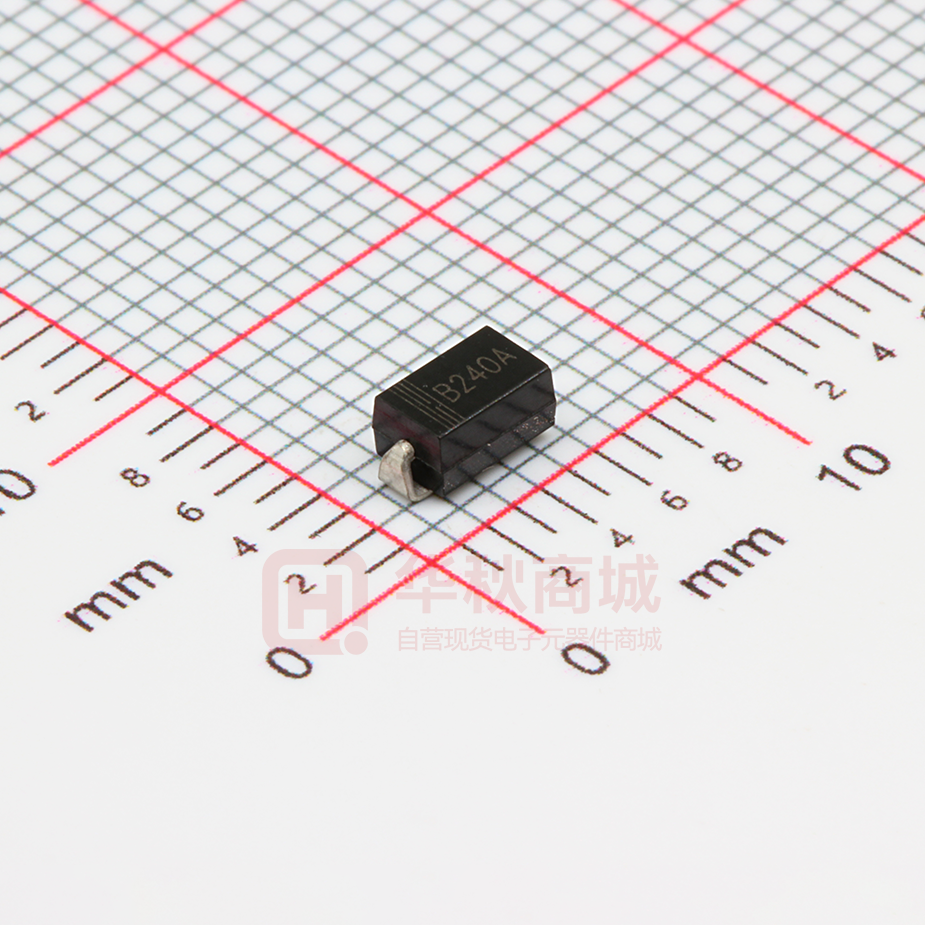

B240A

B220A THRU B2100A Reverse Voltage - 20 to 100 Volts Forward Current - 2.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features DO-214AC/SMA  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0     For surface mounted applications Ultra fast switching for high efficiency 0.110(2.80) 0.094(2.40) 0.067 (1.70) 0.051 (1.30) Low reverse leakage Built-in strain relief,ideal for automated placement  High forward surge current capability 0.177(4.50) 0.157(3.99)  High temperature soldering guaranteed 0.012(0.305) 0.006(0.152) 250 °C/10 seconds at terminals 0.096(2.42) 0.078(1.98) Mechanical Data 0.060(1.52) 0.030(0.76) Case : JEDEC DO-214AC/SMA Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002 ounce, 0.07 grams 0.008(0.203)MAX. 0.208(5.30) 0.188(4.80) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MDD B220A MDD B230A VRRM 20 14 20 30 21 30 Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=55℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=100℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range VRMS VDC MDD B240A 40 28 40 MDD B250A MDD B260A 50 35 50 60 42 60 MDD MDD B280A B2100A 80 56 80 100 70 100 UNITS V V V I(AV) 2.0 A IFSM 50.0 A VF 0.55 IR CJ 0.70 0.5 0.85 10 5.0 220 180 V mA ns pF RJA 75.0 ℃/W TJ,TSTG -50 to +150 ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas http://www.microdiode.com Rev:2024A1 Page :1 B220A THRU B2100A Reverse Voltage - 20 to 100 Volts Forward Current - 2.0 Ampere Ratings And Characteristic Curves PEAK FORWARD SURGE CURRENT, 2.0 1.6 Single Phase Half Wave 60Hz Resistive or inductive Load 1.2 0.8 B220A-B260A B280A-B2100A 0.4 0 0 25 50 75 FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 125 150 50 40 AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE 30 20 10 175 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C 100 NUMBER OF CYCLES AT 60 Hz FIG. 4-TYPICAL REVERSE CHARACTERISTICS FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 50 100 1 B220A-B240A B250A-B260A B280A-B2100A 0.1 10 TJ=100 C MILLIAMPERES INSTANTANEOUS REVERSE CURRENT, 10.0 CURRENT,AMPERES INSTANTANEOUS FORWARD TJ=25 C 1 TJ=75 C 0.1 0.01 TJ=25 C 0.001 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 100 B220A-B240A B250A-B2100A 100 10 C/W JUNCTION CAPACITANCE, pF 1000 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE TRANSIENT THERMAL IMPEDANCE, FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 1 0.1 0.01 0.1 1 10 100 10 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS t,PULSE DURATION,sec. The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :2 B220A THRU B2100A Reverse Voltage - 20 to 100 Volts Forward Current -2.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SMA A B C d D D1 D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 2.80 5.33 2.36 1.50 330.00 50.00 178.00 62.00 13.00 1.75 5.50 4.00 4.00 2.00 0.28 12.00 18.00 E Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width F B A W P D2 D1 T C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMA REEL SIZE 7" APPROX. GROSS WEIGHT (kg) REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) 2,000 4.0 4,000 183*155*183 178 382*356*392 80,000 16.0 10,000 290*290*38 330 310*310*360 80,000 11.0 15,000 335*335*38 330 350*330*360 120,000 14.5 SMA 11" 5,000 4.0 SMA 13" 7,500 4.0 CARTON SIZE (m/m) CARTON (pcs) Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) Unit (inch) A 1.68 0.066 B 1.52 0.060 C 3.93 0.154 D 2.41 0.095 E 5.45 0.215 Rev:2024A1 Page :3
