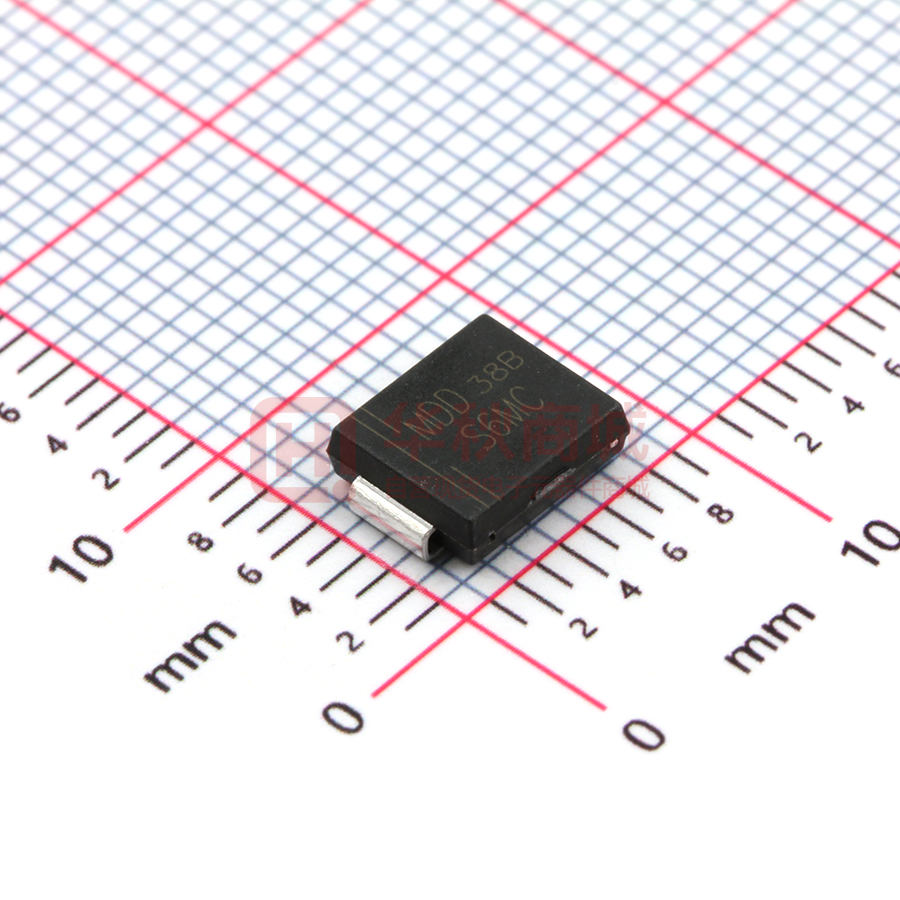

S6MC

S6AC THRU S6MC Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90)  Low reverse leakage  Built-in strain relief,ideal for automated placement  High forward surge current capability 0.280(7.11) 0.260(6.60)  High temperature soldering guaranteed: 250 °C/10 seconds at terminals 0.012(0.305) 0.006(0.152) 0.103(2.62) 0.079(2.06) Mechanical Data 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Case: JEDEC DO-214AB/SMC molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position: Any Weight : 0.0007 ounce, 0.25 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=75℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 6.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) VRRM VRMS VDC S6AC S6BC S6DC S6GC S6JC S6KC S6MC MDD S6AC MDD S6BC MDD S6DC MDD S6GC MDD S6JC MDD S6KC MDD S6MC 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 6.0 A IFSM 200 A VF 1.2 10 100.0 V IR CJ RJA Operating junction and storage temperature range TJ,TSTG μA 60.0 pF 10.0 ℃/W -55 to +150 ℃ *Pulse test: Pulse width 200 sec, Duty cycle 2% Note: 1. High Temperature Solder Exemptions Applied, see EU Directive Annex 7. DN:T20825A0 http://www.microdiode.com Rev:2020A1 Page :1 S6AC THRU S6MC Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere Typical Characterisitics Figure 1 Typical Forward Characteristics 100 Figure 2 Forward Derating Curve 60 12 40 10 20 10 8 6 6 4 Amps 2 4 25C Amps 1 2 Single Phase, Half Wave 60Hz Resistive or Inductive Load .6 .4 0 40 60 80 100 120 140 160 .2 C .1 Average Forward Rectified Current - Amperes versus Case Temperature - C .06 .04 .02 .01 .5 .9 .7 1.1 1.3 1.7 1.5 Volts Instantaneous Forward Current - Amperes versus Instantaneous Forward Voltage - Volts Figure 3 Junction Capacitance 1000 600 400 200 pF TJ=25C 100 60 40 20 10 .1 .2 .4 1 Volts 2 4 10 20 40 100 200 400 1000 Junction Capacitance - pF versus Reverse Voltage - Volts The curve above is for reference only. http://www.microdiode.com Rev:2020A1 Page :2 S6AC THRU S6MC Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere Typical Characterisitics Figure 4 Typical Reverse Characteristics 1000 600 400 Figure 5 Peak Forward Surge Current 300 200 250 100 200 60 150 40 Amps 100 20 50 Amps 10 0 6 1 2 4 6 8 10 20 40 60 80 100 Cycles 4 Peak Forward Surge Current - Amperes versus Number Of Cycles At 60Hz - Cycles 2 1 .6 .4 TA=25C .2 .1 20 40 60 80 100 120 140 Volts Instantaneous Reverse Leakage Current - MicroAmperes versus Percent Of Rated Peak Reverse Voltage - Volts The curve above is for reference only. http://www.microdiode.com Rev:2020A1 Page :3 S6AC THRU S6MC Reverse Voltage - 50 to 1000 Volts Forward Current - 6.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 E F B A W P D2 D1 T C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 BOX (pcs) 6000 CARTON SIZE (mm) 365*365*340 CARTON (pcs) 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Unit (inch) Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2020A1 Page :4
