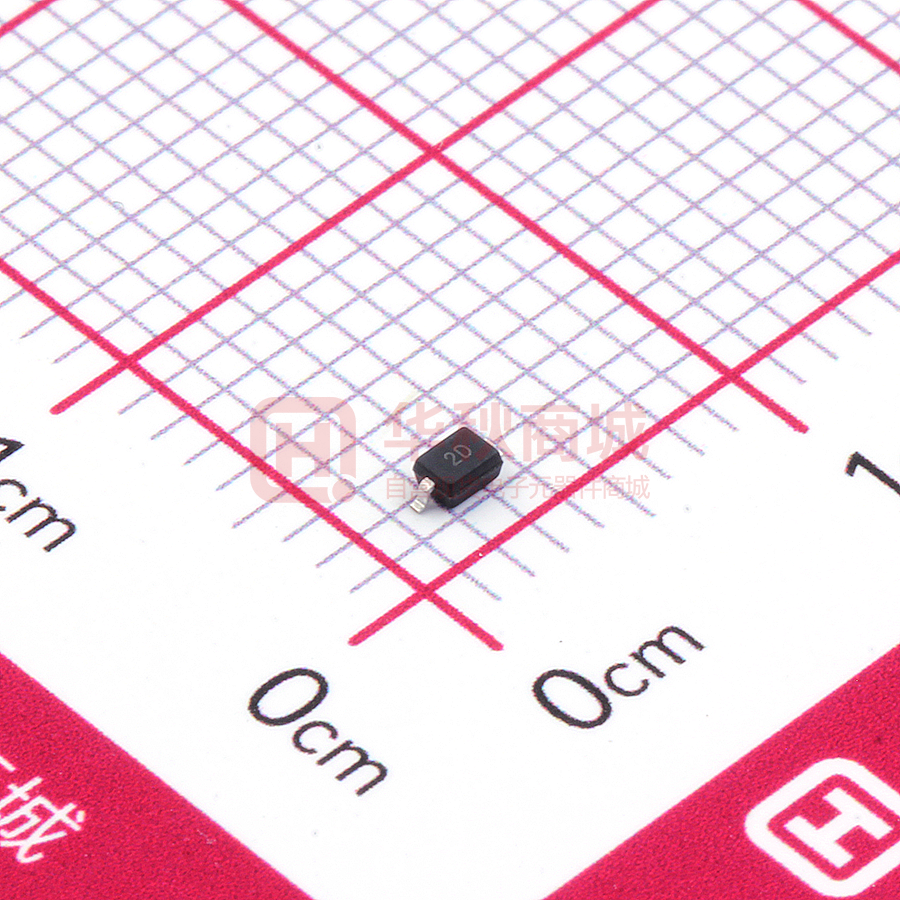

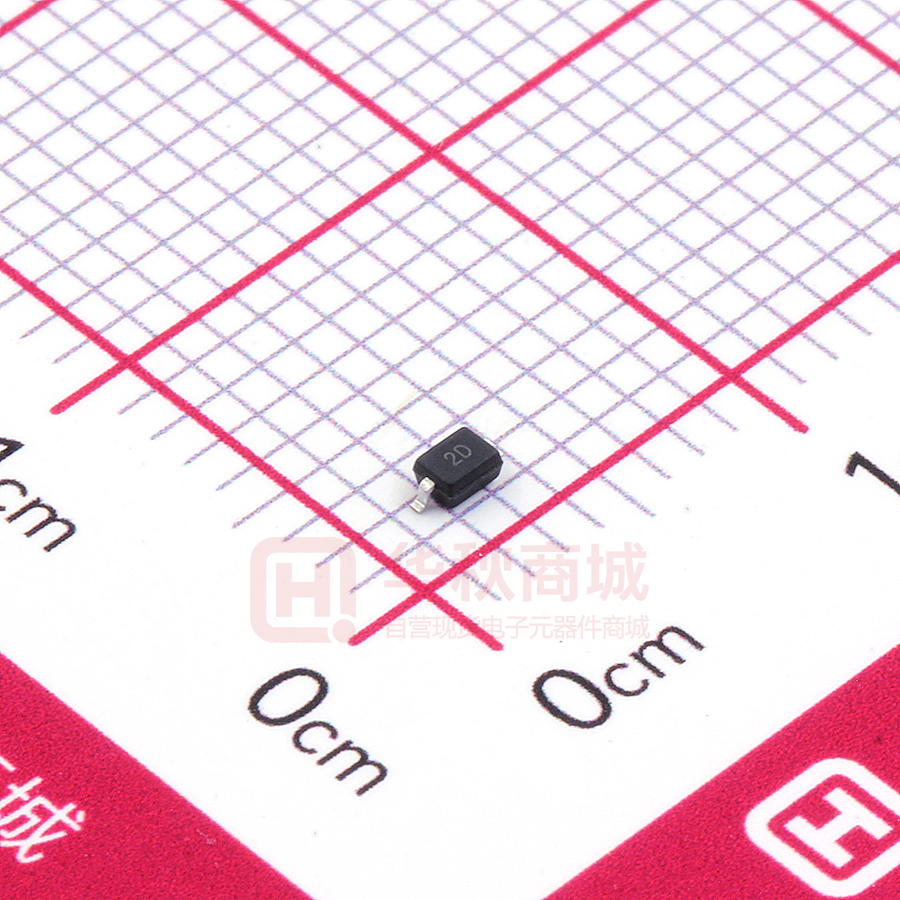

SD12C

SDxxC Series Bi-directional TVS Diodes SOD-323 Plastic-Encapsulate ESD Protection Diodes DESCRIPTION The SDxxC Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive components which are connected to power,data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients). Features Pin Configuration  350 Watts Peak Pulse Power per (8/20μs)  IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)  Protects one I/O line (bidirectional)  Low clamping voltage  Low leakage current  Working voltages : 3V, 5V, 8V, 12V, 15V, 18V， 20V，24V，36V Circuit Diagram 1  Meets MSL 1 Requirements Applications         Cell Phone Handsets and Accessories Microprocessor based equipment Personal Digital Assistants (PDA’s) Notebooks, Desktops, and Servers Portable Instrumentation Networking and Telecom Serial and Parallel Ports Peripherals 2 Mechanical Characteristics  Package: SOD-323  Flammability Rating: UL 94V-0  Terminal: Matte tin plated.  High temperature soldering guaranted: 260℃/10s  Packaging: Tape and Reel Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit VESD ± 30 ± 30 KV Peak Pulse Power(tp=8/20us waveform) PPP 350 W Operating Temperature TOPT −55 to +150 °C Storage Temperature TSTG −55 to +150 °C TL 260(10 sec.) °C ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Lead Solder Temperature – Maximum (10 Second Duration) The above data are for reference only. http://www.microdiode.com Rev:2024A3 Page :1 SDxxC Series Bi-directional TVS Diodes Electrical Characteristics (TA=25°C unless otherwise specified) VRWM (V) VB IT VC@1A VC IR (V) (mA) (V) (V) (max.) (min.) (max.) 2A 3.3 4 SD05C 2B 5 SD08C 2C SD12C PART NUMBER DEVICE MARKING SD03C CT (max.) (max.) (@A) (µA) (max.) (pF) 1 7.5 16 20 40 450 6 1 9.8 18 17 10 300 8 8.5 1 13.4 24 15 2 120 2D 12 13.3 1 19 32 11 1 75 SD15C 2J 15 16.7 1 24 38 10 1 68 SD18C 2K 18 20.0 1 29 45 9 1 57 SD20C 2L 20 22.3 1 35 50 8 1 52 SD24C 2H 24 26.7 1 43 52 7 1 50 SD36C 2N 36 40 1 60 75 4.5 1 35 The above data are for reference only. http://www.microdiode.com Rev:2024A3 Page :2 SDxxC Series Bi-directional TVS Diodes ELECTRICAL CHARACTERISTICS CURVE The curve above is for reference only. http://www.microdiode.com Rev:2024A3 Page :3 SDxxC Series Bi-directional TVS Diodes Outlitne Drawing SOD-323 Package Outline Dimensions Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOD-323 Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) 178 3000 183×188×80 45,000 386×265×215 180,000 7' http://www.microdiode.com Rev:2024A3 Page :4
