78L06

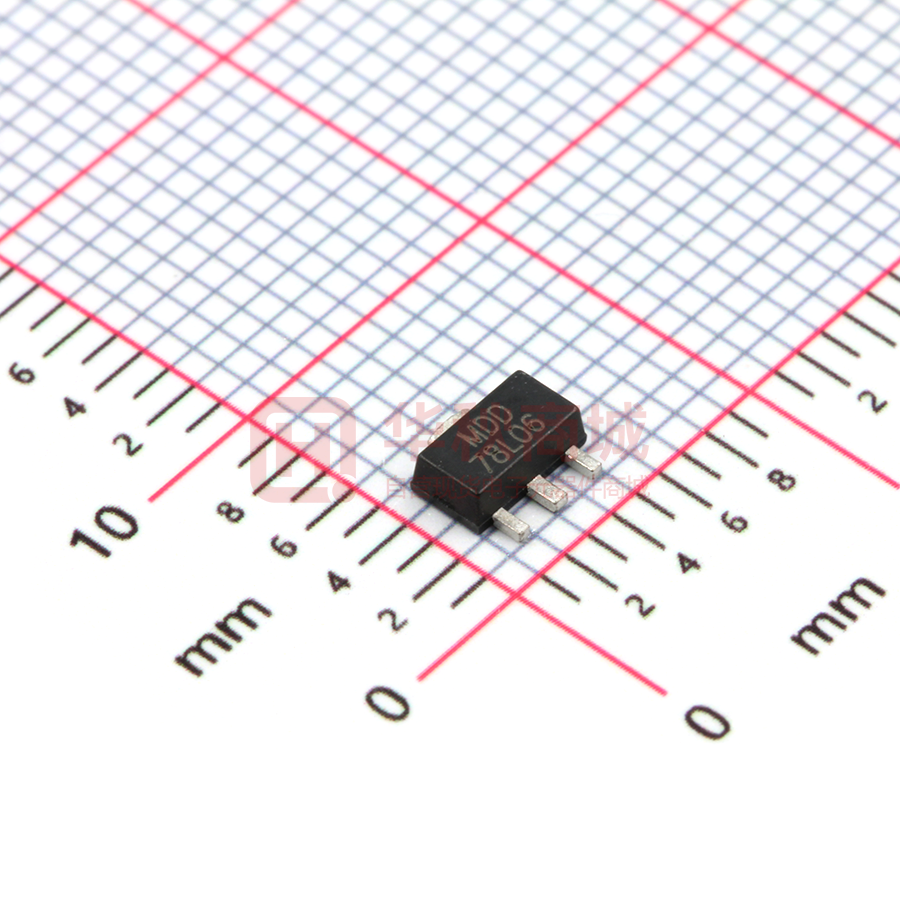

78L06 SOT-89 Plastic-Encapsulate Voltage Regulators 78L06 SOT-89-3L Three-terminal positive voltage regulator FEATURES z z z 1. OUT Maximum output current IOM: 0.1A Output voltage V O: 6V Continuous total dissipation PD: 0.6 W (Ta= 25 ℃ ) 2. GND 3. IN ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) Symbol Value Unit Vi 30 V Thermal Resistance from Junction to Ambient RθJA 166.7 ℃/W Operating Junction Temperature Range TOPR -40~+125 ℃ Storage Temperature Range TSTG -65 ~+150 ℃ Parameter Input Voltage ELECTRICAL CHARACTERISTICS AT SPECIFIED VIRTUAL JUNCTION TEMPERATURE (Vi=11V,Io=40mA,Ci=0.33uF,,Co=0.1uF, unless otherwise specified ) Parameter Symbol Test conditions 25℃ Output voltage 8V≤V l≤20V, Io=1mA-40mA Vo 0-125℃ Io=1mA-70mA Load Regulation △Vo Line regulation △Vo Quiescent Current Quiescent Current Change Output Noise Voltage Typ Max Unit 5.75 6.0 6.25 V 5.7 6.0 6.3 V 5.7 6.0 6.3 V Io=1mA-100mA 25℃ 16 80 mV Io=1mA-40mA 25℃ 9 40 mV 8V≤V l≤20V 25℃ 35 175 mV 9V≤V l≤20V 25℃ 29 125 mV 25℃ 3.9 6.0 mA Iq △Iq 9V≤V l≤20V 0-125℃ 1.5 mA △Iq 1mA≤I O≤40mA 0-125℃ 0.1 mA VN 10Hz≤f≤100KHz 25℃ Ripple Rejection RR Dropout Voltage Vd * Pulse test. TYPICAL APPLICATION Min 0-125℃ 9V≤V l≤19V,f=120Hz 40 25℃ Vi 3 1 46 μV/Vo 48 dB 1.7 V Vo 78L06 Ci 0.33μF 2 C0 0.1μF Note: Bypass capacitors are recommended for optimum stability and transient response and should be located as close as The above data are for reference only. http://www.microdiode.com Rev:2024A1 Page :1 78L06 Typical Characteristics Dropout Characteristics Output Characteristics 6.5 8 TJ=25℃ IO=0mA 6.0 (V) I O VO =4 0m A 5.5 5.0 A =1 00 m =0 m I O A 4.0 =7 0m 2 4.5 I 4 A OUTPUT VOLTAGE OUTPUT VOLTAGE VO 6 O (V) TJ=25℃ 0 I O 3.5 3.0 0 5 10 15 INPUT VOLTAGE 20 VIN 25 30 5 6 9 10 (V) 7 IO=0mA VIN=11V TJ=25℃ TJ=25℃ 6 Pulsed (V) 4 VO IQ (mA) 8 VIN Current Cut-off Grid Voltage Quiescent Current 5 3 OUTPUT VOLTAGE QUIESCENT CURRENT 7 INPUT VOLTAGE (V) 2 1 5 4 3 2 0 0 5 10 15 INPUT VOLTAGE 20 VIN 25 1 0.00 30 0.05 0.10 0.15 OUTPUT CURRENT (V) Output Voltage vs Junction Temperature 0.20 IO 0.25 0.30 100 125 (A) Power Derating Curve 800 6.50 Vin=11V IO=5mA 700 600 PD 6.00 500 POWER DISSIPATION OUTPUT VOLTAGE VO (V) (mW) 6.25 5.75 5.50 5.25 400 300 200 100 5.00 -25 0 25 50 JUNCTION TEMPERATURE http://www.microdiode.com 75 TJ 100 (℃ ) 125 0 -25 0 25 50 JUNCTION TEMPERATURE Rev:2024A1 75 T J (℃ ) Page :2 78L06 Outlitne Drawing SOT-89-3L Package Outline Dimensions Symbol A b b1 c D D1 E E1 e e1 L Dimensions In Millimeters Max Min 1.400 1.600 0.320 0.520 0.400 0.580 0.350 0.440 4.400 4.600 1.550 REF. 2.300 2.600 3.940 4.250 1.500 TYP. 3.000 TYP. 0.900 1.200 Dimensions In Inches Min Max 0.055 0.063 0.013 0.020 0.016 0.023 0.014 0.017 0.173 0.181 0.061 REF. 0.091 0.102 0.155 0.167 0.060 TYP. 0.118 TYP. 0.035 0.047 SOT-89-3L Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOT-89-3L Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) QTY/Box (pcs) Carton Size (mm) 330 1000 203×203×195 40000 438×438×220 7' http://www.microdiode.com Rev:2024A1 G.W.(Kg) 180000 Page :3
