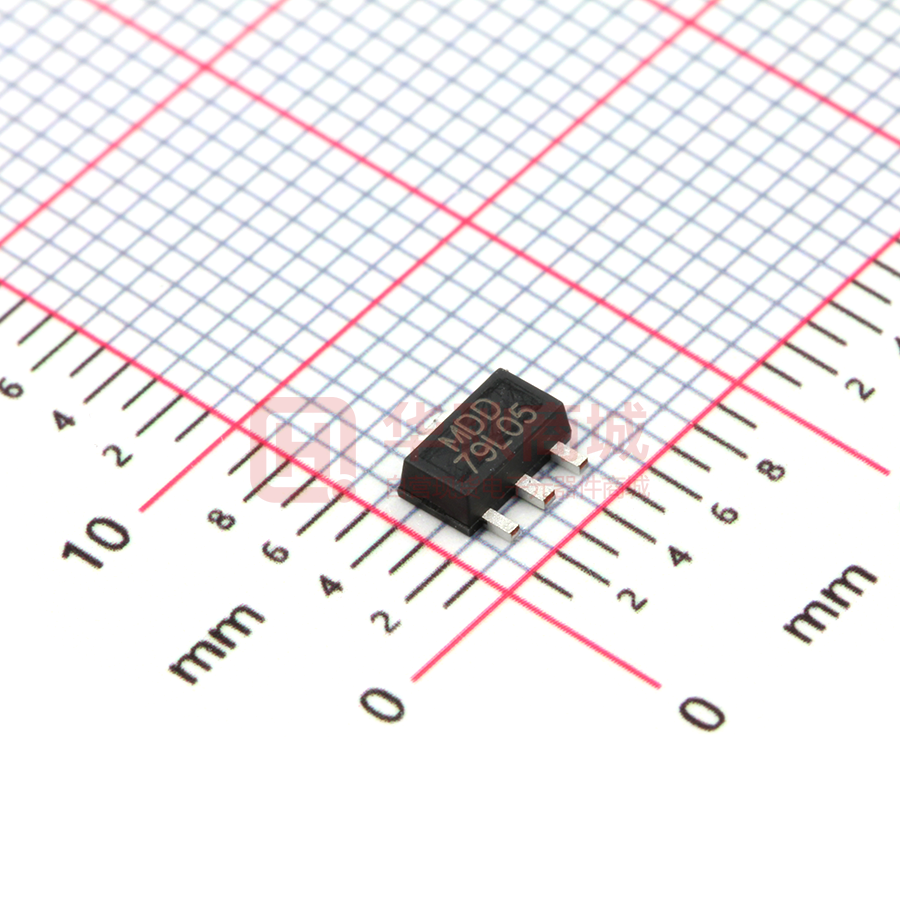

79L05 SOT-89 Plastic-Encapsulate Voltage Regulators 79L05 SOT-89-3L Three-terminal positive voltage regulator FEATURES z z z 1. GND Maximum output current IOM: 0.1A Output voltage V O: -5V Continuous total dissipation PD: 0.6 W (Ta= 25 ℃ ) 2. IN 3. OUT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) Symbol Value Unit Vi -35 V Thermal Resistance from Junction to Ambient RθJA 208.3 ℃/W Operating Junction Temperature Range TOPR 0~+150 ℃ Storage Temperature Range TSTG -65 ~+150 ℃ Parameter Input Voltage ELECTRICAL CHARACTERISTICS AT SPECIFIED VIRTUAL JUNCTION TEMPERATURE (Vi=-10V,Io=40mA,Ci=0.33uF,,Co=0.1uF, unless otherwise specified ) Parameter er mbol Test conditions 25℃ Output Voltage -7V≤Vl≤-20V, Io=1mA~40mA Vo Io=1mA~70mA Load Regulation ΔVo Line Regulation ΔVo Quiescent Current Iq 0-125℃ MLQ T\S Max Unit -4.80 -5.0 -5.2 V -4.75 -5.0 -5.25 V -4.75 - -5.0 -5.25 V Io=1mA~100mA 25℃ 20 60 mV Io=1mA~40mA 25℃ 10 30 mV -7V≤Vl≤-20V 25℃ 15 150 mV -8V≤Vl≤-20V 25℃ 12 100 mV 25℃ 6 mA ΔIq I -8V ≤Vl≤-20V 0-125℃ 1.5 mA ΔIq I 1mA ≤Vl≤40mA 0-125℃ 0.1 mA Output Noise Voltage VN 10Hz≤f≤100KHz 25℃ Ripple Rejection RR -8V≤Vl≤-18V,f=120Hz Dropout Voltage Vd Quiescent Current Change * Pulse test. TYPICAL APPLICATION 0-125℃ 41 25℃ -Vi Ci 0.33μF 2 3 40 μV/Vo 49 dB 1.7 V -Vo 79L05 1 C0 0.1μF Note: Bypass capacitors are recommended for optimum stability and transient response and should be located as close as Possible to the regulators. The above data are for reference only. https://www.microdiode.com Rev:2024A1 Page :1 79L05 Typical Characteristics Output Characteristics Dropout Characteristics -7 -5.5 IO=0mA (V) -5.0 VO -5 -4 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE VO TJ=25℃ TJ=25℃ -6 -3 -2 -1 0 IO=0mA -4.5 -4.0 IO=-40mA,-70mA,-100mA -3.5 -3.0 -2.5 -2.0 0 -5 -10 -15 INPUT VOLTAGE -20 VIN -25 -1.5 -4.0 -30 -4.5 (V) -5.0 -5.5 -6.0 INPUT VOLTAGE VIN -6.5 Current Cut-off Grid Voltage Quiescent Current vs Input Voltage -3.0 -7 IO=0mA TJ=25℃ -6 (V) (mA) VIN=-10V TJ=25℃ -2.5 -2.0 Pulsed -5 OUTPUT VOLTAGE QUIESCENT CURRENT VO IQ -7.0 (V) -1.5 -1.0 -0.5 0.0 -4 -3 -2 -1 0 -5 -10 -15 INPUT VOLTAGE -20 VIN -25 0 -30 0 50 (V) 100 150 OUTPUT CURRENT Output Voltage vs Junction Temperature IO 200 250 (mA) Power Derating Curve 800 -8 Vin=-10V IO=5mA -6 (mW) 600 -5 PD 700 500 POWER DISSIPATION OUTPUT VOLTAGE VO (V) -7 -4 -3 -2 -1 -0 0 25 50 75 JUNCTION TEMPERATURE https://www.microdiode.com 100 TJ 125 (℃ ) 150 400 300 200 100 0 0 25 50 75 JUNCTION TEMPERATURE Rev:2024A1 100 TJ 125 150 (℃) Page :2 79L05 Outlitne Drawing SOT-89-3L Package Outline Dimensions Symbol A b b1 c D D1 E E1 e e1 L Dimensions In Millimeters Max Min 1.400 1.600 0.320 0.520 0.400 0.580 0.350 0.440 4.400 4.600 1.550 REF. 2.300 2.600 3.940 4.250 1.500 TYP. 3.000 TYP. 0.900 1.200 Dimensions In Inches Min Max 0.055 0.063 0.013 0.020 0.016 0.023 0.014 0.017 0.173 0.181 0.061 REF. 0.091 0.102 0.155 0.167 0.060 TYP. 0.118 TYP. 0.035 0.047 SOT-89-3L Suggested Pad Layout Note: 1.Controlling dimension:in/millimeters. 2.General tolerance: ±0.05mm. 3.The pad layout is for reference purposes only. PACKAGE SPECIFICATIONS Package Reel Size SOT-89-3L Reel DIA. (mm) Q'TY/Reel (pcs) Box Size (mm) QTY/Box (pcs) Carton Size (mm) 330 1000 203×203×195 40000 438×438×220 7' https://www.microdiode.com Rev:2024A1 G.W.(Kg) 180000 Page :3
