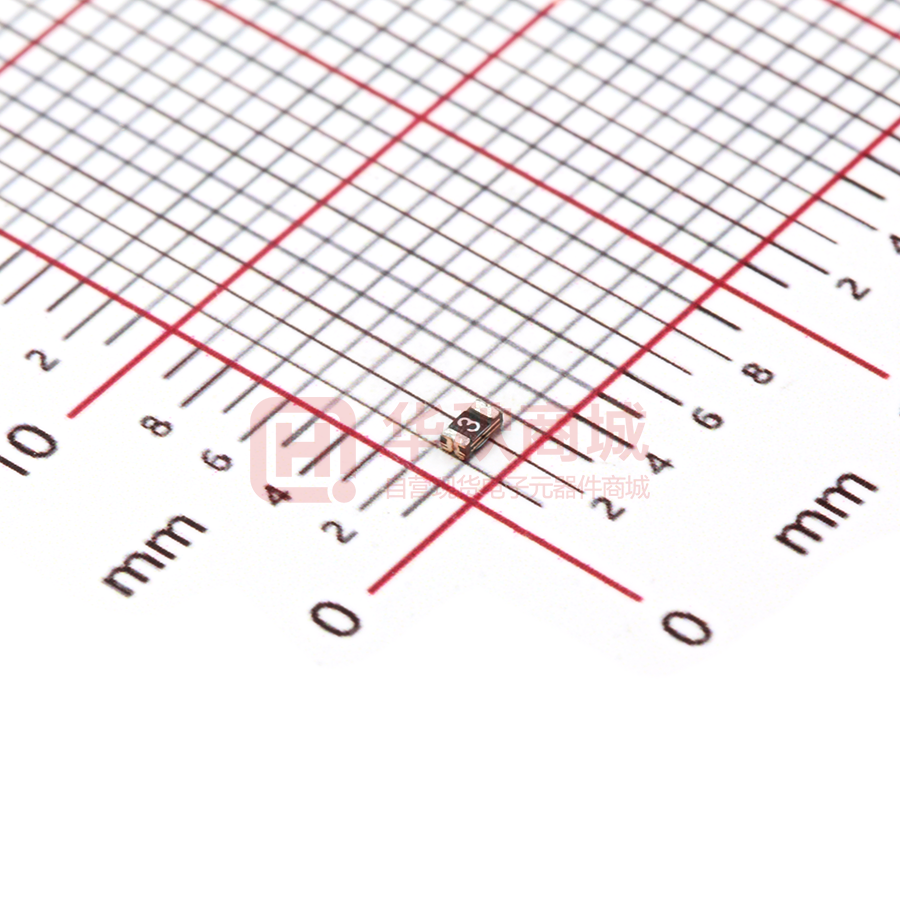

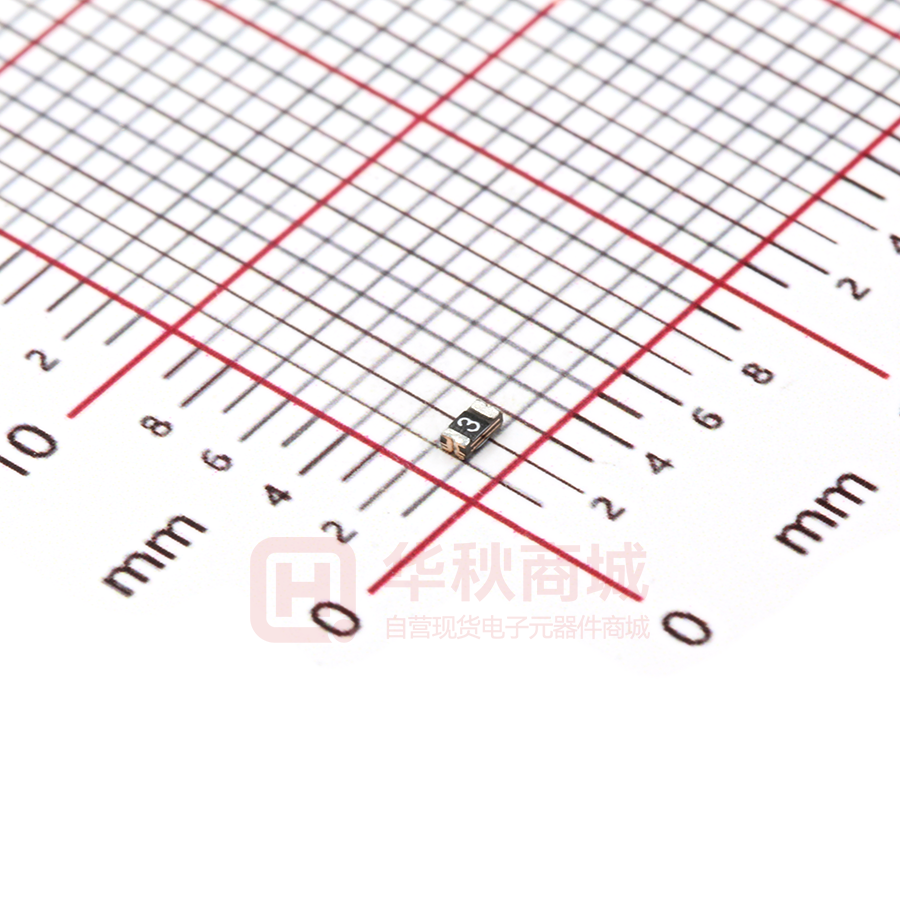

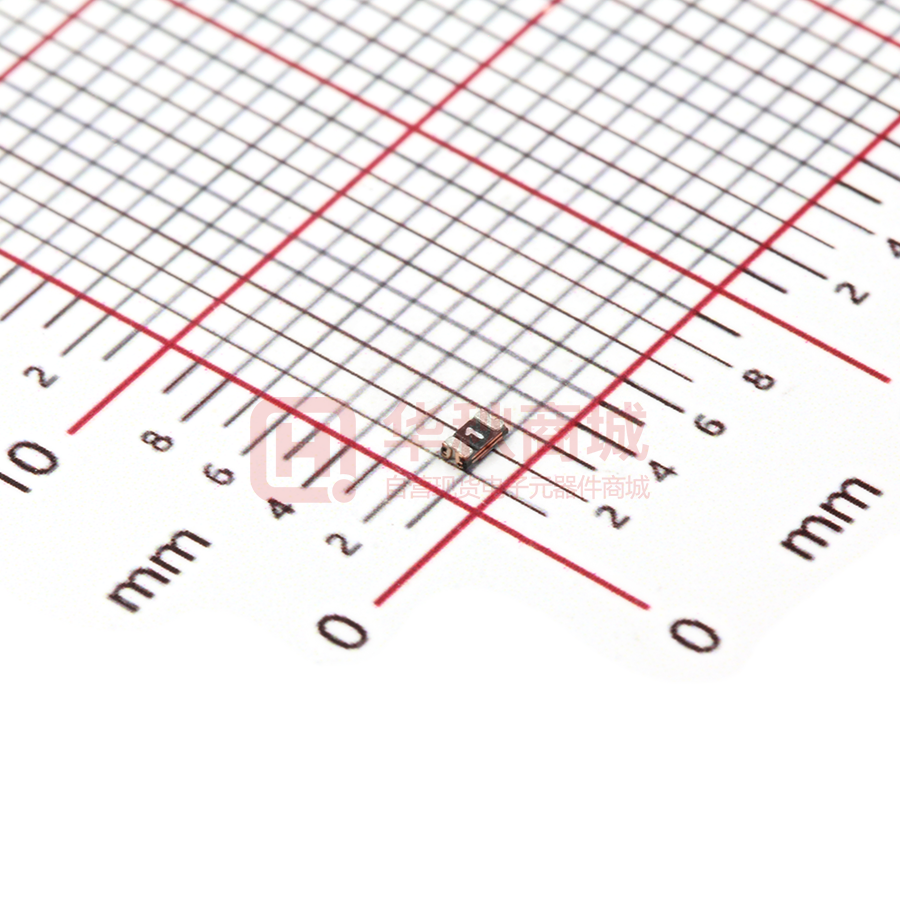

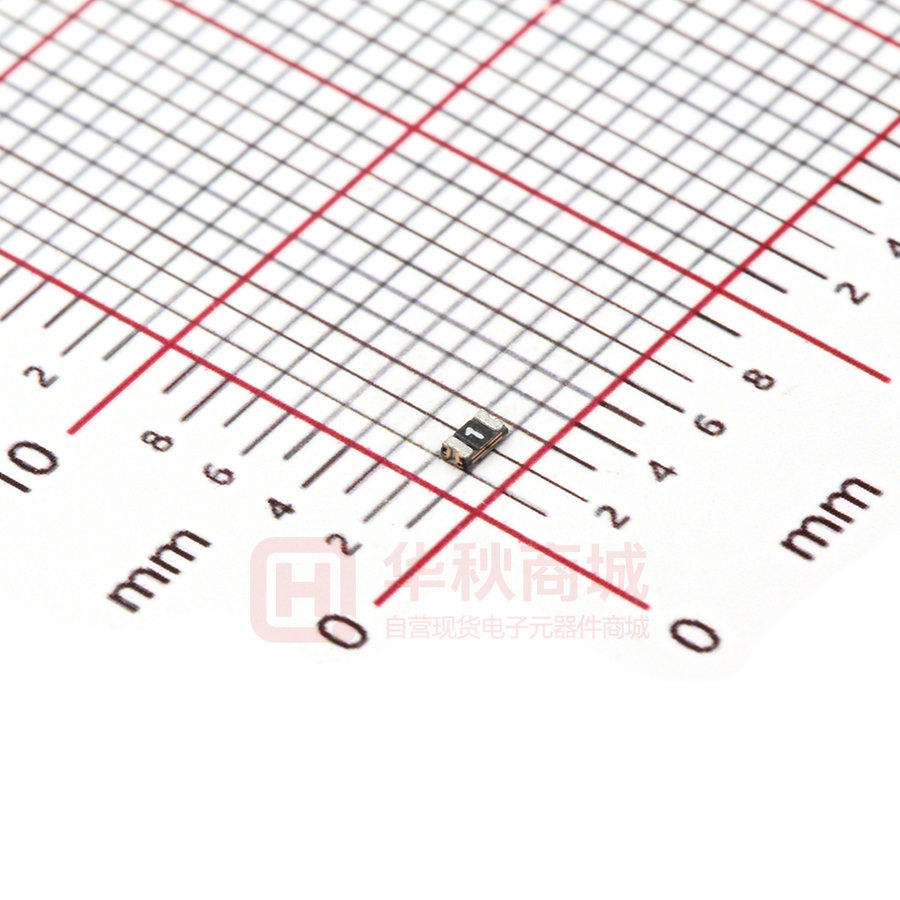

JK-SMD0603-030

JK-SMD0603-030

  • 厂商:

    JK(金科)

  • 封装:

    0603

  • 描述:

    PTC自恢复保险丝 FUSE0603 6V 0.3A

  • 数据手册
  • 价格&库存
JK-SMD0603-030 数据手册
ShenZhen JinRui Electronic Material Co.,Ltd JK-SMD0603 Series Surface Mountable PTC Resettable Fuse: JK-SMD0603 Series Features:      RoHS Compliant & Halogen Free faster tripping, 0603 Dimension, Surface mountable, Solid state Operation Current: 0.05A~0.35A Maximum Voltage: 6V~15Vdc Operating Temperature:-40℃ TO 85℃ Product Dimensions Terminal pad materials :Tin-Plated Nickle-copper Terminal pad solderability : Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. Pig.1 Unit :mm Model Marking JK-SMD0603-005 A B C D E Min Max Min Max Min Max Min Max Max 1 1.45 1.85 0.65 1.05 0.40 0.75 0.15 0.50 0.40 JK-SMD0603-010 1 1.45 1.85 0.65 1.05 0.40 0.75 0.15 0.50 0.40 JK-SMD0603-020 2 1.45 1.85 0.65 1.05 0.40 0.75 0.15 0.50 0.40 JK-SMD0603-025 3 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.50 0.40 JK-SMD0603-030 5 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.50 0.40 JK-SMD0603-035 5 1.45 1.85 0.65 1.05 0.40 1.00 0.15 0.50 0.40 Thermal Derating Chart-IH(A) Model Maximum ambient operating temperatures(℃) -40 -20 0 25 40 50 60 70 85 JK-SMD0603-005 0.07 0.06 0.055 0.05 0.04 0.35 0.3 0.25 0.15 JK-SMD0603-010 0.14 0.12 0.11 0.1 0.8 0.7 0.6 0.5 0.3 JK-SMD0603-020 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 JK-SMD0603-025 0.35 0.31 0.29 0.25 0.21 0.18 0.15 0.13 0.09 JK-SMD0603-030 0.42 0.38 0.35 0.30 0.26 0.21 0.18 0.15 0.11 JK-SMD0603-035 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14 ShenZhen JinRui Electronic Material Co.,Ltd TEL: 0755-26546327 29356619 FAX:0755-26546562 Web Site:http://www.jkpptc.com E-mail:customer@jkpptc.com Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice! Page 1 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK-SMD0603 Series Electrical Characteristic Vmax Imax Ihold Itrip Pd (Vdc) (A) (A) (A) Max. (W) Current Time Rimin R1max (A) (Sec) () () JK-SMD0603-005 24.0 20 0.05 0.15 0.50 0.2 1.00 3.0 35.00 JK-SMD0603-010 15.0 40 0.10 0.30 0.50 0.5 1.00 0.9 8.00 JK-SMD0603-020 9.0 40 0.20 0.40 0.50 1.00 0.60 0.55 3.50 JK-SMD0603-025 9.0 40 0.25 0.55 0.50 8.0 0.08 0.500 3.00 JK-SMD0603-030 6.0 40 0.30 0.70 0.50 8A 0.10 0.300 2.00 JK-SMD0603-035 6.0 40 0.35 0.75 0.50 8A 0.10 0.200 1.40 Model Maximum time to trip Resistence Part Numbering System JK- SMD0603 - □□□ Holding current Rating 0603 Dimension Surface Mount Device JK mark Test Procedures And Requirements Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤Rmax Time to Trip Specified current,Vmax,25℃ Tmaximum Time to Trip Hold Current 30min,at IH No trip Trip Cycle Life Vmax,Imax,100cycles No arcing or burning Trip Endurance Vmax,1 hours No arcing or burning Physical Characteristics and Environmental Specifications Terminal materials : Tin-Plated Nickle-copper Soldering Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3. zone Environmental Specifications Test Conditions Resistance Change Passive aging 85℃,1000hours ±10% Humidity aging 85℃/85%RH.1000 hours ±5% ShenZhen JinRui Electronic Material Co.,Ltd TEL: 0755-26546327 29356619 FAX:0755-26546562 Web Site:http://www.jkpptc.com E-mail:customer@jkpptc.com Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice! Page 2 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK-SMD0603 Series Thermal shock MIL-STD-202,Method 107G +85℃/-40℃,20times -30% typical resistance change Solvent Resistance MIL-STD-202,Method 215 no change Vibration ML-STD-883C,Test Condition A No chage Electrical Specifications: Ihold = Hold Current. Maximum current device will not trip in 25°C still air. Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air. Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax). Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax). Pd=Maximum power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C. R1max = Maximum device resistance is measured one hour post reflow. Recommended pad layout (mm) Solder reflow conditions ShenZhen JinRui Electronic Material Co.,Ltd TEL: 0755-26546327 29356619 FAX:0755-26546562 Web Site:http://www.jkpptc.com E-mail:customer@jkpptc.com Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice! Page 3 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK-SMD0603 Series ● Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free. ● Devices are not designed to be wave soldered to the bottom side of the board. ● Recommended maximum paste thickness is 0.25mm (0.010inch). ● Devices can be cleaned using standard industry methods and solvents. ● Soldering temprature profile meets RoHs leadfree process. Notes: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements Tape Specification And Reel Dimensions Coverning Specifications EIA 481-1(Unit:mm) W 8.00± 0.10 P0 4.0 ± 0.10 P1 4.0± 0.10 P2 2.0 ± 0.05 A0 0.95 ± 0.10 B0 1.85± 0.05 D0 1.55± 0.05 F 3.50± 0.05 E1 1.75 ± 0.10 T 0.20± 0.02 Leader min. 390 Trailer min. 160 Reel Dimensions A 178±1.0 N 59±1 W1 8.5+1.0/-0.2 W2 12.0±1 Packaging Quantity Model Quantity Model Quantity JK-SMD0603-005 5000 JK-SMD0603-025 5000 JK-SMD0603-010 5000 JK-SMD0603-030 4000 JK-SMD0603-020 5000 JK-SMD0603-035 4000 ShenZhen JinRui Electronic Material Co.,Ltd TEL: 0755-26546327 29356619 FAX:0755-26546562 Web Site:http://www.jkpptc.com E-mail:customer@jkpptc.com Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice! Page 4 of 5 ShenZhen JinRui Electronic Material Co.,Ltd JK-SMD0603 Series Storage The maximum ambient temperature shall not exceed 38℃. Storage temperatures higher than 38℃ could result in the deformation of packaging materials. The maximum relative humidity recommended for storage is 60%. High humidity with high temperature can accelerate the oxidation of the solder plating on the termination and reduce the solderability of the components. Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be opened prior to use. The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present WARNING • Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. • PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. • Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. • Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. • Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space. • Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the performance of the devices.PPTC SMD can be cleaned by standard methods. • Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper board layouts or reflow profilecould negatively impact solderability performance of our devices. Notes: The specification is intended to present application,product and technical data to assist the user in selecting PPTC circuit production devices,However,users should imdependently evaluate and test the suitability of each product.JinRui makes on warranties as to the acduracy or completeness of the information and disclaims any liatility resulting form its use,JinRui’s only obligations are those im the JinRui Standard Rerms and Conditions of Sale and in no case will JinRui be liable for any incidental,imdirect,or consequential damages arising from the sale,resale,or misues of its products. Jinrui reserves the right to change of update, without notice, any information contained in this specification. ShenZhen JinRui Electronic Material Co.,Ltd TEL: 0755-26546327 29356619 FAX:0755-26546562 Web Site:http://www.jkpptc.com E-mail:customer@jkpptc.com Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。 Specifications are subject to change without notice! Page 5 of 5
JK-SMD0603-030 价格&库存

很抱歉,暂时无法提供与“JK-SMD0603-030”相匹配的价格&库存,您可以联系我们找货

免费人工找货
JK-SMD0603-030
  •  国内价格
  • 1+0.14800
  • 30+0.14300
  • 100+0.13800
  • 500+0.12800
  • 1000+0.12300
  • 2000+0.12000

库存:555
