ShenZhen JinRui Electronic Material Co.,Ltd
JK250
Polymer PTC Resettable Fuse
JK250
Series
Series
Features:
Radial leaded Devices
Cured,flame retardant epoxy polymer insulating material meets UL94V-0
Bulk packaging,or tape and reel available on most models
Agency recognition:UL、CSA、TUV
Rohs compliant and lead-free
Product Dimensions
Fig.1
Fig.2
Fig.3
Fig.4
Unit :mm
JK250 Series
Model
Dimensions(mm)
Lead material
Shape
A(max)
B(max)
C(max)
D(typ)
Tinned matel(mm)
Fig
JK250-020U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
1
JK250-030U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
1
JK250-040U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
1/2
JK250-050U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
1/2
JK250-060U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
1/2
JK250-080U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
2
JK250-090U
7.4
12.7
4.5
5.1
22AWG/Φ0.6
2
ShenZhen JinRui Electronic Material Co.,Ltd
TEL: 0755-26546327 29356619
FAX:0755-26546562
Web Site:http://www.jkpptc.com
E-mail:customer@jkpptc.com
Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。
Specifications are subject to change without notice!
Page 1 of 4
ShenZhen JinRui Electronic Material Co.,Ltd
JK250
Series
JK250-100U
7.8
12.6
4.5
5.1
22AWG/Φ0.6
1
JK250-110U
7.0
12.6
4.5
5.1
22AWG/Φ0.6
4
JK250-120U
7.0
12.6
4.5
5.1
22AWG/Φ0.6
4
JK250-145U
7.0
12.6
4.5
5.1
22AWG/Φ0.6
4
JK250-180T
10.2
14.5
3.8
5.1
22AWG/Φ0.6
2
JK250-180U
9.0
11.0
4.5
5.1
22AWG/Φ0.6
4
JK250-200U
12.0
17.0
4.5
5.1
22AWG/Φ0.6
3

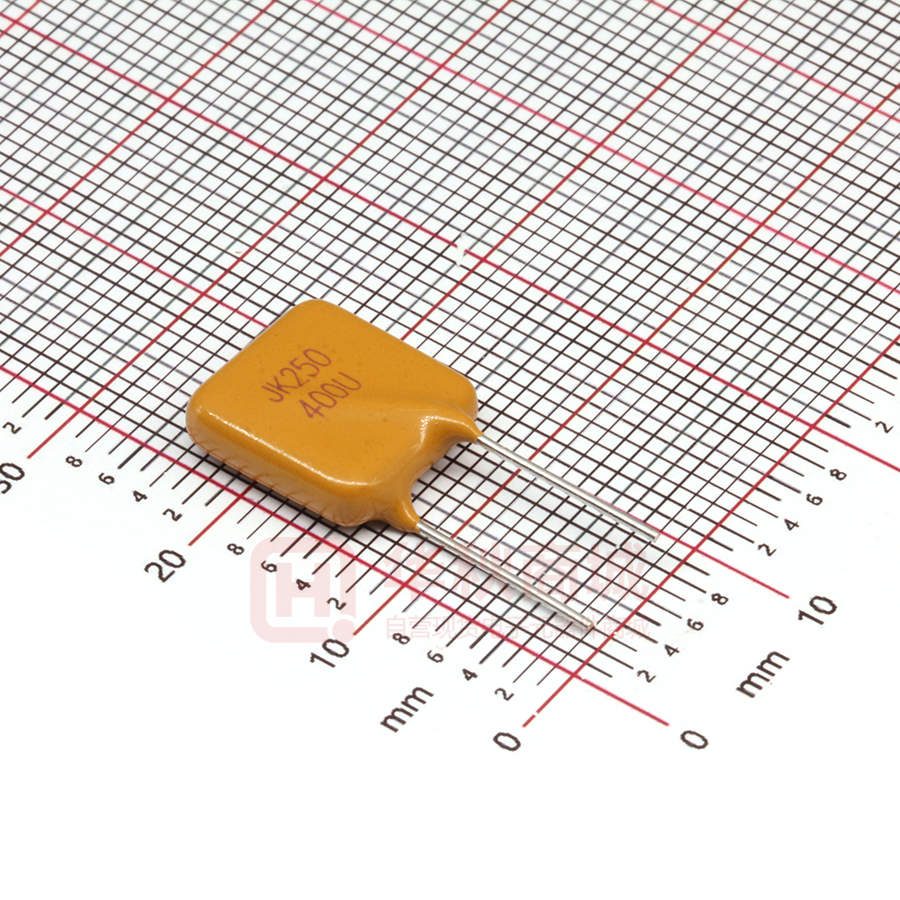

JK250-400U
12.0
17.0
4.5
5.1
22AWG/Φ0.6
3
JK250-600U
16.0
18.0
4.5
5.1
22AWG/Φ0.6
3
JK250-800U
20.0
22.5
4.5
5.1
20 AWG/Φ0.8
3
JK250-1000U
20
22.5
4.5
5.1
20 AWG/Φ0.8
3
JK250-1200U
22
28
4.5
5.1
20 AWG/Φ0.8
3
JK250-1500U
25
30
4.5
5.1
20 AWG/Φ0.8
3
JK250-2000U
26
32
4.5
10.2
20 AWG/Φ0.8
3
Note: ① Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.75mm.
Thermal Derating Chart-IH(A)
Model
JK-250 series
Maximum ambient operating temperatures(℃)
-40℃
-20℃
0℃
25℃
30℃
40℃
50℃
60℃
70℃
85℃
148%
132%
117%
100%
91%
85%
77%
68%
61%
45%
Electrical Characteristic
Maximum Time to Trip
Resistance(Ω)
Model
Ihold
(mA)
Itrip(mA)
Vmax interrupt
(V)
Imax
(A)
Pd max
(W)
Current(A)
Time(S)
Rmin- Rmax
JK250-020U
20
45
250
3
1.0
0.5
0.5
80-160
JK250-030U
30
65
250
3
1.0
0.5
0.5
60-120
JK250-040U
40
80
250
3
1.0
0.5
1.5
30-60
JK250-050U
50
100
250
3
1.0
0.5
2
25-50
JK250-060U
60
120
250
3
1.0
0.5
2
20-60
JK250-080U
80
160
250
3
1.0
1
0.5
12-22
JK250-090U
90
180
250
3
1.0
1
0.8
10-20
JK250-100U
100
200
250
3
1.0
1
1
10-20
JK250-110U
110
220
250
3
1.0
1
2.0
6-12
JK250-120U
120
240
250
3
1.0
1
2.0
6-11
JK250-145U
145
290
250
3
1.0
1
5.0
3.5-6.5
ShenZhen JinRui Electronic Material Co.,Ltd
TEL: 0755-26546327 29356619
FAX:0755-26546562
Web Site:http://www.jkpptc.com
E-mail:customer@jkpptc.com
Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。
Specifications are subject to change without notice!
Page 2 of 4
ShenZhen JinRui Electronic Material Co.,Ltd
JK250
Series
JK250-180T
180
650
250
3
1.8
3
3.0
1.0-2.2
JK250-180U
180
650
250
3
1.8
3
1.5
2.0-4.0
JK250-200U
200
400
250
5
2.4
3
5
3-6
JK250-400U
400
800
250
5
2.8
3
8
1-3
JK250-600U
600
1200
250
5
3.2
3
12
0.6-2.0
JK250-800U
800
1600
250
5
3.6
4
18
0.4-1.0
JK250-1000U
1000
2000
250
7
3.6
5
20
0.3-0.8
JK250-1200U
1200
2400
250
7
3.6
6
20
0.2-0.8
JK250-1500U
1500
3000
250
7
4.8
7.5
20
0.2-0.6
JK250-2000U
2000
4000
250
10
4.8
10
20
0.2-0.4
IH=Hold current:maximum current at which the device will not trip at 25℃ still air.
IT=Trip current:minimum current at which the device will nalways at 25℃ still air.
Vmax=Maximum voltage device can withstand without damage at rated current.
Imax=Maximum fault current device can withstand tithout damage at rated voltage.
Ttrip=Maximum time to trip(s) at assigned current.
Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment.
Rmin=Minimum device resistance at 25℃ prior to tripping.
Rmax=Maximum device resistance at 25℃ prior to tripping.
Marking System
Environmental Specifications
Test
Conditions
Resistance change
Passive aging
+85℃,1000hrs
±8% typical
Humidity aging
+85℃,85%R.H.1000hrs
±8% typical
Thermal shock
+125℃ to -55℃,10times
±12% typical
Resistance to solvent
MIL-STD-202,Method 215
No change
Vibration
MIL-STD-202,Method 201
No change
Solder reflow conditions
Wave Soldering
Soldering Temperature:260℃~270℃
ShenZhen JinRui Electronic Material Co.,Ltd
TEL: 0755-26546327 29356619
FAX:0755-26546562
Web Site:http://www.jkpptc.com
E-mail:customer@jkpptc.com
Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。
Specifications are subject to change without notice!
Page 3 of 4
ShenZhen JinRui Electronic Material Co.,Ltd
JK250
Series
Soldering Time:≤3sec.
Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。
Manual soldering
Soldering Temperature:250℃~280℃
Soldering Time: ≤3sec.
Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。
Packaging and Storage
Bag quantity
JK250~020U~JK250-180U
JK250-200U~JK250-600U
JK250-800U~JK250-2000U
1000Pcs/Bag
500 Pcs/Bag
200 Pcs/Bag
Storage
The maximum ambient temperature shall not exceed 40℃.Storage temperatures higher than 40℃ could result in the
deformation of packaging materials.The maximum relative humidity recommended for storage is 70%.High humidity with
high temperature can accelerate the oxidation the oxidation of the solder plating on the termination and reduce the
solderability of the components.sealed plastic bags with desiccant shall be used to teduce the oxidation of the termination and
shall only be opened prior to use.the products shall not be stored in areas where harmful gases containing sulfu of chlorine
are present.
Warning:
Please read this specification before use the product。
Using of this product must be sure to follow the requirement of this specification,operation beyond the specified maximum
ratings or improper use may result in damage and possible electrical arcing and flame.
PPTC resettable fuses are intended for occasional over current protection. Application for repeated over current condition or
prolonged trip are not anticipated.
Please avoid contact of PPTC resettable fuses with chemical solvent. Prolonged contact will damage the device performance.
You are requested not to use our product deviating from the agreed specifications.
ShenZhen JinRui Electronic Material Co.,Ltd
TEL: 0755-26546327 29356619
FAX:0755-26546562
Web Site:http://www.jkpptc.com
E-mail:customer@jkpptc.com
Add:JinKe Industry Park ,No. 310,Wuhe Road ,Guanlan,Longhua,Shenzhen ,Guangdong。
Specifications are subject to change without notice!
Page 4 of 4
