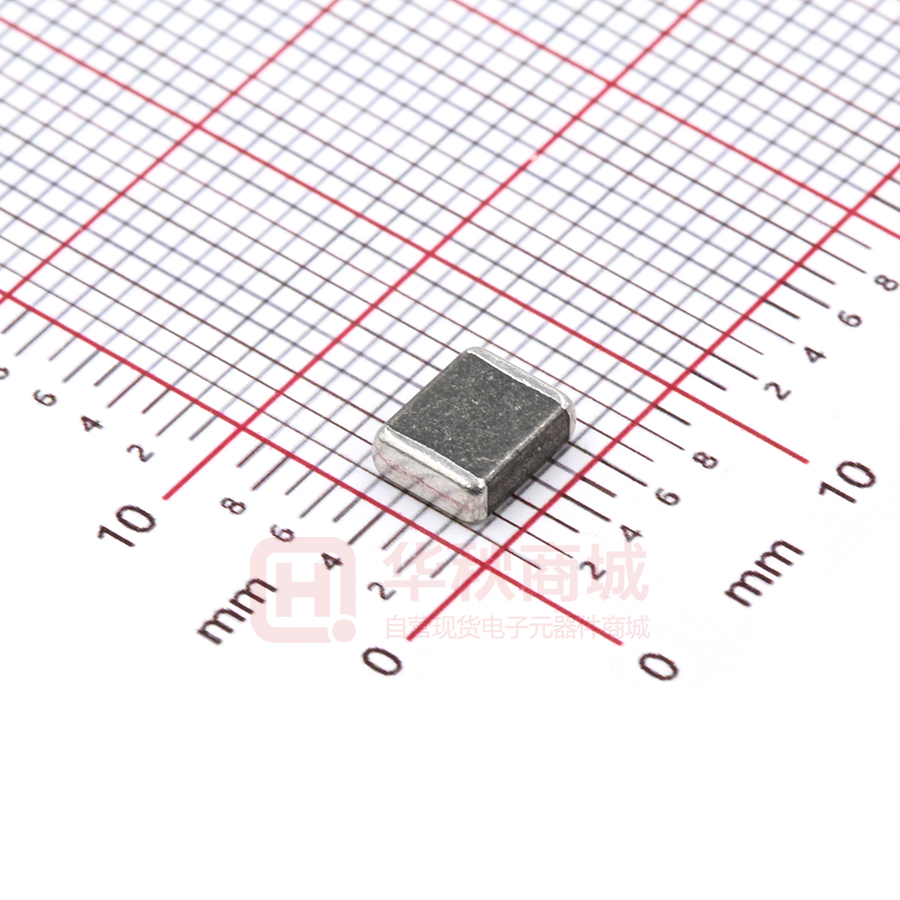

SDVL5650SD600PT

Multilayer Chip Varistor for Voltage Surge Suppression – SDVL Series Operating Temp. : -55℃~+85℃ FEATURES ● ● ● SMD type, small size suitable for high density mounting Excellent clamping ratio and strong capability of voltage surge suppression Excellent solderability (Ni, Sn plating) APPLICATIONS Lightning protection and voltage surge suppression for Power supply, Network Interface, LED lighting. ● ● Lightning protection and voltage surge suppression for security system, PLC, Automotive electronics. ● Industrial instrument, smart meters, etc. PRODUCT IDENTIFICATION SDVL ① ① 5650 S ② ③ D 650 P ④ ⑤ ⑥ ② ⑦ ③ (L×W) (mm) External Dimensions (L×W) (mm) Type SDVL T 3216 [1206] 3.2×1.6 3225 [1210] 3.2×2.5 4532 [1812] 4.5×3.2 5650 [2220] 5.7×5.0 8063 [3225] 8.0×6.3 10080 [4032] 10.0×8.0 Chip Varistor for Voltage Surge Suppression ④ Type of Working Voltage Tolerance of Varistor Voltage S Special K ⑥ D A AC Working Voltage P Terminal Code Ni, Sn Plating T Packing Tape & Reel ⑦ ⑤ DC Working Voltage ±10% Max. Continuous Working Voltage Example Nominal value 650 65V SHAPE AND DIMENSIONS Unit: mm [inch] Type L SDVL3216SD [1206] SDVL3225SD [1210] SDVL4532SD [1812] SDVL5650SD [2220] Sunlord 3.2±0.2 [.126±.008] 3.2±0.3 [.126±.012] 4.5±0.4 [.177±.016] 5.7±0.4 [.224±.016] W 1.6±0.2 [.063±.008] 2.5±0.25 [.098±.010] 3.2±0.3 [.126±.012] 5.0±0.4 [.197±.016] T a 1.60 Max. [.063] 1.7 Max. [.067] 2.5 Max. [.098] 2.5 Max. [.098] 0.2~0.8 [.008~.031] 0.25~0.75 [.010~.029] 0.25~1.0 [.010~.039] 0.25~1.0 [.010~.039] Type L W H E S SDVL8063KA [3225] SDVL10080KA [4032] 8.5±0.3 [.334±.012] 10.6±0.3 [.417±.012] 6.3±0.3 [.248±.012] 8.2±0.3 [.322±.012] 4.5±0.3 [.177±.012] 4.5±0.3 [.177±.012] 3.0±0.3 [.118±.012] 3.0±0.3 [.118±.012] 1.5±0.3 [.060±.012] 1.5±0.3 [.060±.012] Specifications subject to change without notice. Please check our website for latest information. Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDVL3216SD TYPE Part Number Test Condition Units Symbol SDVL3216SD5R5PT SDVL3216SD090PT SDVL3216SD120PT SDVL3216SD140PT SDVL3216SD180PT SDVL3216SD220PT SDVL3216SD260PT SDVL3216SD300PT SDVL3216SD330PT SDVL3216SD380PT SDVL3216SD420PT SDVL3216SD480PT SDVL3216SD560PT SDVL3216SD600PT SDVL3216SD650PT SDVL3216SD750PT SDVL3216SD850PT SDVL3216SD101PT Max. Working Voltage
