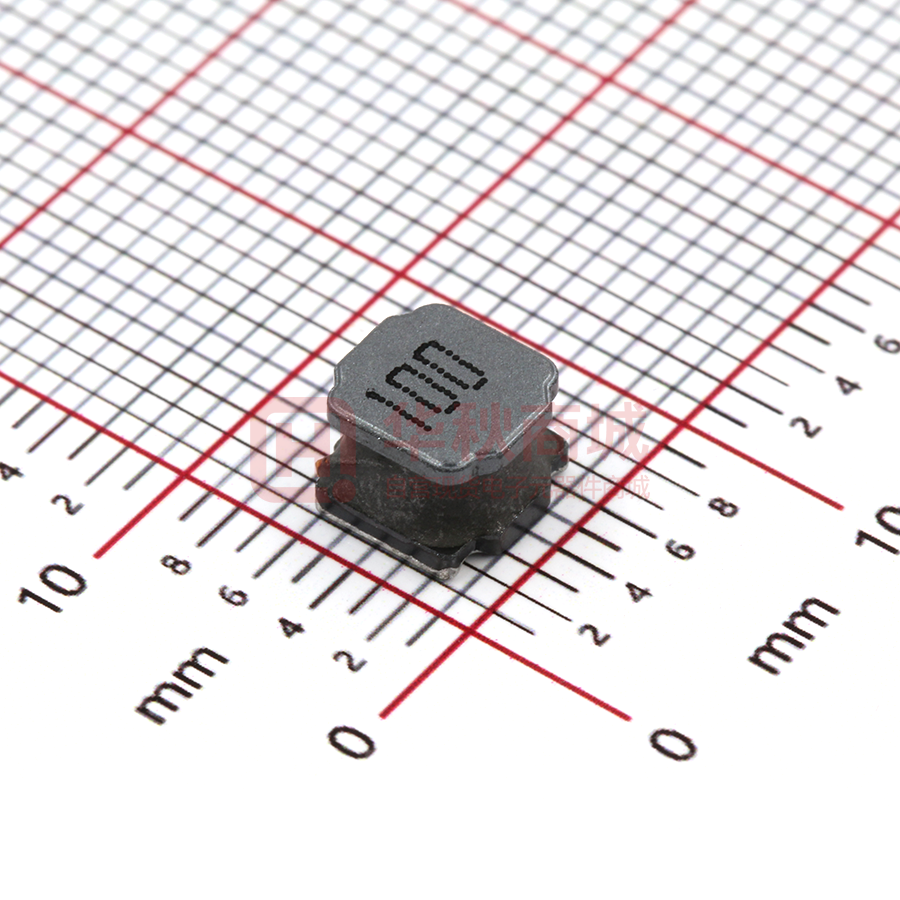

LVS606045-100M-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BWVS Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. Sealed Power Inductors - LVS Series LVS Series LVS series, an automatic assembly constructed power inductor, is shielded with magnetic resin and suitable for the portable DC-DC converter applications. Features Applications          RoHS, Halogen Free and REACH Compliance Shielded with magnetic resin Various package size and wide inductance range Optimize electrical characteristics by using different ferrite core figures AP Routers STBs LCD TVs, monitors and panels Game consoles DC/DC converters Product Identification Shape and Dimensions Recommended Pattern Figure 1 Dimensions in mm TYPE LVS404012 FIG A B C D H I J 1 4.0±0.2 4.0±0.2 1.20±0.1 1.5 4.2 1.5 1.2 Sealed Power Inductors - LVS Series Shape and Dimensions Recommended Pattern Figure 2 Dimensions in mm TYPE FIG A B C D H I J 1.3±0.3 3.7 1.2 1.6 1.4 3.7 1.2 1.6 LVS404018 2 4.0±0.2 4.0±0.2 1.8+0.2-0.30 LVS404026 2 4.0±0.2 4.0±0.2 2.6±0.2 Recommended Pattern Shape and Dimensions Figure 3 Dimensions in mm TYPE LVS505020 LVS505040 LVS606020 LVS606028 LVS606045 LVS606045L FIG 3 3 3 3 3 3 A 5.0±0.2 5.0±0.2 6.0±0.2 6.0±0.2 6.0±0.2 6.0±0.2 B C D H I J 5.0±0.2 2.0+0.2-0.30 1.8±0.3 4.0 1.5 2.1 5.0±0.2 4.0+0.2-0.30 1.6±0.3 4.0 1.5 2.1 6.0±0.2 2.0+0.2-0.30 1.7±0.3 5.7 1.6 2.9 6.0±0.2 2.8+0.2-0.30 1.9±0.3 5.7 1.6 2.9 6.0±0.2 4.5+0.2-0.30 1.8±0.3 5.7 2.0 2.4 6.0±0.2 4.5+0.2-0.30 1.8±0.3 5.7 2.0 2.4 2.3±0.3 7.5 2.5 3.4 2.3±0.3 7.5 2.5 3.4 LVS808040 3 8.0±0.2 8.0±0.2 4.0+0.2-0.30 LVS808040L 3 8.0±0.2 8.0±0.2 4.0+0.2-0.30 Sealed Power Inductors – LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS404012-1R0□-N 1.0 20, 30 LVS404012-1R5□-N 1.5 20, 30 LVS404012-2R2□-N 2.2 LVS404012-3R3□-N LVS404012-4R7□-N Test RDC Isat (A) Irms (A) (mΩ) ±30% Typ. (Max) Typ. (Max) 100 48 2.50(2.25) 1.70(1.53) 1R0 100 58 2.10(1.89) 1.60(1.44) 1R5 20, 30 100 65 1.70(1.53) 1.50(1.35) 2R2 3.3 20, 30 100 90 1.30(1.17) 1.40(1.26) 3R3 4.7 20, 30 100 110 1.10(0.99) 1.20(1.08) 4R7 LVS404012-6R8□-N 6.8 20, 30 100 135 0.90(0.81) 1.05(0.94) 6R8 LVS404012-100□-N 10 20, 30 100 190 0.78(0.70) 0.90(0.81) 100 LVS404012-150□-N 15 20, 30 100 250 0.65(0.58) 0.85(0.76) 150 LVS404012-220□-N 22 20, 30 100 400 0.52(0.46) 0.75(0.67) 220 LVS404012-330□-N 33 20, 30 100 600 0.44(0.39) 0.70(0.63) 330 LVS404012-470□-N 47 20, 30 100 930 0.35(0.31) 0.50(0.45) 470 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 50 70 45 60 40 150 50 △ T(℃ ) 35 L(uH) 470 470 30 330 25 20 220 15 150 100 6R8 4R7 3R3 2R2 1R5 10 5 220 100 6R8 2R2 4R7 3R3 1R0 1R5 40 30 20 10 1R0 0 0 0 1 2 DC Current(A) 3 4 0 1 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 2 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS404018-1R0□-N 1.0 20, 30 LVS404018-1R5□-N 1.5 20, 30 LVS404018-1R8□-N 1.8 LVS404018-2R2□-N LVS404018-3R3□-N Test RDC Isat (A) Irms (A) (mΩ) ±20% Typ. (Max) Typ. (Max) 100 32 4.10(3.69) 2.80(2.52) 1R0 100 40 3.30(2.97) 2.60(2.34) 1R5 20, 30 100 55 2.80(2.50) 2.50(2.20) 1R8 2.2 20, 30 100 60 2.80(2.52) 2.50(2.25) 2R2 3.3 20, 30 100 70 2.20(1.98) 2.10(1.89) 3R3 LVS404018-3R6□-N 3.6 20, 30 100 75 2.10(1.89) 1.90(1.71) 3R6 LVS404018-3R9□-N 3.9 20, 30 100 75 2.10(1.89) 1.90(1.71) 3R9 LVS404018-4R7□-N 4.7 20, 30 100 90 2.00(1.80) 1.70(1.53) 4R7 LVS404018-6R8□-N 6.8 20, 30 100 110 1.60(1.44) 1.50(1.35) 6R8 LVS404018-8R2□-N 8.2 20, 30 100 155 1.50(1.30) 1.30(1.10) 8R2 LVS404018-100□-N 10 20, 30 100 170 1.40(1.26) 1.20(1.08) 100 LVS404018-150□-N 15 20, 30 100 250 1.00(0.90) 1.00(0.90) 150 LVS404018-220□-N 22 20, 30 100 350 0.90(0.81) 0.85(0.76) 220 LVS404018-330□-N 33 20, 30 100 530 0.80(0.72) 0.70(0.63) 330 LVS404018-470□-N 47 20, 30 100 720 0.70(0.63) 0.56(0.50) 470 LVS404018-680□-N 68 20, 30 100 1000 0.56(0.50) 0.45(0.40) 680 LVS404018-101□-N 100 20, 30 100 1500 0.46(0.41) 0.38(0.34) 101 LVS404018-151□-N 150 20, 30 100 2500 0.35(0.31) 0.30(0.27) 151 LVS404018-221□-N 220 20, 30 100 4000 0.28(0.25) 0.23(0.20) 221 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 30 70 25 60 220 △ T(℃ ) L(uH) 15 150 10 100 6R8 4R7 1R0 3R3 2R2 50 220 20 150 100 40 30 20 6R8 4R7 5 3R3 10 2R2 1R0 0 0 0 1 2 3 DC Current(A) 4 5 0 1 2 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 3 4 Sealed Power Inductors – LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS404026-1R2□-N 1.2 20, 30 LVS404026-3R3□-N 3.3 20, 30 LVS404026-4R7□-N 4.7 LVS404026-220□-N 22 Part Number Test RDC Isat (A) Irms (A) (mΩ) ±30% Typ. (Max) Typ. (Max) 100 30 3.50(3.15) 3.30(2.97) 1R2 100 45 2.50(2.25) 2.50(2.25) 3R3 20, 30 100 60 1.80(1.62) 1.80(1.62) 4R7 20, 30 100 230 0.86(0.77) 1.00(0.90) 220 Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 25 70 60 20 15 10 4R7 3R3 1R2 40 30 20 4R7 5 220 50 △ T(℃ ) L(uH) 220 3R3 10 1R2 0 0 0 1 2 3 DC Current(A) 4 5 0 1 2 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4 5 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS505020-1R0□-N 1.0 20, 30 LVS505020-1R2□-N 1.2 30 LVS505020-1R5□-N 1.5 LVS505020-2R2□-N LVS505020-2R7□-N Test RDC Isat (A) Irms (A) (mΩ) ±20% Typ. (Max) Typ. (Max) 100 21 5.1(4.59) 4.0(3.60) 1R0 100 21 4.8(4.32) 3.8(3.42) 1R2 20, 30 100 26 4.2(3.78) 3.5(3.15) 1R5 2.2 20, 30 100 35 3.4(3.06) 3.2(2.88) 2R2 2.7 20, 30 100 38 3.05(2.7) 2.9(2.60) 2R7 LVS505020-3R3□-N 3.3 20, 30 100 48 3.0(2.70) 2.8(2.52) 3R3 LVS505020-4R7□-N 4.7 20, 30 100 60 2.2(1.98) 2.2(1.98) 4R7 LVS505020-5R6□-N 5.6 20, 30 100 82 2.05(1.84) 2.0(1.80) 5R6 LVS505020-6R8□-N 6.8 20, 30 100 90 2.0(1.80) 1.8(1.62) 6R8 LVS505020-100□-N 10 20, 30 100 120 1.6(1.44) 1.6(1.44) 100 LVS505020-150□-N 15 20, 30 100 190 1.3(1.17) 1.2(1.08) 150 LVS505020-220□-N 22 20, 30 100 260 1.0(0.90) 1.0(0.90) 220 LVS505020-330□-N 33 20, 30 100 460 0.8(0.72) 0.75(0.67) 330 LVS505020-470□-N 47 20, 30 100 580 0.65(0.58) 0.65(0.58) 470 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 60 55 470 50 470 150 330 100 220 6R8 4R7 3R3 2R2 1R5 1R0 40 35 30 △ T(℃ ) L(uH) 50 45 40 330 25 20 20 220 15 10 150 100 6R8 4R7 3R3 5 30 10 2R2 1R5 1R0 0 0 0 2 4 DC Current(A) 6 0 1 2 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4 5 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS505040-1R0□-N 1.0 30 LVS505040-1R2□-N 1.2 LVS505040-1R5□-N 1.5 LVS505040-2R2□-N LVS505040-3R0□-N LVS505040-3R3□-N Test RDC Isat (A) Irms (A) (mΩ) ±30% Typ. (Max) Typ. (Max) 100 14 7.5(6.75) 4.6(4.14) 1R0 20, 30 100 15 7.4(6.66) 4.5(4.05) 1R2 20, 30 100 16 7.1(6.39) 4.4(3.96) 1R5 2.2 20, 30 100 21 5.7(5.13) 3.7(3.33) 2R2 2.2 20, 30 100 26 4.8(4.32) 3.5(3.15) 3R0 3.3 20, 30 100 26 4.8(4.32) 3.5(3.15) 3R3 LVS505040-3R6□-N 3.6 20, 30 100 31 4.2(3.70) 3.3(2.90) 3R6 LVS505040-4R7□-N 4.7 20, 30 100 32 4.2(3.78) 3.2(2.88) 4R7 LVS505040-6R8□-N 6.8 20, 30 100 50 3.3(2.97) 2.4(2.16) 6R8 LVS505040-8R2□-N 8.2 20, 30 100 58 3.1(2.70) 2.3(2.00) 8R2 LVS505040-100□-N 10 20, 30 100 60 2.8(2.52) 2.2(1.98) 100 LVS505040-150□-N 15 20, 30 100 90 2.3(2.07) 1.8(1.62) 150 LVS505040-220□-N 22 20, 30 100 135 1.8(1.62) 1.4(1.26) 220 LVS505040-270□-N 27 20, 30 100 180 1.6(1.44) 1.2(1.08) 270 LVS505040-330□-N 33 20, 30 100 190 1.5(1.35) 1.1(0.99) 330 LVS505040-470□-N 47 20, 30 100 310 1.2(1.08) 0.9(0.81) 470 LVS505040-680□-N 68 20, 30 100 540 1.0(0.90) 0.78(0.7) 680 LVS505040-101□-N 100 20, 30 100 800 0.7(0.60) 0.6(0.50) 101 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Tem perature Change vs. DC Current Inductance vs. DC Current 50 70 45 60 470 40 △ T(℃ ) 30 330 25 270 20 220 150 100 6R8 4R7 3R3 2R2 1R5 330 270 50 35 L (uH) 470 1R0 40 30 220 15 150 100 6R8 10 5 20 4R73R3 10 2R2 1R5 1R0 0 0 0 1 2 3 4 5 6 DC Current(A) 7 8 9 10 0 1 2 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4 5 6 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS606020-R50□-N 0.5 30 LVS606020-R90□-N 0.9 30 LVS606020-1R0□-N 1.0 LVS606020-1R5□-N LVS606020-2R2□-N Test RDC Isat (A) Irms (A) (mΩ) ±30% Typ. (Max) Typ. (Max) 100 13 8.0(7.20) 5.3(4.77) R50 100 18 6.3(5.67) 4.2(3.78) R90 30 100 19 6.2(5.58) 4.1(3.69) 1R0 1.5 20, 30 100 26 5.0(4.50) 3.6(3.24) 1R5 2.2 20, 30 100 34 4.2(3.78) 3.2(2.88) 2R2 LVS606020-3R3□-N 3.3 20, 30 100 40 3.2(2.88) 2.7(2.43) 3R3 LVS606020-4R7□-N 4.7 20, 30 100 58 2.5(2.25) 2.2(1.98) 4R7 LVS606020-6R8□-N 6.8 20, 30 100 85 2.2(1.98) 1.8(1.62) 6R8 LVS606020-100□-N 10 20, 30 100 125 2.0(1.80) 1.6(1.44) 100 LVS606020-150□-N 15 20, 30 100 190 1.3(1.17) 1.3(1.17) 150 LVS606020-220□-N 22 20, 30 100 260 1.1(0.99) 1.1(0.99) 220 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 70 25 4R7 60 220 15 150 10 100 2R2 1R5 R90 3R3 100 40 30 20 6R8 4R7 5 6R8 220 50 △ T(℃ ) L(uH) 20 150 3R3 10 2R2 1R5 R90 0 0 0 2 4 DC Current(A) 6 8 0 1 2 3 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 4 5 6 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS606028-1R0□-N 1.0 20, 30 LVS606028-1R5□-N 1.5 30 LVS606028-2R2□-N 2.2 LVS606028-2R7□-N LVS606028-3R3□-N Test RDC Isat (A) Irms (A) (mΩ) ±30% Typ. (Max) Typ. (Max) 100 13 7.6(6.84) 5.2(4.68) 1R0 100 16 6.3(5.67) 4.8(4.32) 1R5 20, 30 100 20 5.4(4.86) 4.0(3.60) 2R2 2.7 20, 30 100 26 4.9(4.41) 3.7(3.33) 2R7 3.3 20, 30 100 28 4.3(3.87) 3.5(3.15) 3R3 LVS606028-4R7□-N 4.7 20, 30 100 38 3.7(3.33) 3.2(2.88) 4R7 LVS606028-6R0□-N 6.0 20, 30 100 45 3.3(2.97) 2.8(2.52) 6R0 LVS606028-6R8□-N 6.8 20, 30 100 50 3.1(2.79) 2.7(2.43) 6R8 LVS606028-100□-N 10 20, 30 100 65 2.5(2.25) 2.3(2.07) 100 LVS606028-150□-N 15 20, 30 100 95 2.0(1.80) 1.8(1.62) 150 LVS606028-220□-N 22 20, 30 100 135 1.6(1.44) 1.5(1.35) 220 LVS606028-330□-N 33 20, 30 100 220 1.3(1.17) 1.4(1.26) 330 LVS606028-470□-N 47 20, 30 100 320 1.1(0.99) 1.0(0.90) 470 LVS606028-680□-N 68 20, 30 100 420 0.98(0.88) 0.9(0.81) 680 LVS606028-101□-N 100 20, 30 100 600 0.82(0.73) 0.8(0.72) 101 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Current 70 25 220 150 60 6R0 100 20 △ T(℃ ) L(uH) 1R0 1R5 50 220 15 150 10 100 40 30 20 6R0 4R7 3R3 2R0 5 2R2 4R7 3R3 10 1R5 1R0 0 0 0 2 4 6 DC Current(A) 8 10 0 1 2 3 4 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 5 6 7 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance (uH) Tolerance (±%) Test Frequency (kHz) RDC (mΩ) ±30% Isat (A) Typ. (Max) Irms (A) Typ. (Max) Marking LVS606045-1R0□-N LVS606045-1R2□-N 1.0 1.2 20, 30 20, 30 100 100 12 13 12.2(10.98) 10.6(9.50) 6.5(5.85) 5.9(5.30) 1R0 1R2 LVS606045-1R5□-N LVS606045-1R8□-N 1.5 1.8 20, 30 20, 30 100 100 15 17 10.4(9.36) 9.6(8.64) 5.9(5.31) 5.6(5.04) 1R5 1R8 LVS606045-2R2□-N LVS606045-2R3□-N 2.2 2.3 20, 30 20, 30 100 100 18.4 19 8.8(7.92) 8.8(7.92) 5.1(4.59) 5.0(4.50) 2R2 2R3 LVS606045-3R0□-N LVS606045-3R3□-N 3.0 3.3 20, 30 20, 30 100 100 22 24 7.8(7.02) 7.5(6.75) 4.4(3.96) 4.3(3.87) 3R0 3R3 LVS606045-3R6□-N LVS606045-3R9□-N 3.6 3.9 20, 30 20, 30 100 100 24 26 7.5(6.75) 7.0(6.30) 4.3(3.87) 4.0(3.60) 3R6 3R9 LVS606045-4R5□-N LVS606045-4R7□-N 4.5 4.7 20, 30 20, 30 100 100 31 31 6.7(6.03) 6.7(6.03) 3.9(3.51) 3.9(3.51) 4R5 4R7 LVS606045-5R1□-N LVS606045-5R6□-N 5.1 5.6 20, 30 20, 30 100 100 33 40 6.0(5.40) 5.5(4.95) 3.5(3.15) 3.3(2.97) 5R1 5R6 LVS606045-6R3□-N LVS606045-6R8□-N 6.3 6.8 20, 30 20, 30 100 100 40 43 5.5(4.95) 5.3(4.77) 3.3(2.97) 3.2(2.88) 6R3 6R8 LVS606045-8R2□-N LVS606045-100□-N 8.2 10 20, 30 20, 30 100 100 53 57 4.6(4.10) 4.5(4.05) 2.9(2.60) 2.7(2.43) 8R2 100 LVS606045-150□-N LVS606045-180□-N 15 18 20, 30 20, 30 100 100 80 100 3.4(3.06) 3.1(2.79) 2.2(1.98) 1.8(1.62) 150 180 LVS606045-220□-N LVS606045-270□-N 22 27 20, 30 20, 30 100 100 125 160 3.0(2.70) 2.5(2.25) 1.9(1.71) 1.3(1.17) 220 270 LVS606045-330□-N LVS606045-470□-N 33 47 20, 30 20, 30 100 100 165 245 2.3(2.07) 1.9(1.71) 1.4(1.26) 1.2(1.08) 330 470 LVS606045-560□-N LVS606045-680□-N 56 68 20, 30 20, 30 100 100 310 330 1.7(1.50) 1.6(1.44) 1.1(0.99) 1.0(0.90) 560 680 LVS606045-101□-N LVS606045-221□-N 100 220 20, 30 20, 30 100 100 500 1300 1.3(1.17) 0.82(0.73) 0.8(0.72) 0.38(0.34) 101 221 0.7(0.63) 0.4(0.36) 0.35(0.31) 0.22(0.19) 331 102 Part Number LVS606045-331□-N 330 20, 30 100 1800 LVS606045-102□-N 1000 20, 30 100 6000 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current Tem perature Change vs. DC Curent 100 80 90 70 80 60 70 680 60 △ T( ℃ ) L(uH) 680 100 101 470 330 150 6R8 4R5 2R3 220 3R0 1R8 101 50 470 40 330 30 220 150 100 20 10 1R0 50 40 . 30 20 6R8 1R8 1R0 0 10 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DC Current (A) 0 1 2 3 4 5 DC Current (A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 6 7 8 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS606045L-R50□-N 0.5 30 LVS606045L-2R2□-N 2.2 LVS606045L-3R3□-N LVS606045L-4R7□-N Test RDC Isat (A) Irms (A) (mΩ) Max Typ. (Max) Typ. (Max) 100 9 11(9.90) 8.0(7.20) R50 20, 30 100 17 6.8(6.12) 5.5(4.95) 2R2 3.3 20, 30 100 24 5.5(4.95) 4.7(4.23) 3R3 4.7 20, 30 100 30 4.6(4.14) 4.0(3.60) 4R7 LVS606045L-6R8□-N 6.8 20, 30 100 40 4.0(3.60) 3.5(3.15) 6R8 LVS606045L-100□-N 10 20, 30 100 50 3.2(2.88) 3.2(2.88) 100 LVS606045L-150□-N 15 20, 30 100 80 2.6(2.34) 2.5(2.25) 150 LVS606045L-220□-N 22 20, 30 100 120 2.1(1.89) 2.0(1.80) 220 LVS606045L-330□-N 33 20, 30 100 170 1.7(1.53) 1.6(1.44) 330 LVS606045L-101□-N 100 20, 30 100 595 0.95(0.85) 0.92(0.82) 101 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current 70 35 60 330 220 150 330 30 100 6R8 4R7 50 25 △ T(℃ ) L(uH) Tem perature Change vs. DC Current 40 220 20 15 150 100 10 3R3 2R2 40 30 20 6R8 5 10 4R7 3R3 2R2 0 0 0 2 4 6 DC Current(A) 8 10 0 1 2 3 4 5 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 6 7 8 Sealed Power Inductors - LVS Series Electrical Characteristics Inductance Tolerance (uH) (±%) LVS808040-R90□-N 0.9 30 LVS808040-1R0□-N 1.0 LVS808040-1R4□-N 1.4 LVS808040-1R5□-N Test RDC Isat (A) Irms (A) (mΩ) ±30% Typ. (Max) Typ. (Max) 100 7 13.8(12.42) 8.05(7.24) R90 30 100 7.5 13.0(11.70) 7.95(7.15) 1R0 30 100 9 10.8(9.72) 7.8(7.02) 1R4 1.5 30 100 9.5 10.0(9.00) 7.7(6.93) 1R5 LVS808040-2R0□-N 2.0 20, 30 100 11 9.6(8.64) 7.4(6.66) 2R0 LVS808040-2R2□-N 2.2 20, 30 100 11.5 9.2(8.28) 7.2(6.48) 2R2 LVS808040-2R5□-N 2.5 20, 30 100 13 8.2(7.38) 6.3(5.67) 2R5 LVS808040-3R3□-N 3.3 20, 30 100 15 7.5(6.75) 6.0(5.40) 3R3 LVS808040-3R9□-N 3.9 20, 30 100 18 6.1(5.40) 5.5(4.90) 3R9 LVS808040-4R7□-N 4.7 20, 30 100 18 6.0(5.40) 5.5(4.95) 4R7 LVS808040-5R6□-N 5.6 20, 30 100 23 5.7(5.13) 5.2(4.68) 5R6 LVS808040-6R8□-N 6.8 20, 30 100 25 5.4(4.86) 5.1(4.59) 6R8 LVS808040-100□-N 10 20, 30 100 38 4.3(3.87) 3.8(3.42) 100 LVS808040-120□-N 12 20, 30 100 45 3.8(3.42) 3.5(3.15) 120 LVS808040-150□-N 15 20, 30 100 50 3.6(3.24) 3.2(2.88) 150 LVS808040-180□-N 18 20, 30 100 68 3.1(2.79) 2.7(2.43) 180 LVS808040-220□-N 22 20, 30 100 80 2.8(2.52) 2.6(2.34) 220 LVS808040-330□-N 33 20, 30 100 110 2.3(2.07) 2.0(1.80) 330 LVS808040-470□-N 47 20, 30 100 160 1.9(1.71) 1.75(1.57) 470 LVS808040-680□-N 68 20, 30 100 240 1.7(1.53) 1.45(1.30) 680 LVS808040-101□-N 100 20, 30 100 340 1.4(1.26) 1.10(0.99) 101 LVS808040-121□-N 120 20, 30 100 425 1.1(0.99) 1.0(0.90) 121 LVS808040-151□-N 150 20, 30 100 480 1.0(0.90) 0.9(0.81) 151 LVS808040-181□-N 180 20, 30 100 650 0.98(0.88) 0.7(0.63) 181 LVS808040-221□-N 220 20, 30 100 670 0.94(0.84) 0.60(0.54) 221 LVS808040-271□-N 270 20, 30 100 900 0.83(0.74) 0.55(0.49) 271 LVS808040-821□-N 820 20, 30 100 2800 0.40(0.36) 0.38(0.34) 821 Part Number Frequency (kHz) Marking Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current 80 35 70 470 680 330 101 60 30 330 △ T( ℃ ) L(uH) Tem perature Change vs. DC Current 40 25 20 220 15 100 5 150 100 6R8 4R7 3R3 2R0 1R4 R90 50 40 30 150 10 220 20 6R8 4R7 3R3 2R0 1R4 10 R90 0 0 0 5 10 DC Current(A) 15 20 0 2 4 6 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 8 10 Sealed Power Inductors - LVS Series Electrical Characteristics Part Number Inductance Tolerance (uH) (±%) Test Frequency (kHz) RDC Isat (A) Irms (A) (mΩ) Max Typ. (Max) Typ. (Max) Marking LVS808040L-1R0□-N 1.0 30 100 10 9.5(8.55) 8.5(7.65) 1R0 LVS808040L-2R2□-N 2.2 20,30 100 12 7.2(6.48) 7.3(6.57) 2R2 LVS808040L-3R3□-N 3.3 20,30 100 19 5.6(5.04) 6.0(5.40) 3R3 LVS808040L-4R7□-N 4.7 20,30 100 22 4.4(3.96) 5.0(4.50) 4R7 LVS808040L-8R2□-N 8.2 20,30 100 37 3.6(3.24) 3.8(3.42) 8R2 LVS808040L-100□-N 10 20,30 100 42 3.1(2.79) 3.5(3.15) 100 LVS808040L-150□-N 15 20,30 100 58 2.5(2.25) 3.0(2.70) 150 LVS808040L-220□-N 22 20,30 100 85 2.0(1.80) 2.5(2.25) 220 Note: When ordering, please specify tolerance code. Tolerance: M=±20% , T =±30%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Isat for Inductance drop 30% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：Agilent HP4284A+Agilent HP42841A, 100kHz 1V RDC：DIGITAL MILLINHM METER CHROMA 16502, or equivalent Isat & Irms：Agilent HP4284A Test Instruments：HP4284A Material/Impedance Analyzer Inductance vs. DC Current 70 25 60 △ T(℃ ) 15 150 10 4R7 220 50 220 20 L(uH) Tem perature Change vs. DC Current 30 100 150 2R2 100 8R2 40 30 20 8R2 4R7 5 10 2R2 0 0 0 2 4 6 DC Current(A) 8 10 0 1 2 3 4 5 DC Current(A) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 6 7 8 9 Sealed Power Inductors - LVS Series Packaging Specifications Tape Dimensions Reel Dimensions Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A0 B0 K0 D E F W P P0 P2 A B C D PCS / Reel LVS404012 4.25 4.25 1.30 1.55 1.75 5.5 12 8.1 4 2 180 60 13 13.2 1000 LVS404018 4.25 4.25 2.10 1.55 1.75 5.5 12 8.1 4 2 180 60 13 13.2 800 LVS404026 4.25 4.25 3.00 1.55 1.75 5.5 12 8.1 4 2 180 60 13 13.2 500 LVS505020 5.25 5.25 2.20 1.55 1.75 5.5 12 8.1 4 2 330 100 13 13.4 2000 LVS505040 5.20 5.20 4.20 1.55 1.75 5.5 12 8.1 4 2 330 100 13 13.4 1500 LVS606020 6.25 6.25 2.20 1.55 1.75 7.5 16 12 4 2 330 100 13 16.0 2000 LVS606028 6.25 6.25 3.00 1.55 1.75 7.5 16 12 4 2 330 100 13 16.0 1500 LVS606045 6.25 6.25 4.65 1.55 1.75 7.5 16 12 4 2 330 100 13 16.0 1000 LVS808040 8.25 8.25 4.15 1.55 1.75 7.5 16 12 4 2 330 100 13 16.0 1000
