SPECIFICATION FOR APPROVAL
承 認 書
Description
: V-CHIP ALUMINUM ELECTROLYTIC CAPACITORS
(零 件 名 稱)
Lelon Series :
VUA
Series
(立 隆 系 列)
Lelon Part No.:
VUA221M1ETR-0810
(立 隆 料 號)
LELON ELECTRONICS CORP.
立隆電子工業股份有限公司
Headquarters
147, Sec. 1, Guoguang Rd,. Dali District, Taichung, Taiwan
TEL: +886-4-24181856 FAX: +886-4-24181906
Manufacturing Sites
□
Lelon Electronics Corp.
147, Sec. 1, Guoguang Rd,. Dali District, Taichung, Taiwan
TEL: +886-4-24181856 FAX: +886-4-24181906
■
Lelon Electronics (Huizhou) Co., Ltd.
Taiyang Industrial Zone, Baihua Town, Huidong County, Huizhou City,
Guangdong, China
TEL: +86-752-8768222 FAX: +86-752-8768199
■
Lelon Electronics (Suzhou) Co., Ltd.
1220, Zhongshan North Rd., Wujiang Economic and Technological Technological
Development Zone Suzhou City, Jiangsu, China
TEL: +86-512-63457588 FAX: +86-512-63457791
Approval Signatures
貴公司承認印
Approval
核 准
Check
確 認
Design
作 成
R&D
R&D
R&D
MAR. 16. 2020
MAR. 16. 2020
MAR. 16. 2020
Jack Huang
H. Y. Huang
Z. X. Sun
Please Return One Copy with Your Approval
承 認 後 請 寄 回 本 圖 一 份
RDD0346A, A4, 970102
LELON ELECTRONICS CORP.
Ver. 02
Part Numbering System
Product Code Guide – SMD Type
VE series
10μF
±20%
16V
Carrier
Tape
VE-
100
M
1C
TR
-
0405
□□□
□□□
□
□□
□□
□
□□□□
□
①
②
③
④
⑤
⑥
⑦
⑧
⑨
Case size
Lead Wire and
Coating Type
Supplement
Code
Series
4φ×5.3L
Capacitanc Capacitanc Rated Package Terminal
e
e Tolerance Voltage
Type
Type
Pb-free and PET
coating case
① Series:
Series is represented by a three-letter code. When the series name only has two letters, use a hyphen, “-“, to fill
the third blank.
② Capacitance:
Capacitance in μF is represented by a three-digit code. The first two digits are significant and the third digit
indicates the number of zeros following the significant figure. “R” represents the decimal point for
capacitance under 10μF.
Example:
Capacitance
0.1
0.47
1
4.7
10
47
100
470
1,000
4,700
10,000
Part number
0R1
R47
010
4R7
100
470
101
471
102
472
103
③ Tolerance:
J = -5% ~ +5%
K = -10% ~ +10%
M = -20% ~ +20%
V = -10% ~ +20%
④ Rated voltage:
Rated voltage in volts (V) is represented by a two-digit code
Voltage (WV)
2.5
4
6.3
10
16
20
25
35
40
50
63
80
100
Code
0E
0G
0J
1A
1C
1D
1E
1V
1G
1H
1J
1K
2A
Voltage (WV)
160
200
250
350
400
450
Code
2C
2D
2E
2V
2G
2W
⑤ Package:
TR = Reel package
T- = Tray package for case diameter 12.5 ~ 18mm
⑥ Terminal:
- = No dummy terminal
K = Anti-vibration structure (30G)
A = For automotive application (10G)
G = Anti-vibration structure (50G)
⑦ Case size:
The first two digits indicate case diameter and the last two digits indicate case length in mm.
φD×L
3×5.3
4×4.5
4×5.3
4×5.7
Code
0305
0404
0405
0406
φD×L
6.3×7.7
8×6.5
8×10
10×7.7
0810
1008
Code
0607
0806
φD×L
18×16.5
18×21.5
5×4.5
5×5.3
0504
0505
5×5.7
5×5.8
0506
6.3×4.5
0604
10×10(9.9) 10×12.5 12.5×13.5 12.5×16
1010
1013
1313
1316
0605
6.3×5.7
6.3×5.8
0606
16×16.5
16×21.5
1616
1621
6.3×5.3
Code
1816
1821
Note 1: When a case size is required and not shown in the table, please contact with us for further discussion.
Note 2: The case size “5×5.8, 6.3×5.8” is for VZS series only.
⑧ Lead Wire and Coating Type:
None = Pb free wire + PET coating case (Standard design)
E = Sn-Bi wire + PET coating case
B = Sn-Bi wire + Coating case
K / L = Automotive control code
* When a supplement code following a blank digit code of lead wire and case coating type (standard design), use a hyphen, “-“, to
fill the blank digit.
* When the automotive control code is required, please contact with us for further discussion.
⑨ Supplement code (Optional):
For special control purpose
LELON ELECTRONICS CORP.
Lelon P/N:
VUA221M1ETR-0810
Page: 1 / 1

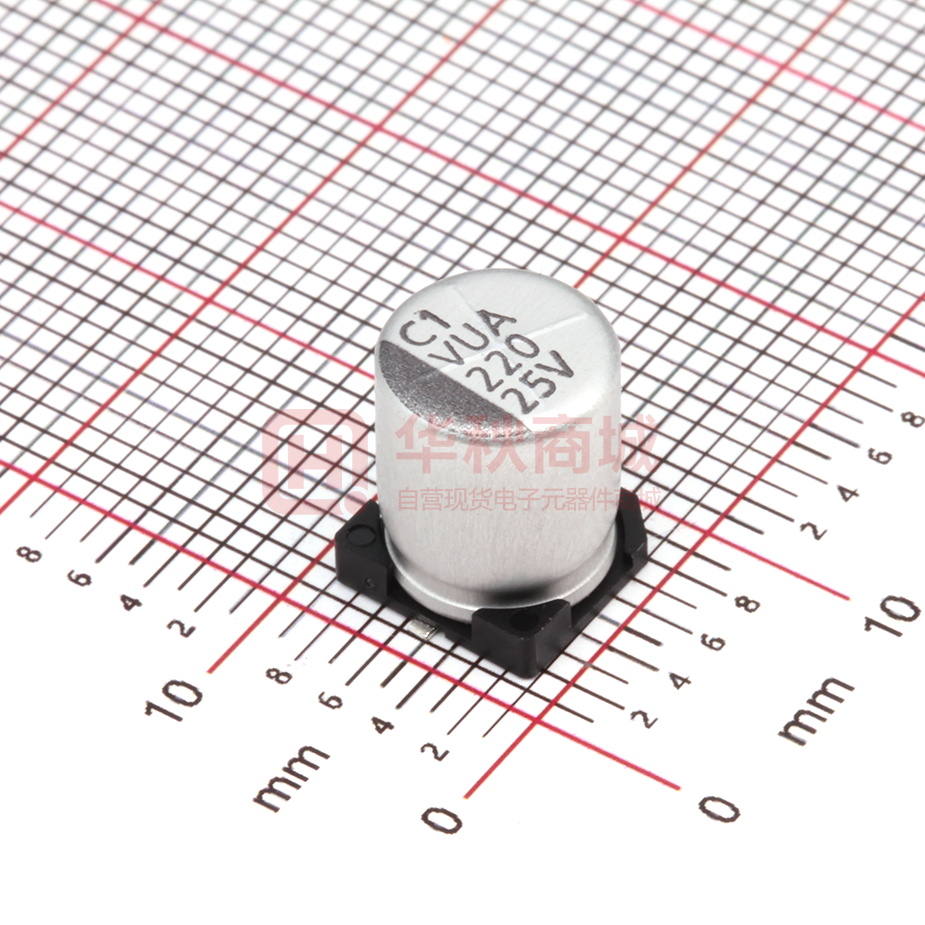

220 μF / 25 V – 8φ × 10L
VUA
CUSTOMER
:
日鑫股份有限公司
CUSTOMER P/N:
PRODUCT DIMENSIONS
Unit: mm
8
10 ± 0.5
8.3
8.3
9.0
0.7~1.1
3.1 ± 0.2
φD
L
A
B
C
W
P
Items
Performance
Rated Voltage VR
25 V
Capacitance CR
220 µF
(120 Hz, 20℃)
-40℃ ~ +125℃
Category Temperature Range
-20 % ~ +20 %
Capacitance Tolerance
Surge Voltage VS
(120 Hz, 20℃)
28.8 VDC
ILEAK ≦ 165 µA
Leakage Current (20℃)
Tan δ
After 1 minutes
≦ 0.21
Z(-25℃) / Z(+20℃)
Z(-40℃) / Z(+20℃)
Low Temperature
Characteristics at 120 Hz
Ripple Current (A) and
Frequency Multipliers
Endurance and Shelf Life
Test
(120 Hz, 20℃)
130 mA
Ripple Current (IAC, R /rms)
(120 Hz, 125℃)
4
6
Frequency (Hz)
50
120
1k
10k up
Multiplier
0.80
1.00
1.25
1.40
Items
Endurance
Shelf Life Test
Test Time
2,000 Hrs at 125℃; VR
1,000 Hrs at 125℃
Cap. Change
Within ±30 % of initial value
Within ±30 % of initial value
Tan δ
Less than 300% of specified value Less than 300% of specified value
Leakage Current
Within specified value
Within specified value
Standards
JIS C 5101-1, -18, IEC 60384-4
Remarks
RoHS Compliance, Halogen-free
Marking: Each capacitor shall be marked with the following information
A
0 →
January , 2020
The suffix of A. D.
Month of manufacture
Month
1
2
3
4
5
6
Code
A
B
C
D
E
F
Month
7
8
9
10
11
12
Code
G
H
I
J
K
L
Marking color: Black
* Please refer to “Precautions and Guidelines for Aluminum Electrolytic Capacitors” section in Lelon's catalog for further details.
Publication Date
March 14, 2020
Approval Signatures:
Revision Date
Version No.
RDD0366A, A4, 100309
1
Please return one copy with your approval
Approved
Checked
Designed
R&D
R&D
R&D
MAR. 16. 2020
MAR. 16. 2020
MAR. 16. 2020
Jack Huang
H.Y.Huang
Z.X.Sun
LELEON ELECTRONICS CORP.
VUA-MK-07
Diagram of Dimensions:
Unit: mm
Fig. 1
Fig. 2
(*): For 3 ~ 6.3φ is 0.4 max.
φD
6.3
6.3
8
8
10
12.5
12.5
16
18
L
5.7 ± 0.3
7.7 ± 0.3
6.5 ± 0.3
10 ± 0.5
10 ± 0.5
13.5 ± 0.5
16 ± 0.5
16.5 ± 0.5
16.5 ± 0.5
A
6.6
6.6
8.3
8.3
10.3
13.0
13.0
17.0
19.0
B
6.6
6.6
8.3
8.3
10.3
13.0
13.0
17.0
19.0
C
7.2
7.2
9.0
9.0
11.0
13.7
13.7
18.0
20.0
W
0.5 ~ 0.8
0.5 ~ 0.8
0.5 ~ 0.8
0.7 ~ 1.1
0.7 ~ 1.3
1.1 ~ 1.4
1.1 ~ 1.4
1.1 ~ 1.4
1.1 ~ 1.4
P ± 0.2
2.0
2.0
2.3
3.1
4.7
4.4
4.4
6.4
6.4
Fig. No.
1
1
1
1
1
2
2
2
2
Marking:
Each capacitor shall be marked with the following information.
φD = 6.3 mm
φD = 8 ~ 10 mm
φD ≧ 12.5 mm
Description of Date Code:
A 0
→
January, 2020
The last digit of A. D.
Month of manufacure
Month
Code
Month
Code
Marking Color: Black
Origin code:
1
A
2
B
3
C
4
D
5
E
6
F
7
G
8
H
9
I
10
J
11
K
12
L
Huizhou: A0 , B0 , … , K0, L0
Suzhou: 0A , 0B , … , 0K , 0L
LELON ELECTRONICS CORP.
PAC-SMD
Taping Specification for SMD Type
1. Carrier Tape
Fig. 1-1
Fig. 1-2
Fig. 1-3
φD ×L
A
B
3~4 ×4.5
4.5
4 ×5.3
φd
F
P
P1
P2
t1
4.5
5.5
8
4.8
4.5
4.5
5.5
8
5.8
4 ×5.7
4.5
4.5
5.5
8
6.3
5 ×4.5
5.5
5.5
5.5
12
4.8
5 ×5.3
5.5
5.5
5.5
12
5.9
5 ×5.7 ~ 5.8
5.5
5.5
5.5
12
6.3
6.3 ×4.5
6.8
6.8
7.5
12
6.3 ×5.3
6.8
6.8
6.3 ×5.7 / 5.8
6.8
6.8
7.5
12
6.3 ×7.7
6.8
6.8
6.3 ×8.7
6.8
6.8
6.3 ×9.5
6.8
6.8
11.5
16
8 ×6.5
8.7
8.7
7.5
12
9.4
9.4
11.5
16
10.7
10.7
10 ×10.5(G)
11.4
11.4
11.4
10 ×12.5
10.7
10.7
13.1
0.4
10 ×7.7
W
W1
Unit: mm
Fig. No.
1-1
12.0
4.8
5.9
6.3
16.0
8.3
9.3
0.5
8 ×9.5~10
8 ×10.5(G)
t2
10.6
24.0
6.9
16.0
1-2
11.0
10 ×10
11.4
2.0
4.0
8.7
1.5
11.0
10 ×16.5
10.7
10.7
17.5
12.5 ×13.5
13.4
13.4
14.5
12.5 ×13.5(G)
13.7
13.7
12.5 ×16
13.4
13.4
12.5 ×16(G)
13.7
13.7
16 ×16.5
17.5
17.5
16 ×16.5(G)
17.5
17.5
16 ×21.5
17.5
17.5
18 ×16.5
19.5
19.5
18 ×16.5(G)
19.6
19.6
18 ×21.5
19.5
19.5
Tol.
± 0.2
± 0.2
24.0
14.2
24
15.0
1.75
32.0
17.0
0.5
17.5
17.0
28
17.5
20.2
1-3
44.0
23.0
17.5
32
17.5
23.0
+0.1/-0
± 0.1
± 0.1
± 0.1
± 0.1
± 0.1
± 0.2
± 0.3
± 0.15
Note: Case size in mark of “G” are for “Anti-vibration”.
Ver. 12
-1-
LELON ELECTRONICS CORP.
PAC-SMD
2. Reel Package
Fig. 2-1
Fig. 2-2 Reel Polarity
Pull out direction
Case size
3 ~ 4φ
5φ
6.3φ
8φ×6.5
8φ×10
10φ
12.5φ
16 ~ 18φ
W
14
14
18
18
26
26
34
46
A
380
380
380
380
380
380
380
380
t
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3. Packing specification
Fig. 3-1 Carrier Tape
Unit: pcs
Ver. 12
Case size
Q’ty / Reel
Q’ty / Box
3φ
4φ
2,000
20,000
2,000
20,000
5φ
1,000
10,000
6.3φ
1,000
10,000
8φ×6.5
1,000
10,000
8φ×10L
500
5,000
10φ×7.7 ~ 10L
500
5,000
10φ×12.5L
400
4,000
12.5φ×13.5L
200
1,600
12.5φ×16L
200
1,600
16φ×16.5L
200
1,600
16φ×21.5L
100
800
18φ×16.5L
150
1,200
18φ×21.5L
100
800
Unit: mm
16 ~ 18φ
Case size
3 ~ 4φ
5φ
6.3φ
8φ× 6.5
8φ× 10
10φ
12.5φ
H
210
210
250
250
330
330
330
425
W, L
395
395
395
395
395
395
395
395
-2-
LELON ELECTRONICS CORP.
PAC-SMD
Fig. 3-2 Label
4. Chip Tray
Dimension and package quantity
Case size
W1
H
H1
Q’ty / Tray
Unit: mm
Q’ty / Box
12.5φ×13.5L
284
21
18.5
120
600
12.5φ×16L
284
21
18.5
120
600
16φ×16.5L
284
28
24.0
80
400
16φ×21.5L
284
28
24.0
80
400
18φ×16.5L
284
28
24.0
60
300
18φ×21.5L
284
28
24.0
60
300
5. Sealing Tape Reel Strength
5.1 Peel angle: 165 to 180℃refered to the surface on which the tape is glued.
5.2 Peel speed: 300mm per minutes
5.3 The peel strength must be 0.1 ~ 0.7N under these conditions.
6. Packing Method
6.1 The leader length of the tape shall not be less than 400 mm including 10 or more embossed sections in
which no parts are contained.
6.2 The winding core is provided with an over 160mm long empty section; punched carrier is only suitable for
φD ≦ 5 mm.
7. Other: Specifications stated above is in accordance with JIS C 0806-3.
Ver. 12
-3-
LELON ELECTRONICS CORP.
VUA-APR-12
Endurance characteristic:
No.
Item
1 Rotational
Temperature Test
2
3
4
5
6
7
Conditions
Capacitor is placed in an oven whose temperature
follow specific regulation to change. The specific
regulation is " +25℃ (3 min.) → -40℃ (30 min.)
→ +25℃ (3 min.) → +125℃ (30 min.) → +25℃ (3
min.) ", and it is called a cycle. The test totals 10
cycles, and then the capacitor shall be subjected to
standard atmospheric conditions for 4 hours, after
which measurements shall be made.
High Temperature 1. Capacitors shall be placed in oven with
Endurance Life
application of rated voltage
Test
1,000 +48 / -0 hours for φD ≦ 6.3 ~ 8 × 6.5 mm;
2,000 +72 / -0 hours for φD ≧ 8 × 10 ~ 18 mm at
125℃.
2. Then the capacitor shall be subjected to standard
atmospheric conditions for 4 hours, after which
measurements shall be made.
High Temperature After 1,000 +48 / -0 Hours test at 125℃ without
Unload Life Test
rated voltage. And then the capacitor shall be
subjected to standard atmospheric conditions for
4 hours, after which measurements shall be made.
Humidity Test
Low Temperature
Test
Vibration Test
Surge Voltage
Test
Specification
Capacitance
change
Tanδ
Leakage
Current
Physical
Within ± 10% of initial value
Within specified value
Within specified value
No broken and undamaged
Capacitance
change
Tanδ
Leakage
Current
Physical
Capacitance
change
Tanδ
Leakage
Current
Physical
Capacitors shall be exposed for 1,000 +48 / -0 hours Capacitance
in an atmosphere of 90 ~ 95% R. H. at 60 ±
change
3℃.
Tanδ
And then the capacitor shall be subjected to
Leakage
standard atmospheric conditions for 4 hours, after
Current
which measurements shall be made.
Physical
Capacitors are placed at -40 ± 3℃ for 96 ± 4 hours. Capacitance
And then the capacitor shall be subjected to
change
standard atmospheric conditions for 4 hours, after
Tanδ
which measurements shall be made.
Leakage
Current
Physical
1. Fix it at the point 4 mm or less from body. For
Capacitance
ones of 12.5 mm or more in diameter or 25 mm or change
more length, use separate fixture.
Tanδ
2. Direction and during of vibration:
Leakage
3 orthogonal directions mutually each for 2 hours Current
(total of 6 hours).
Physical
3. Frequency:
10 to 55 Hz reciprocation for 1 minute.
4. Total amplitude: 1.5 mm
The capacitor shall be subjected to 1,000 cycles at
Capacitance
15 ~ 35℃. Protective series resistor a 1KΩ each
change
consisting of a charge period of 30 ± 5 seconds,
Tanδ
followed by discharge period of approximately 5.5
Leakage
minutes.
Current
Applying voltage:
Physical
Within ± 30% of initial value
Less than 300% of specified value
Within specified value
No broken and undamaged
Within ± 30% of initial value
Less than 300% of specified value
Within specified value
No broken and undamaged
Within ± 10% of initial value
Less than 120% of specified value
Within specified value
No broken and undamaged
Within ± 10% of initial value
Within specified value
Within specified value
No broken and undamaged
Within ± 10% of initial value
Within specified value
Within specified value
No broken and undamaged
Within ± 20% of initial value
Less than 175% of specified value
Within specified value
No broken and undamaged
Rated Voltage(V)
10
16
25
35
50
63
400
Surge Voltage(V)
11.5
18.4
28.8
40.3
57.5
72.5
440
LELON ELECTRONICS CORP.
VUA-APR-12
No.
Item
8 Solder Heat1. IR Reflow
Resistance Test
Conditions
Specification
Capacitance
change
Tanδ
Leakage
Current
Physical
Rated voltage (V)
10 ~ 35
Within ± 10% of initial value
Within specified value
Within specified value
No broken and undamaged
10 ~ 63
3 ~ 6.3
8 ~ 18
Case size (φ)
Temp.
150 ~ 180
(T1 ~ T2, ℃)
Preheat
Time (t1)
100
(max., secs)
Temp. (T3, ℃) 217 230 217 230
Duration
Time (t2)
90
60
60
40
(max., secs)
Temp. (T4, ℃)
260
250
Peak
Time (t3, secs)
5
Reflow cycles
9
Mechanical
Characteristics
Test
10 Solderability
Test
11 Venting Test
2 or less
2. Solder iron method:
Bit temperature: 350 ± 5℃
Application time of soldering Iron: 3 +1 / -0 sec
* Please contact our representative if your condition is
higher.
* Please ensure that the capacitor became cold enough to
the room temperature (5℃ ~ 35℃) before the second
reflow.
* Consult with us when performing reflow profile in IPC /
JEDEC (J-STD-020)
Bending Test:
Apply pressure in the direction of the arrow at a rate of
about 0.5 mm / s until bent width reaches 2 mm and hold
for 60s. The board shall be the test board “B” as specified
in JIS C 0051: 2002. If the land area differs, it shall be
specified clearly in the next item.
Without mechanical damage such as
breaks. Electrical characteristics shall be
satisfied. If there are electrodes on both
surfaces, above requirements shall be
satisfied on whichever surface it may be
fixated on.
After the lead wire fully immersed in the solder for 2 ± 0.5 secs at a temperature of 245 ± 5℃, the solderthe
solder coating must be more than 95%.
1. Applicable to the capacitors with case size is 8×10 mm and larger.
2. Test condition:
(1) AC test: The capacitor shall be connected across an applying 50 or 60 Hz AC which is 0.7 times of
rated voltage or 250Vrms AC whichever is the lower.
(2) DC test: Applying inverse DC rated voltage with current to the capacitor.
Where case diameter: φD ≦ 22.4 mm: 1 A DC max.
φD ＞ 22.4 mm: 10 A DC max.
Note:
(1) When the pressure relief vent operated, the capacitor shall avoid any danger of fire or explosion of
capacitor element(terminal and metal foil etc.) or cover.
(2) When the pressure relief device does not open with the voltage applied over 30 minutes, the test is
considered to be passed.
LELON ELECTRONICS CORP.
No.
Item
12 Land Pattern
VUA-APR-12
Conditions
Recommended pad pattern and size
Case size
5φ
6.3φ
8φ×6.5L
8φ
13 Standards
Satisfies Characteristic JIS C 5101-1, -18
G
1.4
1.9
2.1
3.0
Land size
Y
3.0
3.5
4.0
3.5
Case size
X
1.6
1.6
1.6
2.5
10φ
12.5φ
16φ
18φ
G
4.0
4.0
6.0
6.0
Land size
Y
4.0
6.0
7.0
8.0
X
2.5
3.2
3.2
3.2
LELON ELECTRONICS CORP.
VUA-APR-12
Precautions and Guidelines for Aluminum Electrolytic Capacitors
1. Guidelines for Circuit Design (General / Application
guidelines for using electrolytic capacitors)
Selecting of a right capacitor is a key to a good circuit design.
(1) Polarity
Most of the aluminum electrolytic capacitors are polarized.
Therefore, they must be installed with the correct polarity. Usage in
the reverse polarity results into a short-circuit condition that may
damage or even explode the capacitor. In addition, it may influence
circuit functionality. A bi-polar electrolytic capacitor should be
installed when polarity across a capacitor is unstable / reversible. It
should be, however, noted that usage of both polar and bi-polar
capacitors are limited to DC applications. They must NOT be used
for AC application.
(2) Operating Voltage
Applied DC voltage must not exceed rated voltage of the capacitor.
Applying higher voltage than its rated voltage across a capacitor
terminals cause overheating due to higher leakage currents and
capacitor dielectric/insulation deterioration that will ultimately affect
a capacitor’s performance. The device, however, is capable of
working under short-time transient voltages such as DC transients
and peak AC ripples. Reverse voltages higher than 1 Volt within a
specified temperature limit or AC voltages are not permissible.
Overall, using capacitors at recommended operating voltages can
prolong its lifespan. Note that the result of DC voltage overlapped
with peak ripple voltage should not exceed rated voltage.
(3) Ripple Current
One of the key functions of any capacitor is removal of the ripple
current i.e. the RMS value of AC flowing through a capacitor. But,
a ripple current higher than rated ripple current will drop resultant
capacitance, cause undue internal heating and thus reduces life
span of the capacitor. In extreme cases, internal high temperature
will cause the pressure relief vent to operate while destroying the
device. Overall, it is important to note that an electrolytic capacitor
must be used within a permissible range of ripple current.
Indicators like temperature coefficient of allowable ripple current
are generally used to determine life expectancy of the capacitor,
but to avoid related complex calculations and for the sake of
simplicity, we haven’t provided temperature coefficient in the
catalogue. But it offers key indicators like maximum operating
temperature for calculation of life expectancy at a given
temperature.
(4) Operating Temperature
Capacitors should be used within a permissible range of operating
temperatures. Using capacitor at a higher temperature than
maximum rated temperature will considerably shorten its life. In
the worst-case scenario, high temperature can cause pressure
relief vent to operate and the device will get destroyed. Using
capacitors at an ambient room temperature assure their longer life.
(5) Leakage Current
Leakage current flows through a capacitor when DC voltage is
applied across it. Leakage current varies with changes in ambient
temperature and applied DC voltage level and its time of
application. Overvoltage situation, presence of moisture, and
thermal stresses, especially occurring during the soldering process
can enhance leakage current. Initial leakage current is usually
higher and does not decrease until voltage is applied for a certain
period of time. It is recommended to keep initial leakage current
within specified levels.
(6) Charge and Discharge
Regular electrolytic capacitors are not suitable for rapid
charging/discharging circuits. Such usage may either cause
reduction in overall capacitance or damage due to overheating.
Lelon provides special assistance for selecting appropriate
capacitors for rapid charging/discharging circuits.
(7) Surge Voltage
The Surge voltage rating is referred as the maximum DC
overvoltage that may be applied to an electrolytic capacitor for a
short time interval of 30 seconds at infrequent time intervals not
exceeding 5.5minutes with a limiting resistance of 1kΩ. Unless
otherwise described on the catalogue or product specifications,
please do not apply a voltage exceeding the capacitor’s voltage
rating. The rated surge voltages corresponding to rated voltages of
electrolytic capacitors are presented as follows:
Rated Voltage(V)
4
6.3
Surge Voltage(V)
4.6
7.3
11.5 18.4 28.8
10
16
25
40.3 57.5
35
50
Rated Voltage(V)
63
80
100
160
200
250
315
Surge Voltage(V)
72.5
92
115
184
230
288
347
Rated Voltage(V)
350
400
420
450
500
525
Surge Voltage(V)
385
440
462
495
550
578
(8) Condition of Use
The capacitors shall NOT be exposed to:
(a) Fluids including water, saltwater spray, oil, fumes, highly humid
or condensed climates, etc.
(b) Ambient conditions containing hazardous gases/fumes like
hydrogen sulfide, sulfurous acid, nitrous acid, chlorine or
bromine gas, ammonia, etc.
(c) Exposed to ozone, ultraviolet rays and radiation.
(d) Severe vibrations or physical shocks that exceeds the
specifications mentioned in this catalogue.
(9) Circuit Design Consideration
(a) Please ensure whether application, operating and mounting
conditions satisfy the conditions specified in the catalog before
installation of a capacitor. Please consult Lelon, if any of the
conditions are beyond the conditions specified in the catalog.
(b) Heat-generating components or heat sinks should not be
placed closer to Aluminum electrolytic capacitors on the PCB to
avoid their premature failure. A cooling system is recommended
to improve their reliable working.
(c) Electrical characteristics and performance of aluminum
electrolytic capacitors are affected by variation of applied
voltage, ripple current, ripple frequency and operating
temperature. Therefore, these parameters shall not exceed
specified values in the catalog.
(d) Aluminum capacitors may be connected in the parallel fashion
for increasing total capacitance and/or for achieving higher
ripple current capability. But, such design may cause unequal
current flow through each of the capacitors due to differences in
their impedances.
(e) When two or more capacitors are connected in series, voltage
across each capacitor may differ and fall below the applied
voltage. A resistor should be placed across each capacitor so
as to match applied voltage with voltage across a capacitor.
(f) Please consult Lelon while selecting a capacitor for highfrequency switching circuit or a circuit that undergoes rapid
charging/ discharging
(g) Standard outer sleeve of the capacitor is not a perfect electrical
insulator therefore is unsuitable for the applications that
requires perfect electrical insulation. Please consult Lelon, if
your application requires perfect electrical insulation.
(h) Tilting or twisting capacitor body is not recommended once it is
soldered to the PCB.
2. Caution for Assembling Capacitors
(1) Mounting
(a) Aluminum electrolytic capacitors are not recommended to reuse in other circuits once they are mounted and powered in a
circuit.
LELON ELECTRONICS CORP.
VUA-APR-12
(b) Aluminum electrolytic capacitors may hold static charge
between its anode and cathode, which is recommended to be
discharged through a 1kΩ resistor before re-use.
(c) A long storage of capacitors may result into its insulation
deterioration. This can lead to a high leakage current when
voltage is applied that may damage the capacitor. Capacitors
following a long storage period must undergo voltage
treatment/re-forming.
Capacitors are charged by applying rated DC voltage through a
resistor of 1kΩ in series at least for an hour. It is recommended
to increase applied voltage gradually using a voltage regulator
unit once capacitors are assembled on the board. The charging
should be followed by discharging through a 1KΩ resistor.
(d) Please check capacitor rated voltage before mounting.
(e) Please check capacitor polarity before mounting.
(f) Please don’t drop capacitor on the floor / hard object.
(g) Please don’t deform the capacitor during installation.
(h) Please confirm whether the lead spacing of the capacitors
match with its pad spacing / footprint on PCB prior to
installation.
(i) Please avoid excessive mechanical shocks to capacitor during
the auto-insertion process, inspection or centering operations.
(j) Please don’t place any wiring or circuit over the capacitor’s
pressure relief vent. The pressure relief vent may fail to open if
adequate clearance space is not provided. Following table
shows minimum clearance space required for different case
diameters.
Case Diameter
φ6.3 ~φ16
φ18 ~ φ35
φ40 or above
Clearance (min)
2 mm
3 mm
5 mm
(2) Soldering
(a) Please confirm that soldering conditions, especially
temperature and contact time are within our specifications. Dip
or flow soldering temperature should be limited at 260 ± 5℃ for
10 ± 1 sec while manual soldering using soldering iron should
be limited at 350 ± 5℃ for 3 +1/-0 seconds. Please do not dip
capacitor body into molten solder. A capacitor’s life will be
negatively affected if these conditions are violated.
(b) Storage of capacitors in high humidity conditions is likely to
affect the solder-ability of lead wires and terminals.
○
(a)
╳
(b)
3. Maintenance Inspection
Periodical inspection of aluminum capacitors is absolutely necessary,
especially when they are used with industrial equipment. The following
items should be checked:
(1) Appearance: Bloated, vent operated, leaked, etc.
(2) Electrical characteristic: Capacitance, Tanδ, leakage current, and
other specified items listed in specification.
Lelon recommend replacing the capacitors if any of the
abovementioned items fail to meet specifications.
(c) Reflow soldering should NOLY be used for SMD type
capacitors. The temperature and duration shall not exceed the
specified temperature and duration in the specification. If the
temperature or duration is higher than the value specified,
please consult Lelon before usage.
(d) Standard aluminum electrolytic capacitors are not designed to
withstand multiple reflow processes. Please consult Lelon if
repeated reflowing is unavoidable.
(e) Incorrect mounting on PCB with improper external strength
applied on its lead wires or capacitor body after soldering may
damage a capacitor’s internal structure, cause short circuit, or
lead to high leakage current issues. Do not bend or twist the
capacitor body after soldering. Referring to the drawings below
only case (i) is recommended.
(i) Correct soldering
(ii) Hole-to-hole spacing on PCB differs from the lead space of
lead wires.
(iii) Lead wires are bent after soldering.
(iv) Capacitor body doesn’t stand vertical on PCB after
soldering.
(3) Cleaning Circuit Boards after Soldering
(a) Following chemicals are not recommended for cleaning:
Solvent containing halogen ions, Alkaline solvent, Xylene,
Acetone, Terpene, petro-based solvent.
(b) Recommended cleaning conditions:
Fatty-alcohol - Pine Alpha ST-100S, Clean Through-750H and
IPA (isopropyl alcohol) are examples of the most acceptable
cleaning agents. Temperature of the cleaning agent must not
exceed 60℃. Flux content in the cleaning agents should be
limited to 2 Wt. %. Overall length of cleaning process (e.g.,
immersion, ultrasonic or other) shall be within 5 minutes (5 ~
7mm height within 3 minutes). CFC substitute cleaning agents
such as AK225AES can also be used for cleaning. In this case,
its temperature shall not exceed 40 C and cleaning process
(e.g., immersion, ultrasonic or other) shall be completed within
2 ~ 3 minutes. After cleaning capacitors should be dried with
hot air for at least 10 minutes along with the PCB. Temperature
of hot air shall not exceed maximum category temperature of
the capacitor. Insufficient drying may cause appearance
defects, sleeve shrinkage, and bottom-plate bulging. However,
usage of this CFC substitute must completely regulated for
protection of environment.
╳
(c)
╳
(d)
4. Storage
(1) The most suitable conditions for aluminum capacitor storage are 5
℃ ~ 35℃ and indoor relative humidity less than 75%. High
temperature and/or humidity storage is detrimental to the
capacitors.
(2) Capacitors shall not be stored in wet or damp atmospheres
containing water, brine, fumes or oil.
(3) Capacitors storage area shall neither be exposed to hazardous
gases such as hydrogen sulfide, sulfurous acid, nitrous acid,
chlorine, ammonium, etc. nor to acidic or alkaline solutions.
(4) Capacitors shall not be exposed to ozone, ultraviolet rays or
radiation.
LELON ELECTRONICS CORP.
5. Estimation of life time
Lr L0 2
T0 max Tr max
10
Lr: Estimated lifetime (hours)
L0: Base lifetime specified at maximum operating temperature with
applied the DC voltage and the ripple current (hours)
T0 max: The core temperature that rated ripple current applied at
maximum operating temperature.
Tr max: The core temperature that applied actual ripple current at
ambient temperature.
6. Disposal
Please consult with a local industrial waste disposal specialist when
disposing of aluminum electrolytic capacitors.
VUA-APR-12
7. Environmental Consideration
Lelon already have received ISO 14000 certificate. Cadmium (Cd),
Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr+6), PBB, PBDE,
DEHP, BBP, DBP and DIBP have never been using in capacitor. If you
need “Halogen-free” products, please consult with us.
8. AEC-Q200 Compliance
Automotive Electronics Counsel (AEC) has established various
electronic component qualification/reliability standards in order to
serve automotive electronics industry. AEC-Q200 standard is
dedicated for passive components like capacitors, inductors, etc. and
is widely adopted domestically as well as internationally.
Lelon offers compliant product designs and support services to satisfy
customers’ product requirements, including the AEC-Q200 required
criteria of the reliability tests. Lelon’s capacitors are professionally
designed to outperform all requirements of AEC-Q200.
For further details, please refer to
IEC 60384-4- Fixed capacitors for use in electronic equipment – Part 4: Sectional specification – Aluminium electrolytic
capacitors with solid (MnO2) and non-solid electrolyte (Established in January 1995, Revised in March
2007), and
EIAJ RCR-2367B- Guideline of notabilia for fixed aluminium electrolytic capacitors for use in electronic equipment
[Technical Standardization Committee on Passive Components (Established in March 1995,
Revised in March 2002)].
工商网监
湘ICP备2023018690号
