规格承认书
Specification for approval
客户名称:
深圳市立创电子商务有限公司
（Customer Name）
贴片铝电解电容器
产品名称:
SMD Aluminum Electrolytic Capacitor
（Product Name）
客户料号：
（Customer part number）
科尼盛料号：
RVE100UF35V67RV0072
（KNSCHA number）

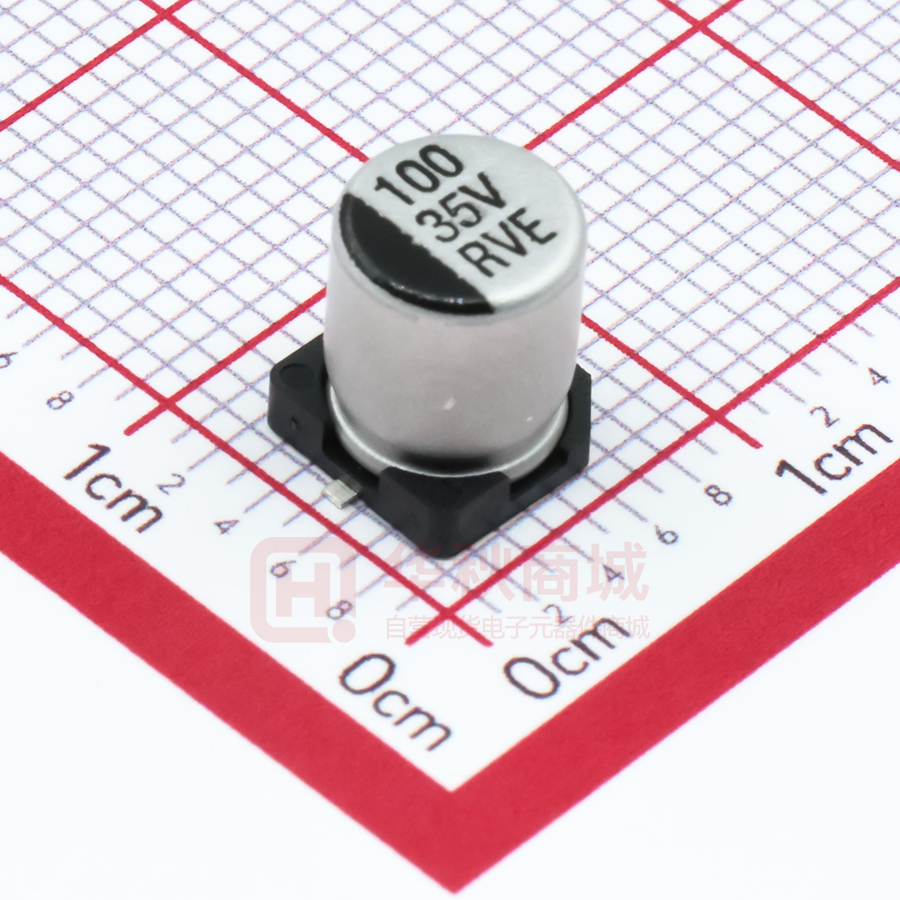

SMD E/C 100UF/35V 6.3*7.7mm RVE
型号规格:
SMD E/C 100UF/35V 6.3*7.7mm RVE
（Specifications）
拟 制
(Fiction)
制 造
(Manufacture)
客
户
(Customer)
Approval
Approval
审 核
(Chief)
核
准
(Approval)
检 验
(Inspect)
东莞市科尼盛电子有限公司
DONG GUAN KNSCHA ELECTRONICS CO.,LTD.
No. The 8th Floor, A3 Building, R&D Center (Phase I),
Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City.
TEL:0769-83698067 81035570
FAX: 0769-83861559
Email：sales@knscha.com Website: http://www.knscha.com
审 核
(Chief)
核
准
(Approval)
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
物料规格
Name
NO
1
Series
RVE
(uF / WV)
100/35
WV
(V)
35
Cap.
(uF)
100
Cap. tol.
(%)
120Hz
DF
（％）
120Hz 20℃
20℃
≤
±20%
0.12
LC
（uA）
（2min）
DΦ* L
P
±
0.2
6.3*7.7
2.1
≤
35
Allowable
ripple current
(mA rms) at
105°C, 100kHz
230
ESR
100KHz
(Ω)
20℃
≤
Code
0.6
M
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
RVE 环保型低阻抗贴片铝电解电容器
RVE Series Environmental protection low impedance product SMD(V-chip) aluminum electrolytic
capacitors.
1.范围 Scope
适用“RVE 系列”立式片式铝电解电容器
This specification covers “RVE Series” SMD(V-chip) aluminum electrolytic capacitors.
2.参考标准 Reference Standard
日本工业标准 JIS C-5141 JIS C-5101
Japanese industrial Standard JIS C-5141 characteristics W and JIS C-5101 except as specified
3.环境保护标准 environment protection standard
R0HS 指令 2011/65/EU
4.主要技术性能
NO
1
SPECIFICATION
项目
Item
使用温度范围
Operating
temperature range
性能
试验方法 test method（JIS
C
5101-1）
Performance Characteristics
- 55 ~ +105℃
2
额定工作电压范围
Voltage Range
6.3 ~50 (VDC)
3
泄漏电流
Leakage Current
I ≦ 0.01 CV 或 3 uA
(2 分钟取大值)
whichever is greater (after 2 minutes)
4
静电容量允许偏差
Capacitance
Tolerance
±20 (%)
(120 Hz, +20℃)
损失角正切值
5
Tan δ
(120 Hz, +20℃)
Rated Voltage
(VDC)额定电压
Tan δ
∅4~∅10
(max.)
温度试验阶段
温度特性
6
Temperature
Characteristics
6.3
10
16
25
35
50
0.26
0.20
0.16
0.14
0.12
0.12
temperature test
Step
T （℃）
H（min）
Measurement (120 Hz)
3
1
20±2
CAP、ESR
ESR
2
-25、-40（+0、-2）
分别放置 30
3
15~35
15
30
4
105（+2、-0）
LC、CAP、DF
3
5
20±2
Step1 时，Impedance Ratio：CAP±20％ ，DF、LC 在规格值内
Step2 时，Impedance Ratio：
6.3 1
16 25
35
50
Rated Voltage (V)
0
4
3
2
2
2
2
Impedance Ratio
Z-25°C /Z+20°C
ZT/Z20 (max.)
Z-40°C /Z+20°C
12
8
6
4
3
3
Step4 时，Impedance Ratio：
泄漏电流 LC
Tmax105 ℃
静电容量变化率 Capacitance Change
损失角正切值 Tan
Less than 800% of the initial
specified value
±25 %of the value in Step1
initial specified value
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
NO
项目
Item
7
浪涌测试
Surge Voltage
Test
性能
Performance
8
Solderability
10
16
25
35
50
8
13
20
32
42
61
b. 损耗角正切DF ≦ 100 % 之规格值
d. Appearance may not have damage phenomeno
焊料润湿试验表面 95％区域，焊锡应光亮均匀
A minimum of 95% of the surface being
9
耐振性
Vibration test
10
标示耐溶剂性
Solvent
Resistance of
the Marking
标示应清晰可辨
There shall be no damage end legibly marked
can be deciphered easily
Solder Heat
Resistance Test
判定： a. 容量变化量 ≦ ±10 %
△C/C ≦ ±10% ;
b. 外观不得有损坏现象
Appearance:
No significant change can be observe
容量变化
量△C/C
12
高温负载
High Temperature
Load Life Test
损耗角正
切值 Tan δ
漏电流 LC
容量变化量
△C/C
13
高温存储
Shelf life
The following conditions shall be applied for 2
hours in each (X,Y,Z) 3 mutually perpendicular
directions,with a total of 6 hours .
Vibration frequency range: 10Hz ~ 55Hz
Peak to peak amplitude: 1.5mm
在 20～25°C 条件下将电容器本体浸入异丙醇中 30±5S
后，目视检查
Class of Reagent:Isopropyl AlcohOl;
Test Temperature:20~25°C;Immersing Time:30±5S
经过回流焊后（参见第 9 页）在室温中恢复后，电容
器满足如左要求
After reflow soldering according to Reflow
Soldering Condition (see page 9) and restored at
room temperature, they meet the characteristics
listed.
≦±30%初始值内
initial value
105℃施加额定电压 2000 小时后，让其在室温下冷却
≤ 300% 初 始 规 定 值
恢复后检查，电容器应满足如左要求
initial specified value
≤初始规定值
After 2000 hours application of rated
voltage at 105°C, capacitors meet the
characteristics requirements listed.
initial specified value
≦±30%初始值内
initial value
105℃ 1000 小时后高温放置后，让其在室温下冷却恢
≤ 300% 初 始 规 定 值
复后，电容器应满足如左要求.
值 Tan δ
initial specified value
After storge for 1000 hours at 105°C, capacitors
≤2 倍初始规定值
meet the characteristics
requirements listed.
initial specified value
A.容量变化量 △C/C≦± 15%
b. 损耗角正切值 DF ≦ 100 %
耐湿性
Humidity Test
The capacitor shall be tested under the following
conditions: Soldering temperature: 245±3°C
Dipping depth: 2mm
Dipping speed: 25±2.5mm/s
Dipping time: 3±0.5s
损耗角正切
漏电流 LC
14
5101-1）
After surge voltage applied at a cycling rate of 30 seconds charge and 5.5
minutes discharge1000 successive test cycle.Test temperature:15~35℃
judgement：
电容量变化 Capacitance Change: Within ±5%
of initial value.
外观无损坏 Appearance: There shall be no
leakage of electrolyte.
11
C
6.3
immersed
耐焊接热
SERIES
试验方法 test method（JIS
Characteristics
Rated Voltage (VDC)
额定电压
Surge Voltage (VDC)
浪涌电压
a. 容量△C/C ≦ ±15 %
c. 漏电流LC 应 ≦ 规格值
可焊性
RVE
initial
specified value
c. 漏电流 lcLC≦ 100 %
initial
specified value
d. 产品外观无损坏 Appearance:No
significant change can be observe
电容器放置在湿度 90 - 95 % 温度 40℃的环境中 240 小
时± 8 小时，电容器取出恢复 1~2 小时后电容器满足左
要求：Capacitors shall be exposed for 240 ± 8 hrs
in an atmosphere of 90 - 95 % R.H.at40℃ And then
the Capacitor shall be subjected to standard
atmospherjc
Conditions for 1-2hours, after which measurements
Shall be made.
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
5.标识
Marking
A)电容器标识内容如下：
Capacitors shall be legibly marked with the following:
1）产品系列
Manufacture’s mark
2）额定电压和额定电容
Rated voltage and nominal capacitance
3）负极标识
Negative polarity
B)电容器的编带包装盘上印刷以下内容
Following items should be marked on the taping reel
1） 额定电压&容量
Rated Voltage and Capacitance
2) 客户料号（客户有要求时）
Customer’s Part Number(if request)
3) 系列名称
Series Mark
4) 制造批号
Lot Number
5) 编带数量
Packing quantity
6.编带粘接力测试
Adhedion Test
平均上带剥离力强度:10~80g ；
测试速度：200~300mm/min
Reasonable pulling strength:10~80g ；Pulling speed: 200~300mm/min
匣盒上带
～1
5°
上带平均剥离力：
10～80
卷始留15个空格
下卷始15个空格
卷尾15个空格
0.2
7.图样
Drawing (Unit: mm)(∅4~∅6.3)
P:±0.2
正极
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
0.2
(∅8, ∅10)
P:±0.2
正极
8.尺寸
Dimensions (Unit: mm)
∅D×L
A
B
C
P
L
4×5.4 5×5.4 6.3×5.4 6.3×7.7 8×6.5 8×10.2 10×10.2
4.3
5.3
6.6
6.6
8.3
8.3
10.3
4.3
5.3
6.6
6.6
8.3
8.3
10.3
5.0
6.0
7.2
7.2
9.1
9.1
11.1
1.0
1.5
2.1
2.1
3.1
3.1
4.5
5.4
5.4
5.4
7.7
6.5
10.2
10.2
9.编带说明
Taping Specifications
符合标准 JIS C0806
Applicable standard JIS C0806
(RVT、RVS、RVE、RVW、RVK、RVH、RVNseries)
盒带
Carrier Tape
9.1.图样
Drawing 1 (for ∅4 ~ ∅10)
2.0±0.1
∅1.5 +0.1~-0
4.0±0.1
0.4
1.75±0.1
F±0.1
W±0.3
负极
P±0.1
B±0.2
正极
A±0.2
尺寸
Dimension
Series
∅D×L
W
RVE
4×5.4
12.0
5×5.4
12.0
6.3×5.4
16.0
6.3×7.7
16.0
8×6.5
16.0
8×10.2
24.0
10×10.2
24.0
P
8.0
12.0
12.0
12.0
12.0
16.0
16.0
F
5.5
5.5
7.5
7.5
7.5
11.5
11.5
A
4.7
6.0
7.0
7.0
8.7
8.7
10.7
B
4.7
6.0
7.0
7.0
8.7
8.7
10.7
T2
5.8
5.8
5.8
8.3
7.0
11.0
11.0
T2 ±0.2
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
9.2.卷盘
Reel
3
包装数量
Package quantity
∅D×L
卷装数量 Qty./Reel
4×5.4
2000 pcs.
盒装数量
Qty./Bag
20000 pcs.
5×5.4
1000 pcs.
10000 pcs.
6.3×5.4
1000 pcs.
10000pcs.
6.3×7.7
1000 pcs.
10000pcs.
13±0.5
∅ 382 Max.
∅50 Min.
23
2.0
8×6.5
1000 pcs.
10000 pcs.
8×10.2
500 pcs.
5000 pcs.
10×10.2
500 pcs.
5000 pcs.
A
∅D
4
5
6.3
8*6.5
8*10.2
10*10.2
A
12.5
12.5
14.5
14.5
24.5
24.5
10. 无铅回流焊接
Lead-free Reflow Soldering Condition
A. 回流焊条件推荐
Recommended Conditions for Reflow Soldering
（1）应采用红外线及热风回流焊接，不宜采用汽相加热回流焊接；
A thermal condition system such as infrared radiation (IR) or hot blast should be adopted,
and vapor heat transfer systems (VPS) are not recommended.
（2）推荐回流焊只进行一次，回流焊次数如果需要二次，必须相隔 30 分钟以上；
Reflow soldering should be performed one time. If the capacitor has to be reflowed twice,
30 minutes must be layout between each time.
（3）无铅回流焊，请符合下述条件：
For lead-free type reflow soldering, please observe proper conditions below:
a)从 150℃至 200℃的预热时间在 t1 秒钟以内；
The time of preheating from 150°C to 200°C shall be within maximum t1 seconds;
b)电容器顶部温度超过 217℃的焊接时间不超过 t2 秒；
The time of soldering temperature at 217°C measured on capacitors' top shall not exceed
t2 (second);
c)电容器顶部尖峰温度不超过 Tp℃，在 5℃范围内的实际尖峰温度时间不超过 t3 秒
The peak temperature on capacitors' top shall not exceed Tp(°C), and the time within
5°C of actual peak temperature shall not exceed t3 (second).
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
B.回流焊曲线图
Classification Reflow Profile
（ ℃）
*1. Average ramp-up rate is 3℃/second max.
*2. Ramp-down rate is 6℃/second max.
*3 .Time from 25℃ to peak temperature is 8 minutes max.
（ ）
C. 尖峰温度允许范围
Allowable Range of Peak Temperature
∅4~∅6.3
Thickness
(mm)
≥2.5
∅8
≥2.5
240±0
100S 以内
60S 以内
5S
∅10×10.2L
≥2.5
235±0
100S 以内
40S 以内
5S
Size
TP(°C)
t1
t2
t3
260±0
120S 以内
90S 以内
5S
D.表面安装推荐尺寸
Recommended Land Size (Unit: mm)
Y
a
Y
Size
∅4
∅5
∅6.3
∅8
∅10
X
1.6
1.6
1.6
2.5
2.5
Y
2.6
3.0
3.5
3.5
4.0
X
11.引线原材料
The Raw Materials of Lead Wire
Name
TPCS
Material
Fe
Cu
Sn
Percentage
77.04%
14.25%
8.71%
a
1.0
1.4
2.1
3.0
4.0
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
12.电容器代码标志
Explanation of Part Number
Series (RVE)
Voltage (25V) Capacitance (100µF) Capacitance Tolerance (±20%) Case Diameter
(∅6.3*7.7mm)
1
2
3
4
Series
5
6
Voltage (WV)
101
M
8
Capacitance (µF)
范例：
Example: RVE 1C
7
9
-
10
Cap. Tol. (%)
11
12
13
Case Size
0605
外壳尺寸
Case Size (∅6.3*7.7mm)
电容量允许偏差
Capacitance Tolerance (±20%)
电容量
Capacitance (100µF)
电压
Voltage (25V)
系列 Series (RVE)
13. 结构 Construction
NO
1
2
材料名 material
涂膜铝壳 Case
座板 Base
3
4
5
6
+引出线 Lead Wire
-引出线 Lead Wire
封口胶盖 Rubber
素子 cores.
材质.处理 Textures
涂聚氨脂醇膜铝壳（AL 纯度 purity98％以上、PU 纯度 purity1.5％）
热可塑性树脂（Polyphthalamide 纯度 purity40~70％）
铝线(AL)、CP 线(Fe、Cu、Sn)（扁平形加工 flat）
铝线(AL)、CP 线(Fe、Cu、Sn)（扁平形加工 flat）
丁基橡胶 IIR
铝箔 aluminum foil、电解纸 Paper、电解液（GBL、electrolyte）导针 Lead Wire
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
14.额定纹波电流的频率系数
Frequency Coefficient of Allowable Ripple Current
Frequency
50Hz
120Hz
300Hz
1kHz
10kHzUp
Coefficient
0.64
0.8
0.85
0.93
1.00
15.尺寸\纹波电流及 ESR （本公司 RVE 标准）
Case Size \Ripple Current and ESR (Our company’s standard)
WV
6.3V(0J)
D×Lmm
Z
10V(1A)
mA
D×Lmm
Z
16V(1C)
mA
D×Lmm
Z
25V(1E)
mA
D×Lmm
Z
35V(1V)
mA
D×Lmm
Z
50V(1H)
mA
D×Lmm
Z
mA
uF
1
4*5.4
5.0
30
2.2
4*5.4
5.0
30
3.3
4*5.4
5.0
30
5*5.4
3.0
50
4.7
10
4*5.4
3.2
60
5*5.4
1.5
110
1.5
0.85
1.5
0.85
110
170
110
170
0.85
170
22
4*5.4
3.2
60
4*5.4
5*5.4
3.2
1.5
60
110
33
5*5.4
1.5
110
5*5.4
1.5
110
47
5*5.4
1.5
110
5*5.4
6.3*5.4
1.5
0.85
110
170
5*5.4
6.3*5.4
5*5.4
6.3*5.4
5*5.4
1.5
110
6.3*5.4
0.85
170
6.3*5.4
100
4*5.4
3.2
60
4*5.4
3.2
60
4*5.4
5*5.4
5*5.4
6.3*5.4
3.2
1.5
1.5
0.85
60
110
110
170
4*5.4
5*5.4
5*5.4
6.3*5.4
3.2
1.5
1.5
0.85
60
110
110
170
6.3*5.4
2.0
70
6.3*5.4
6.3*7.7
2.0
1.0
6.3*5.4
0.85
170
6.3*5.4
0.85
170
6.3*7.7
1.0
70
120
120
6.3*5.4
6.3*7.7
0.85
0.60
170
230
6.3*5.4
6.3*7.7
0.85
0.60
170
230
6.3*7.7
8*10.2
1.0
0.60
120
300
6.3*7.7
0.60
230
8*10.2
0.60
300
6.3*7.7
0.60
230
8*10.2
0.43
450
10*10.2
0.30
500
8*10.2
0.43
450
10*10.2
0.30
500
10*10.2
0.23
670
10*10.2
0.30
500
10*10.2
0.23
670
6.3*5.4
0.85
170
6.3*7.7
0.60
230
6.3*7.7
0.60
230
6.3*5.4
0.85
170
6.3*5.4
0.85
170
6.3*7.7
0.60
230
8*10.2
0.43
450
6.3*5.4
0.85
170
230
8*10.2
0.43
450
230
230
0.60
0.60
0.60
6.3*7.7
6.3*7.7
6.3*7.7
8*10.2
0.43
450
10*10.2
0.23
670
330
6.3*7.7
0.60
230
8*10.2
0.43
450
8*10.2
0.43
450
8*10.2
0.43
450
10*10.2
0.23
670
470
8*10.2
0.43
450
8*10.2
0.43
450
10*10.2
0.23
670
150
220
680
1000
1500
8*10.2
0.43
450
8*10.2
0.43
450
10*10.2
0.23
670
10*10.2
0.23
670
10*10.2
0.23
670
10*10.2
0.23
670
8*10.2
0.43
450
10*10.2
0.23
670
10*10.2
0.23
670
额定纹波电流 Rated ripple current(mA,105℃,100KHz)，Z 阻抗值 Impeedance:(Ω，20℃，100KHZ)
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
16. 片式铝电解电容器一般使用注意事项
Application guideline for V-CHIP aluminum electolytic capacitors
A)电路设计
Circuit Design
1) 充分考虑电容器使用和安装条件在产品目录的规定范围内
Please make sure the environmental and mounting conditions to which the capacitor will be
exposed are within the conditions specified in KNSCHA catalogue.
2) 工作温度和施加的纹波电流应在产品目录的规定范围内
Operating temperature and applied ripple shall be within KNSCHA specification.
3) 在设计电路时，应选择符合寿命要求的产品
Appropriate capacitors which comply with the life requirement of the products should be
selected when designing the circuit.
4) 铝电解电容器是有极性的，不应加反向电压或交流电压。对可能出现反向电压的电路，应选择双极性电
容器。注意：即使双极性电容器，也不能直接用于纯交流电路
Aluminum electrolytic capacitors are polar. Make sure that no reverse voltage or AC voltage
is applied to the capacitors. Please use bi-polar capacitors for a circuit that can possibly
see reversed polarity.
Note: Even bi-polar capacitors cannot be used for AC voltage application.
5）对需要快速和频繁充放电的电路，不应使用铝电解电容器，而应选择特别设计的具有长寿命的电容器
Do not use aluminum electrolytic capacitors in a circuit that requires rapid and very frequent
charge / discharge.
In this type of circuit, it is necessary to use a special design capacitor with extended life
characteristics.
6）不应使用过载电压
Do not apply excess voltage.
1 直流电压与纹波电压叠加后的峰值电压不应超过额定工作电压
Please pay attention to that the peak voltage, which is DC voltage overlapped by ripple
current, will not exceed the rated voltage.
若 2 个以上电容器串联，应确保施加电压低于额定值，而且要并联一个平衡电阻，以使每个电容器
所加电压相等。
In the case where more than 2 aluminum electrolytic capacitors are used in series, please
make sure that applied voltage will be lower than rated voltage and the voltage will be applied
to each capacitor equally by using a balancing resistor in parallel with the capacitor
7）电容器不能应用于下述环境条件下：
Aluminum electrolytic capacitors shall not be used under the following environmental
conditions:
①(a) 电容器被暴露于水（包括浓缩液）、盐水或油中。
Capacitors will be exposed to water (including condensation), brine or oil.
2
(b) 周围环境中有氢化硫、亚硫酸、亚硝酸、氯气、溴气、溴化甲烷、氨气等有毒气体。
Ambient conditions that include toxic gases such as hydrogen sulfide, sulfurous acid,
nitrous acid, chlorine, bromine, methyl bromide, ammonium, etc.
(c) 周围环境中有臭氧、紫外线及辐射。
Ambient conditions that expose the capacitor to ozone, ultraviolet ray and radiation.
严重的振动及机械冲击超过产品目录的规定范围。
2
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
Severe vibration and physical shock conditions that exceed KNSCHA specification.
振动的测试条件如下
Vibration test condition:
振动频率范围
：
10-55-10Hz
vibration frequency range
: 10～55～10Hz
扫描频率
： 10-55-10Hz/分钟
sweep rate
: 10～55～10Hz/minute
扫描方式 ： 对数
sweep method : logarithmic
振幅或加速度 ：1.5mm (最大加速度为 10G)
amplitude or acceleration
: 1.5mm (max. acceleration is 10G)
振动方向 ： X、Y、Z 方向
direction of vibration : X, Y, Z direction
测试时间 ：
testing time
每个方向 2 小时
: 2 hours per each direction
冲击一般不适用。
Shock is not applicable normally.
如有特殊要求，请与我们销售部门联系。
If a particular condition is required, please contact our sales office.
8） 电解液主要化学溶剂及电解纸为易燃物，且电解液导电。当电解液与 PC 板接触时，可能会腐蚀 PC 板
上的线路，或造成短路，以致产生烟或着火。因此在电容器封口下端不应有任何线路。
The main chemical solution of the electrolyte and the separator paper used in the capacitors
are combustible. The electrolyte is conductive. When it comes in contact with the PC board,
there is a possibility of pattern corrosion or short circuit between the circuit pattern,
which could result in smoking or catching fire. Do not locate any circuit pattern beneath
the capacitor end seal.
9） 设计线路板时应确保发热元器件不靠近铝电解电容器或 PC 板的另一面，避免其正好在电容器的下面。
Do not design a circuit board that the heat generating components are placed near the aluminum
electrolytic capacitor or on the reverse side of PC board, if that just under the capacitor.
10） 设计线路板时应考虑到电容器的电性能可能随温度和频率的变化而变化。
Electrical characteristics may vary depending on changes in temperature and frequency. Please
consider this variation when you design circuits.
11） 当 2 个以上电容器并联时，应考虑到通过这些电容器的电流平衡。
When you install more than 2 capacitors in parallel, please consider the balance of current
flowing into the capacitors.
12） 在双面线路板上安装电容器时，电容器的安装位置应避开多余的基板孔和过孔。
While mounting capacitors on double-side PC board, the capacitors should be away from those
unnecessary base plate holes and connection holes.
B）安装
Mounting
1） 一旦电容器经过安装及加载，不要再试图用于其他线路板或其他用途。
Once a capacitor has been assembled in the set and power applied, do not attempt to re-use
the capacitor in other circuits or application.
2） 贮存超过 2 年的电容器，其漏电流可能增大。若漏电流增大，请使用 1KΩ电阻做充电处理。
Leakage current of the capacitors that have been stored for more than 2 years may increase.
When leakage current has increased, please perform a voltage treatment using a 1kΩ resistor.
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
3） 在将电容器安装在 PC 板之前，请确认其规格和极性。
Please confirm specifications and polarity before installing capacitors on the PC board.
4) 不要将电容器掉在地上，或不要使用掉在地上的电容器。
Do not drop capacitors on the floor, nor use a capacitor that was dropped.
5) 安装时请不要损伤电容器。
Do not deform the capacitor during installation.
6) 请注意贴片机的吸头、产品检测夹具或对中装置对电容器的机械冲击。
Please pay attention to the mechanical shock to the capacitor by suction nozzle of the automatic
insertion machine or automatic mounter, or by product checker, or by centering mechanism.
7) 回流焊
Reflow soldering
1 请遵守科尼盛产品目录中的回流焊条件。
Please follow “Reflow Soldering Conditions” in KNSCHA catalogue.
2 当使用红外线加热时，请注意加热程度，因为红外线吸收率会随着电容器颜色和大小的不同而改变。
When an infrared heater is used, please pay attention to the extent of heating since the
absorption rate of infrared will vary due to difference in the color and size of the
capacitor.
8) 将电容器焊接在 PC 板后，不要倾斜或扭动电容器。
Do not tilt lay down or twist the capacitor body after the capacitor are soldered to the PC board.
9) 不要抓住焊接后的电容器搬动 PC 板。
Do not carry the PC board by grasping the soldered capacitor.
10)不要让任何物品接触焊接后的电容器。如果 PC 板堆放储存，请确保 PC 板或其他零部件不触到电容器。
Please do not allow anything to touch the capacitor after soldering. If PC boards are stored
in stack, please make sure the PC board or other components away from the capacitor.
11）焊接后的电容器不应受到任何已焊接 PC 板或其他元器件热辐射的影响。
The capacitors shall not be effected by any radiated heat from the soldered PC board or other
components after soldering.
12）清洗：
Cleaning
①不能用卤化清洗剂清洗电容器。如必须使用卤化清洗剂，请与我们销售部门联系。
Do not clean capacitors with halogenated cleaning agent. However, if it is necessary to
clean with halogenated cleaning agent, please contact our sales office.
②推荐清洗方法：
Recommended cleaning method
使用范围：任何类型及规格
Applicable : Any type, any ratings
清洗方法：浸泡、超声波或其他方法的总清洗时间应在 2 分钟内。清洗剂温度应在 40℃以下。清洗
后，应将电容器与 PC 板一起用热风吹至少 10 分钟。热风温度应低于电容器工作温度。水洗后若不
充分吹干，可能导致外观不良，如座板发胀等。
Cleaning conditions : Total cleaning time shall be within 2 minutes by immersion,
ultrasonic or other methods. Temperature of the cleaning agents shall be 40℃ or below.
After cleaning, capacitors should be dried by using hot air for the minimum 10 minutes
along with the PC board mounted. Hot air temperature should be within the maximum operating
temperature of the capacitor. Insufficient dryness after water rinse may cause appearance
problems, such as bottom-plate bulge and etc.
3
避免使用破坏臭氧层的清洗剂以保护环境。
Avoid using ozone destructive substances as cleaning agents for protecting global
RVE 系列铝电解电容器
Aluminum Electrolytic Capacitors
RVE
SERIES
environment.
C）安装后
In the Equipment
1）不要直接用手接触电容器正负极。
Do not directly touch terminal by hand.
2）不要在正负极之间用导体连接，也不要在电容器及其附近溅撒导电液体，如酸碱溶液等。
Do not link positive terminal and negative terminal by conductor, nor spill conductible
liquid such as alkaline or acidic solution on or near the capacitor.
3）在使用环境中应避免溅上水或油，避免阳光直射、紫外线照射、辐射、有毒气体、振动或机械冲击。
Please make sure that the ambient conditions where the set is installed are free from
spilling water or oil, direct sunlight, ultraviolet rays, radiation, poisonous gases,
vibration or mechanical shock.
D） 维护和检验
Maintenance and Inspection
请定期检测安装在工业设备上的电容器。检测项目如下：
Please periodically inspect the aluminum capacitors that are installed in industrial
equipment. The following items should be checked:
外观：明显缺陷，如防爆阀打开、电解液泄露等。
Appearance: remarkable abnormality such as pressure relief vent opening, electrolyte leaking,
etc.
电性能：电容量、损耗角正切、漏电流等，具体数据参见科尼盛产品目录和相关产品规格书。
Electrical characteristics: capacitance, dielectric loss tangent, leakage current and etc.,
which are specified in KNSCHA catalogue or alternate product specification.
E）紧急情况
In an Emergency
1）若看见因防爆阀动作而产生的烟气，请关闭主开关或拔开离合器。
If you see smoke due to operation of safety vent, please turn off the main switch or pull
out the plug from the outlet.
2）若吸入气体或咽下电解液，应立即用水清洗口腔和喉咙。
If you breathe the gas or ingest the electrolyte, please wash out your mouth and throat
with water immediately.
3）若皮肤沾上电解液，请用肥皂和水清洗干净。
If your skin is exposed to the electrolyte, please wash it away using soap and water.
F） 储存
Storage
1） 不要将电容器储存在温度和湿度高的地方。
储存环境应为温度：5℃-35℃，相对湿度：
工商网监
湘ICP备2023018690号
