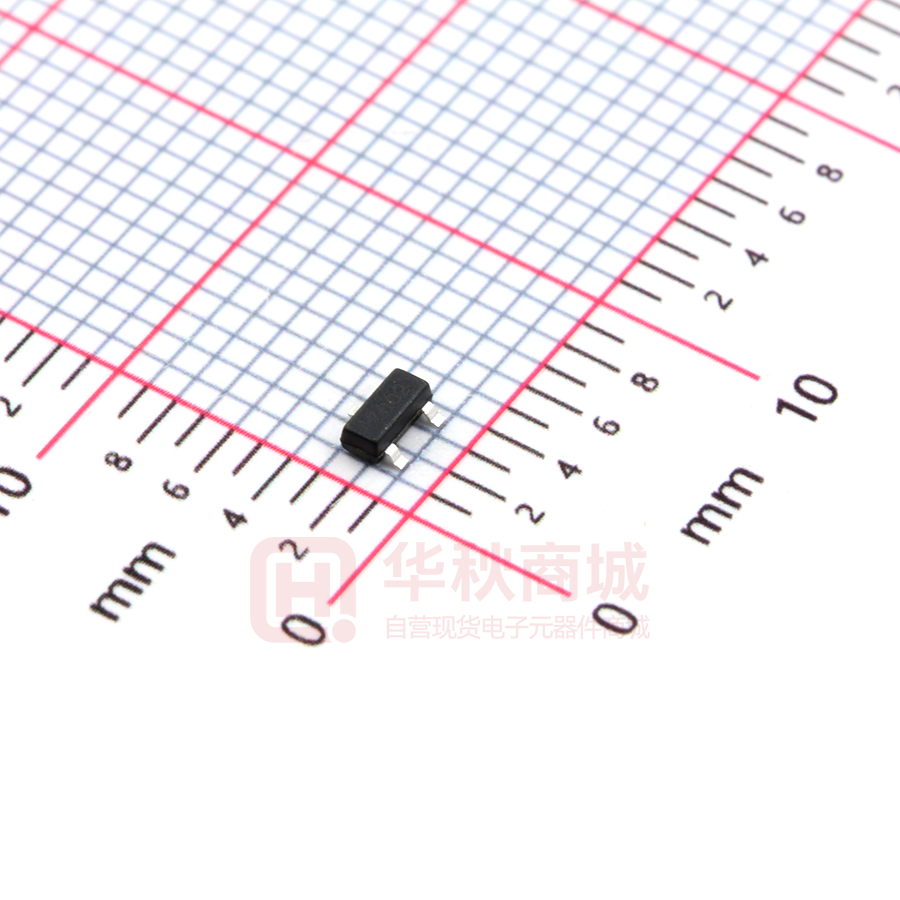

2N7002
SOT-23 Plastic-Encapsulate Transistors
MOSFET(N-Channel)
FEATURES
High density cell design for low RDS(ON)
Voltage cotrolled small signal switch
Rugged and reliable
High saturation current capability
MARKING:7002
MAXIMUM RATINGS (TA=25℃ unless otherwise noted)
Symbol
Parameter
Value
Units
(符号)
(参数名称)
(额定值)
(单位)
VDS
Drain-Source voltage
60
V
ID
Drain current
115
mA
PD
Power Dissipation
225
mW
Tj
Junction Temperature
150
℃
Tstg
Storage Temperature
-55-150
℃
ELECTRICAL CHARACTERISTICS (Tamb=25℃unless otherwise specified)
Parameter
Symbol
Test conditions
MIN
Drain-Source Breakdown Voltage
V(BR)DSS
VGS=0V,ID=250uA
60
Gate-Threshold Voltage
Vth(GS)
VDS= VGS, ID=250 uA
1
Gate-body Leakage
IGSS
VDS=0V, VGS=±20V
Zero Gate Voltage Drain Current
IDSS
VDS=60V, VGS=0V
On-state Drain Current
ID(ON)
VDS=7V, VGS=10V
Drain-Source On-Resistance
rDS(ON)
Forward Trans conductance
Drain-source on-voltage
gfs
TYP
MAX
UNIT
V
1.7
2.5
V
±100
nA
1
uA
500
mA
VGS=10V, ID=100mA
1
2
Ω
VGS=4.5V, ID=50mA
1.1
3
Ω
VDS=10V, ID=200mA
80
500
ms
VGS=10V, ID=500mA
0.5
3.75
V
VGS=5V, ID=50mA
0.05
0.375
V
IS=115mA ,VGS=0V
0.55
1.2
V
VDS(ON)
Diode Forward Voltage
VSD
Input Capacitance
Ciss
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
50
VDS=25V, VGS=0V,
f=1MHz
25
pF
5
SWITCHING TIME
Turn-on Time
td(on)
Turn-off Time
td(off)
VDD=25V, RL=50Ω
ID=500mA, VGEN=10V,
RG=25Ω
1/2
20
ns
40
ns
2N7002
Typical Characteristics
2/2
