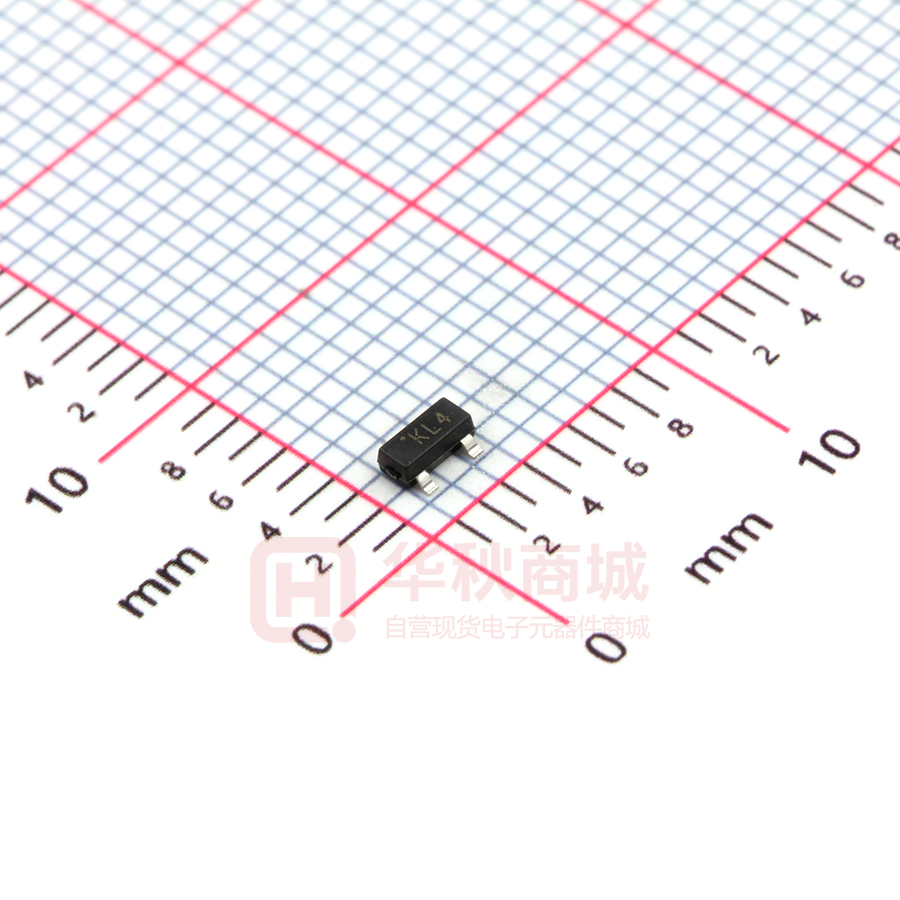

BAT54S

BAT54/A/C/S FEATURES  Extremely Fast Switching Speed ＢＡＴ５４ ＭＡＲＫＩＮＧ：ＫＬ１ ＢＡＴ５４Ａ ＭＡＲＫＩＮＧ：ＫＬ２ ＢＡＴ５４Ｃ ＭＡＲＫＩＮＧ：ＫＬ３ ＢＡＴ５４Ｓ ＭＡＲＫＩＮＧ：ＫＬ４ Maximum Ratings @TA=25℃ Parameter Symbol Limits Unit VRRM VRWM VR 30 V Forward Continuous Current IFM 200 mA Power Dissipation PD 200 mW TSTG -55-150 ℃ Peak Repetitive Peak reverse voltage Working Peak Reverse Voltage DC Blocking Voltage Storage temperature Electrical Characteristics @TA=25℃ Parameter Reverse Breakdown Voltage Symbol Min. V (BR)R 30 Typ. Max. Unit Conditions V IR=100μA VF1 0.24 V IF=0.1mA VF2 0.32 V IF=1mA VF3 0.40 V IF=10mA VF4 0.50 V IF=30mA VF5 1 V IF=100mA Reverse current IR 2 μA VR=25V Diode Capacitance CD 10 pF VR=1V,f=1MHz Reverse Recovery Time trr 5 nS IF=IR=10mA Irr=0.1XIR,RL=100Ω Forward voltage 1/2 BAT54/A/C/S 2/2
