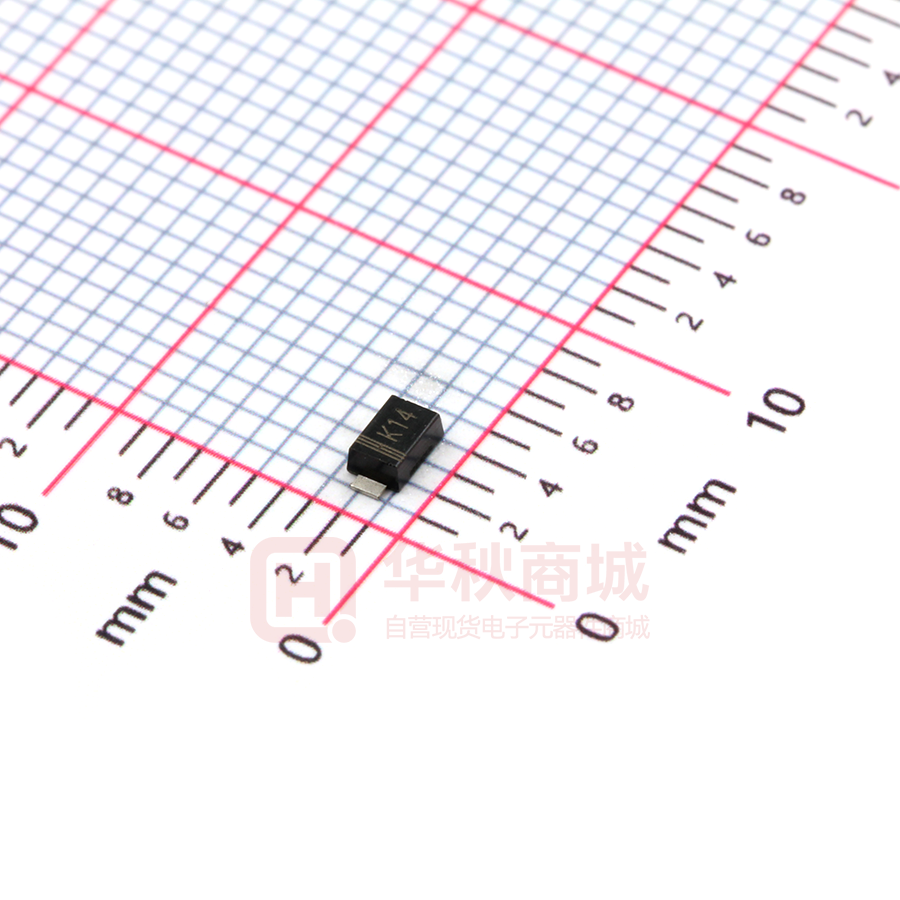

DS14W

DS12W THRU DS120W SOD-123FL FEATURES Cathode Band Top View 1.8± 0.1 １．０±0.2 The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.3± 0.15 0.10-0.30 2.8±0.1 0.6±0.25 MECHANICAL DATA Case: JEDEC SOD-123FL molded plastic body Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.0007 ounce, 0.02 grams 3.7±0.2 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Operating junction temperature range Storage temperature range SYMBOLS DS12W DS13W DS14W DS15W DS16W DS17W DS18W DS19W DS110W DS115W DS120W UNITS K17 K18 K19 K110 K115 K120 K12 K13 K14 K15 K16 VRRM VRMS VDC 20 30 40 50 60 70 80 90 100 150 200 14 21 28 35 42 49 56 63 70 105 140 20 30 40 50 60 70 80 90 100 150 I(AV) 1.0 IFSM 25.0 VF 0.85 0.5 IR CJ Amps 0.70 0.55 5.0 10.0 80 110 TJ TSTG -65 to +125 -65 to +150 -65 to +150 Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 1/2 VOLTS VOLTS 200 VOLTS Amp 0.95 0.2 2.0 Volts mA pF C C FIG. 1- FORWARD CURRENT DERATING CURVE 1 0.8 Single Phase Half Wave 60Hz Resistive or inductive Load 0.6 0.4 DS12W-DS16W DS17W-DS120W 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES DS12W THRU DS120W FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 25 20 15 10 5.0 175 0 1 FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 20 10 1 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE DS12W-DS14W DS15W-DS16W DS17W-DS115W DS120W 0.1 0.01 0.2 0.4 0.6 0.8 1.0 1.1 FIG. 4-TYPICAL REVERSE CHARACTERISTICS 10 TJ=100 C 1 TJ=75 C 0.1 JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 1000 DS12W-DS14W DS15W-DS120W 100 TJ=25 C 10 10 TJ=25 C 0.01 0 20 40 60 80 PERCENT OF PEAK REVERSE VOLTAGE,% 2000 1.0 100 100 0.001 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 0.1 10 NUMBER OF CYCLES AT 60 Hz INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES AMBIENT TEMPERATURE, C 100 REVERSE VOLTAGE,VOLTS 2/2 100
