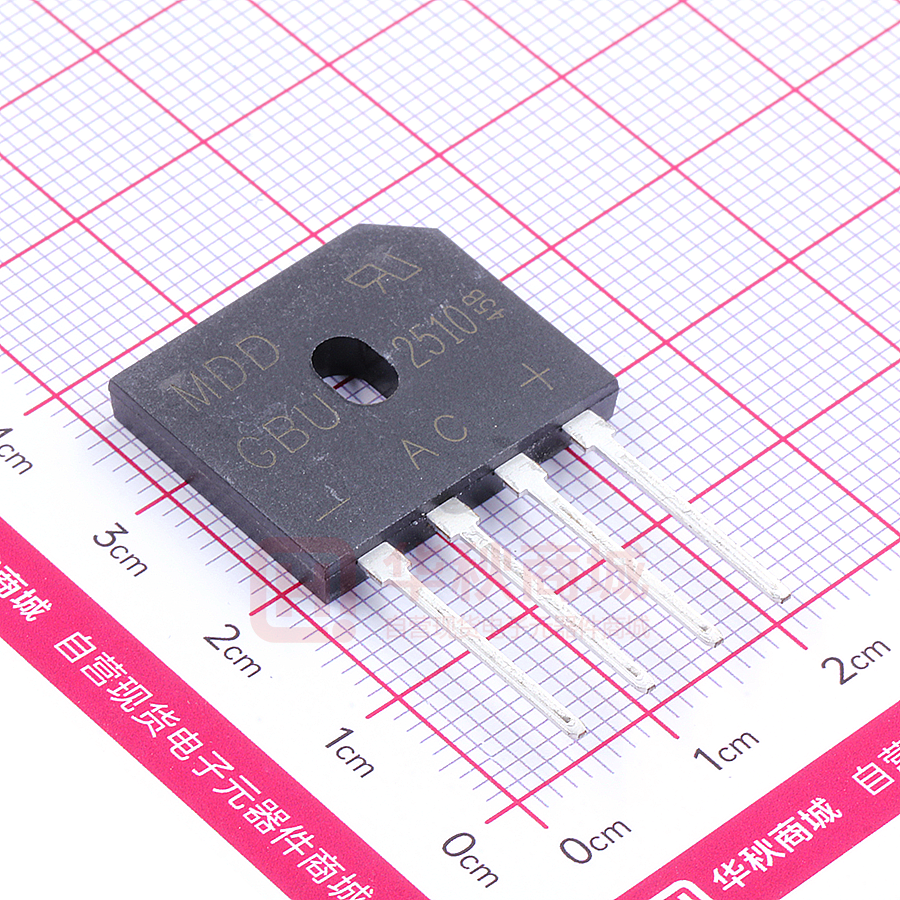

GBU2510

GBU25005 THRU GBU2510 Reverse Voltage - 50 to 1000 Volts Forward Current - 25.0 Amperes GLASS PASSIVATED BRIDGE RECTIFIERS Features GBU  Surge overload rating -350 amperes peak .437(11.1) .430(10.9)  Ideal for printed circuit board .126(3.2)*45° CHAMFER .874(22.2) .860(21.8)  Reliable low cost construction utilizing molded plastic technique  Plastic material has U/L lammability classification 94V-0 .154(3.9) .146(3.7) .752(19.1) .720(18.3) .232(5.9) .224(5.7) .401(10.2) .392(9.80) .073(1.85) .057(1.45) Mechanical Data .100(2.54) .085(2.16) .720(18.29) .680(17.27) .047(1.2) .035(0.9) Case : JEDEC GBU Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any .080(2.03) .065(1.65) .210 .210 .190 .190 (5.3) (5.3) (4.8) (4.8) Maximum Ratings And Electrical Characteristics .139(3.53) .133(3.37) .106(2.7) .091(2.3) .022(.56) .018(.46) .210 .190 (5.3) (4.8) Dimensions in inches and (millimeters) Ratings at 25°C ambient temperature unless otherwisespecified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward(with heatsink NOTE 2) Rectified current @T c =100°C(without heatsink) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Rating for Fusing(t
