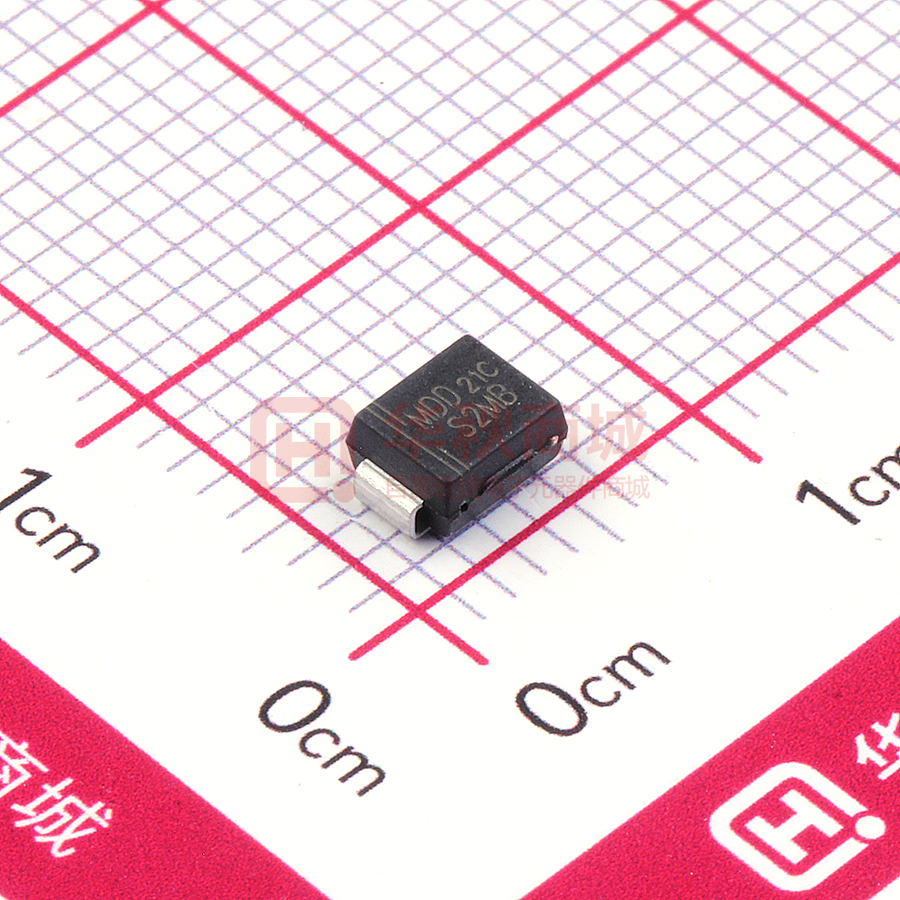

S2MB

S2AB THRU S2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features DO-214AA/SMB  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 0.155(3.94) 0.130(3.30) 0.086 (2.20) 0.075 (1.80)  Idea for printed circuit board  Open Junction chip  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed 0.185(4.70) 0.160(4.06) 0.012(0.305) 0.006(0.152) 0.096(2.44) 0.084(2.13) 250℃/10 seconds at terminals 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. Mechanical Data 0.220(5.59) 0.200(5.08) Case: JEDEC DO-214AA/SMB molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Polarity symbol marking on body Mounting Position : Any Weight : 0.003ounce, 0.09grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current at rated DC blocking voltage TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) VRRM VRMS VDC MDD S2AB MDD S2BB MDD S2DB MDD S2GB MDD S2JB MDD S2KB MDD S2MB UNITS 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V I(AV) 2.0 A IFSM 60 A VF 1.10 V IR 5.0 100.0 μA 25.0 pF 60.0 20.0 ℃/W -55 to +150 ℃ CJ RJA RθJC Operating junction and storage temperature range TJ,TSTG Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 S2AB THRU S2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Typical Characterisitics Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve 100 Instaneous Reverse Current (μA) 2.5 Average Forward Current (A) 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 TJ=150°C TJ=125°C 10 TJ=100°C 1.0 TJ=75°C 0.1 TJ=25°C 0.01 0 600 100 Junction Capacitance (pF) 10 1.0 TJ=25°C 0.4 0.6 0.8 1.0 1.2 800 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic Instaneous Forward Current (A) 400 Instaneous Reverse Voltage (V) Case Temperature (°C) 0.1 200 1.4 1.6 1.8 TJ=25°C 10 1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 S2AB THRU S2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance SMB Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 3.81 5.41 2.42 1 5.0 330.00 50.00 13.00 1.75 5.55 8.00 4.00 2.00 0.30 12.00 12.30 E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) BOX (pcs) INNER BOX (mm) REEL DIA, (mm) SMB 13" 3,000 4.0 6,000 190*190*41 330 CARTON SIZE (mm) 365*365*360 CARTON (pcs) 48,000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol A B C D E http://www.microdiode.com Unit (mm) 2.8 2.4 4.6 2.2 7.0 Unit (inch) 0.110 0.094 0.181 0.086 0.276 Rev:2024A2 Page :3
