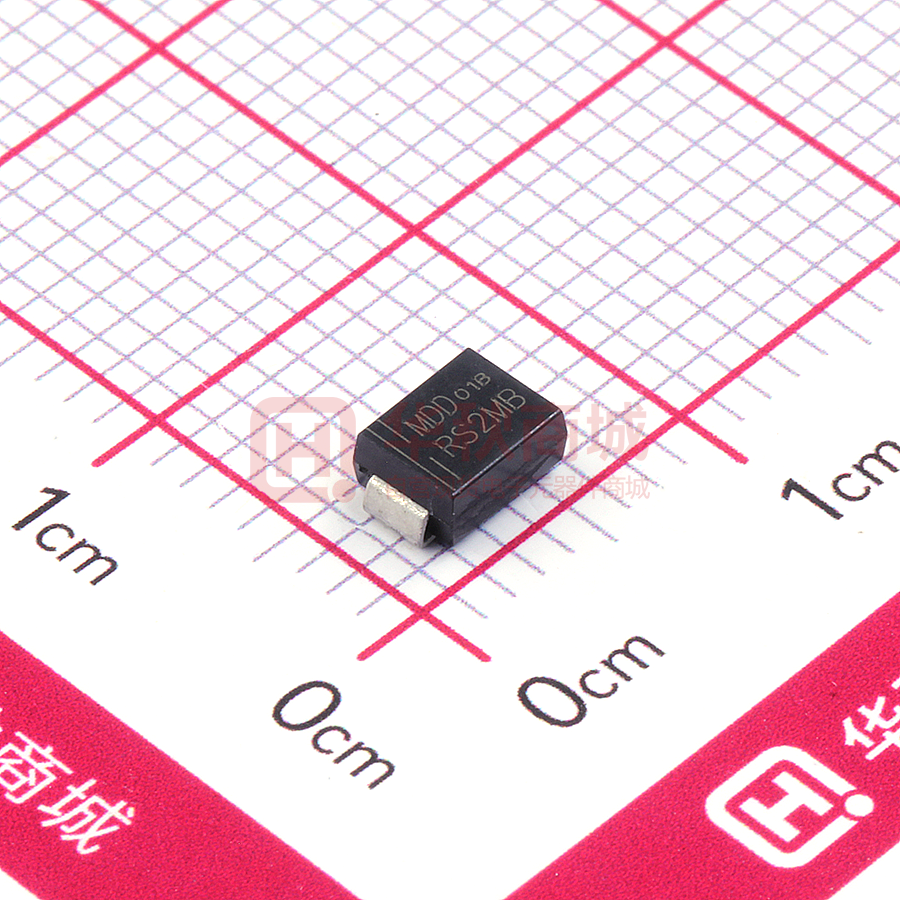

RS2MB

RS2AB THRU RS2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere SURFACE MOUNT FAST RECOVERY RECTIFIER Features DO-214AA/SMB  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Idea for printed circuit board  Open Junction chip  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed: 0.155(3.94) 0.130(3.30) 0.086 (2.20) 0.071 (1.80) 0.185(4.70) 0.160(4.06) 250℃/ 10 seconds at terminals  Glass passivated chip junction 0.012(0.305) 0.006(0.152) 0.096(2.44) 0.084(2.13) Mechanical Data 0.060(1.52) 0.030(0.76) Case : JEDEC DO-214AA/SMB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : A n y Weight : 0.003 ounce, 0.091 grams 0.008(0.203)MAX. 0.220(5.59) 0.200(5.08) Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code MDD MDD MDD MDD MDD MDD MDD RS2AB RS2BB RS2DB RS2GB RS2JB RS2KB RS2MB 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM Maximum average forward rectified current I(AV) 2 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 60 A Maximum instantaneous forward voltage at 2.0A VF 1.3 V Maximum DC reverse current at rated DCblocking voltage IR 5 100 μA Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) VRMS VDC trr 150 250 28 CJ RJA 60 RθJC 20 Operating junction and storage temperature range TJ,TSTG -55 to +150 500 ns pF ℃/W ℃ Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.P.C.B. mounted with 2.0x2.0”(5x5cm) copper pad areas 3.The typical data above is for reference only. http://www.microdiode.com Rev:2024A2 Page :1 RS2AB THRU RS2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Ratings And Characteristic Curves Fig.1 Forward Current Derating Curve 3.0 Instaneous Reverse Current（μ A） 100 Average Forward Current (A) 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 1.0 TJ=25°C 0.1 175 00 Case Temperature (°C) 20 40 60 80 100 120 140 percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Instaneous Forward Characteristics TJ=25° 10 TJ=125°C 10 Fig.4 Typical Junction Capacitance C TJ=25°C Junction Capacitance (pF) Instaneous Forward Current (A) 100 1.0 0.1 pulse with 300sμ 0.0 0.5 1.0 1.5 2.0 TJ=25°C f = 1.0MHz Vsig = 50mVp-p 1% duty cycle 0.01 10 1 2.5 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 70 Peak Forward Surage Current (A) 60 50 40 30 20 10 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles http://www.microdiode.com Rev:2024A2 Page :2 RS2AB THRU RS2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere Packing information P0 P1 unit:mm d E Item F B A Symbol Tolerance SMB A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 3.81 5.41 2.42 1 5.0 330.00 50.00 13.00 1.75 5.55 8.00 4.00 2.00 0.30 12.00 12.30 W Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width P D2 D1 T C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMB REEL SIZE REEL (pcs) COMPONENT SPACING (mm) 13" 3,000 4.0 INNER BOX (mm) REEL DIA, (mm) CARTON SIZE (mm) CARTON (pcs) 190*190*41 330 365*365*360 48,000 BOX (pcs) 6,000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout Symbol A B C D E http://www.microdiode.com Unit (mm) 2.8 2.4 Unit (inch) 0.110 4.6 0.094 0.181 2.2 7.0 0.086 0.276 Rev:2024A2 Page :3
