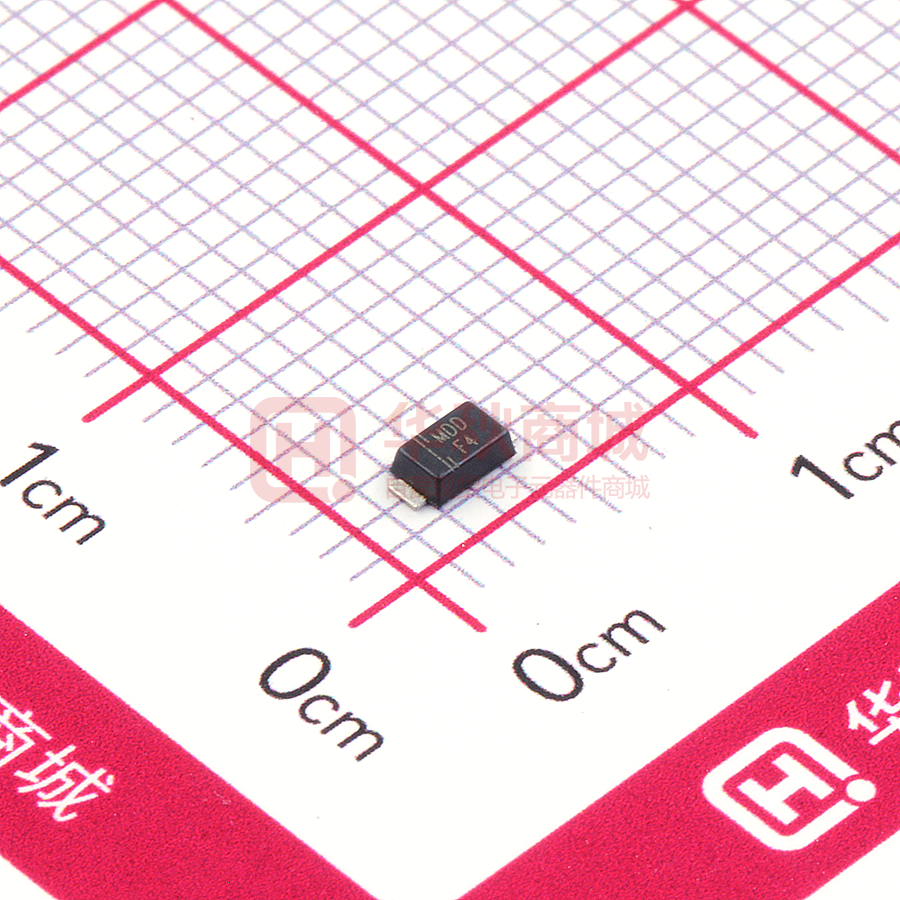

SOD1F4 F4

SOD1F1 THRU SOD1F7 SURFACE MOUNT FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts SOD-123FL FEATURES Glass passivated device Ideal for surface mouted applications Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.8± 0.1 １．０±0.2 Cathode Band Top View 0.10-0.30 2.8±0.1 1.1± 0.15 Forward Current - 1.0 Ampere 0.6±0.25 MECHANICAL DATA Case: JEDEC SOD-123FL molded plastic body over passivated chip Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.0007 ounce, 0.02 grams 3.7±0.2 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS SOD1F1 SOD1F2 SOD1F3 SOD1F4 SOD1F5 SOD1F6 SOD1F7 MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TA=65 C (NOTE 1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) TL=25 C Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=125 C Maximum reverse recovery time (NOTE 2) Typical junction capacitance (NOTE 3) VRRM VRMS VDC F1 F2 F3 F4 F5 F6 F7 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS VOLTS VOLTS VOLTS I(AV) 1.0 Amp IFSM 25.0 Amps VF 1.3 Volts IR 10.0 50.0 µA trr CJ Typical thermal resistance (NOTE 4) RθJA Operating junction and storage temperature range TJ,TSTG 250 150 4 180 -50 to +150 Note: 1.Averaged over any 20ms period. 2.Measured with IF=0.5A, IR=1A, Irr=0.25A. 3.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 4.Thermal resistance junction to ambient, 6.0 mm2 coppeer pads to each terminal. 500 ns pF °C/W C RATINGS AND CHARACTERISTIC CURVES SOD1F1 THRU SOD1F7 FIG.2 -- TYPICAL JUNCTION CAPACITANCE 100 10 10 T J =25 Pulse Width=300us 9 CAPACITANCE, pF 4 AMPERES 2 1.0 0.4 0.2 0.1 0.06 0.04 0.02 0.01 0.6 0.8 1.0 1.2 1.4 1.6 8 7 6 5 4 3 2 1 0 0 INSTANTANEOUS FORWARD VOLTAGE,V T J = 150 ° C T J = 125 ° C T J = 100 ° C 1 T J = 75 ° C T J = 50 ° C 0.1 T J = 25 ° C 0.01 0 100 200 300 400 500 600 700 800 10 15 20 25 30 35 40 900 INSTANTANEOUS REVERSE VOLTAGE,V FIG.4 -- FORWARD DERATING CURVE AVERAGE FORWARD CURRENT, AMPERES 100 10 5 REVERSE VOLTAGE,VOLTS FIG.3 -- TYPICAL INSTANTANEOUS REVERSE CHARACTERISTICS µ AMPERES INSTANTANEOUS REVERSE CURRENT INSTANTANEOUS FORWARD CURRENT FIG.1 --TYPICAL FORWARD CHARACTERISTIC 1.2 Resistive or Inductive Load 1.0 0.8 0.6 0.4 0.2 0 3.0 x 3.0mm 40 µm Thick Copper Pad Areas 0 20 40 60 80 100 120 AMBIENT TEMPERATURE, The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)! 140 160
