SR05LC

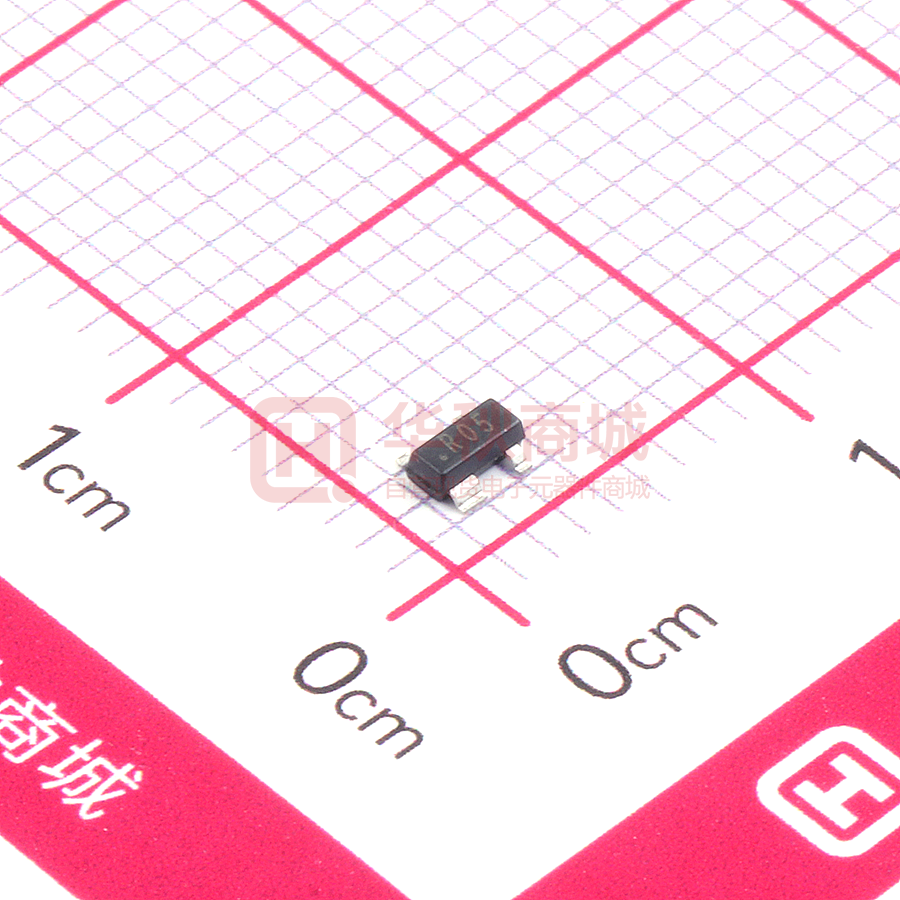

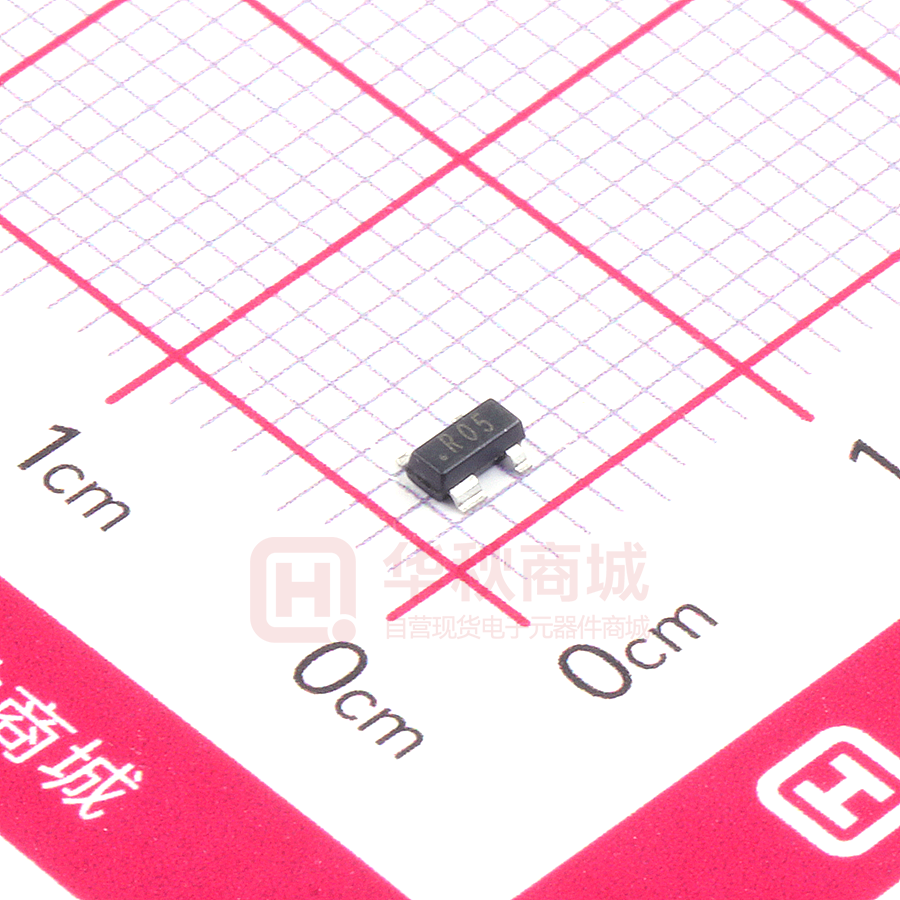

SR05LC Ultra Low Capacitance ESD Protection Diodes Array SOT-143 Plastic-Encapsulate Diodes DESCRIPTION SR05LC provides a typical line to line capacitance of 0.6pF and low insertion loss up to 3GHz providing greater signal integrity making it ideally suited for USB 2.0 applications, such as Digital TVs, DVD players, Computing, set-top boxes and MDDI applications in mobile computing devices. This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients). Features  Protects two I/O lines and one Vcc line  Transient protection for asymmetrical data lines to IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns)  Low capacitance  Low leakage current  Low clamping voltage  No insertion to 3.0 GHz  5V operating voltage  Response time < 1ns  Solid-state silicon avalanche technology  Meets MSL 1 Requirements Schematic & Pin Configuration 4 3 1 2 SOT-143 (Top View) Circuit Diagram Pin 4 Pin 2 Pin 3 Pin 1 Applications        xDSLI USB 1.1/2.0/OTG IEEE 1394 Firewire Ports Notebooks & Handhelds Projection TV & Monitors Set-top box Flat Panel Displays http://www.microdiode.com Mechanical Characteristics Package: SOT-143 Flammability Rating: UL 94V-0 Terminal: Matte tin plated. High temperature soldering guaranted: 260℃/10s  Marking: SL3 or R05  Packaging: Tape and Reel     Rev:2024A1 Page :1 SR05LC Ultra Low Capacitance ESD Protection Diodes Array Absolute Maximum Ratings (TA=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power(8/20us ) PPP 125 W Peak Pulse Current(8/20us) IPP 5 A VESD ± 30 ± 30 KV Operating Temperature TOPT −55 to +150 °C Storage Temperature TSTG −55 to +150 °C TL 260(10 sec.) °C ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact) Lead Solder Temperature – Maximum (10 Second Duration) Electrical Characteristics (TA=25°C unless otherwise specified) Symbol Parameter Test Condition VRWM Reverse Working Voltage Any I/O pin to GND VBR Reverse Breakdown Voltage IR Reverse Leakage Current IT = 1mA Any I/O pin to GND VRWM = 5V Any I/O pin to GND VF Diode Forward Voltage IF = 15mA VC1 Clamping Voltage 1 VC2 Clamping Voltage 2 IPP Peak Pulse Current CJ1 Junction Capacitance 1 CJ2 Junction Capacitance 2 Note: I/O pins are pin2,3. http://www.microdiode.com Min Typ Max Units 5.0 V 6.0 V 1 μA 1.2 V IPP = 1A, tp = 8/20μs Any I/O pin to GND 15.5 V IPP = 5A, tp = 8/20μs Any I/O pin to GND 25 V 5 A 0.45 0.6 pF 0.9 1.2 pF tp = 8/20μs Any I/O pin to GND VR = 0V, f = 1MHz Between I/O pins VR = 0V, f = 1MHz Any I/O pin to GND 0.85 The above data are for reference only. Rev:2024A1 Page :2 SR05LC Ultra Low Capacitance ESD Protection Diodes Array ELECTRICAL CHARACTERISTICS CURVE The curve above is for reference only. http://www.microdiode.com Rev:2024A1 Page :3 SR05LC Ultra Low Capacitance ESD Protection Diodes Array Outlitne Drawing SOT-143 Package Outline Dimensions S ymbol A A1 A2 b b1 c D d E E1 e e1 L L1 θ D imensions In Millimeters Min. Max. 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.750 0.900 0.080 0.150 2.800 3.000 0.200 TYP . 1.200 1.400 2.250 2.550 0.950 TYP . 1.800 2.000 0.550 RE F. 0.300 0.500 0° 8° D imensions In Inches Min. Max. 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.030 0.035 0.003 0.006 0.110 0.118 0.008 TYP . 0.047 0.055 0.089 0.100 0.037 TYP . 0.071 0.079 0.022 RE F. 0.012 0.020 0° 8° Suggested Pad Layout Note: 1. Controlling dimension:in/millimeters. 2. General tolerance: ±0.05mm. 3. The pad layout is for reference purposes only. http://www.microdiode.com Rev:2024A1 Page :4 SR05LC Ultra Low Capacitance ESD Protection Diodes Array Tape and Reel Information SOT-143 Embossed Carrier Tape Packaging Description: SOT-143 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film,adhesive laye,sealant, and anti-static sprayed agent.These reeled parts In standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). SOT-143 SOT-143 Tape Leader and Trailer SOT-143 Reel 3000 pcs http://www.microdiode.com 7 Inch 45,000 pcs 203×203×195 180,000 pcs 438×438×220 Rev:2024A1 Page :5
