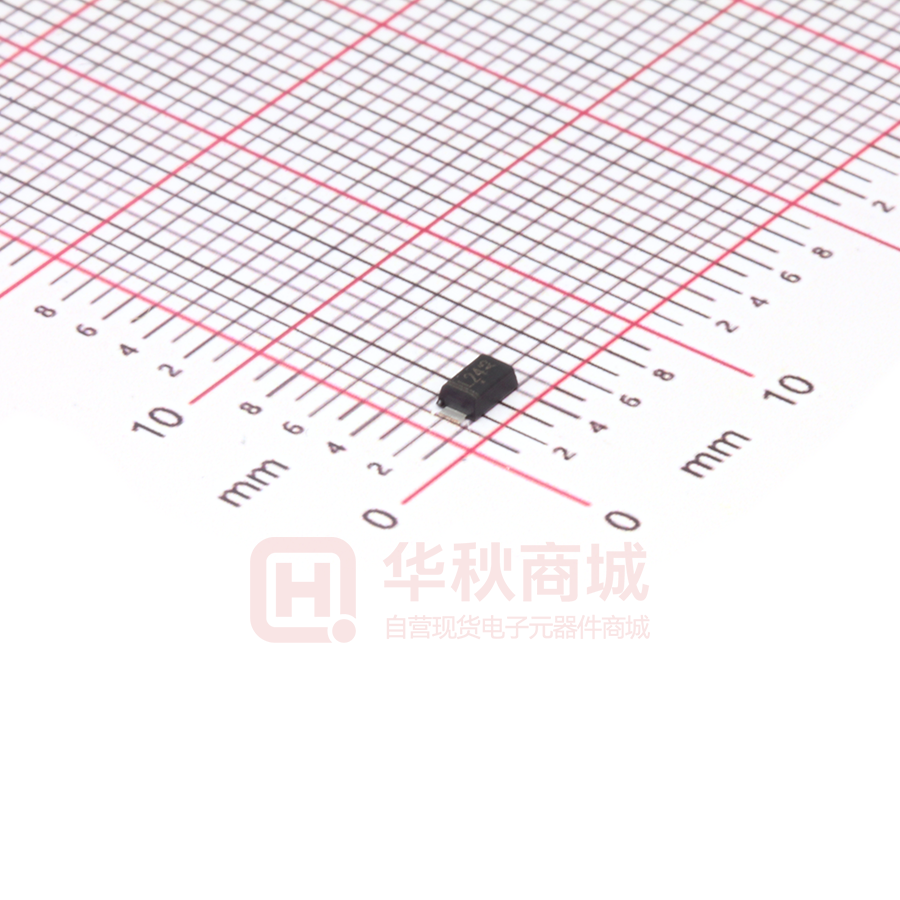

MSK240AW

MSK240AW Trench MOS Barrier Schottky PINNING Features PIN DESCRIPTION • Low power loss, high efficiency 1 Cathode • High current capability 2 Anode 1 2 • low forward voltage drop • For use in low voltage Weight : 17mg , 0.0006 oz Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Symbol Max. Repetitive Peak Reverse Voltage @0.5mA VRRM Max. Average Forward Rectified Current IF(AV) Forward Voltage Drop IF=1A IF=2A IF=3A Spec. Limit Min. Typ. 45 50 Max. V 3 VF Unit A 0.340 0.380 0.410 0.430 80 200 μA V Max. Reverse Current at VRRM @45V IR Operating Temperature Range TJ -55 +125 ℃ TSTG -55 +150 ℃ Storage Temperature Range REV.08 1 of 3 MSK240AW REV.08 2 of 3 MSK240AW PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD123FL ∠ALL ROUND C A ∠ALL ROUND HE VM g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm g pad e E A pad D E A 7° The recommended mounting pad size 2.0 (79) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) REV.08 ∠ 3 of 3
