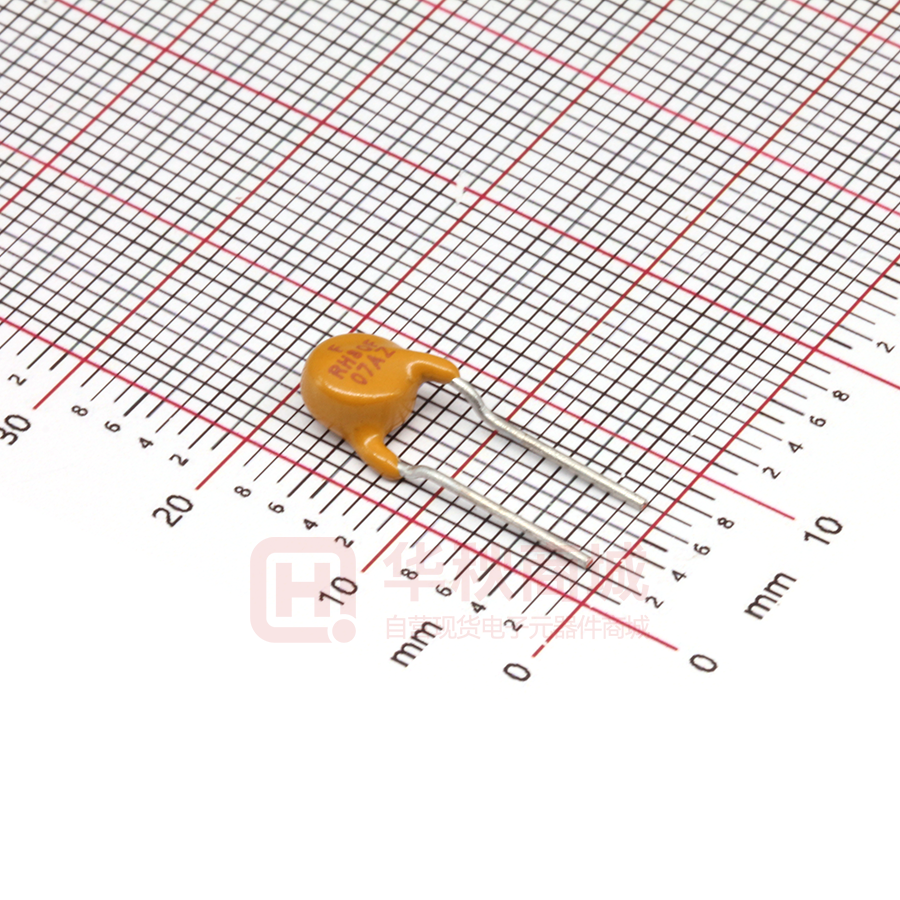

FRH080-250VF

FUZETEC TECHNOLOGY CO., LTD. NO. PQ33-101E Product Specification and Approval Sheet Version A5 Page 1/4 Radial Leaded PTC Resettable Fuse : FRHV Series 1. Summary (a) RoHS Compliant (Lead Free) Product (b) Applications : Wide variety of electronic equipment (c) Product Features : Low hold current Solid state, Radial leaded product ideal for up to 60V/100V/250V/600V (d) Operation Current : 0.08A~0.40A (e) Maximum Operation Voltage : 60V/100V/250VDC (f) Maximum Interrupt Voltage : 250V/600VAC (g) Temperature Range : -40℃ to 85℃ 2. Agency Recognition UL : C-UL: TÜ V: File No. E211981 File No. E211981 *File No. R50138901 *FRH160-600MF and FRH200-600VF~FRH400-600F TÜ V In Process. 3. Electrical Characteristics (23℃) Part Number FRH080-250VF FRH110-250VF FRH120-250VF FRH145-250VF FRH180-250XF FRH150-600MF FRH160-600MF FRH160-600VF FRH200-600VF FRH250-600VF FRH400-600F Hold Current Trip Current IH, A 0.08 0.11 0.12 0.15 0.18 0.15 0.16 0.16 0.20 0.25 0.40 IT, A 0.16 0.22 0.24 0.29 0.65 0.30 0.32 0.32 0.40 0.85 1.00 Max. Time To Trip Current Time A 0.35 1.00 1.00 1.00 3.00 1.00 1.00 1.00 1.00 3.00 3.00 Sec 4.0 2.0 2.0 2.5 2.0 4.0 7.0 7.0 12.0 1.0 4.0 Resistance Max. Current Max. Oper. Voltage Max. Int. Voltage Typ. Power RMIN R1MAX IMAX, A 3.0 3.0 3.0 3.0 10.0 3.0 3.0 3.0 3.0 3.0 3.0 VMAX, VDC 100 100 100 100 100 250 250 250 250 250 60 VI-MAX,VAC 250 250 250 250 250 600 600 600 600 600 600 Pd, W 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Ohms 14.00 5.00 4.00 3.00 0.80 6.00 4.00 4.00 4.00 1.00 0.95 Ohms 33.00 16.00 16.00 12.00 4.00 17.00 16.00 18.00 13.50 7.00 1.90 IH=Hold current-maximum current at which the device will not trip at 23℃ still air. IT=Trip current-maximum current at which the device will always trip at 23℃ still air. V MAX=Maximum operating voltage at which the device can withstand without damage at its rated current. VI -MAX = Maximum interrupt voltage device can withstand for short period of time. (Not for long term.) I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated from device when in the tripped state in 23℃ still air environment. RMIN=Minimum device resistance at 23℃. R1MAX=Maximum device resistance at 23℃ 1 hour after tripping . Physical specifications: Lead material: Tin plated copper, 22 AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy ,meet UL-94V-0 requirement. *NOTE : All FRHV products are designed to assist equipment to pass ITU, UL60950 or GR1089 specification. *FRH150-600MF, FRH160-600VF meet UL497A Overvoltage and Endurance Conditioning requirements for Thermistor type component. CAUTION : FRHV devices are not intended for continous use of Line Voltage such as 120VAC ~ 600VAC and above. NOTE : Specification subject to change without notice. 2019/11/13 NO. FUZETEC TECHNOLOGY CO., LTD. PQ33-101E Product Specification and Approval Sheet Version A5 Page 2/4 4. Production Dimensions (millimeter) Fig.1 Lead Size :22AWG, Φ 0.65 mm Diameter Part Number Fig FRH080-250VF FRH110-250VF FRH120-250VF FRH145-250VF FRH180-250XF FRH150-600MF FRH160-600MF FRH160-600VF FRH200-600VF FRH250-600VF FRH400-600F 1 1 2 2 1 2 2 2 2 2 2 Fig.2 Lead Size : 22AWG, Φ 0.65 mm Diameter A B C D E Maximum Maximum Typical Minimum Maximum 5.8 6.8 6.5 6.5 9.0 9.0 9.0 16.0 12.0 12.0 15.0 9.6 9.9 11.0 11.0 12.0 12.5 12.5 12.6 14.0 15.0 14.5 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.7 4.6 4.6 4.6 4.6 3.8 4.6 4.6 6.0 6.0 6.0 6.0 NOTE : Specification subject to change without notice. 2019/11/13 NO. FUZETEC TECHNOLOGY CO., LTD. PQ33-101E Product Specification and Approval Sheet Version A5 Page 3/4 5. Thermal Derating Curve FRHV Series Percent of Rated Hold and Trip Current 200% B 150% A 100% A B 50% A= FRH180-250XF B= All other FRHV devices 0% -40 -20 0 20 40 60 80 Ambient Temperature (℃) 6. Typical Time-To-Trip at 23℃ 1000 A= FRH080-250VF B= FRH110-250VF C= FRH120-250VF D= FRH145-250VF E= FRH180-250XF Time-to-trip (S) 100 10 1 E D C 0.1 B A 0.01 0 0.5 1 1.5 2 2.5 3 Fault current (A) NOTE : Specification subject to change without notice. 2019/11/13 FUZETEC TECHNOLOGY CO., LTD. NO. PQ33-101E Product Specification and Approval Sheet Version A5 4/4 1000 100 Time-to-trip (S) F = FRH150-600MF G = FRH160-600MF H = FRH160-600VF I = FRH200-600VF J = FRH250-600VF K = FRH400-600F Page 10 K J I H G F 1 0.1 0.01 0.00 0.50 1.00 1.50 2.00 2.50 3.00 Fault current (A) 7. Material Specification Lead material：Tin plated copper, 22 AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement 8. Part Numbering and Marking System Part Numbering System Part Marking System FRH □ □ □ ─ □ □ □ VF RoHS Compliant / Lead Free V: High Operating Voltage Device X: Round Type M: Special Type Maximum Interrupt Voltage Rating Current Rating F RH □ □ □ F Fuzetec Logo RoHS Compliant / Lead Free Part Identification Product Family F RH110F 51AB □ □ □ □ Example Date Code/Lot Number * FRH150-600MF Marking : RH6150F, FRH160-600MF Marking : RH6160F , FRH160-600VF Marking : RH6160F * FRH200-600VF Marking : RH6200F , FRH250-600VF Marking : RH6250F , FRH400-600F Marking : RH6400F Note: Font on Marking may look slightly different due to fine turnings of each Marking printer. NOTE : Specification subject to change without notice. 2019/11/13
