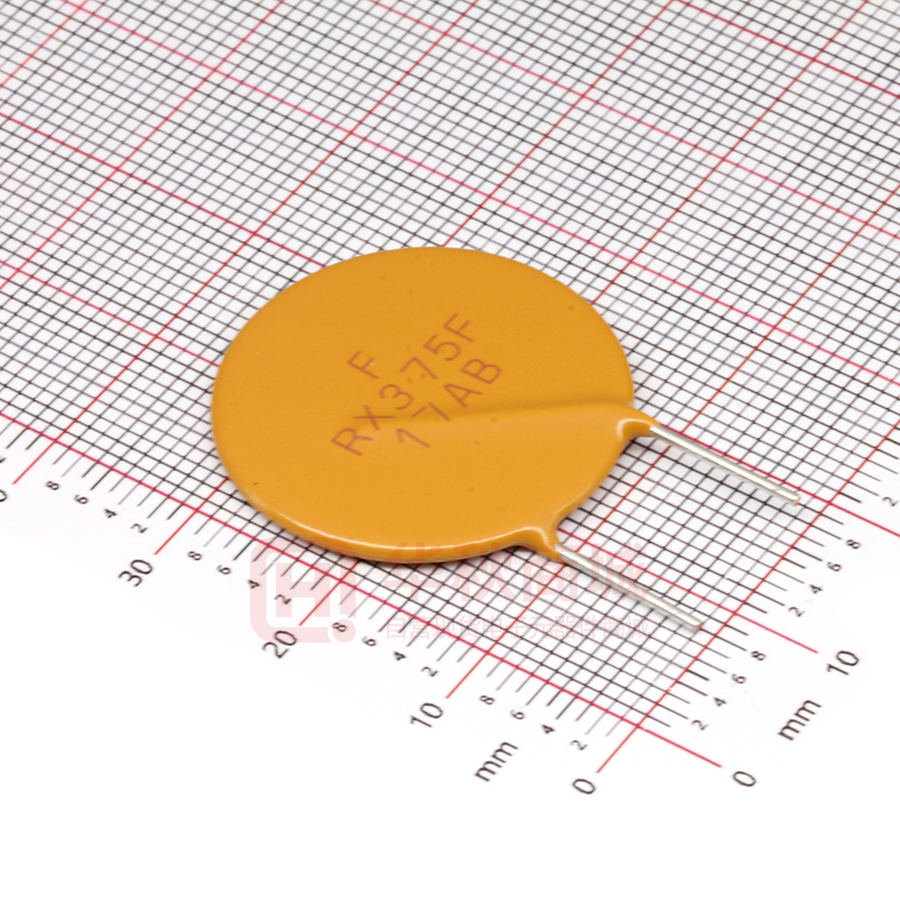

FRX375-60F

FUZETEC TECHNOLOGY CO., LTD. NO. Product Specification and Approval Sheet Version PQ01-101E 8 Page 1/3 Radial Leaded PTC Resettable Fuse : FRX Series 1. Summary (a) RoHS Compliant (Lead Free) Product (b) Applications : Wide variety of electronic equipment (c) Product Features : Low hold current, Solid state, Radial leaded product ideal for up to 60VDC (d) Operation Current : 0.05A~3.75A (e) Maximum Voltage : 60VDC (f) Temperature Range : -40℃ to 85℃ 2. Agency Recognition UL : C-UL: TÜ V: File No. E211981 File No. E211981 File No. R50004084 3. Electrical Characteristics (23℃) Part Trip Max.Time Maximum Rated Typical Current Current to Trip Current Voltage Power RMIN R1MAX IH,A IT,A at 5XIH,S IMAX,A VMAX,VDC Pd, W Ohms Ohms 0.05 0.10 0.17 0.20 0.25 0.30 0.40 0.50 0.65 0.75 0.90 1.10 1.35 1.60 1.85 2.50 3.00 3.75 0.10 0.20 0.34 0.40 0.50 0.60 0.80 1.00 1.30 1.50 1.80 2.20 2.70 3.20 3.70 5.00 6.00 7.50 5.0 4.0 3.0 2.2 2.5 3.0 3.8 4.0 5.3 6.3 7.2 8.2 9.6 11.4 12.6 15.6 19.8 24.0 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 0.26 0.38 0.48 0.41 0.45 0.49 0.56 0.77 0.88 0.92 0.99 1.50 1.70 1.90 2.10 2.50 2.80 3.20 7.30 2.50 2.00 1.83 1.25 0.88 0.55 0.50 0.31 0.25 0.20 0.15 0.12 0.09 0.08 0.05 0.04 0.03 20.00 7.50 8.00 4.40 3.00 2.10 1.29 1.17 0.72 0.60 0.47 0.38 0.30 0.22 0.19 0.13 0.10 0.08 Number FRX005-60F FRX010-60F FRX017-60F FRX020-60F FRX025-60F FRX030-60F FRX040-60F FRX050-60F FRX065-60F FRX075-60F FRX090-60F FRX110-60F FRX135-60F FRX160-60F FRX185-60F FRX250-60F FRX300-60F FRX375-60F Resistance Hold IH=Hold current-maximum current at which the device will not trip at 23℃ still air. IT=Trip current-minimum current at which the device will always trip at 23℃ still air. V MAX=Maximum voltage device can withstand without damage at its rated current. I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated from device when in tripped state in 23℃ still air environment. RMIN=Minimum device resistance at 23℃. R1MAX=Maximum device resistance at 23℃, 1 hour after tripping . Physical specifications: Lead material: FRX005-60F~FRX040-60F Tin plated copper clad steel, 24 AWG. FRX050-60F~FRX090-60F Tin plated copper, 24 AWG. FRX110-60F~FRX375-60F Tin plated copper, 20 AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. NOTE : Specification subject to change without notice. 2019/11/12 NO. FUZETEC TECHNOLOGY CO., LTD. PQ01-101E Product Specification and Approval Sheet Version 8 Page 2/3 4. Production Dimensions (millimeter) FRX 005-60F ~ FRX 090-60F Lead Size : 24AWG Φ 0.51 mm Diameter FRX 110-60F ~ FRX 375-60F Lead Size : 20AWG Φ 0.81 mm Diameter Part Number A B C D E F Maximum Maximum Typical Minimum Maximum Typical FRX005-60F FRX010-60F FRX017-60F FRX020-60F FRX025-60F FRX030-60F FRX040-60F FRX050-60F FRX065-60F FRX075-60F FRX090-60F FRX110-60F FRX135-60F FRX160-60F FRX185-60F FRX250-60F FRX300-60F FRX375-60F 7.4 7.4 7.4 7.4 7.4 7.4 7.6 7.9 9.7 10.4 11.7 13.0 14.5 16.3 17.8 21.3 24.9 28.5 12.7 12.7 12.7 12.7 12.7 12.7 13.5 13.7 14.5 15.2 15.8 18.0 19.6 21.3 22.9 26.4 30.0 33.5 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 10.2 10.2 10.2 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.4 1.4 1.4 1.4 1.4 1.4 1.4 5. Thermal Derating Curve Precent of Rated Hold and Trip Current FRX Series 200% 150% 100% 50% 0% -40 -20 0 20 40 60 80 Ambient Temperature (C) NOTE : Specification subject to change without notice. 2019/11/12 NO. FUZETEC TECHNOLOGY CO., LTD. Product Specification and Approval Sheet Version PQ01-101E 8 Page 3/3 6. Typical Time-To-Trip at 23℃ A =FRX005-60F B =FRX010-60F C =FRX017-60F D =FRX020-60F E =FRX025-60F F =FRX030-60F G =FRX040-60F H =FRX050-60F I =FRX065-60F J =FRX075-60F K =FRX090-60F L =FRX110-60F M =FRX135-60F N =FRX160-60F O =FRX185-60F P =FRX250-60F Q=FRX300-60F R =FRX375-60F B C DEF GH I J K L MNO P QR 1000 Time-to-trip (S) 100 10 A 1 0.1 0.01 0.001 0.1 1 10 100 Fault current (A) 7. Material Specification Lead material：FRX005-60F~FRX040-60F Tin plated copper clad steel, 24 AWG. FRX050-60F~FRX090-60F Tin plated copper, 24 AWG. FRX110-60F~FRX375-60F Tin plated copper, 20 AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement 8. Part Numbering and Marking System Part Numbering System Part Marking System FRX □ □ □ ─ □ □ F RoHS Compliant / Lead Free Voltage Rating F RX110F 93AB F RX □ □ □ F RoHS compliant / Lead Free Part Identification Product Family Current Rating Example Fuzetec Logo □ □ □ □ Date Code/Lot Number Note: Font on Marking may look slightly different due to fine turnings of each Marking printer. Warning: - Each product should be carefully evaluated and tested for their suitability of application. - Operation beyond the specified maximum rating or improper use may result in damage and possible electrical arcing and/or flame. - PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated. - Avoid contact of PPTC device with chemical solvent, including some inert material such as silicone based oil, lubricant and etc. Prolonged contact will damage the device performance. - Additional protection mechanism are strongly recommended to be used in conjunction with the PPTC device for protection against abnormal or failure conditions. - Avoid use of PPTC device in a constrained space such as potting material, housing and containers where have limited space to accommodate device thermal expansion and/or contraction. NOTE : Specification subject to change without notice. 2019/11/12
