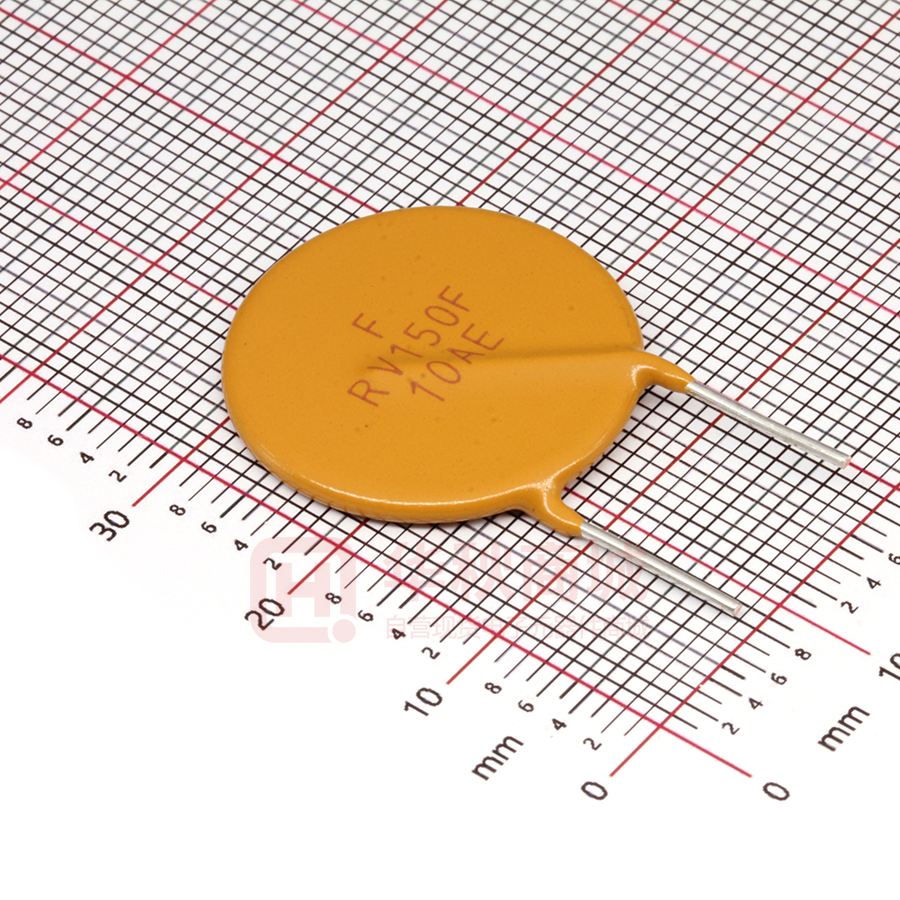

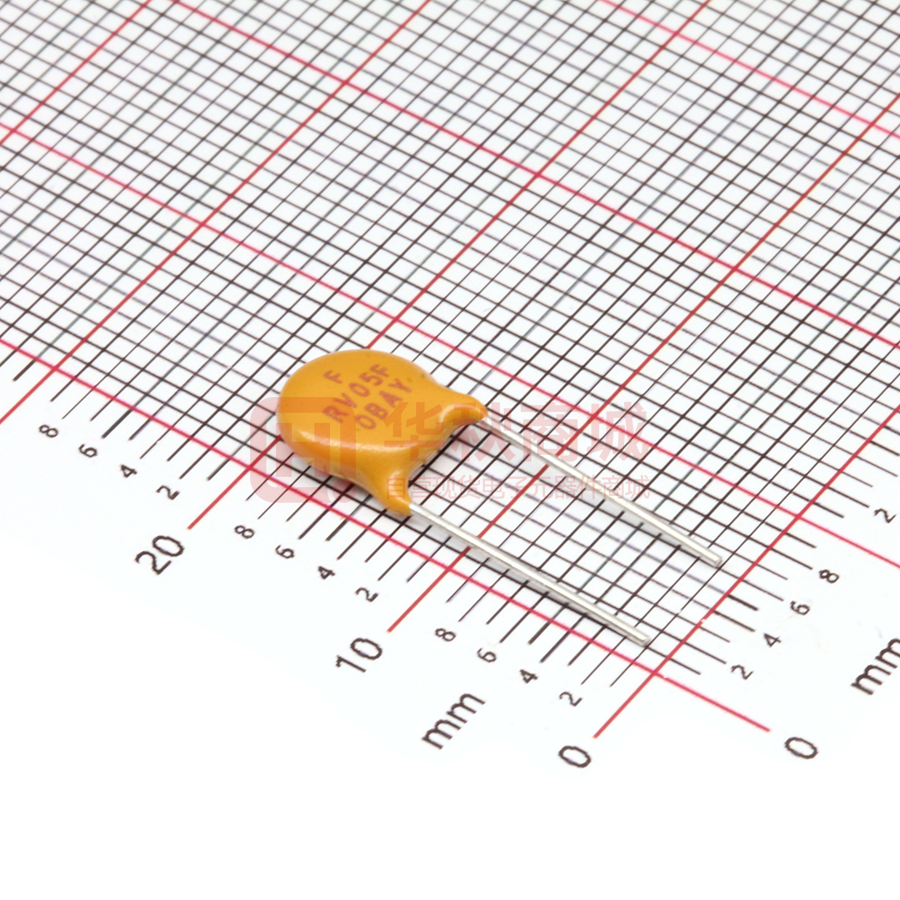

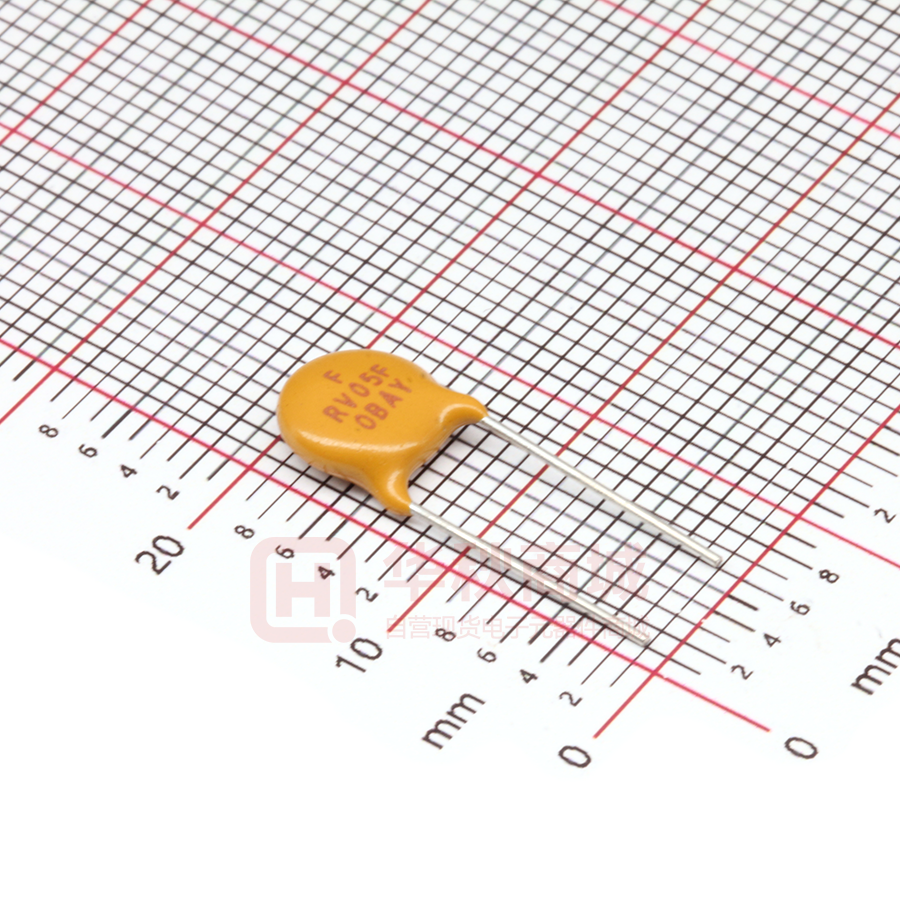

FRV150-240F

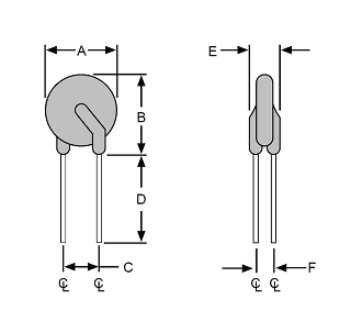

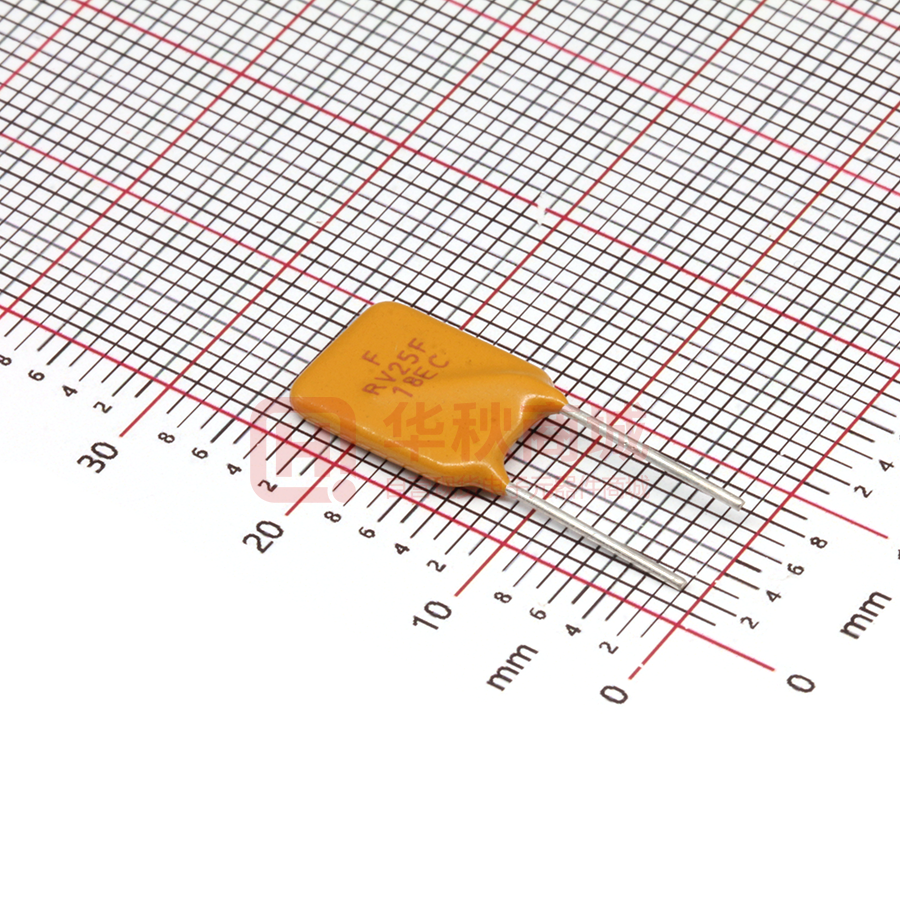

FUZETEC TECHNOLOGY CO., LTD. NO. PQ24-101E Product Specification and Approval Sheet Version A8 Page 1/4 Radial Leaded PTC Resettable Fuse: FRV Series 1. Summary (a) RoHS Compliant (Lead Free) Product (b) Applications: Line Voltage Power Supply, Transformer and Appliances (c) Product Features: Low hold current, Solid state, Radial leaded product ideal for up to 265VAC/DC (d) Operation Current: 0.05A~2.00A (e) Maximum Operating Voltage: 240VAC/DC (f) Maximum Interrupt Voltage: 265VAC/DC (g) Temperature Range : FRV005-240F~FRV055-240F -40℃ to 85℃ FRV075-240F~FRV200-240F -20℃ to 85℃ 2. Agency Recognition UL: C-UL: TÜ V: File No. E211981 File No. E211981 File No. R50087018 3. Electrical Characteristics (23℃) Resistance Hold Trip Max.Time Max. Rated Max. Int. Typ. Current Current to Trip Current Voltage Voltage Power RMIN R1MAX IH, A IT, A at 5XIH,S IMAX, A VMAX, VI-MAX, VAC/DC VAC/DC Pd, W Ohms Ohms FRV005-240F 0.05 0.12 15.0 1.0 240 265 0.70 18.50 65.00 FRV008-240F 0.08 0.19 15.0 1.2 240 265 0.80 7.40 26.00 FRV012-240F 0.12 0.30 15.0 1.2 240 265 1.00 3.00 12.00 FRV016-240F 0.16 0.37 15.0 2.0 240 265 1.40 2.50 7.80 FRV025-240F 0.25 0.56 18.5 3.5 240 265 1.50 1.30 3.80 FRV033-240F 0.33 0.74 21.0 4.5 240 265 1.70 0.83 2.60 FRV040-240F 0.40 0.90 24.0 5.5 240 265 2.00 0.60 1.90 FRV055-240F 0.55 1.25 26.0 7.0 240 265 3.40 0.45 1.45 FRV075-240F 0.75 1.50 18.0 7.5 240 265 2.60 0.32 0.84 FRV100-240F 1.00 2.00 21.0 10.0 240 265 2.90 0.22 0.58 FRV125-240F 1.25 2.50 23.0 12.5 240 265 3.30 0.17 0.44 FRV150-240F 1.50 3.00 23.0 15.0 240 265 3.70 0.12 0.32 FRV200-240F 2.00 4.00 28.0 20.0 240 265 4.50 0.09 0.22 Part Number IH=Hold current-maximum current at which the device will not trip at 23℃ still air. IT=Trip current-minimum current at which the device will always trip at 23℃ still air. V MAX=Maximum voltage device can withstand without damage at its rated current. I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated from device when in tripped state in 23℃ still air environment. RMIN=Minimum device resistance at 23℃. R1MAX=Maximum device resistance at 23℃, 1 hour after tripping. Physical specifications: Lead material: FRV005-240F~FRV016-240F Tin plated copper clad steel, 24AWG. FRV025-240F~FRV040-240F Tin plated copper, 22AWG. FRV055-240F~FRV200-240F Tin plated copper, 20AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. NOTE : Specification subject to change without notice. 2019/9/17 FUZETEC TECHNOLOGY CO., LTD. NO. PQ24-101E Product Specification and Approval Sheet Version A8 Page 2/4 4. Production Dimensions (millimeter) Fig.1 Lead Size: 24AWG Φ 0.51 mm Diameter Part Number FRV005-240F FRV008-240F FRV012-240F FRV016-240F FRV025-240F FRV033-240F FRV040-240F FRV055-240F FRV075-240F FRV100-240F FRV125-240F FRV150-240F FRV200-240F Fig.2 Lead Size: 22AWG Φ 0.65 mm Diameter Fig.3 Lead Size: 20AWG Φ 0.81 mm Diameter Fig.4 Lead Size: 20AWG Φ 0.81 mm Diameter A B C D E F Maximum Maximum Typical Minimum Maximum Typical 8.3 8.3 8.3 9.9 9.6 11.4 11.5 14.0 11.5 18.7 21.2 23.4 24.9 10.7 10.7 10.7 12.5 17.4 16.5 19.5 21.7 23.4 24.4 27.4 30.9 33.8 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 10.2 10.2 10.2 10.2 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 3.8 3.8 3.8 3.8 3.8 3.8 3.8 4.1 4.8 5.1 5.3 5.3 6.1 1.6 1.6 1.6 1.6 1.8 1.8 1.8 1.9 1.9 1.9 1.9 1.9 1.9 Figure 1 1 1 1 2 2 2 3 3 4 4 4 3 NOTE : Specification subject to change without notice. 2019/9/17 NO. FUZETEC TECHNOLOGY CO., LTD. PQ24-101E Product Specification and Approval Sheet Version A8 Page 3/4 5. Thermal Derating Curve FRV Series Precent of Rated Hold and Trip Current 200% 150% 100% 50% A = FRV005-240F~ FRV055-240F B = FRV075-240F ~ 0% -40 -20 0 20 40 60 80 FRV200-240F Ambient Temperature (C) 6. Typical Time-To-Trip at 23℃ FRV Series A B CD E FG HI J KL M 1000 100 Time-to-trip (S) A= FRV005-240F B= FRV008-240F C= FRV012-240F D= FRV016-240F E= FRV025-240F F= FRV033-240F G= FRV040-240F H= FRV055-240F I= FRV075-240F J= FRV100-240F K= FRV125-240F L=FRV150-240F M= FRV200-240F 10 1 0.1 0.01 0.1 1 10 100 Fault current (A) NOTE : Specification subject to change without notice. 2019/9/17 NO. FUZETEC TECHNOLOGY CO., LTD. PQ24-101E Product Specification and Approval Sheet Version A8 Page 4/4 7. Material Specification Lead material：FRV005-240F~FRV016-240F Tin plated copper clad steel, 24AWG. FRV025-240F~FRV040-240F Tin plated copper, 22AWG. FRV055-240F~FRV200-240F Tin plated copper, 20AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. 8. Part Numbering and Marking System Part Numbering System Part Marking System FRV □ □ □ - □ □ □ F F RV □ □ F RoHS Compliant / Lead Free Voltage Rating Current Rating F RV12F 91AB Fuzetec Logo RoHS Compliant / Lead Free Part Identification Product Family □ □ □ □ Example Date Code/Lot Number Note: Font on Marking may look slightly different due to fine turnings of each Marking printer. Warning: - Each product should be carefully evaluated and tested for their suitability of application. - Operation beyond the specified maximum rating or improper use may result in damage and possible electrical arcing and/or flame. - PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated. - Avoid contact of PPTC device with chemical solvent, including some inert material such as silicone based oil, lubricant and etc. Prolonged contact will damage the device performance. - Additional protection mechanism are strongly recommended to be used in conjunction with the PPTC device for protection against abnormal or failure conditions. - Avoid use of PPTC device in a constrained space such as potting material, housing and containers where have limited space to accommodate device thermal expansion and/or contraction. NOTE : Specification subject to change without notice. 2019/9/17
