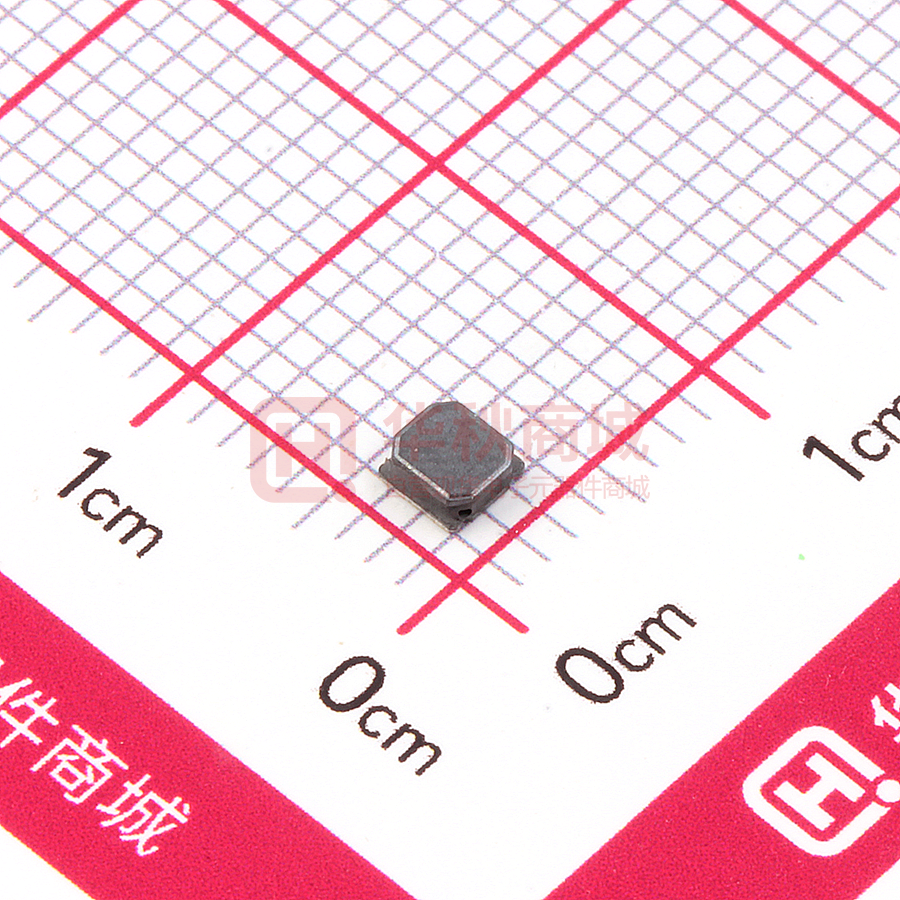

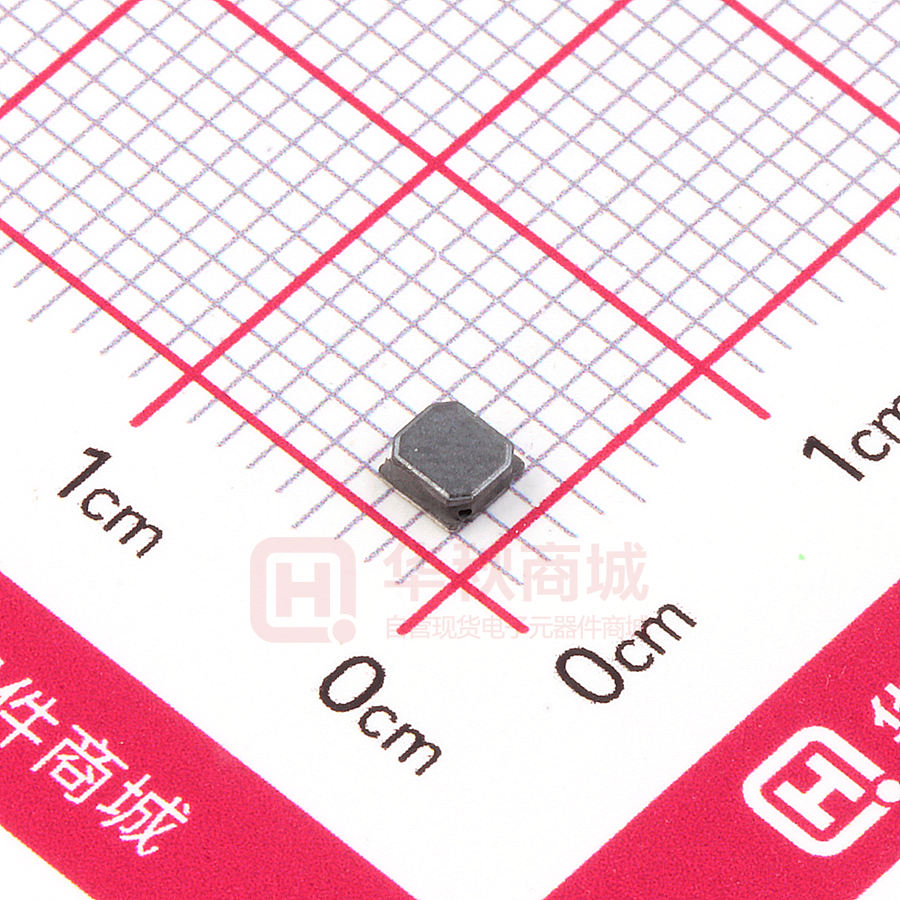

MPIT3012-220M-LF

CUSTOMER: DATE: APPROVAL SPECIFICATION PRODUCT NAME: SMD power inductor CUSTOMER PART NO.: OUR PART NO.: MPIT3012 Series RECEPTION THE SPECIFICATION HAS BEEN ACCEPTED. DATE： ： COMPANY： ： CFMD CHKD RCVD MANUFACTURING NAME 深圳市麦捷微电子科技股份有限公司 SHENZHEN MICROGATE TECHNOLOGY CO.，LTD Address: Yuxing road, Golf Street, Guanlan Town Bao’an District Shenzhen P.R.C Postcode :518110 TEL：86-755-28085000 FAX：86-755-28085605 CFMD. CHKD. DSGD. 目录 CATALOG 规格书版本控制 Component SPEC Version Record……………………………….. .. .. 2 1 适用范围 Scope． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 2 品名构成 Product Identification． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 3 3 形状、 ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 形状、尺寸和材料 Appearance, Dimensions and Material． 4 测试条件 Testing Conditions． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 5 电气特性 Electrical Characteristics． ．． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 6 工作条件 Condition of work． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 5 7 信赖性试验 Reliable Performance． ．． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 8 焊接条件 Recommended Soldering Conditions． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 8 9 包装 Packaging． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 9 5-7 10 产品外观检查标准 Visual inspection standard of product． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 10 11 存贮条件 Products Storage． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 10 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 Component SPEC Version Record Rev. Effective Date Changed Contents Change Reasons Approved By 01 Dec. 10.2012 New released / Charles 2 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 1. Scope This specification applies to the MPIT3012 series of SMD power inductor. 2. Product Identification MPIT ① 3012 – ② 6R8 ③ M - LF ④ ⑤
Product Symbol (T type SMD power inductor)  Product dimensions (3.0×3.0×1.2mm)  Inductance Value： (4R7: 4.7uH 100: 10uH; 101: 100uH)  Induc tance Tolerance：(M: ±20% ; N: ±30%)  Lead free product. E A D E 3. Construction 3.1 Shape and dimensions Recommended Land Pattern Model MPIT3012 A 3.00±0.20 B 3.00±0.20 Dimensions in mm C D E 1.2 0Max. 1.50±0.20 0.75±0.2 f 1.50Typ. g 3.10 Typ. h 2.70 Typ. 3.2 Material List No. 1 2 3 4 Item Ferrite Core Wire Terminal Electrode Magnetic Glue Material Ni-Zn Ferrite Enameled Copper Wire Ag/Ni/Sn/Cu Epoxy resin and magnetic powder 4.Testing Conditions Unless otherwise specified Temperature : Ordinary Temperature ( 5 to 35℃) Humidity : Ordinary Humidity (25 to 85% RH) Atmospheric Pressure : 86 to 106 kPa In case of doubt Temperature : 20±2℃ Humidity : 60 to 75% RH Atmospheric Pressure : 86 to 106 kPa 3 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 5. Electrical Characteristics And Test Instruments 1 2 MPIT3012-R82N-LF Inductance (uH) 0.82 ±30% DCR (Ω) ±30% 0.030 Isat (A) 2.05 Irms (A) 2.47 MPIT3012-1R0N-LF 1.0 ±30% 0.040 2.30 2.20 120 MPIT3012-1R2N-LF 1.2 ±30% 0.045 2.22 2.01 120 MPIT3012-1R5N-LF 1.5 ±30% 0.045 1.62 2.01 110 Microgate Part No. Customer Part No. SRF (MHz) 180 MPIT3012-1R8N-LF 1.8 ±30% 0.060 1.35 1.75 90 MPIT3012-2R2M-LF 2.2 ±20% 0.075 1.50 1.60 84 MPIT3012-2R4M-LF 2.4 ±20% 0.068 1.15 1.50 100 MPIT3012-2R7M-LF 2.7 ±20% 0.085 1.15 1.48 65 MPIT3012-3R3M-LF 3.3 ±20% 0.100 1.05 1.36 64 MPIT3012-4R7M-LF 4.7 ±20% 0.120 0.95 1.25 61 MPIT3012-6R8M-LF 6.8 ±20% 0.190 0.75 0.98 61 MPIT3012-100M-LF 10 ±20% 0.290 0.70 0.83 42 MPIT3012-120M-LF 12 ±20% 0.345 0.50 0.73 32 MPIT3012-150M-LF 15 ±20% 0.390 0.48 0.71 27 MPIT3012-180M-LF 18 ±20% 0.545 0.44 0.58 25 MPIT3012-220M-LF 22 ±20% 0.630 0.50 0.53 23 MPIT3012-270M-LF 27 ±20% 0.770 0.38 0.49 21 MPIT3012-330M-LF 33 ±20% 0.875 0.36 0.46 18 MPIT3012-360M-LF 36 ±20% 0.950 0.34 0.44 18 MPIT3012-390M-LF 39 ±20% 1.250 0.30 0.38 18 MPIT3012-470M-LF 47 ±20% 1.400 0.27 0.35 14 MPIT3012-560M-LF 56 ±20% 1.600 0.26 0.33 14 MPIT3012-620M-LF 62 ±20% 1.650 0.25 0.32 12 MPIT3012-680M-LF 68 ±20% 1.750 0.22 0.30 12 MPIT3012-820M-LF 82 ±20% 2.500 0.19 0.27 12 MPIT3012-101M-LF 100 ±20% 2.860 0.19 0.25 12 L-I characteristic curve 80 100 60 10µH 4.7µH Indictance（uH） 47µH 50 40 30 20 10 0 0.0 0.5 1.0 DC.Current (A) 1.5 2.0 DC.Current（A） 47µH Inductance(µH) 70 Temperature rise ( ℃) Temperature rise（℃） T-I characteristic curve 10 10µH 4.7µH 1 0 0.01 0.1 DC. Current(A) 1 10 DC.Current（A） Test instruments and remarks * CHROMA 3302 meter for L and DCR./CHROMA 3302 and 1320 meter for IDC. * L test condition: 100KHz&1V at 20℃ambient; * Rated current:Isat or Irms,whichever is smaller: 1 :Isat: direct current at which the inductance drops approximate 30% from its value without current. 2 :Irms: direct current when the temperature of the product rise (△T =40°C) from 20°C ambient 4 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 6. Condition of work 1. The part normal work be allowed ambient temperature: -25℃ ~ +85℃. 2 .The part must be allowed high temperature: +125℃. 3. The part normal work be allowed temperature dependent: 40℃ 4. Ambient temperature of the part is allowed storage temperature: -25℃ ~ +85℃. 5. Storage life: half a year 6 .The part be allowed work ambient frequency: 0.1MHz ~ 1MHz 7. Reliability and Test Condition Item Required Characteristics Test Method/Condition Temperature: 125±2℃ Time : 1000 hours Tested not less than 1 hours, nor more than 2 hours at room temperature. High temperature 125℃ ℃ resistance 1000H Temperature : -40±2℃ Time : 1000 hours Tested not less than 1 hour, nor more than 2 hours at room temperature. Low temperature resistance 1. No case deformation or change in appearance. 2. |∆L|/L≤10% 1000H -40℃ 1. 2. 3. Exposure : Temperature:60±2℃, Humidity : 93±3% RH Time : 1000 hours. Tested while the specimens are still in the chamber. Tested not less than 1 hour, nor more than 2 hours at room temperature. Humidity test 1000H 5 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 Item Required Characteristics Test Method/Condition First -40℃ for T time, last 125℃ T time as 1 cycle. Go through 100 cycles. 1. Thermal test shock 2. No case deformation or change in appearance. |∆L|/L≤10% 125℃ 30 min. 30 min. Ambient Temperature -40℃ 30 min. 20sec. (max.) Solderability test Terminal area must have 90% min. solder coverage. Heat endurance of reflow soldering Dip pads in flux then dip in solder pot at 245±5℃ for 0.1mm. NG. AQL=0.65 l L l >L/6 or w >W/6, NG. H 11.Products Storage ⑴ Storage period Products which inspected in MICROGATE over 6 months ago should be examined and used, which can be confirmed with inspection No. marked on the container. Solderability should be checked if this period is exceeded. ⑵ Storage conditions Products should be storage in the warehouse on the following conditions: Temperature: -10 ~+ 40℃ Humidity : Less than 80% relative and humidity No rapid change on temperature and humidity ⑶ Don’t keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability. ⑷ Products should be storage on the palette for the prevention of the influence from humidity, dust and so on. ⑸ Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on. ⑹ Products should be storage under the airtight packaged condition. 10 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110
