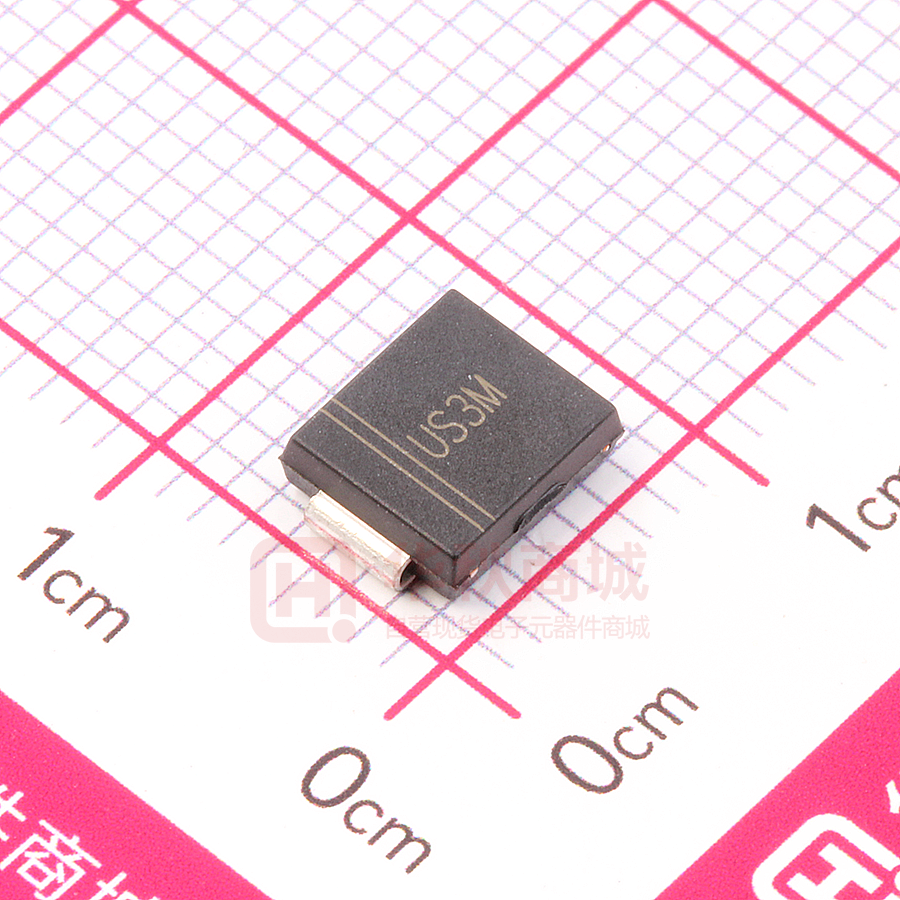

US3MC

山东晶导微电子有限公司 US3AC THRU US3MC Jingdao Microelectronics Surface Mount Ultrafast Recovery Rectifier Reverse Voltage – 50V~1000 V PINNING Forward Current – 3.0 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • High efficiency • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Marking Code: US3A~US3M Simplified outline SMC symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.22g / 0.0077oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Symbols US3AC US3BC US3DC US3GC US3JC US3KC US3MC Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Parameter Maximum Average Forward Rectified Current I F(AV) 3 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 90 A Maximum Instantaneous Forward Voltage at 3 A VF Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range 1.0 1.3 5 100 IR t rr 1.68 μA 75 50 V ns RθJA RθJC 45 15 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.04 SMC-U-US3AC~US3MC-3A1KV Page 1 of 3 山东晶导微电子有限公司 US3AC THRU US3MC Jingdao Microelectronics Fig.2 Typical Reverse Characteristics 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Maximum Average Forward Current Rating 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) Peak Forward Surage Current (A) Instaneous Forward Current (A) T J =25°C 1.0 US3AC~US3DC US3GC 0.1 US3JC~US3MC 0.01 0.001 0 0.5 1.0 1.5 60 80 100 120 140 2.0 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 2.5 1 10 100 Number of Cycles Instaneous Forward Voltage (V) 2017.04 40 Fig.4 Maximum Non-Repetitive Peak Forward Surage Current Fig.3 Typical Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) www.sdjingdao.com Page 2of 3 山东晶导微电子有限公司 US3AC THRU US3MC Jingdao Microelectronics PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) mm Unit ： (mil) 2017.04 JD704228B4 Type number Marking code US3AC US3A US3BC US3B US3DC US3D US3GC US3G US3JC US3J US3KC US3K US3MC US3M Page 3 of 3
