B16W

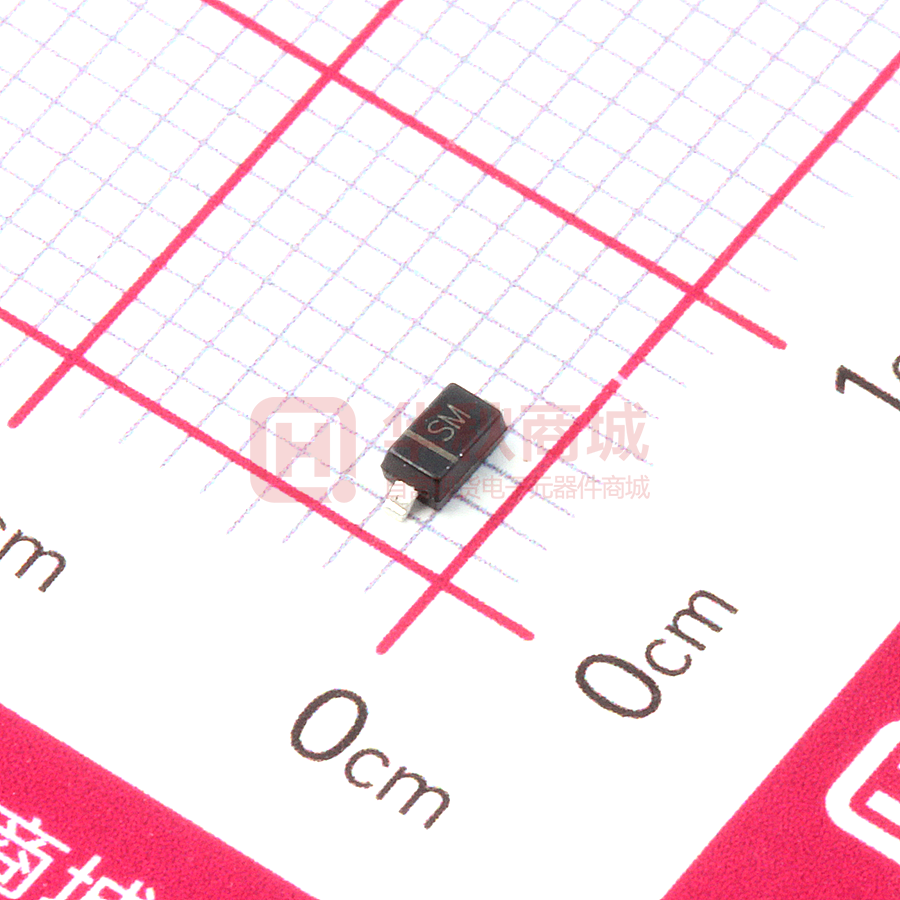

山东晶导微电子股份有限公司 B16W Jingdao Microelectronics co.LTD SCHOTTKY BARRIER RECTIFIERS PINNING PIN FEATURES ▪ Low Forward Voltage Drop DESCRIPTION 1 Cathode 2 Anode ▪ Guard Ring Construction for Transient Protection 2 ▪ High Conductance ▪ Also Available in Lead Free Version 1 Top View Marking Code: SM Simplified outline SOD-123 and symbol MECHANICAL DATA • Case: SOD-123 • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight:16mg/0.00056oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Symbols B16W Units Maximum recurrent peak reverse voltage V RRM 60 V Maximum RMS voltage V RMS 42 V V DC 60 V Continuous forward current IF 1 A Maximum DC Reverse Current at Rated DC Blocking Voltage IR 0.1 @V R =60V mA Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) I FSM 25 A Maximum Instantaneous Forward Voltage VF 0.7 @ I F =1.0A V C tot 120 pF Total power dissipation P tot 250 mW Thermal Resistance, Junction to Ambient Air RθJA 400 °C/W Junction Temperature Tj 125 ℃ Storage Temperature T stg -55 ~ +150 ℃ Parameter Maximum DC blocking voltage Total capacitiance 2018.06 V R =4V,f=1MHz SOD123-S-B16W-1A60V Page 1 of 3 山东晶导微电子股份有限公司 B16W Jingdao Microelectronics co.LTD Fig.2 Typical Reverse Characteristics Power dissipation (mW) 300 250 200 150 100 50 Single phase half-wave 60 Hz resistive or inductive load 0 25 50 75 100 125 150 Instaneous Reverse Current I R ( μA) Fig.1 Power Derating Curve 10000 1000 100 T J =25°C 10 1 Junction Capacitance ( pF) 10 110 100 T a =25°C f=1MHz 0 0.1 36 30 24 18 12 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 10 100 100 Fig.6 Typical Transient Thermal Impedance 2000 1000 100 10 0.01 Number of Cycles at 60Hz 2018.06 1 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 120 INSTANTANEOUS FORWARD VOLTAGE ( V) 1 80 150 0.8 0.9 1.0 Transient Thermal Impedance（ °C /W） INSTANTANEOUS FORWARD CURRENT (mA) T a =25°C 100 06 60 Fig.4 Typical Junction Capacitance 1000 0.1 0.2 0.3 0.4 0.5 0.6 0.7 40 Percent of Rated Peak Reverse Voltage（%） Fig.3 TYPICAL FORWARD VOLTAGE 0 20 10 0 Ambient temperture Ta (°C) T a =100°C T J =100°C 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 山东晶导微电子股份有限公司 B16W Jingdao Microelectronics co.LTD PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123 A D b E A1 C ∠ALL ROUND L1 E1 SOD-123 mechanical data A C D E E1 L1 b A1 max 1.3 0.22 1.8 2.8 3.9 0.45 0.7 0.2 min 0.9 0.09 1.5 2.5 3.6 0.25 0.5 max 51 8.7 71 110 154 18 28 min 35 3.5 59 98 142 10 20 UNIT ∠ mm 9° 8 mil The recommended mounting pad size 2.0 (79) 1.2 (47) Type number Marking code B16W SM 1.2 (47) 1.2 (47) Marking Unit： mm (mil) 2018.06 JD806222A8 Page 3 of 3
