山东晶导微电子股份有限公司
Jingdao Microelectronics co.LTD
SMCJ Series
PINNING
The SMCJ series is designed specifically to protect sensitive
electronic equipment from voltage transients induced by
lightning and other transient voltage events.
FEATURES
• 1500W peak pulse power capability at 10/1000μs waveform
• For surface mounted applications to optimize board space
• Glass passivated chip junction
• Halogen free and RoHS compliant
PIN
DESCRIPTION
1
Cathode
2
Anode
2
Unipolar
1
MECHANICAL DATA

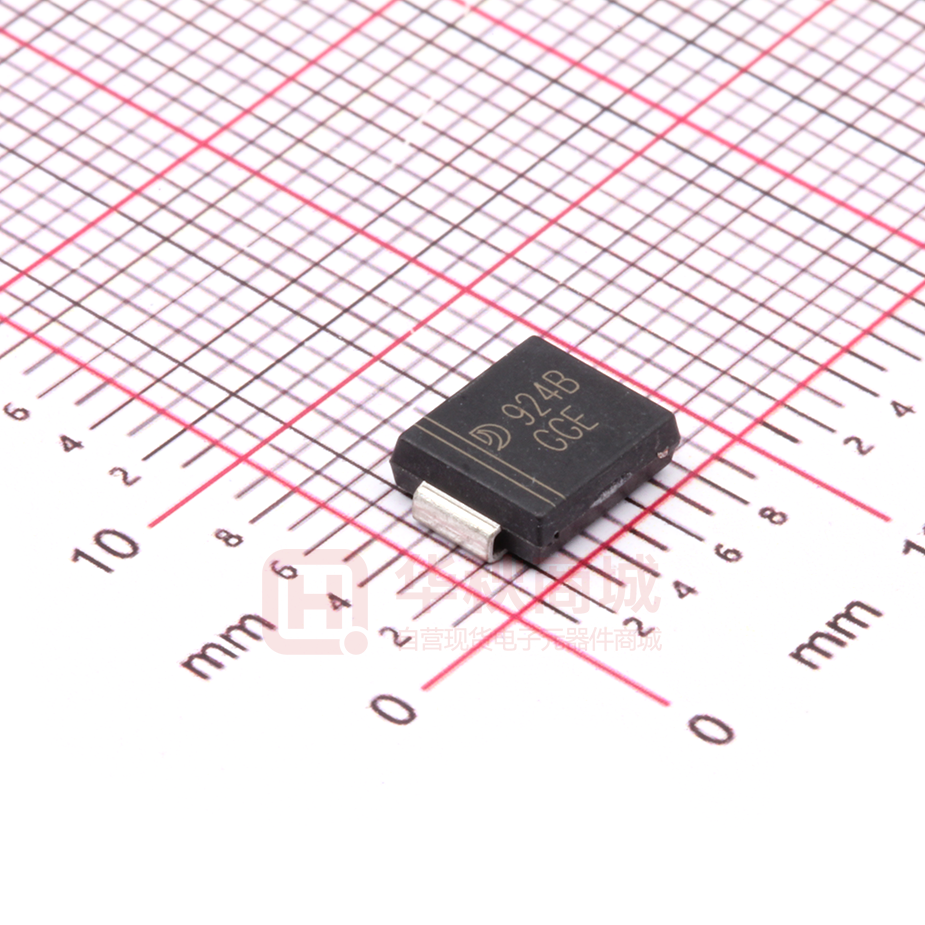

• Case: SMC
• Terminals: Solderable per MIL-STD-750, Method 2026
• A pprox. Weight: 0.22g (0.0077oz)
Bipolar
Simplified outline SMC and symbol
Symbol
Value
Unit
Peak Pulse Power Dissipation on 10/1000 us waveform
P PPM
1500
W
Peak Forward Surge Current,8.3ms Single Half Sine-Wave
Superimposed on Rated Load (JEDEC Method)
(UNI)
200
A
Parameter
I FSM
Power dissipation on Infinite heat sink at T A =50°C
PD
6.5
W
Maximum instantaneous forward voltage at 100 A for
unidirectional only
VF
3.5
V
Peak Pulse Current on 10/1000 us waveform
I PPM
See Next Table
A
Typical Thermal Resistance Junction to Ambient(Note 1)
RθJA
RθJL
75
15
°C/W
Operating Junction Temperature and Storage Temperature Range
T j , T stg
-55 ~ +150
°C
NOTES:
1. Mounted on 8 mm 2 (0.13mm thick) land areas.
2017.12
SMC-TVS-SMCJ Series -1500W
Page 1 of 4
Characteristics at Ta = 25°C
Marking
Type
UNI
BI
Reverse
Stand-off
Voltage
Breakdown
Voltage
V RMW
V BR @ I T
Test
Current
Max
Clamping
Voltage
Peak Pulse
Current
Maximum
Reverse
Leakage
IR
IT
V C @ I PP
I PP
UNI
BI
V
Min(V)
Max(V)
mA
V
A
μA
SMCJ5.0A
SMCJ5.0CA
GDE
BDE
5
6.4
7
10
9.2
163
800
SMCJ6.0A
SMCJ6.0CA
GDG
BDG
6
6.67
7.37
10
10.3
145.7
800
SMCJ6.5A
SMCJ6.5CA
GDK
BDK
6.5
7.22
7.98
10
11.2
134
500
SMCJ7.0A
SMCJ7.0CA
GDM
BDM
7
7.78
8.6
10
12
125
200
SMCJ7.5CA
GDP
BDP
7.5
8.33
9.21
1
12.9
116.3
100
SMCJ7.5A
SMCJ8.0A
SMCJ8.0CA
GDR
BDR
8
8.89
9.83
1
13.6
110.3
50
SMCJ8.5A
SMCJ8.5CA
GDT
BDT
8.5
9.44
10.4
1
14.4
104.2
20
SMCJ9.0A
SMCJ9.0CA
GDV
BDV
9
10
11.1
1
15.4
97.4
10
SMCJ10A
SMCJ10CA
GDX
BDX
10
11.1
12.3
1
17
88.3
5
SMCJ11A
SMCJ11CA
GDZ
BDZ
11
12.2
13.5
1
18.2
82.5
1
SMCJ12CA
GEE
BEE
12
13.3
14.7
1
19.9
75.4
1
SMCJ13A
SMCJ13CA
GEG
BEG
13
14.4
15.9
1
21.5
69.8
1
SMCJ14A
SMCJ14CA
GEK
BEK
14
15.6
17.2
1
23.2
64.7
1
SMCJ12A
SMCJ15A
SMCJ15CA
GEM
BEM
15
16.7
18.5
1
24.4
61.5
1
SMCJ16A
SMCJ16CA
GEP
BEP
16
17.8
19.7
1
26
57.7
1
SMCJ17A
SMCJ17CA
GER
BER
17
18.9
20.9
1
27.6
54.4
1
SMCJ18A
SMCJ18CA
GET
BET
18
20
22.1
1
29.2
51.4
1
SMCJ20A
SMCJ20CA
GEV
BEV
20
22.2
24.5
1
32.4
46.3
1
SMCJ22CA
GEX
BEX
22
24.4
26.9
1
35.5
42.3
1
SMCJ24A
SMCJ24CA
GEZ
BEZ
24
26.7
29.5
1
38.9
38.6
1
SMCJ26A
SMCJ26CA
GFE
BFE
26
28.9
31.9
1
42.1
35.7
1
SMCJ28CA
GFG
BFG
28
31.1
34.4
1
45.4
33.1
1
SMCJ22A
SMCJ28A
SMCJ30A
SMCJ30CA
GFK
BFK
30
33.3
36.8
1
48.4
31
1
SMCJ33A
SMCJ33CA
GFM
BFM
33
36.7
40.6
1
53.3
28.2
1
SMCJ36CA
GFP
BFP
36
40
44.2
1
58.1
25.9
1
SMCJ40A
SMCJ40CA
GFR
BFR
40
44.4
49.1
1
64.5
23.3
1
SMCJ43A
SMCJ43CA
GFT
BFT
43
47.8
52.8
1
69.4
21.7
1
SMCJ36A
SMCJ45A
SMCJ45CA
GFV
BFV
45
50
55.3
1
72.7
20.6
1
SMCJ48A
SMCJ48CA
GFX
BFX
48
53.3
58.9
1
77.4
19.4
1
SMCJ51A
SMCJ51CA
GFZ
BFZ
51
56.7
62.7
1
82.4
18.2
1
SMCJ54A
SMCJ54CA
GGE
BGE
54
60
66.3
1
87.1
17.3
1
SMCJ58A
SMCJ58CA
GGG
BGG
58
64.4
71.2
1
93.6
16.1
1
SMCJ60CA
GGK
BGK
60
66.7
73.7
1
96.8
15.5
1
SMCJ64A
SMCJ64CA
GGM
BGM
64
71.1
78.6
1
103
14.6
1
SMCJ70A
SMCJ70CA
GGP
BGP
70
77.8
86
1
113
13.3
1
SMCJ75CA
GGR
BGR
75
83.3
92.1
1
121
12.4
1
SMCJ60A
SMCJ75A
SMCJ78A
SMCJ78CA
GGT
BGT
78
86.7
95.8
1
126
11.9
1
SMCJ85A
SMCJ85CA
GGV
BGV
85
94.4
104
1
137
11
1
SMCJ90A
SMCJ90CA
GGX
BGX
90
100
111
1
146
10.3
1
SMCJ100A
SMCJ100CA
GGZ
BGZ
100
111
123
1
162
9.3
1
SMCJ110A
SMCJ110CA
GHE
BHE
110
122
135
1
177
8.5
1
SMCJ120A
SMCJ120CA
GHG
BHG
120
133
147
1
193
7.8
1
SMCJ130A
SMCJ130CA
GHK
BHK
130
144
159
1
209
7.2
1
SMCJ150A
SMCJ150CA
GHM
BHM
150
167
185
1
243
6.2
1
SMCJ160A
SMCJ160CA
GHP
BHP
160
178
197
1
259
5.8
1
SMCJ170A
SMCJ170CA
GHR
BHR
170
189
209
1
275
5.5
1
SMCJ180A
SMCJ180CA
GHT
BHT
180
201
222
1
292
5.1
1
SMCJ200A
SMCJ200CA
GHV
BHV
200
224
247
1
324
4.6
1
SMCJ220A
SMCJ220CA
GHX
BHX
220
246
272
1
356
4.2
1
SMCJ250CA
GHZ
BHZ
250
279
309
1
405
3.7
1
SMCJ250A
SMCJ300A
SMCJ300CA
GJE
BJE
300
335
371
1
486
3.1
1
SMCJ350A
SMCJ350CA
GJG
BJG
350
391
432
1
567
2.6
1
SMCJ400A
SMCJ400CA
GJK
BJK
400
447
494
1
648
2.3
1
SMCJ440A
SMCJ440CA
GJM
BJM
440
492
543
1
713
2.1
1
山东晶导微电子股份有限公司
Jingdao Microelectronics co.LTD
SMCJ Series
Fig.2 Pulse Waveform
P PPM,PEAK PULSE FORWARD ,kW
Fig.1 Peak Pulse Power Rating Curve
150
100
10
1
0.31x0.31" (80 x 80mm)
Copper pad Area
T A =25°C
t f =10us
I ppm ,Peak Pulse Current (%)
Non-Repetive Pulse.Wavefom
Shown in Figure.3
T A=25°C
Pulse Width (td) is Defined
as the Point where the Peak.
Current Decayst to 50% of Ipp
Peak Value
100
80
Half Value-I pp /2
60
10/1000usec Waveform as Defined bye R.E.A.
40
20
td
0
00
0.1
1
10
100
1000
0
10000
3.0
2.0
1.0
t d,PULSE WIDTH ,us
4.0
T,TIME,ms
Fig.3 Forward Current Derating Curve
Fig.4 Typical Junction Capacitance
100000
Bi-directional V= 0V
100
10000
Cj (pF)
PEAK PULSE POWER(P PP)OR CURRENT(I PP)
DERATINGIN PERCENTAGE%
I ppm
80
60
Uni-directional V=0V
1000
Uni-directional @ V R
100
40
Bi-directional @ V R
Tj=25℃
10
20
f = 1MHz
Vsig=mVp-p
1
0
25
50
75
100
125
150
175
T A,AMBIENT TEMPERATURE,°C
1
10
100
1000
V BR - Reverse Breakdown Voltage (V)
I FSM,PEAK FORWARD SURGE CURRENT,
AMPERES
Fig.5 Maximum Non-Repetitive Peak
Forward Surge Current
240
200
160
120
80
40
T J=T Jmax
8.3ms Single Half Sinepwave
JEDEC Method
0
1
10
100
Number of Cycles at 60Hz
2017.12
www.sdjingdao.com
Page 3 of 4
山东晶导微电子股份有限公司
Jingdao Microelectronics co.LTD
SMCJ Series
PACKAGE OUTLINE
SMC
Plastic surface mounted package; 2 leads
E
A
A1
A
C
b
D
L
E1
VM
A
SMC mechanical data
A
E
D
E1
A1
C
L
b
max
2.62
7.0
6.2
8.0
0.21
0.31
1.6
3.25
min
2.00
6.5
5.6
7.6
0.05
0.15
0.9
2.75
max
103
276
244
315
8.3
12
63
128
min
79
256
220
299
2.0
5.9
35
108
UNIT
mm
mil
The recommended mounting pad size
3.8
(150)
4.1
(160)
4.3
(170)
4.1
(160)
mm
Unit :
(mil)
2017.12
JD 80404 1B60
Page 4 of 4
