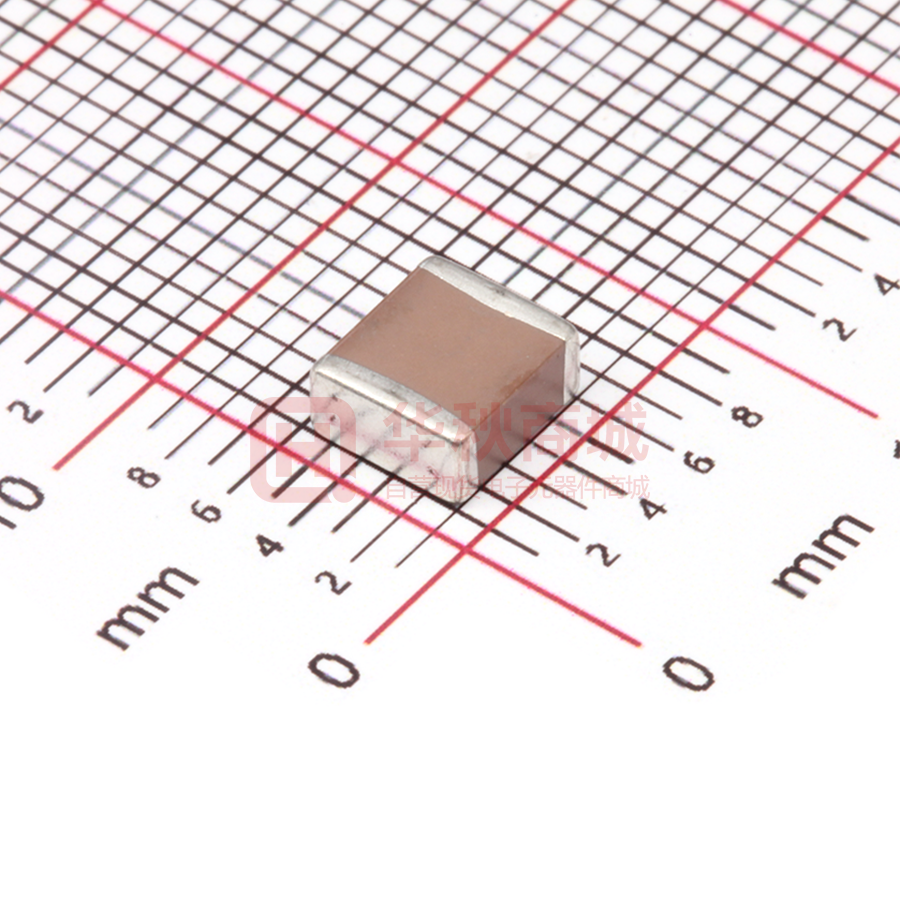

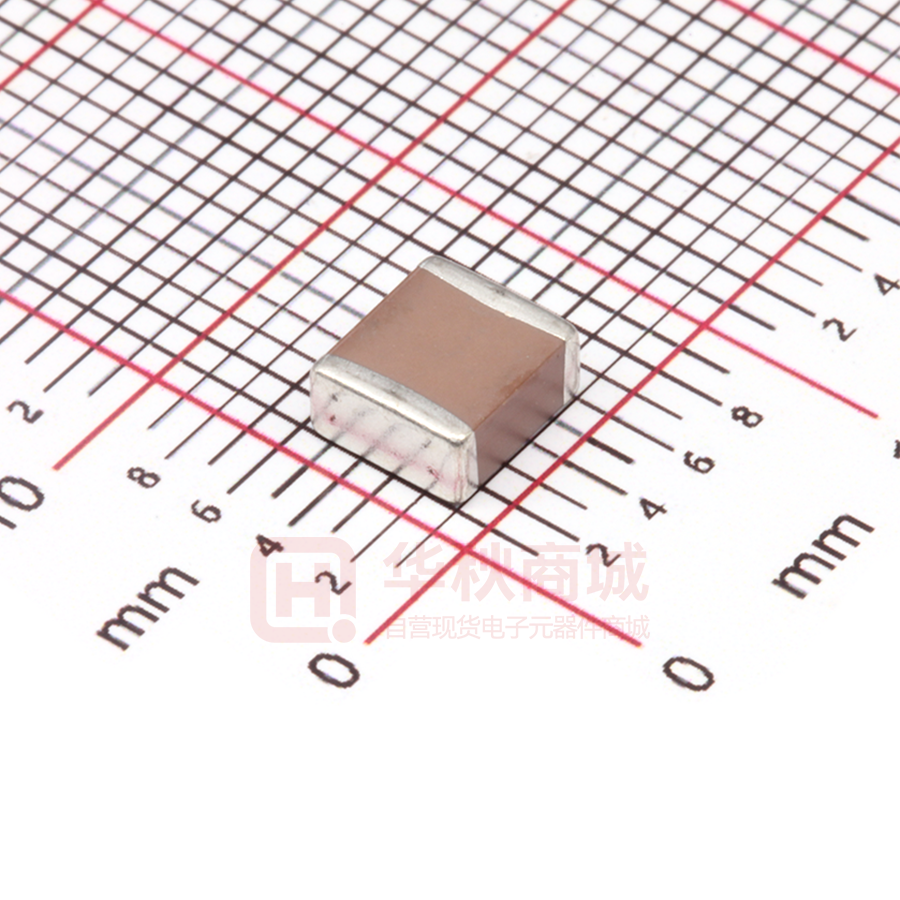

FP55X106K101EGG

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 Messrs. : Date : 一般共用 2020/02/25 APPROVAL SHEET Product Name : Anti-Bend General Purpose Multilayer Ceramic Chip Capacitors Part No. : FP Series Description : Anti-Bend Size 0402~2225, C0G/X7R, 25V~4000V PREPARED BY APPROVED BY 信昌電子陶瓷股份有限公司 PROSPERITY DIELECTRICS CO., LTD. 桃園市楊梅區高獅路 566-1 號 Tel : 03-4753355 ext : Contactor : http://www.pdc.com.tw Fax : 03-4854959 Mobile : DCM-003-8.1 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 SPECIFICATION FOR Product Name : Anti-Bend General Purpose Multilayer Ceramic Chip Capacitors Part No. : FP Series Description : Anti-Bend Size 0402~2225, C0G/X7R, 25V~4000V SPEC. No. : FP-000-001-16 DATE : 2020/02/25 DRAWN BY CHECEKED BY APPROVED BY Jane Hsiao Yvens Chou Joseph Ling DCM-003-8.2 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 1. INTRODUCTION POSPERITY Multilayer Ceramic Chip Capacitors supplied in bulk or tape & reel package are ideally suitable for thick-film hybrid circuits and automatic surface mounting on any printed circuit boards. FP series use a special material between nickel-barrier and ceramic body. It provides excellent performance to against bending stress occurred during process and provide more security for PCB process. The nickel-barrier terminations are consisted of a nickel barrier layer over the silver metallization and then finished by electroplated solder layer to ensure the terminations have good solderability. The nickel barrier layer in terminations prevents the dissolution of termination when extended immersion in molten solder at elevated solder temperature. 2. FEATURES 3. APPLICATIONS a. High performance to withstanding 3~5mm of substrate bending test guarantee. b. A wide selection of sizes is available. c. High capacitance in given case size. d. Capacitor with lead-free termination (pure Tin). e. Reduction in PCB bend failure. f. High reliability and stability. g. RoHS & HALOGEN FREE. a. For general digital circuit. b. For power supply bypass capacitors. c. For consumer electronics. d. For telecommunication. e. DC to DC converter. 4. HOW TO ORDER FP PDC Family Table 1 32 X Size 225 K 101 Rated Voltage Table 6 Dielectric Capacitance Tolerance Table 2 Table 3 Table 4 Table 5 E G G Control Code Table 9 Packaging Thickness Table 7 Table 6 Table 8 Table 1 PDC Family Code Description Code Description Code Description Code Description FP Anti-Bend General Purpose Product 6R3 6.3Vdc 201 200Vdc 152 1500Vdc 100 10Vdc 251 250Vdc 202 2000Vdc Table 2 General Purpose 160 250 500 101 16Vdc 25Vdc 50Vdc 100Vdc 401 501 631 102 400Vdc 500Vdc 630Vdc 1000Vdc 302 402 502 602 3000Vdc 4000Vdc 5000Vdc 6000Vdc Code Description Code Description Code Description 15 18 0402 (1005) 0603 (1608) 32 42 1210 (3225) 1808 (4520) 52 55 2211 (5728) 2220 (5750) 21 0805 (2012) 43 1812 (4532) 56 2225 (5763) 31 1206 (3216) 46 1825 (4563) Table 3 Table 7 Dielectric Material Characteristics Code Description Code Description N B C0G X5R X F X7R Y5V Table 4 Rated Voltage Capacitance Rule Code Packaging Type Code Description Code Description B E K L Bulk T P D G Tray package Tape and 7” Reel, Embossed Tape Tape and 10” Reel, Embossed Tape Tape and 13” Reel, Embossed Tape Table 8 Tape and 7” Reel, Paper Tape Tape and 10” Reel, Paper Tape Tape and 13” Reel, Paper Tape Thickness Description Code Description Code Description Code Description Code Description Code Description R47 0R5 100 0.47pF 0.5pF 100=10x100=10pF 102 104 106 102=10x102=1000pF 104=10x104=100nF 106=10x106=10µF A B C 0.60 ± 0.10 mm 1.25 ± 0.20 mm 1.25 ± 0.10 mm 0.50 ± 0.20 mm Q R S 0.50 +0.02/-0.05 mm 0.8 + 0.15/-0.10 mm I J K D 1.40 ± 0.15 mm L 0.30 ± 0.03 mm T 0.85 ± 0.10 mm E F G H 1.60 ± 0.20 mm M N O P 0.95 ± 0.10 mm U V X Z 0.50 ± 0.10 mm Table 5 Tolerance Code Description Code Description Code Description A B ±0.05 pF ±0.10 pF I J -10% ~ 0% ±5 % Q Z ±0.03 pF -20% ~ +80% C ±0.25 pF K ±10 % X +10% ~ +20% D F G H ±0.50 pF ±1 % ±2 % ±3 % L M N P 0% ~ +10% ±20 % -5% ~ +10% ±0.02 pF 2.00 ± 0.20 mm 2.50 ± 0.30 mm 2.80 ± 0.30 mm Table 9 1.15 ± 0.15 mm 0.50 ± 0.05 mm 3.50 ± 0.20 mm 1.60 +0.3/-0.10 mm 3.10 ± 0.30 mm 0.80 ± 0.07 mm 0.20 ± 0.02 mm 0.80 ± 0.10 mm 0.25 ± 0.03 mm Special Control Code Code Description Code Description G RoHS Compliant H Q High reliability Surface Coating (Size 1206~2225) Specification No. : FP-000-001-16 ~1~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 5. EXTERNAL DIMENSIONS Size Inch (mm) L (mm) W (mm) Code / T (mm) 0402(1005) 1.00±0.20 0.50±0.20 0603(1608) 1.60±0.20 0.80±0.20 0805(2012) 2.10±0.20 1206(3216) 3.30±0.30 1210(3225) 3.30±0.40 1808(4520) 4.60±0.50 1812(4532) 4.60±0.50 3.20±0.30 0.75±0.35 1825(4563) 4.60±0.50 6.30±0.40 0.75±0.35 2220(5750) 5.70±0.50 5.00±0.40 0.85±0.35 2225(5763) 5.70±0.50 6.30±0.40 0.85±0.35 1.25±0.20 1.60±0.20 1.60 +0.30/-0.10# See 2.50±0.30 No.4 Reference Table 8 2.00±0.25 MB (mm) 0.25 +0.05/-0.10 0.40±0.15 L T 0.50±0.20 0.60±0.20 0.75±0.35 W MB MB 0.75±0.35 Fig. 5.1 The outline of MLCC # “ ” For 1206 size P thickness products. 6. GENERAL ELECTRICAL DATA Dielectric Size Rated voltage (WVDC) C0G X7R 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225 10V, 16V, 25V, 50V, 100V, 200V, 250V, 500V, 630V, 1KV, 1.5KV, 2KV, 3KV, 4KV 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 250V, 500V, 630V, 1KV, 1.5KV, 2KV, 3KV, 4KV 0.1pF ~ 330nF 100pF ~ 22μF Reference to Table 5 Reference to Table 5 Capacitance range Capacitance tolerance Cap. Range Cap.1000pF Test Condition 1.0±0.2Vrms, 1.0MHz±10% 1.0±0.2Vrms, 1.0KHz±10% Reference to 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS Preconditioning for Class II MLCC : Perform a heat treatment at 150±10°C for 1 hour, then leave in ambient condition for 24±2 hours before measurement Cap. Range Cap.≤10µF Cap.>10µF Test Condition 1.0±0.2Vrms, 1.0KHz±10% 0.5±0.2Vrms, 120Hz±20% Operating temperature ≥10GΩ or RxC≥500Ω-F, whichever is smaller -55°C to +125°C ≥10GΩ or RxC≥100Ω-F, whichever is smaller -55°C to +125°C Temperature coefficient ±30ppm/°C ±15% Cu/Ag polymer/Ni/Sn(lead-free termination) Cu/Ag polymer/Ni/Sn(lead-free termination) Insulation resistance Termination Specification No. : FP-000-001-16 ~2~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE 7-1. C0G Dimension 0402 0603 Cap.(pF) Code 10V 16V 25V 50V 0.1 0R1 K K K K 0.2 0R2 K K K K 0.3 0R3 K K K 0.4 0R4 K K K 0.5 0R5 K K K K 0.6 0R6 K K K 0.7 0R7 K K 0.8 0R8 K 0.9 0R9 1.0 100V 10V 16V 25V 50V K S S S S K S S S S K S S S K K S S S K K K S S K K K K S K K K K K 1R0 K K K K 1.2 1R2 K K K 1.5 1R5 K K 1.8 1R8 K 2.2 2R2 2.7 0805 100V 200V 250V 10V 16V 25V 50V 100V 200V 250V 500V S S S S A A A A A A A A A C S S S S A A A A A A A A A C S S S S S A A A A A A A A A C S S S S S S A A A A A A A A A C S S S S S S S A A A A A A A A A C K S S S S S S S A A A A A A A A A C K K S S S S S S S A A A A A A A A A C K K K S S S S S S S A A A A A A A A A C K K K K S S S S S S S A A A A A A A A A C K K K K K S S S S S S S A A A A A A A A A C 2R7 K K K K K S S S S S S S A A A A A A A A A C 3.3 3R3 K K K K K S S S S S S S A A A A A A A A A C 3.9 3R9 K K K K K S S S S S S S A A A A A A A A A C 4.7 4R7 K K K K K S S S S S S S A A A A A A A A A C 5.0 5R0 K K K K K S S S S S S S A A A A A A A A A C 5.6 5R6 K K K K K S S S S S S S A A A A A A A A A C 6.8 6R8 K K K K K S S S S S S S A A A A A A A A A C 8.2 8R2 K K K K K S S S S S S S A A A A A A A A A C 10 100 K K K K K S S S S S S S A A A A A A A A A C 12 120 K K K K K S S S S S S S A A A A A A A A A C 15 150 K K K K K S S S S S S S A A A A A A A A A C 18 180 K K K K K S S S S S S S A A A A A A A A A C 22 220 K K K K K S S S S S S S A A A A A A A A A C 27 270 K K K K K S S S S S S S A A A A A A A A A C 33 330 K K K K K S S S S S S S A A A A A A A A A C 39 390 K K K K K S S S S S S S A A A A A A A A A C 47 470 K K K K K S S S S S S S A A A A A A A A A C 56 560 K K K K K S S S S S S S A A A A A A A A A C 68 680 K K K K K S S S S S S S A A A A A A A A A C 82 820 K K K K K S S S S S S S A A A A A A A X X C 100 101 K K K K K S S S S S S S A A A A A A X X X C 120 121 K K K K K S S S S S S S A A A A A A X C C C 150 151 K K K K K S S S S S S S A A A A A X X C C C 180 181 K K K K K S S S S S S S A A A A A X C C C C 220 221 K K K K K S S S S S S S A A A A A C C C C C 270 271 K K K K S S S S S B B A A A A A C C C C C 330 331 K K K K S S S S S B B A A A A A C C C C C 390 391 K K K K S S S S S B B X X X X X C C C C C 470 471 K K K K S S S S S B B X X X X X C C I I 560 561 K K K K S S S S S X X X X X C C I I 680 681 K K K K S S S S S X X X X X C C I I 820 821 K K K K S S S S S X X X X X C C I I 1000 102 K K K K S S S S S X X X X X C C I I 1200 122 B B B B X X X X X C C 1500 152 B B B B X X X X X C C 1800 182 B B B B X X X X X C C 2200 222 B B B B X X X X X C C 2700 272 B B B B C C C C C C C 3300 332 B B B B C C C C C 3900 392 C C C C C 4700 472 C C C C C 5600 562 C C C C C 6800 682 C C C C C 8200 822 C C C C 10000 103 C C C C Specification No. : FP-000-001-16 630V 1000V ~3~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension Cap.(pF) Code 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.0 5.6 6.8 8.2 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200 10000 12000 15000 18000 22000 27000 33000 39000 47000 56000 68000 1R0 1R2 1R5 1R8 2R2 2R7 3R3 3R9 4R7 5R0 5R6 6R8 8R2 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 1206 10V 16V 25V X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M C C P P P P P P P 50V X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M C C P P P P P P P 100V X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M C C P P P P 200V 250V X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M M M M M M C C C C C E E E E E E X X X X X X X X X X X X X X X X X X X X X X X X X X X X M M M M C C E E E E E E E E E E E E E E 1210 500V X X X X X X X X X X X X X X X X X X X X X X X X X X X X X M M M M C C E E E E E E E E E E E E 630V 1000V X X X X X X X X X X X X X X X X X X X X X X X X X X X X M M M M C C E E E E E E E E E E X X X X X X X X X X X X X X X X X X X M M M C C C C E E E E E E E E E E 1500V 2000V X X X X X X X X X X X X X X X X X M M M C C C C E E E E P P P X X X X X X X X X X X X X X X X X M M M C C C C E E E E P P P 10V 16V 25V 50V 100V 200V 250V 500V 630V M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M C C F F G G G M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M C C F F G G G M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M C C C E E F G G M M M M M M M M M M M M M M M M M M M M M M M M C C C C C C C C E E E E F M M M M M M M M M M M M M M M M M M M M M M M M C C C C C C C C E E E E F M M M M M M M M M M M M M M M M M M M M M M M M C C C C C C C C E E E E F M M M M M M M M M M M M M M M M M M M M M M M M C C C C C C C C E E E E F 1000V 1500V M M M M M M M M M M M M C C C C E E E E E E E E E E F G G G G G M M M M M M M M M C C C C C E E E F F G G G G G G F G G Specification No. : FP-000-001-16 2000V M M M M M M M M M C C C C C E E E F F G G G G G G F G G ~4~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension Cap.(pF) Code 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.0 5.6 6.8 8.2 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200 10000 12000 15000 18000 22000 27000 33000 39000 47000 56000 68000 82000 100000 120000 150000 1R0 1R2 1R5 1R8 2R2 2R7 3R3 3R9 4R7 5R0 5R6 6R8 8R2 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 1808 25V 50V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F 100V 200V 250V 500V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C 1812 630V 1000V 1500V 2000V 3000V 4000 C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C F F F F F F F F F F F F C C C C C C C C C C C C C C C C C C C C C C C F F F F F F F F F F F F F F C C C C C C C C C C C C C C C C C C C C C C C F F F F F F F F F F F F F F C C C C C C C C C C C C C C C C C C C C C F F F F F F F F C C C C C C C C C C C C C E E F F 10V 16V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C 25V 50V 100V 200V 250V 500V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F G G G G C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F G G G G C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F G G C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F G C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F G C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F 630V 1000V 1500V 2000V 3000V C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F C C C C C C C C C C C C C C C C C C C C C C C C C C C E E F F G G C C C C C C C C C C C C C C C C C F F F F F F F F F F F F G G Specification No. : FP-000-001-16 C C C C C C C C C C C C C C C C C F F F F F F F F F F F F G G C C C C C C C C C C C C C C C F F F F F F F F G G ~5~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension Cap.(pF) Code 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200 10000 12000 15000 18000 22000 27000 33000 39000 47000 56000 68000 82000 100000 120000 150000 180000 220000 270000 330000 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 1825 2220 25V 50V 100V 200V 250V 500V 630V F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F E E F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F 1000V 1500V 2000V 3000V F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F 25V 50V 100V 200V 250V 500V 630V F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F 1000V 1500V 2000V 3000V 4000V F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F Specification No. : FP-000-001-16 F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G ~6~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-1. C0G Dimension Cap.(pF) Code 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200 10000 12000 15000 18000 22000 27000 33000 39000 47000 56000 68000 82000 100000 120000 150000 180000 220000 270000 330000 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 2225 25V 50V 100V 200V 250V 500V 630V F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G 1000V 1500V 2000V 3000V 4000V F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F F F F F F F F F F F F F F F F F F F F F F G G F F F F F F F F Specification No. : FP-000-001-16 ~7~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension Cap.(pF) Code 100 120 0402 6.3V 0603 10V 16V 25V 50V 101 K K K K 121 K K K K 150 151 K K K 180 181 K K 220 221 K 270 271 330 0805 10V 16V 25V 50V 10V 16V 25V 50V K S S S S S B K S S S S S B B C C C C C C C X X X B C C C C C C C X X K K S S S S S X B B C C C C C C C X X K K K S S S S X S B B C C C C C C C X X K K K K S S S X S S B B C C C C C C C X X K K K K K S S X S S S B B C C C C C C C X X 331 K K K K K S X S S S S B B C C C C C C C X X 390 391 K K K K K X S S S S S B B C C C C C C C X X 470 471 K K K K X K S S S S S B B C C C C C C C X X 560 561 K K K X K K S S S S S B B C C C C C C C X X 680 681 K K X K K K S S S S S B B C C C C C C C X X 820 821 K X K K K K S S S S S B B C C C C C C C X X 1000 102 X K K K K K S S S S S B B C C C C C C C X X 1200 X 122 K K K K K S S S S S B B C C C C C C C X X X 1500 152 K K K K K S S S S S B B C C C C C C C X X C 1800 182 K K K K K S S S S S B B C C C C C C C X X C 2200 222 K K K K K S S S S S B B C C C C C C C X X C 2700 272 K K K K K S S S S S B B C C C C C C C X X 3300 332 K K K K K S S S S S B B C C C C C C C X X 3900 392 K K K K K S S S S S B B C C C C C C C X X 4700 472 K K K K K S S S S S B B C C C C C C C C C 5600 562 K K K K S S S S S B B C C C C C C C C C 6800 682 K K K K S S S S S B B C C C C C C C C C 8200 822 K K K K S S S S S B B C C C C C C C C C 10000 103 K K K K S S S S S B B C C C C C C C C C 12000 123 K K K S S S S B C C C C C C C C C 15000 153 K K K S S S S B C C C C C C C C C 18000 183 K K K S S S S B C C C C C C C C C 22000 223 K K K S S S S B C C C C C C C C C 27000 273 K K K S S S S B C C C C C C C C C 33000 333 K K K S S S B B C C C C C C C C C 39000 393 K K K S S S B B C C C C C C C 47000 473 K K K S S S B B C C C C C C C 56000 563 K K S S S B B C C C C C C C 68000 683 K K S S S B B C C C C C C C 82000 823 K K S S S B B C C C C C C 100000 104 K K S S S B B C C C C C C 120000 124 S S B C C C C I 150000 154 S S B C C C C I 180000 184 S S B C C C C I 220000 224 S S B C C C C I 270000 274 B B B I I I I 330000 334 B B B I I I I 390000 394 B B B I I I I 470000 474 B B B I I I I 560000 564 B B I I I 680000 684 B B I I I 820000 824 B B I I I 1000000 105 B B I I I 1200000 125 1500000 155 I I I 2200000 225 I I I 4700000 475 K 100V 6.3V B B B B 100V 200V 250V 6.3V B I 100V 200V 250V 500V 630V 1000V I I I Specification No. : FP-000-001-16 ~8~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension 1206 6.3V 10V 16V 25V 50V 1210 Cap.(pF) Code 100V 200V 250V 500V 630V 1000V 1500V 2000V 10V 100 101 C C C C C C C 120 121 C C C C C C C 150 151 C C C C C C C C C C C C 180 181 C C C C C C C C C C C C 220 221 C C C C C C C C C C C 270 271 C C C C C C C C C C C 330 331 C C C C C C C C C C 390 391 C C C C C C C C C 470 471 C C C C C C C C 560 561 C C C C C C C 680 681 C C C C C C 820 821 C C C C C 1000 102 C C C C 1200 122 C C C 1500 152 C C 1800 182 C 2200 222 2700 16V 25V 50V C M M M M M M M M M M C M M M M M M M M M M C C M M M M M M M M M M C C C M M M M M M M M M M C C C C M M M M M M M M M M C C C C C M M M M M M M M M M C C C C C C M M M M M M M M M M C C C C C C C M M M M M M M M M M C C C C C C C C M M M M M M M M M M C C C C C C C C C E E M M M M M M M M M M E E C C C C C C C C E E M M M M M M M M M M E E C C C C C C C C C E E M M M M M M M M M M E E C C C C C C C C C C E E M M M M M M M M M M F F 272 C C C C C C C C C C E E M M M M M M M M M M F G 3300 332 C C C C C C C C C C E E M M M M M M M M M M F G 3900 392 C C C C C C C C C C E M M M M M M M M M M G G 4700 472 C C C C C C C C C C E M M M M M M M M M M G G 5600 562 C C C C C C C C C C E M M M M M M M M M M G G* 6800 682 C C C C C C C C C C E M M M M M M M M M M G G* 8200 822 C C C C C C C C C C E M M M M M M M M M M G G* 10000 103 C C C C C C C C C C E M M M M M M M M M C 12000 123 C C C C C C C C C E M M M M M M M M M C 15000 153 C C C C C C C C C E M M M M M M M M M E 18000 183 C C C C C C C C C M M M M M M M C C E 22000 223 C C C C C C C E E M M M M M M M C C E 27000 273 C C C C C C C E E M M M M M M M C C E 33000 333 C C C C C E E E E M M M M M M M E E E 39000 393 C C C C C E E E E M M M M M M M E E F 47000 473 C C C C C E E E E M M M M M C C E E G 56000 563 C C C C C E E E E M M M M M C C E E 68000 683 C C C C C E E M M M M M E E F F 82000 823 C C C C C E E M M M M M E E F F 100000 104 C C C C C E E M M M M M E E F F 120000 124 C C C C C M M M M M E E 150000 154 M M M M E M M M M C E E 180000 184 M M M M E M M M M C E E 220000 224 M M M M E M M M M C E E 270000 274 M M M C E M M M M E F F 330000 334 M M M C E M M M C E F F 390000 394 M M J P E M M M C G G G 470000 474 J J J P E M M M C G G G 560000 564 J J J P P C C C C G G G 680000 684 J J J P P C C C C F G G 820000 824 J J J P P C C C C F 1000000 105 J J J P P C C C C F 1200000 125 1500000 155 J J J P P F E G G 1800000 185 2200000 225 J J J P P F E G G 2700000 275 3300000 335 P P P F E G G 3900000 395 4700000 475 P P P P F F F G 10000000 106 P P P P F F G G 22000000 226 P 100V 200V 250V 500V 630V 1000V 1500V 2000V G * Surface coating only. Specification No. : FP-000-001-16 ~9~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension 1808 1812 25V 50V 100V 200V 250V 400V 500V F* C C C C C C C C C C C F* F* C C C C C C C C C C C F* C F* C C C C C C C C C C C F* C C F* C C C C C C C C C C C F* C C E F* C C C C C C C C C C C F* C C C E F* C C C C C C C C C C C F* C C C C E F* C C C C C C C C C C C F* C C C C C F F* C C C C C C C C C C C E F* 122 C C C C C F C C C C C C C C C C C F G* 1500 152 C C C C C F C C C C C C C C C C C F G* 1800 182 C C C C C F C C C C C C C C C C C G G* 2200 222 C C C E E F C C C C C C C C C C C G* 2700 272 C C C F F F C C C C C C C C C C C G* 3300 332 C C C F F F C C C C C C C C C E E G* 3900 392 C C C F F C C C C C C C C C F F 4700 472 C C C F F C C C C C C C C C F F 5600 562 C C C F F C C C C C C C C C G G 6800 682 C C C F F C C C C C C C C C G G 8200 822 C C C C C C C C C C C C G G 10000 103 C C C C C C C C C C C C G G 12000 123 E E E C C C C C C C C C 15000 153 E E E C C C C C C C C C 18000 183 F F F C C C C C C C C E 22000 223 F F F C C C C C C C C E 27000 273 F F F C C C C C C C C F 33000 333 F F F C C C C C C C C F 39000 393 F F F C C C C C C C C G 47000 473 F F F C C C C C C C C G 56000 563 F F F C C C C C C E E G 68000 683 F F C C C C C C E E G 82000 823 F F C C C C C C E E G 100000 104 C C C C C C E E G 120000 124 C C C C C C F F 150000 154 C C C C C C F F 180000 184 C C C C C C G G 220000 224 C C C C C C G G 270000 274 C C C E E E G 330000 334 C C C E E E G 390000 394 C C C F F F G 470000 474 C C C F F F G 560000 564 C C C G G 680000 684 C C C G G 820000 824 C C C G G 1000000 105 C C C G G 1200000 125 C C 1500000 155 C C 1800000 185 E E 2200000 225 E E 2700000 275 F F 3300000 335 F F 3900000 395 F F 4700000 475 G G 5600000 565 G 6800000 685 G 8200000 825 G 10000000 106 G Cap.(pF) Code 500V 630V 1000V 1500V 2000V 3000V 4000V 100 101 120 121 150 151 C C C C C C F* 180 181 C C C C C C F* 220 221 C C C C C C F* 270 271 C C C C C C 330 331 C C C C C C 390 391 C C C C C 470 471 C C C C 560 561 C C C 680 681 C C 820 821 C 1000 102 1200 10V 16V 630V 1000V 1500V 2000V 3000V 4000V * Surface coating only. Specification No. : FP-000-001-16 ~ 10 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension 1825 25V 50V 100V 200V 250V 500V 2220 630V 1000V 1500V 2000V 3000V 4000V 25V 50V Cap.(pF) Code 100V 200V 250V 400V 500V 630V 1000V 1500V 2000V 3000V 4000V 100 101 120 121 150 151 180 181 220 221 270 271 F* F* 330 331 F* F* 390 391 F* F* 470 471 F* F* 560 561 F* F* 680 681 F* F* 820 821 F* 1000 102 F F F F F F F F F F F* F F F F F F F F F F F F* 1200 122 F F F F F F F F F F G* F F F F F F F F F F F G* 1500 152 F F F F F F F F F F G* F F F F F F F F F F F G* 1800 182 F F F F F F F F F F G* F F F F F F F F F F F G* 2200 222 F F F F F F F F F F* F F F F F F F F F F F* 2700 272 F F F F F F F F F F* F F F F F F F F F F F* 3300 332 F F F F F F F F F F* F F F F F F F F F F F* 3900 392 F F F F F F F F F F* F F F F F F F F F F F* 4700 472 F F F F F F F F F F* F F F F F F F F F F F* 5600 562 F F F F F F F F F G* F F F F F F F F F F F* 6800 682 F F F F F F F F F G* F F F F F F F F F F G* F* 8200 822 F F F F F F F F F G* F F F F F F F F G G G* 10000 103 F F F F F F F F F G* F F F F F F F F G G G* 12000 123 F F F F F F F G G H* F F F F F F F F G G H* 15000 153 F F F F F F F G G H* F F F F F F F F G G H* 18000 183 F F F F F F F G G H* F F F F F F F F H H H* 22000 223 F F F F F F F G G F F F F F F F F H H 27000 273 F F F F F F F H H F F F F F F F F H H 33000 333 F F F F F F F H H F F F F F F F F H H 39000 393 F F F F F F F H H F F F F F F F F H H 47000 473 F F F F F F F H H F F F F F F F F H H 56000 563 F F F F F F F H F F F F F F F F H H 68000 683 F F F F F F F F F F F F F F F 82000 823 F F F F F F F F F F F F F F F 100000 104 F F F F F F G F F F F F F F G 120000 124 F F F F F F F F F F F F F G 150000 154 F F F F F F F F F F F F F H 180000 184 F F F F F F F F F F F F F H 220000 224 F F F F F F F F F F F F F H 270000 274 F F F F F F F F F F F F F 330000 334 F F F F F F F F F F F F F 390000 394 F F F F F F F F F F F F F 470000 474 F F F F F F F F F F F F F 560000 564 F F F F G G F F F F 680000 684 F F F F F F F F 820000 824 F F F F F F F F 1000000 105 F F F F F F F F 1200000 125 F F G F F G G 1500000 155 F F G F F G G 1800000 185 F F G F F G G 2200000 225 F F G F F G G 2700000 275 F F F F 3300000 335 F F F F 3900000 395 F F F F 4700000 475 F F F F 5600000 565 F F F F 6800000 685 F F F F 8200000 825 G G G G 10000000 106 G G G G 12000000 126 H 15000000 156 H 18000000 186 H 22000000 226 H * Surface coating only. Specification No. : FP-000-001-16 ~ 11 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 7. CAPACITANCE RANGE(Con.) 7-2. X7R Dimension 2225 Cap.(pF) Code 25V 50V 100V 200V 250V 500V 100 101 630V 1000V 1500V 2000V 3000V 4000V 120 121 150 151 180 181 220 221 270 271 F* 330 331 F* 390 391 F* 470 471 F* 560 561 F* 680 681 F* 820 821 1000 102 F F F F F F F F F F F* F* 1200 122 F F F F F F F F F F F* G* 1500 152 F F F F F F F F F F F* G* 1800 182 F F F F F F F F F F F* G* 2200 222 F F F F F F F F F F F* 2700 272 F F F F F F F F F F F* 3300 332 F F F F F F F F F F F* 3900 392 F F F F F F F F F F F* 4700 472 F F F F F F F F F F F* 5600 562 F F F F F F F F F F G* 6800 682 F F F F F F F F F F G* 8200 822 F F F F F F F F F F G* 10000 103 F F F F F F F F F F G* 12000 123 F F F F F F F F G G G* 15000 153 F F F F F F F F G G G* 18000 183 F F F F F F F F G G H* 22000 223 F F F F F F F F G G 27000 273 F F F F F F F F G G 33000 333 F F F F F F F F G G 39000 393 F F F F F F F F G H 47000 473 F F F F F F F F G H 56000 563 F F F F F F F F G H 68000 683 F F F F F F F F G F* 82000 823 F F F F F F F F G 100000 104 F F F F F F F G G 120000 124 F F F F F F F H 150000 154 F F F F F F F H 180000 184 F F F F F F F H 220000 224 F F F F F F F H 270000 274 F F F F F F F 330000 334 F F F F F F F 390000 394 F F F F F F F 470000 474 F F F F F F F 560000 564 F F F F F F F 680000 684 F F F F F F 820000 824 F F F F 1000000 105 F F F F F 1200000 125 F F F G G 1500000 155 F F F G G 1800000 185 F F F G G 2200000 225 F F F G G 2700000 275 F F F G G 3300000 335 F F F 3900000 395 F F F 4700000 475 F F F 5600000 565 F F F 6800000 685 F F F 8200000 825 G G G 10000000 106 G G G 12000000 126 15000000 156 18000000 186 22000000 226 * Surface coating only. Specification No. : FP-000-001-16 ~ 12 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. Item Test Condition Requirements Visual and --1. Dimensions * No remarkable defect. * Dimensions to confirm to individual specification sheet. 2. Capacitance * Shall not exceed the limits given in the detailed spec. * Class I : Dielectric Rated Vol.(V) Class I All Q/D.F. Remark Q≥1000 Cap.≥30pF Q≥400+20C Cap.0.1µF, 1206>1μF, 1210≥2.2μF ≤10% 0805>0.22µF, 1210≥3.3μF ≤3.5% 0201(50V), 0603≥0.047μF, 0805≥0.1μF, 1206≥0.47μF, 1210≥2.2μF, 1812≥4.7μF, 1825≥4.7μF, 2220≥4.7μF, 2225≥4.7μF * Class I : Cap.≤1000pF, 1.0±0.2Vrms, 1MHz±10%. Cap.>1000pF, 1.0±0.2Vrms, 1KHz±10%. 50V * Class II : Q/D.F. 3. (Dissipation ≤2.5% Cap.≤10µF, 1.0±0.2Vrms, 1KHz±10%**. ≤5% ≤10% 0201≥0.01uF, 1210≥4.7μF 0402≥0.1μF, 0603>0.1μF, 0805≥1μF, 1206≥2.2μF, 1210≥10μF 0603≥1μF, 0805≥2.2µF, 1206≥2.2μF, 1210≥10μF ≤5% 0201≥0.01μF, 0805≥1μF, 1210≥10μF ≤7% 0603≥0.33μF, 1206≥4.7μF 0201≥0.1μF, 0402≥0.10μF, 0603≥0.47μF, 0805≥2.2μF, 1206≥6.8μF, 1210≥22μF 0402≥0.47μF 0201≥0.01μF, 0402≥0.033μF, 0603≥0.15μF, 0805≥0.68μF, 1206≥2.2μF, 1210≥4.7μF 0201≥0.1uF(0201/X7R≥0.022μF), 0402≥0.22uF, 0603≥0.68μF, 0805≥2.2μF, 1206≥4.7μF, 1210≥22μF 0201≥0.012μF, 0402≥0.33μF(0402/X7R≥0.22μF), 0603≥0.33μF, 0805≥2.2μF, 1206≥2.2μF, 1210≥22μF ≤10% Cap.>10µF, 0.5±0.2Vrms, 120Hz±20%. 35V ≤3.5% Factor) ** Test condition : 0.5±0.2Vrms, 1KHz±10%. X7R : 25V ≤3.5% 0805=106(6.3V&10V), 0603=475(6.3V). ≤10% ≤12.5% ≤5% 16V ≤3.5% ≤10% 10V ≤5% ≤10% ≤15% 6.3V ≤10% 4V ≤15% ≤20% 0201≥0.1μF, 0402≥1μF 0201≥0.1μF, 0402≥1μF, 0603≥10μF, 0805≥4.7μF, 1206≥47μF, 1210≥100μF 0402≥2.2μF --- --- ≤15% * With no electrical load. T.C. Operating Temp. C0G -55~125°C at 25°C X7R -55~125°C at 25°C * Measurement voltage for Class II : Size 0201 4. Temperature Coefficient 0402 0603 0805 1206/1210 Cap. Range Condition Cap.0.01µF, 0603≥1µF, 0805≥1µF, 1206≥4.7µF, 1210≥4.7µF 4V C≥47µF 6.3V C≥22µF 10V~50V C≥10µF X7R ≤6.3V C≥47µF X7R 16V C≥47µF X7R ≥100V C≥3.3µF 35V : 0603≥1µF, 0805≥2.2µF, 1206≥2.2μF, 1210≥10μF 25V : 0201≥0.1uF, 0402≥0.22µF, 0603≥2.2µF, 0805≥2.2µF, 1206≥10µF, 1210≥10µF 16V : 0201≥0.1uF, 0402≥0.22µF, 0603≥1µF, 0805≥2.2µF, 1206≥10µF, 1210≥47µF 10V : 0201≥47nF, 0402≥0.47µF, 0603≥0.47µF, 0805≥2.2µF, 1206≥4.7µF, 1210≥47µF X7R X7R (7) 150% of rated voltage for below range : Dielectric X7R 0402 X7R 0805 1206 1210 Cap.100V C≥1.0µF C≥0.22µF ≤50V C≥4.7µF 100V C≥1.0µF ≥100V C≥1.0µF X7R 1812 X7R 1825 2220 2225 X7R X7R : D.F.≤200% of initial requirement. * I.R. : ≥10V, ≥1GΩ or R×C≥50Ω-F, whichever is smaller. I.R. ≥1GΩ or RxC≥10Ω-F, whichever is smaller 6.3V; 4V; Size≥1812 (8) 120% of rated voltage for below range : Size 2220 Dielectric X7R Rated Voltage ≥100V Capacitance C≥15µF * Test time : 1000 +24/-0 hrs. * Before initial measurement (Class II only) : To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. * Measurement to be made after keeping at room temp. for 48±4 hrs (Class II). ** De-rating conditions : Specification No. : FP-000-001-16 ~ 16 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. Item Test Condition Requirements * Capacitors mounted on a substrate. A force of 5N(≤0603) or 10N(>0603) applied perpendicular to the place of substrate and parallel the line joining the center of terminations for 10±1 second. Adhesive 13. Strength of * No remarkable damage or removal of the terminations. Termination * The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1mm per second until the deflection becomes 5mm for product size < 1808, 3mm for product size ≥ 1808. * No remarkable damage. 14. Bending Test Dielectric Cap. Change Class I (C0G) Within ±5.0% or ±0.5pF, whichever is larger Class II (X7R) Within ±12.5% (This capacitance change means the change of capacitance under specified flexure of substrate from the capacitance measured before the test) Unit : mm * Vibration frequency : 10~55 Hz/min. * Total amplitude : 1.5mm. * Test time : 6 hrs. (Two hrs each in three mutually 15. Vibration Resistance perpendicular directions) * Before initial measurement (Class II only) : To apply de-aging at 150°C for 1hr then set for 24±2 hrs at * No remarkable damage. * Cap. change and D.F./Q : To meet initial spec. room temp. * Measurement to be made after keeping at room temp. for 24±2 hrs (Class I) or 48±4 hrs (Class II). Specification No. : FP-000-001-16 ~ 17 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 9. PACKAGE DIMENSION AND QUANTITY Size 0402(1005) 0603(1608) 0805(2012) 1206(3216) 1210(3225) 1808(4520) 1812(4532) 1825(4563) 2220(5750) 2225(5763) Thickness (mm) 0.50±0.05 0.50 +0.02/-0.05 0.50±0.20 0.50±0.10 0.80±0.07 0.80 +0.15/-0.10 0.50±0.10 0.60±0.10 0.80±0.10 0.85±0.10 1.25±0.10 1.25±0.20 0.80±0.10 0.85±0.10 0.95±0.10 1.15±0.15 1.25±0.10 1.60±0.20 1.60 +0.30/-0.10 0.85±0.10 0.95±0.10 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 1.25±0.10 1.60±0.20 2.00±0.20 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 Paper tape 7” reel 10k 10k 10k 4k 4k 4k 4k 4k 4k 4k 4k 4k - Plastic tape 13” reel 50k 50k 15k 15k 15k 15k 15k 15k 15k 15k - 7” reel 3k 3k 3k 3k 3k 2k 2k 3k 3k 3k 2k 1k 1k 2k 2k 1k 1k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 13” reel 10k 10k 10k 10k 10k 10k 9k 10k 10k 10k 6k 6k 10k 8k 6k 5k 3k Unit : pcs Specification No. : FP-000-001-16 ~ 18 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 9. PACKAGE DIMENSION AND QUANTITY 9.1. EMBOSSED TAPE DIMENSIONS Fig. 9.1 The dimension of paper tape Size Chip Thickness A0 B0 T K0 W P0 10xP0 P1 P2 D0 D1 E F Unit : Fig. 9.2 The dimension of plastic tape 0402 0603 0805 0.50±0.05 0.50±0.10 0.80±0.07 0.80 +0.15/-0.1 0.80±0.10 0.70±0.20 1.20±0.20 ≤0.80 8.00±0.10 4.00±0.10 40.00±0.10 2.00±0.05 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 0.70±0.20 1.20±0.20 ≤0.80 8.00±0.10 4.00±0.10 40.00±0.10 2.00±0.05 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 1.00 +0.05/-0.1 1.80±0.10 0.95±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 1.02 +0.05/-0.1 1.80±0.10 0.97±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 1.50±0.10 2.30±0.10 0.95±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm Size Chip Thickness A0 B0 T K0 W P0 10xP0 P1 P2 2.00±0.10 3.50±0.10 0.95±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 D0 1.55±0.05 D1 E F Unit : 1.75±0.10 3.50±0.05 mm 0.80±0.10 1206 0.95±0.10 1.25±0.10
