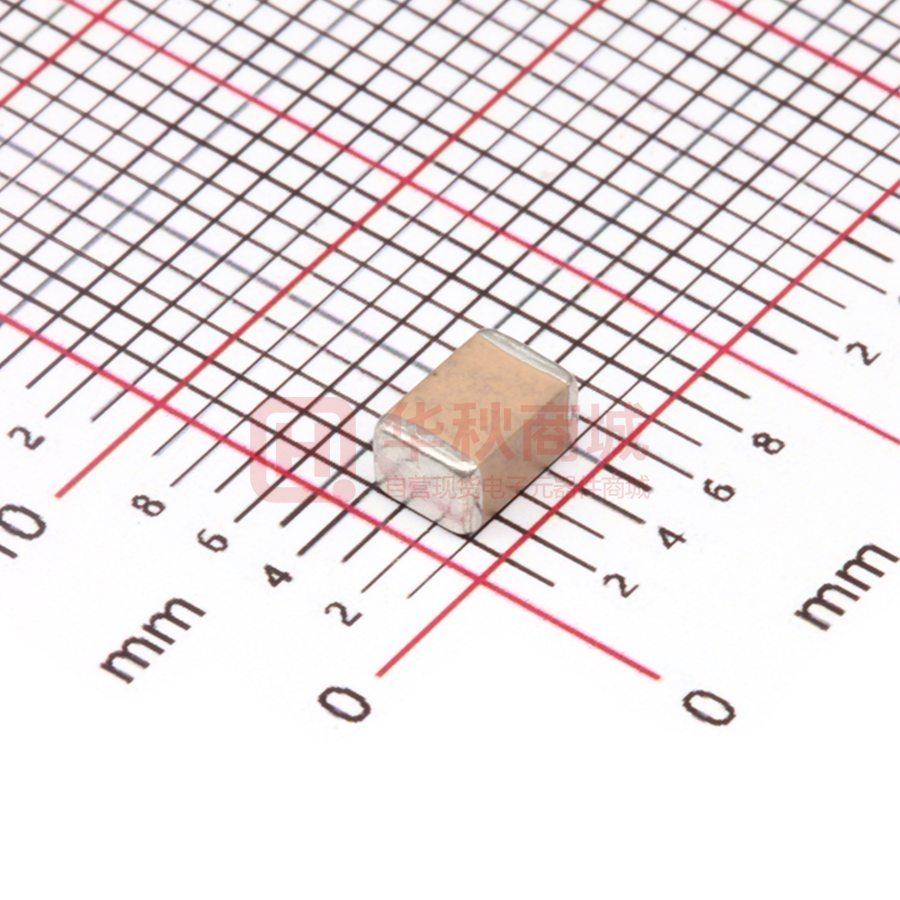

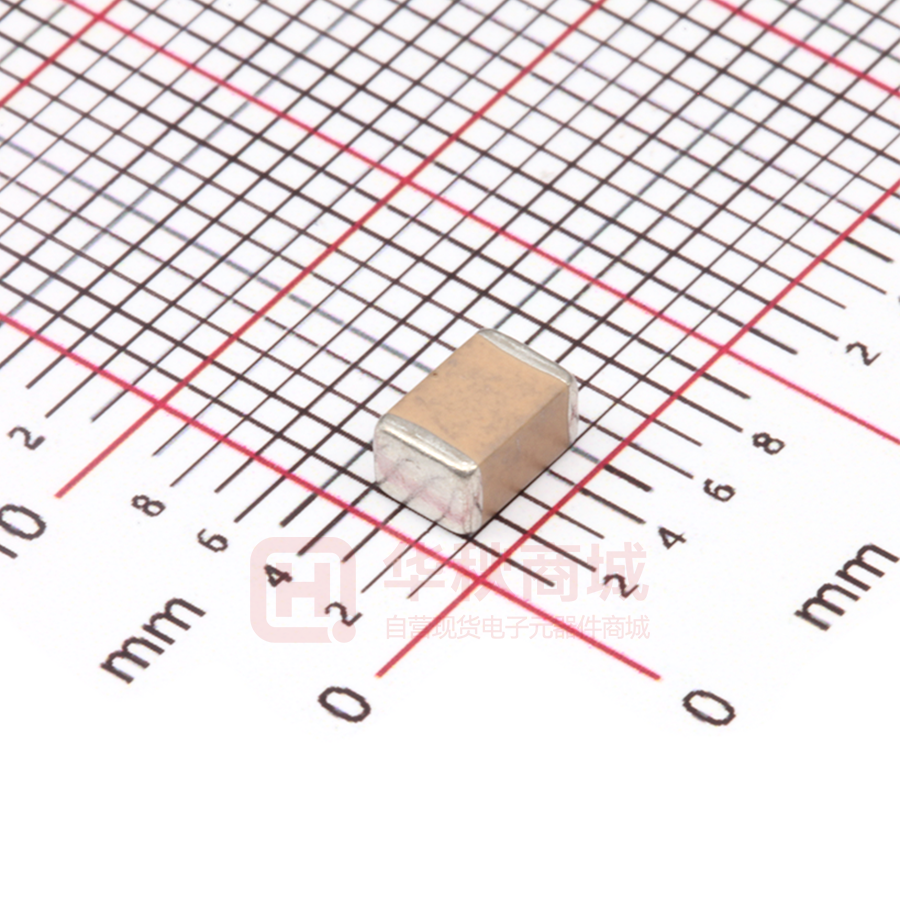

FH12X472K302EGG

ABOUT PDC Milestone 歷史沿革 Core Technology 1990 PDC former parent company, Taiwan Cement, merged with Mei Da Mei and founded PDC in Nantou. 台泥集團購買美大美電子公司，信昌電子陶瓷正式成立。 1995 PDC merged with Taiwan Precision Material Corporation. 信昌電子陶瓷併購台灣精密材料公司。 2002　 Public Listed in OTC. 信昌電子陶瓷正式上櫃。 2005 PDC was strategically allied with Wasin Tech. 與華新科技 ( 股 ) 公司策略聯盟。 2007 To be strategically allied with Frontier, and setting up new production lines, Magnetic components. 與弘電電子工業 ( 股 ) 公司策略聯盟，生產磁性材料元件。 2008 Positioned as Specialty and Material BG in PSA Group. 集團推動 PSA 被動系統聯盟企業識別，信昌電子陶瓷定位為特殊品及材料事 業群。 1988 Manufacturing and developing ceramic dielectric materials. 生產製造圓板電容粉末、開發。 1990 Manufacturing Multilayer Ceramic Capacitors. 生產製造積層陶瓷晶片電容。 1995 Manufacturing Ceramic Chip Resistors and Ceramic Chip Coil 生產陶瓷晶片電阻、陶瓷晶片電感。 2001 As the 1st manufacturer and provider in Taiwan for ceramic dielectric powders and multilayer ceramic chip capacitors (MLCC). 臺灣第一家自行供給晶片電容器介電瓷粉之被動元件廠商。 2001 With self-made conducting dielectric powder, controlling the complete key technology from material to manufacture. 自製半導性介電瓷粉，掌握由材料至製程的完整關鍵性技術。 2007 Manufacturing magnetic components. 生產磁性材料元件。 2001 The first supplier in Asia to get SEMKO product safety certificate. 亞洲第一家獲得 SEMKO 安全規格認證之供應商。 2003 ISO 9001 certificated. 獲 ISO 9001 驗證通過。 2004 Industrial Sustainable Excellence Award. 榮獲經濟部工業局工業精銳獎。 2004 TS16949、ISO 14000 and OHSAS 18000 certificated. 獲 TS16949、ISO 14000 及 OHSAS 18000 驗證。 2007 Common Wealth Magazine Top 1000 Manufacturers in Taiwan Ranked in No. 705. 天下雜誌 1000 大製造業排名第 705 名。 2008 IECQ QC080000 HSF certificated. 獲 IECQ QC080000 HSF 驗證。 Common Wealth Magazine Top 1000 Manufacturers in Taiwan Ranked in No. 682. 天下雜誌 1000 大製造業排名第 682 名。 2009 Common Wealth Magazine Top 1000 Manufacturers in Taiwan Ranked in No. 677. 天下雜誌 1000 大製造業排名第 677 名。 2012 Recognition of Winning the Silver Invention Award for Copper or Its Alloy Cofirable Dielectric Ceramics. 榮獲國家發明創作獎 - 發明獎銀牌「可與銅及其合金進行共燒製作的介電陶 瓷組成物」 2013 SMD High Voltage Chip Resistor passed UL Safety certification in 2013 電阻產品取得安規認證證書 2015 MLCC product have obtained the IECQ certificate & the certificate of AS9100 management system for the aerospace industry. 通過 IECQ 第三方認證及 AS9100 航太工業管理系統驗證。 2016 Aerospace Quality Management Systems AS 9100 certificated. 晶片電容取得車規第三方認證 2019 PDC was selected fastest growing Top 100 companies in 2019 by commonwealth magazine PDC 榮獲天下雜誌 2019 年成長 100 強企業 關鍵技術 Brand Value 品牌價值 Market Performance 市場表現 The only local manufacturer in Taiwan with the capability in specialty products includes multiple-layer ceramic capacitors, chip resistors, and coils. 國內唯一可全數提供特殊電容、電感、電阻之被動元件供應商。 The only local manufacturer in Taiwan entered the supply chain of Japan market. 國內唯一打入日本供應鏈之廠商。 Introduction Prosperity Dielectrics Co., Ltd. (PDC) was founded in 1990 as the 1st local manufacturer and exporter in Taiwan for ceramic dielectric powders and multiple-layer ceramic chip capacitors (MLCCs). PDC joined to Walsin Technology Corporation (WTC) as an allied company in September 2005, and incorporated Frontier to create solid synergy in 2008. Our product lines expand to SMD magnetic chips, power chokes, coils and transformers. 信昌電子陶瓷成立於 1990 年，為國內少數能自行供給瓷粉原 料並同時銷售積層陶瓷電容的被動元件廠商，更是唯一有能 力由上游初發原料，向下垂直整合至被動晶片元件的廠商。 2005 年信昌電陶與華新集團進行策略聯盟、2008 年正式合併 弘電電子，將銷售範圍從介電瓷粉、半導性陶瓷電容器瓷片、 積層陶瓷電容、晶片電阻延伸到線圈，成為國內唯一可全數 提供特殊電容、電感、電阻之被動元件供應商。 Support You Forward With niche technology of key materials, PDC can meet the market requirements. The integration of researching and developing from materials to the customer-required components can shorten the time of mass production. To progressively make plans for each product to be with high added value functions, such as Mid and high voltage, high precision, large size capacitors, and high power, high precision, low resistance resistors or other high added value products. In the future, combine with core material technology and advance high frequency and high capacitance further. 由於掌握關鍵性材料的技術利基，信昌電陶可配合市場需求， 由材料研發著手，向下整合開發客戶所需要的電子元件，縮 短量產時效，並積極規劃各項產品朝高附加價值的零件功能 領域邁進，如：中高壓、高精度、大尺寸之晶片電容器及高 功率、高精度與低阻值之晶片電阻器等高附加價值產品。未 來更將結合材料核心技術，進軍高頻及高容領域。 At present, PDC has developed ceramic dielectric powder used by NME and BME manufacturing process. Self-applied mass production and external sale are simultaneously carried out to improve the proportion to the supply of internal high-level MLCC materials. By the strategy of vertical production capability from ceramic dielectric powder material to MLCC finished goods, bring the high performance of vertical integration. 目前信昌電陶貴金屬製程及卑金屬製程（BME）使用的晶片電 容器介電瓷粉已陸續開發完成，量產自用與對外銷售並行展 開，提升國內高階積層電容瓷粉原料自主供應比率。藉由原 料往下游整合至晶片電容器成品的延伸策略，發揮上下垂直 整合的高度營運績效。 For the past few years, to extend the production capability of magnetic components series, PDC gradually set up the manufacturing equipments for coil and transformer in Yongzhou and Shenzhen Plant. The improvement of the production capability is able to increase the sales performance. 近年來，為了擴展磁性元件系列產品的產能，信昌電陶陸續 在中國永州廠、深圳廠增置電感、變壓器相關製造設備，藉 由產能提升，大幅拉升業績。 Vertical integration & Complete key technology: • Material (Ceramic Dielectric Powder) • Semi-finished good (Semiconducting Ceramic Chip Capacitor) • Finished goods (Chip Capacitor, Chip resistor, Coil) 上下游垂直整合，掌握完整關鍵性技術 : • 原料 ( 介電瓷粉 ) • 半成品 ( 半導性陶瓷電容瓷片 ) • 成品 ( 晶片電容、晶片電阻、線圈 ) Business Operation 經營模式分析 Keystothe Success 關鍵成功因素 • Vertical integration to improve competitiveness. • Building strategic alliances to strengthen competitiveness. • Expanding Western and Japanese markets, cultivation high-end products. • Moving into Chinese market to expand market share. • 垂直整合發展，擺脫同業競爭 • 運用策略聯盟，產品水平延伸 • 拓展歐美日市場，深耕高階產品 • 跨足中國市場，擴大市佔率 • The only local manufacturer with vertical production capability from ceramic dielectric powder material to multiple-layer ceramic chip capacitors. • Differentiating marketing strategy with niche product. • Diversifying product lines to expand customer base. • Continuing innovation and R&D ability. • Focusing core competence with PSA group support. • 國內唯一有能力由上游初發原料，向下垂直整合至被動晶片元件 的廠商，掌握材料與製程的完整關鍵性技術 • 利基產品差異化與行銷差異化策略 • 產品線多元發展，擴大客戶群 • 持續創新與研發，開發新產品與導入新製程 • 共享集團資源，聚焦核心競爭力 Branding Strategy 品牌經營策略 • • • • • • • • Developing specialized products market. Enhancing brand value with continuing innovation and R&D ability. Improving competitiveness through vertical integration. Satisfying customer's need through extending product lines. 深耕被動元件特殊品市場及其上游材料產業高階產品 持續創新研發能力，提升品牌價值 產品垂直整合，強化競爭優勢 產品水平延伸，滿足客戶一次購足 Characteristics 企業特色 • PDC is the domestic manufacturer devoting to ceramic dielectric materials. • 為國內廠商對介電瓷粉材料研發投注最深者 Notice for PDC Products Please read this notice before using the PROSPERITY DIELECTRICS CO., LTD.. products. y Product information in this catalog is updated in Mar. 2020. All of the contents specified herein are subjected to change without notice due to technical improvements, etc. Therefore, please check for the latest information carefully before practical application or usage of the Products. Please note that PROSPERITY DIELECTRICS CO., LTD. . shall not be responsible for any defective which is caused by using products without the spec instruction. y Please contact PROSPERITY DIELECTRICS CO., LTD. . for further details of product specifications as the individual specification is available. y Please conduct validation and verification of products in actual condition of mounting and operating environment before commercial shipment of the equipment. y All electronic components listed in this catalog are developed, designed and intended for use in general electronics equipment.(for AV, office automation, household, office supply, information service, telecommunications, (such as mobile phone or PC) etc.). Before incorporating the components or devices into any equipment in the field such as transportation,( automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network (telephone exchange, base station) etc. which may have direct influence to harm or injure a human body, please contact PROSPERITY DIELECTRICS CO., LTD. . for more detail in advance. y Do not incorporate the products into any equipment in fields such as aerospace, aviation, nuclear control, submarine system, military, etc. where higher safety and reliability are especially required. y In addition, even electronic components or functional modules that are used for the general electronic equipment, if the equipment or the electric circuit require high safety or reliability function or performances, a sufficient reliability evaluation check for safety shall be performed before commercial shipment and moreover, due consideration to install a protective circuit is strongly recommended at customer's design stage. y The contents of this catalog are applicable to the products which are purchased from our sales offices or distributors (so called “PDC’s official sales channel”). y It is only applicable to the products purchased from any of PDC’s official sales channel. y Please note that PROSPERITY DIELECTRICS CO., LTD. . shall have no responsibility for any controversies or disputes that may occur in connection with a third party's intellectual property rights and other related rights arising from your usage of products in this catalog. PROSPERITY DIELECTRICS CO., LTD. . grants no license for such rights. y The information of this specification is for reference. For more detailed specification, please refer to the official qualified data. 請務必在使用本公司產品目錄之前閱讀。 y 本注意事項中記載的內容是2020年3月現在的內容。本產品目錄記載的內容由於產 【運輸用設備（火車控制設備，船舶控制設備等），交通用信號設備，防災設備， 品的改良等原因發生變更時，恕不另行通知。在您定購我司產品之前請確認最新 醫療用設備，公共性 高的資訊通信設備.. 等（電話程式控制交換機，電話，無線 的產品資訊。 電，電視信號等基地局）】另外，請不要在要求高度安全性，可靠性的應用設備上 當您於《產品規格書》以外使用我司產品時，所引起應用設備的瑕疵我司將不承 使用本產品目錄中記載的產品。【航太 設備，航空設備，核控制設備，用於海底的 擔任何責任。 y 有關詳細產品規格我們準備有《產品規格書》，請向我司諮詢相關事宜。 y 在您使用我司產品時，請務必進行應用設備實裝狀態以及應用產品實際使用環境 下的測評。 y 本目錄中電子零組件，適用於一般電子設備。『AV設備，OA設備，家電及辦公設 備，資訊/通訊設備（手機，電腦等）』當您計畫把本產品目錄中記載的產品使用 於可能會危及第三方 生命安全的應用設備時，請務必提前與我公司取得聯繫，針 對產品資訊加以確認。 設備，軍事設備等】同時，應用於安全性，可靠性要求較高的一般電子設備 /電路 時，請充分進行安全性測評，必要時請在設計過程中追加保護電路。 y 本目錄中所記載的內容適用于透過我司營業據點，銷售子公司，正式銷售代理商 （即正規銷售管道）購買的我司產品。通過其他管道所購買的我司產品不在適用範 圍之內。 y 由於使用本目錄記載的產品引起的有關第三方智慧財產權的衝突，我司概不負責。 本產品目錄不代表相關權利的實施許諾。 y 內部記載之產品規格僅提供參考，實際規格請依照我司標準承認書為準。 MLCC Chip R Coil Multilayer Ceramic Chip Capacitors MLCC-Contents FK-FH ................................................................................................. 3 Safety Certified capacitor series ( X1/Y2 & X2 ) FV ...................................................................................................... 5 Extra High Voltage Capacitor Series ( ≥1KV ) FM ..................................................................................................... 8 Mid-Voltage Capacitor Series ( 100V ~ 630V ) FP ..................................................................................................... 14 Anti-Bend (Soft termination) Capacitor Series FR..................................................................................................... 21 High Reliability for Industrial Grade FE ..................................................................................................... 28 Mega cap Stacked Capacitors Series FJ ..................................................................................................... 30 Anti-Arcing High-Voltage Multilayer Ceramic Chip Capacitors MT ................................................................................................... 33 Automotive Capacitor Qualified to AEC-Q200 MG ................................................................................................... 38 Automotive Caps without AEC-Q200 Certification FS ..................................................................................................... 42 High Capacitance Capacitor Series ( ≥1µF ) RF..................................................................................................... 46 Ultra High Q & Low ESR Capacitor Series FN .................................................................................................... 48 Genenal purpose Capacitor Series PACKAGING DIMENSION AND QUANTITY ..................................... 52 www.pdc.com.tw FK-FH ■ Safety Certified capacitor series (X1/Y2 & X2) FEATURES APPLICATION • Safety standard approval by EN 60384-14: 2013, IEC 60384-14: 2013, UL 60384-14 (Ed 2.0) / UL 62368-1 (2nd Edition) • Certificate number: R 50041666 and R 50359148 by TUV E346791 (FOWX2/8) by UL, E231248 By UL • HALOGEN & RoHS compliant • • • • • • DC to DC converter. High voltage coupling/DC blocking. Back-lighting inverters. LAN/WLAN interface. Modem. Power supplies. PART NUMBER FK 21 X 102 K 502 E G G PDC Family Size Dielectric Capacitance Tolerance Impulse voltage Packaging Thickness Control Code FK Safety X1 & Y2 series FH Safety X2 series 06 1206 (3216) 08 1808 (4520) 12 1812 (4532) 21 2211 (5728) 20 2220 (5750) J= ±5% K=±10% M=±20% 302: 2.5KV Impulse 502: 5KV Impulse 602: 6KV Impulse G=RoHS Compliant Chip R E= Reference Tape and 7" Reel, Thickness Embossed Tape Description P= Tape and 7" Reel, Paper Tape L= Tape and 13" Reel, Embossed G= Tape and 13"Reel, Paper Tape MLCC N COG(NPO) 102=10x10^2 X X7R =1000pF 100=10x10^0 =10pF GENERAL ELECTRICAL DATA Dielectric Size COG (NPO) X7R X7R 1808, 1812, 2211 1808, 1812, 2211, 2220 1206 Rated voltage 250VAC 4pF ~ 100pF Capacitance range* X1/Y2 Class(Impulse 5KV) 3pF ~ 720pF 3pF ~ 1000pF Capacitance tolerance X2 Class Cap
