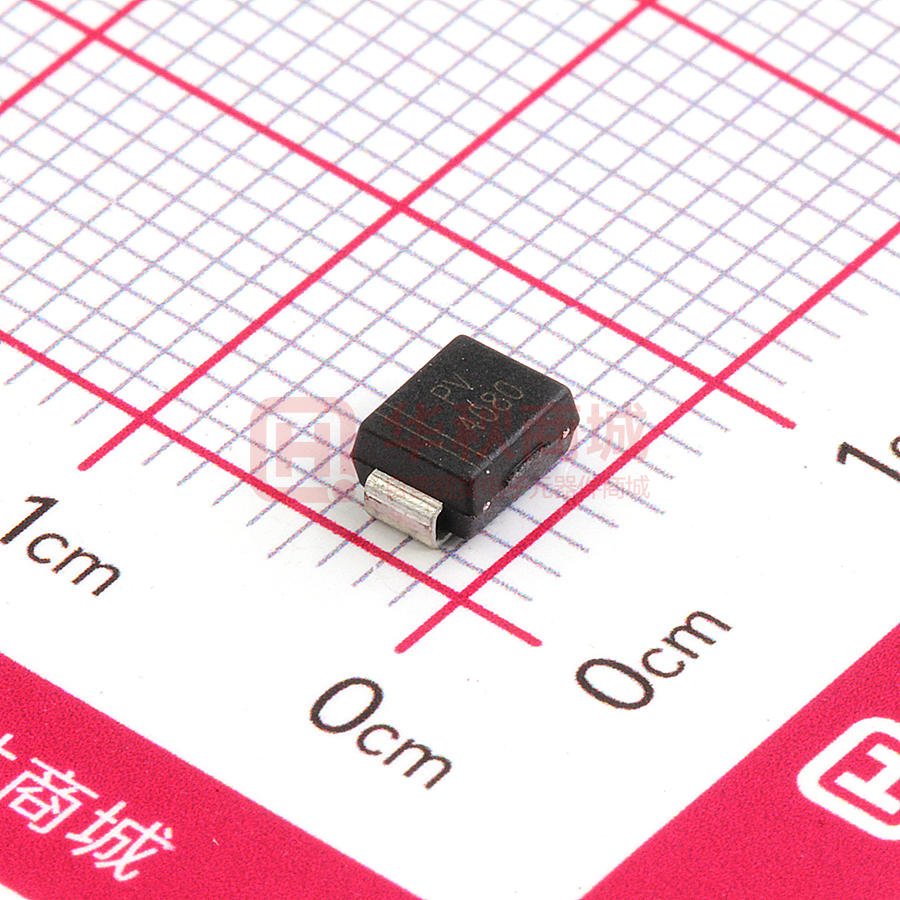

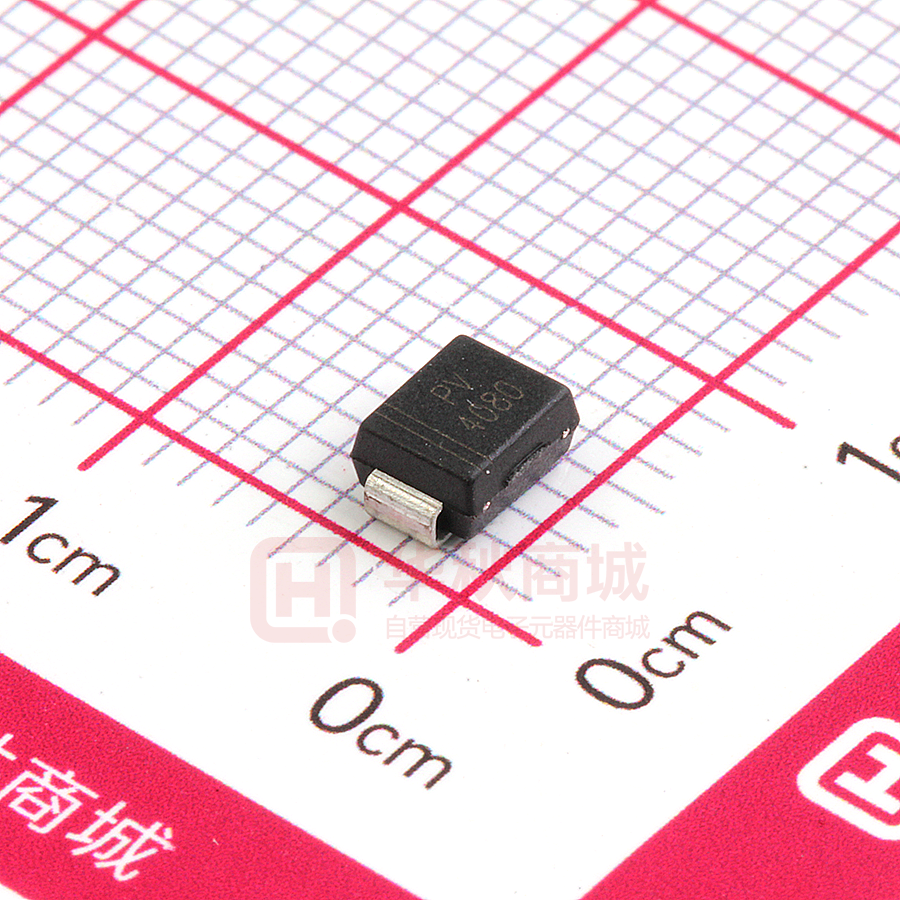

SMBJ200A

SMBJ Series Rev. A Jul.-2018 描述 / DATA SHEET Descriptions 表面贴装瞬态电压抑制器功率：600W,反向浪涌电压：5.0V~440V，SMB 封装。 Surface mount transient voltage suppressor power 600 watts,Stand-Off Voltage：5.0V~440V ,SMB package. 特征 / Features 玻璃钝化，低电感，适用表面贴装。无卤产品。 Glass passivated junction, Low inductance, For surface mounted applications. HF product. 用途 / Applications 一般用途. General purpose. 内部等效电路 / Equivalent Circuit 引脚排列 / Pinning 印章代码 / Marking 见印章说明。See Marking Instructions. http://www.fsbrec.com 1/9 SMBJ Series Rev. A Jul.-2018 极限参数 / DATA SHEET Absolute Maximum Ratings(Ta=25℃) 参数 Parameter 符号 Symbol 数值 Rating 单位 Unit PPPM 600 W 100 A IPPM see Table 1 A CJ 390 pF Contact VESD1 ±30 KV Air VESD2 ±30 KV RθJA 100 ℃/W Tj, Tstg -65 ~ +150 ℃ Peak Pulse Power Dissipation on 10/1000 s waveform ( Note1,Note2, Fig.1). Peak Forward Surge Current,8.3ms Single Half Sine-Wave Superimposed on Rated Load, (JEDEC Method) (Note 3,Fig4). Peak Pulse Current on 10/1000 us waveform (Note 1, Fig 3) Typical Junction capacitance at VR=4V, f=1MHz IFSM (UNI) ESD Voltage per IEC6100-4-2 Typical Thermal Resistance Junction to Ambient(Note 2) Operating Junction Temperature and Storage Temperature Range Note: 1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25°C per Fig. 2. 2 2. Mounted on 5 mm (0.13mm thick) land areas. 3. Measured on 8.3ms,single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum 4. Peak pulse power waveform is 10/1000μS. http://www.fsbrec.com 2/9 SMBJ Series Rev. A Jul.-2018 电性能参数 DATA SHEET / Electrical Characteristics(Ta=25℃) Reverse Stand-off Voltage Type Breakdown Voltage Test Current Reverse Leakage Max. Clamp Voltage Peak Pulse Current Package IT IR @ VRRM VC @ IPP IPP SMB Device Marking Ccode VBR @ IT VRRM Min Max UNI BI V V V mA uA V A UNI BI SMBJ5.0A SMBJ5.0CA 5 6.4 7 10 800 9.2 65.3 KE AE SMBJ6.0A SMBJ6.0CA 6 6.67 7.37 10 800 10.3 58.3 KG AG SMBJ6.5A SMBJ6.5CA 6.5 7.22 7.98 10 500 11.2 53.6 KK AK SMBJ7.0A SMBJ7.0CA 7 7.78 8.6 10 200 12.0 KM AM SMBJ7.5A SMBJ7.5CA 7.5 8.33 9.21 1 100 12.9 46.6 KP AP SMBJ8.0A SMBJ8.0CA 8 8.89 9.83 1 50 13.6 44.2 KR AR SMBJ8.5A SMBJ8.5CA 8.5 9.44 10.4 1 20 14.4 41.7 KT AT SMBJ9.0A SMBJ9.0CA 9 10 11.1 1 10 15.4 39.0 KV AV SMBJ10A SMBJ10CA 10 11.1 12.3 1 5 17.0 35.3 KX AX SMBJ11A SMBJ11CA 11 12.2 13.5 1 1 18.2 33.0 KZ AZ SMBJ12A SMBJ12CA 12 13.3 14.7 1 1 19.9 30.2 LE BE SMBJ13A SMBJ13CA 13 14.4 15.9 1 1 21.5 28.0 LG BG SMBJ14A SMBJ14CA 14 15.6 17.2 1 1 23.2 25.9 LK BK SMBJ15A SMBJ15CA 15 16.7 18.5 1 1 24.4 24.6 LM BM SMBJ16A SMBJ16CA 16 17.8 19.7 1 1 26.0 23.1 LP BP SMBJ17A SMBJ17CA 17 18.9 20.9 1 1 27.6 21.8 LR BR SMBJ18A SMBJ18CA 18 20 22.1 1 1 29.2 20.6 LT BT SMBJ20A SMBJ20CA 20 22.2 24.5 1 1 32.4 18.6 LV BV SMBJ22A SMBJ22CA 22 24.4 26.9 1 1 35.5 16.9 LX BX SMBJ24A SMBJ24CA 24 26.7 29.5 1 1 38.9 15.5 LZ BZ SMBJ26A SMBJ26CA 26 28.9 31.9 1 1 42.1 14.3 ME CE SMBJ28A SMBJ28CA 28 31.1 34.4 1 1 45.4 13.3 MG CG SMBJ30A SMBJ30CA 30 33.3 36.8 1 1 48.4 12.4 MK CK SMBJ33A SMBJ33CA 33 36.7 40.6 1 1 53.3 11.3 MM CM SMBJ36A SMBJ36CA 36 40 44.2 1 1 58.1 10.4 MP CP SMBJ40A SMBJ40CA 40 44.4 49.1 1 1 64.5 9.3 MR CR SMBJ43A SMBJ43CA 43 47.8 52.8 1 1 69.4 8.7 MT CT http://www.fsbrec.com 50.0 3/9 SMBJ Series Rev. A Jul.-2018 电性能参数 DATA SHEET / Electrical Characteristics(Ta=25℃) Reverse Stand-off Voltage Type Breakdown Voltage Test Current Reverse Leakage Max. Clamp Voltage Peak Pulse Current IT IR @ VRRM VC @ IPP IPP VBR @ IT VRRM Min Max Package SMB Device Marking Ccode UNI BI UNI BI V V V mA uA V A SMBJ45A SMBJ45CA 45 50 55.3 1 1 72.7 8.3 MV CV SMBJ48A SMBJ48CA 48 53.3 58.9 1 1 77.4 7.8 MX CX SMBJ51A SMBJ51CA 51 56.7 62.7 1 1 82.4 7.3 MZ CZ SMBJ54A SMBJ54CA 54 60 66.3 1 1 87.1 6.9 NE DE SMBJ58A SMBJ58CA 58 64.4 71.2 1 1 93.6 6.5 NG DG SMBJ60A SMBJ60CA 60 66.7 73.7 1 1 96.8 6.2 NK DK SMBJ64A SMBJ64CA 64 71.1 78.6 1 1 103.0 5.9 NM DM SMBJ70A SMBJ70CA 70 77.8 86 1 1 113.0 5.3 NP DP SMBJ75A SMBJ75CA 75 83.3 92.1 1 1 121.0 5.0 NR DR SMBJ78A SMBJ78CA 78 86.7 95.8 1 1 126.0 4.8 NT DT SMBJ85A SMBJ85CA 85 94.4 104 1 1 137.0 4.4 NV DV SMBJ90A SMBJ90CA 90 100 111 1 1 146.0 4.1 NX DX SMBJ100A SMBJ100CA 100 111 123 1 1 162.0 3.7 NZ DZ SMBJ110A SMBJ110CA 110 122 135 1 1 177.0 3.4 PE EE SMBJ120A SMBJ120CA 120 133 147 1 1 193.0 3.1 PG EG SMBJ130A SMBJ130CA 130 144 159 1 1 209.0 2.9 PK EK SMBJ150A SMBJ150CA 150 167 185 1 1 243.0 2.5 PM EM SMBJ160A SMBJ160CA 160 178 197 1 1 259.0 2.3 PP EP SMBJ170A SMBJ170CA 170 189 209 1 1 275.0 2.2 PR ER SMBJ180A SMBJ180CA 180 201 222 1 1 292.0 2.1 PT ET SMBJ188A SMBJ188CA 188 209 231 1 1 304.0 2.0 PB EB SMBJ200A SMBJ200CA 200 224 247 1 1 324.0 1.9 PV EV SMBJ220A SMBJ220CA 220 246 272 1 1 356.0 1.7 PX EX SMBJ250A SMBJ250CA 250 279 309 1 1 405.0 1.5 PZ EZ SMBJ300A* SMBJ300CA* 300 335 371 1 1 486.0 1.3 QE FE SMBJ350A* SMBJ350CA* 350 391 432 1 1 567.0 1.1 QG FG SMBJ400A* SMBJ400CA* 400 447 494 1 1 648.0 0.6 QK FK SMBJ440A* SMBJ440CA* 440 492 543 1 1 713.0 0.9 QM FM http://www.fsbrec.com 4/9 SMBJ Series Rev. A Jul.-2018 电参数曲线图 DATA SHEET / Electrical Characteristic Curve http://www.fsbrec.com 5/9 SMBJ Series Rev. A Jul.-2018 外形尺寸图 DATA SHEET / Package Dimensions http://www.fsbrec.com 6/9 SMBJ Series Rev. A Jul.-2018 印章说明 / DATA SHEET Marking Instructions KE   ****      说明： KE   ： 为型号代码 **** ： 为生产批号追溯码，第 1 个*为年月代码，后面 3 个*为当月小批号代码  Note: KE  ： Product Type Code ****：    Lot No. Code，The 1st * means:YM Code，The last 3 * means:little Lot No Code http://www.fsbrec.com 7/9 SMBJ Series Rev. A Jul.-2018 印章说明 / DATA SHEET Marking Instructions AE **** 说明： KE   ： **** ： 为型号代码 为生产批号追溯码，第 1 个*为年月代码，后面 3 个*为当月小批号代码  Note: KE  ：   Product Type Code ****：    Lot No. Code，The 1st * means:YM Code，The last 3 * means:little Lot No Code http://www.fsbrec.com 8/9 SMBJ Series Rev. A Jul.-2018 DATA SHEET 回流焊温度曲线图(无铅) / Temperature Profile for IR Reflow Soldering(Pb-Free) 说明： Note: 1、预热温度 150～180℃，时间 60～90sec; 1.Preheating:150~180℃, Time:60~90sec. 2、峰值温度 245±5℃，时间持续为 5±0.5sec; 2.Peak Temp.:245±5℃, Duration:5±0.5sec. 3、焊接制程冷却速度为 2～10℃/sec. 3. Cooling Speed: 2~10℃/sec. 耐焊接热试验条件 / Resistance to Soldering Heat Test Conditions 温度：260±5℃ 包装规格 Time:10±1 sec / REEL Package Type 封装形式 使用说明 Temp.:260±5℃ / Packaging SPEC. 卷盘包装 SMB 时间：10±1 sec. Units 包装数量 Dimension 包装尺寸 3 (unit：mm ) Units/Reel 只/卷盘 Reels/Inner Box 卷盘/盒 Units/Inner Box 只/盒 Inner Boxes/Outer Box 盒/箱 Units/Outer Box 只/箱 Reel Inner Box 盒 Outer Box 箱 5000 2 10000 5 50000 13〞×12 340X340X40 350X350X230 / Notices http://www.fsbrec.com 9/9
