LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Features
Description
Supply Voltage: 3V to 36V
The LM321A/358A/324A series amplifiers are newest high
Low Supply Current: 100μA per channel
supply voltage amplifiers with low offset, low power and stable
Input Common-Mode Voltage Range Includes Ground
Can Work as Comparator
Rail to Rail Output
Bandwidth: 0.9 MHz
current per amplifier. The input common-mode voltage range
Slew Rate: 0.5V/μs
extends to V–, and the outputs swing rail-to-rail. The
Excellent EMI Suppress Performance: 71dB at 1GHz
LM321A/358A/324A
Offset Voltage: ±3mV Maximum
replacements for many commercially available op-amps to
Offset Voltage Temperature Drift: 7 μV/°C
reduce power and improve input/output range and performance.
–40°C to 125°C Operation Temperature Range
The combination of features makes the LM321A/358A/324A
frequency response. They incorporate 3PEAK’s proprietary and
patented design techniques to achieve very good AC
performance with 0.9MHz bandwidth, 0.5V/μs slew rate and
maximum 3mV offset while drawing only 100μA of quiescent
family
can
be
used
as
plug-in
ideal choices for power module, industrial control, motor control
Applications
Power Module
Sensor Interface
Motor Control
Audio
and audio application.
Pin Configuration
+In
LM321A
LM358A
LM324A
5-Pin SOT23
8-Pin SOIC/TSSOP/MSOP
14-Pin SOIC/TSSOP
-T Suffixes
-S, -TS and -V Suffixes
-S and -T Suffixes
1
-VS
2
-In
3
5
4
+VS
Out
Out A
1
﹣In A
2
﹢In A
3
﹣Vs
4
﹢Vs
Out A
1
14
Out D
7
Out B
﹣In A
2
13
﹣In D
6
﹣In B
5
﹢In B
8
A
B
A
﹢In A
3
12
﹢In D
﹢Vs
4
11
﹣Vs
﹢In B
5
10
﹢In C
B
www.3peakic.com.cn
1 / 17
D
C
﹣In B
6
9
﹣In C
Out B
7
8
Out C
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Table of Contents
Features ........................................................................................................................................................................... 1
Applications ..................................................................................................................................................................... 1
Description....................................................................................................................................................................... 1
Pin Configuration ............................................................................................................................................................ 1
Table of Contents ............................................................................................................................................................ 2
Revision History .............................................................................................................................................................. 3
Order Information ............................................................................................................................................................ 3
Absolute Maximum Ratings Note 1 ................................................................................................................................... 4
ESD Rating ....................................................................................................................................................................... 4
Thermal Information ....................................................................................................................................................... 4
Electrical Characteristics ............................................................................................................................................... 5
Typical Performance Characteristics ............................................................................................................................ 7
Tape and Reel Information ............................................................................................................................................. 9
Package Outline Dimensions ....................................................................................................................................... 10
SC70-5 /SOT-353 ....................................................................................................................................................................... 10
SOT23-5..................................................................................................................................................................................... 10
SOP-8 .........................................................................................................................................................................................11
TSSOP-8 .................................................................................................................................................................................... 12
MSOP-8 ..................................................................................................................................................................................... 13
DFN-8 1.5*1.5 ............................................................................................................................................................................ 14
SOP-14 ...................................................................................................................................................................................... 15
TSSOP-14 .................................................................................................................................................................................. 16
www.3peakic.com.cn
2 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Revision History
Date
Revision
Notes
2018/3/21
Rev.Pre
Pre-Release Version
Order Information
Order Number
Operating Temperature Range
Package
Marking Information
MSL
Transport Media, Quantity
LM321A-TR Note 1
-40 to 125°C
5-Pin SOT23
21AXX Note 2
3
Tape and Reel, 3000

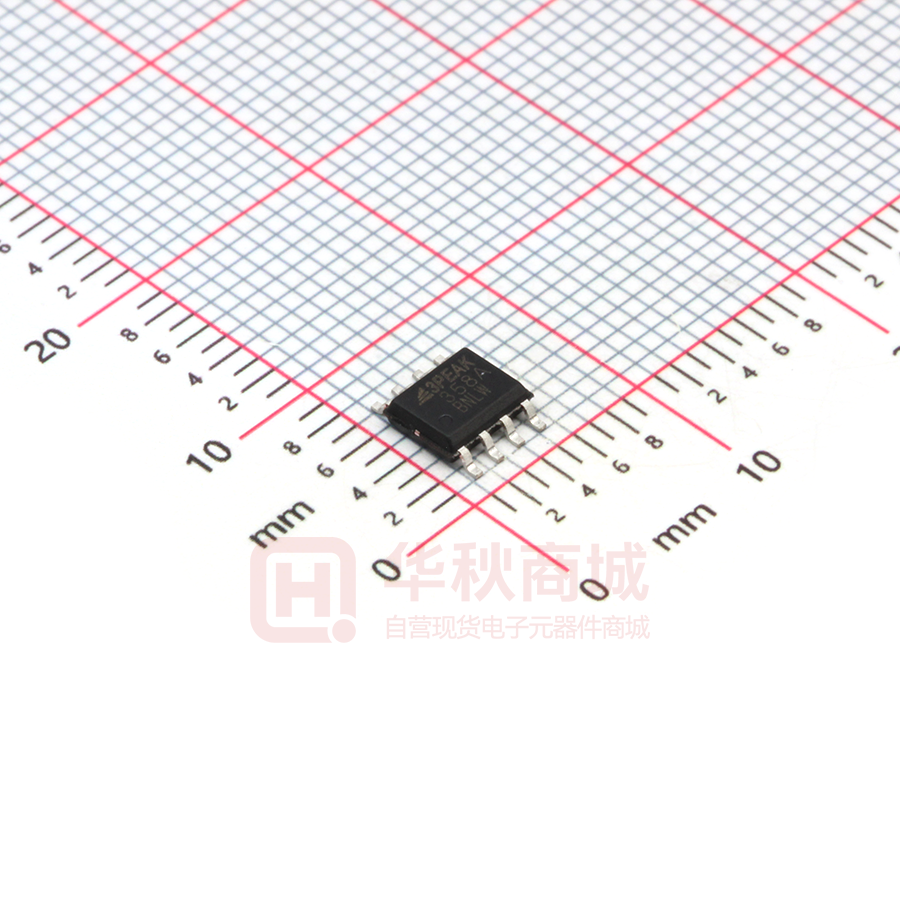

LM358A-SR
-40 to 125°C
8-Pin SOIC
3
Tape and Reel, 4000
LM358A-CSR
-40 to 85°C
8-Pin SOIC
3
Tape and Reel, 4000
LM358A-F1R
-40 to 125°C
8-Pin DFN 1.5*1.5
3
Tape and Reel, 3000
LM358A-TSR Note 1
-40 to 125°C
8-Pin TSSOP
3
Tape and Reel, 3000
LM358A-VR Note 1
-40 to 125°C
8-Pin MSOP
3
Tape and Reel, 3000
LM324A-SR
-40 to 125°C
14-Pin SOIC
3
Tape and Reel, 2500
LM324A-CSR
-40 to 85°C
14-Pin SOIC
3
Tape and Reel, 2500
LM324A-TR Note 1
-40 to 125°C
14-Pin TSSOP
3
Tape and Reel, 3000
LM358A
XXXX Note 3
LM358A
XXXX Note 3
58A
XXXX Note 3
LM358A
XXXX Note 3
LM358A
XXXX Note 3
LM324A
XXXX Note 3
LM324A
XXXX Note 3
LM324A
XXXX Note 3
Note 1: The sample will be ready in 1 month.
Note 2: XX is the date code.
Note 3: XXXX is date code.
www.3peakic.com.cn
3 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Absolute Maximum Ratings Note 1
Parameters
Rating
Supply Voltage, (+VS)– (-VS)
40 V
Input Voltage
(-VS) – 0.3 to (+VS) + 0.3
Differential Input Voltage
(+VS) - (-VS)
Input Current: +IN, –IN
±10mA
Note 2
Output Short-Circuit Duration Note 3
Infinite
Maximum Junction Temperature
150°C
Operating Temperature Range
–40 to 125°C
Storage Temperature Range
–65 to 150°C
Lead Temperature (Soldering, 10 sec)
260°C
Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to
any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime.
Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300mV beyond the
power supply, the input current should be limited to less than 10mA.
Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power
supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the
package. The specified values are for short traces connected to the leads.
ESD Rating
Symbol
Parameter
Condition
Minimum Level
Unit
HBM
Human Body Model ESD
MIL-STD-883H Method 3015.8
4
kV
CDM
Charged Device Model ESD
JEDEC-EIA/JESD22-C101E
2
kV
Thermal Information
Package Type
θJA
θJC
Unit
5-Pin SOT23
250
81
°C/W
8-Pin SOIC
158
43
°C/W
8-Pin TSSOP
191
44
°C/W
8-Pin MSOP
210
45
°C/W
14-Pin SOIC
120
36
°C/W
14-Pin TSSOP
180
35
°C/W
www.3peakic.com.cn
4 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Electrical Characteristics
All test condition is VS = 30V, TA = 25°C, RL = 10kΩ, CL =100pF, unless otherwise noted.
Symbol
Parameter
TA
Conditions
Min
Typ
Max
Unit
36
V
200
μA
300
μA
150
μA
250
μA
Power Supply
VS
Supply Voltage Range
3
110
VS = 30V
Operating Range
IQ
Quiescent Current per Amplifier
100
VS = 5V
Operating Range
PSRR
Power Supply Rejection Ratio
120
dB
90
dB
VS = 5V to 36V
Operating Range
Input Characteristics
-3
0.1
3
mV
7
mV
3
mV
7
mV
VS = 30V, VCM = 0V to 28V
Operating Range
VOS
-7
Input Offset Voltage
-3
0.1
VS = 5V, VCM = 0V to 3V
Operating Range
VOS TC
Input Offset Voltage Drift
IB
Input Bias Current
-7
7
μV/°C
60
pA
600
pA
60
pA
5
nA
20
nA
Differential Mode
5
pF
Common Mode
5
pF
110
dB
90
dB
Operating Range
Operating Range
IOS
Input Offset Current
IIN
Different Input Current
VS = 36V, VID = 36V
Operating Range
VS = 36V, VID = 36V
CIN
Av
Input Capacitance
Open-loop Voltage Gain
Operating Range
Common-mode Input Voltage
VCMR
(V-)
(V+) - 2
V
Range
CMRR
Common Mode Rejection Ratio
120
dB
90
dB
VCM = 0V to 28V
Operating Range
Output Characteristics
VOH, VOL
Maximum Output Voltage
RLOAD = 10kΩ to 0V
200
300
mV
Swing
RLOAD = 2kΩ to 0V
1.1
1.3
V
VS = 5V, RLOAD = 10kΩ to 0V
5
mV
30
mA
0.9
MHz
Maximum Output Voltage
VOL
Swing Low
ISC
Output Short-Circuit Current
AC Specifications
GBW
Gain-Bandwidth Product
SR
Slew Rate
G = 1, 2V step
0.5
V/μs
tS
Settling Time, 0.1%
G = 1, 2V step
4
μs
www.3peakic.com.cn
5 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Settling Time, 0.01%
3.1
μs
PM
Phase Margin
VS = 30V, RL=1K, CL=100pF
60
°
GM
Gain Margin
VS = 30V, RL=1K, CL=100pF
15
dB
Channel Separation
f = 1 kHz to 20 kHz
80
dB
Noise Performance
EN
Input Voltage Noise
f = 0.1Hz to 10Hz
3
μVRMS
eN
Input Voltage Noise Density
f = 1kHz
70
nV/√Hz
iN
Input Current Noise
f = 1kHz
3
fA/√Hz
THD+N
Total Harmonic Distortion and
f = 1kHz, G =1, RL = 10kΩ,
0.001
%
Noise
VOUT = 6VRMS
www.3peakic.com.cn
6 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Typical Performance Characteristics
VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified.
Figure 1. Quiescent Current vs. Supply Voltage
Figure 2. Quiescent Current vs. Temperature
2000
1500
Vos ：uV
1000
500
0
-500
-1000
-1500
-2000
-50
Figure 3. Offset Voltage vs. Common Mode Voltage
0
50
Temperture :℃
100
150
Figure 4. Offset Voltage vs. Temperature
150
200
150
100
50
0
Phase (°)
Gain(dB)
100
50
0
-50
-50
-100
-100
0.01
1
100
10k
1M
Frequency (Hz)
Figure 5. EMIRR+ vs. Frequency
www.3peakic.com.cn
Figure 6. Open Loop Gain and Phase vs. Frequency
7 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
VS = ±15V, VCM = 0V, RL = 10kΩ, unless otherwise specified.
Figure 7. PSRR vs. Frequency
VS= +5V
RL= 1MΩ
CL = 30pF
5μV/div
Noise(nV/√Hz)
1000
Figure 8. CMRR vs. Frequency
100
10
1
1
10
100
1k
10k
100k
1M
Time (1s/div)
Frequency(Hz)
Figure 9. Voltage Noise Spectral Density vs. Frequency
www.3peakic.com.cn
Figure 10. 0.1 Hz TO 10 Hz Input Voltage Noise
8 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Tape and Reel Information
Order Number
Package
D1
W1
A0
B0
K0
P0
W0
Pin1
Quadrant
LM321A-TR
5-Pin SOT23
180.0
13.1
3.2
3.2
1.4
4.0
8.0
Q3
LM358A-SR
8-Pin SOIC
330.0
17.6
6.4
5.4
2.1
8.0
12.0
Q1
LM358A-VR
8-Pin MSOP
330.0
17.6
5.2
3.3
1.5
8.0
12.0
Q1
LM358A-TSR
8-Pin TSSOP
330.0
17.6
6.8
3.3
1.2
8.0
12.0
Q1
LM324A-SR
14-Pin SOIC
330.0
21.6
6.5
9.0
2.1
8.0
16.0
Q1
LM324A-TR
14-Pin TSSOP
330.0
17.6
6.8
5.4
1.2
8.0
12.0
Q1
www.3peakic.com.cn
9 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
Package Outline Dimensions
SC70-5 /SOT-353
Dimensions
Dimensions
In Millimeters
In Inches
Min
Max
Min
Max
A
0.900
1.100
0.035
0.043
A1
0.000
0.100
0.000
0.004
A2
0.900
1.000
0.035
0.039
b
0.150
0.350
0.006
0.014
C
0.080
0.150
0.003
0.006
D
2.000
2.200
0.079
0.087
E
1.150
1.350
0.045
0.053
E1
2.150
2.450
0.085
0.096
e
0.650TYP
0.026TYP
e1
1.200
0.047
L
0.525REF
0.021REF
L1
0.260
0.460
0.010
0.018
θ
0°
8°
0°
8°
Symbol
1.400
0.055
SOT23-5
Dimensions
Dimensions
In Millimeters
In Inches
Min
Max
Min
Max
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.400
0.012
0.016
C
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.950TYP
0.037TYP
e1
1.800
0.071
L
0.700REF
0.028REF
L1
0.300
0.460
0.012
0.024
θ
0°
8°
0°
8°
Symbol
www.3peakic.com.cn
10 / 17
2.000
0.079
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
SOP-8
A2
C
θ
L1
A1
e
E
D
Symbol
E1
b
11 / 17
Dimensions In
In Millimeters
Inches
Min
Max
Min
Max
A1
0.100
0.250
0.004
0.010
A2
1.350
1.550
0.053
0.061
b
0.330
0.510
0.013
0.020
C
0.190
0.250
0.007
0.010
D
4.780
5.000
0.188
0.197
E
3.800
4.000
0.150
0.157
E1
5.800
6.300
0.228
0.248
e
www.3peakic.com.cn
Dimensions
1.270 TYP
0.050 TYP
L1
0.400
1.270
0.016
0.050
θ
0°
8°
0°
8°
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
TSSOP-8
Symbol
Dimensions In Millimeters
Min
Dimensions In Inches
Max
Min
Max
D
2.900
3.100
0.114
0.122
E
4.300
4.500
0.169
0.177
b
0.190
0.300
0.007
0.012
c
0.090
0.200
0.004
0.008
E1
6.250
6.550
0.246
0.258
A
1.200
0.047
A2
0.800
1.000
0.031
0.039
A1
0.050
0.150
0.002
0.006
e
0.65(BSC)
L
0.500
H
0.25(BSC)
θ
1°
www.3peakic.com.cn
0.026（BSC）
0.700
0.020
0.028
0.01（BSC）
7°
12 / 17
1°
7°
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
MSOP-8
Dimensions
Dimensions In
In Millimeters
Inches
Min
Max
Min
Max
A
0.800
1.200
0.031
0.047
A1
0.000
0.200
0.000
0.008
A2
0.760
0.970
0.030
0.038
b
0.30 TYP
0.012 TYP
C
0.15 TYP
0.006 TYP
D
2.900
e
0.65 TYP
E
2.900
3.100
0.114
0.122
E1
4.700
5.100
0.185
0.201
L1
0.410
0.650
0.016
0.026
θ
0°
6°
0°
6°
Symbol
E
E1
A
A2
e
b
D
3.100
0.114
0.122
0.026
A1
R1
R
θ
L1
www.3peakic.com.cn
L
L2
13 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
DFN-8 1.5*1.5
www.3peakic.com.cn
14 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
SOP-14
Dimensions
In Millimeters
Symbol
MIN
1.35
1.60
1.75
A1
0.10
0.15
0.25
A2
1.25
1.45
1.65
A3
0.55
0.65
0.75
b
0.36
b1
0.35
c
0.16
c1
0.15
0.20
0.25
D
8.53
8.63
8.73
E
5.80
6.00
6.20
E1
3.80
3.90
4.00
L
15 / 17
MAX
A
e
www.3peakic.com.cn
NOM
0.49
0.40
0.45
0.25
1.27 BSC
0.45
0.60
L1
1.04 REF
L2
0.25 BSC
0.80
R
0.07
R1
0.07
h
0.30
θ
0°
θ1
6°
8°
10°
θ2
6°
8°
10°
θ3
5°
7°
9°
θ4
5°
7°
9°
0.40
0.50
8°
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
TSSOP-14
Dimensions
In Millimeters
E1
E
A
A2
e
Symbol
c
D
MIN
TYP
MAX
A
-
-
1.20
A1
0.05
-
0.15
A2
0.90
1.00
1.05
b
0.20
-
0.28
c
0.10
-
0.19
D
4.86
4.96
5.06
E
6.20
6.40
6.60
E1
4.30
4.40
4.50
e
L
A1
R1
R
0.65 BSC
0.45
0.60
L1
1.00 REF
L2
0.25 BSC
0.75
R
0.09
-
-
θ
0°
-
8°
θ
L1
www.3peakic.com.cn
L
L2
16 / 17
Rev.Pre
LM321A/ LM358A/ LM324A
36V General Purpose Op Amps
3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All
other trademarks are the property of their respective owners.
www.3peakic.com.cn
17 / 17
Rev.Pre
工商网监
湘ICP备2023018690号
