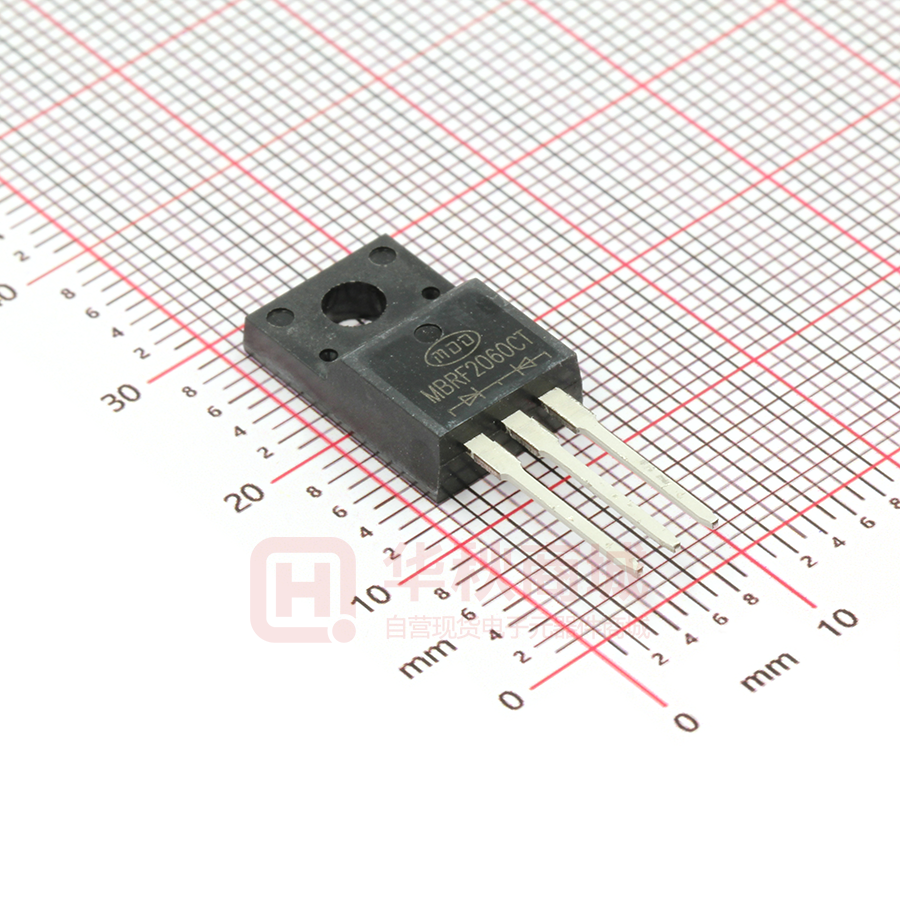

MBRF2060CT

MBRF2045CT THRU MBRF20200CT Reverse Voltage - 45 to 200 Volts Forward Current - 20.0 Ampere SCHOTTKY BARRIER RECTIFIER Features ITO-220AB  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Construction utilizes void-free molded plastic technique  Low reverse leakage  High forward surge current capability  High temperature soldering guaranteed: 250°C,0.25”(6.35mm) from case for 10 seconds PIN1 PIN2 Mechanical Data Case : JEDEC TO-220AB Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.080 ounce, 2.24 grams PIN3 PIN1 PIN2 PIN3 Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 10.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ VRRM V RMS V DC MDD MBRF 2045CT MDD MBRF 2060CT MDD MBRF 20100CT MDD MBRF 20150CT 100 70 150 135 150 60 45 32 42 60 45 100 MDD MBRF 20200CT 200 140 200 UNITS V V V I(AV) 20.0 A IFSM 150 A VF 0.60 0.75 0.85 IR 15.0 0.95 0.2 50.0 1.5 1.0 50.0 V mA Typical thermal resistance (NOTE 2) R θ JC Operating junction temperature range TJ -55 to +150 ℃ T STG -55 to +150 ℃ storage temperature range 2.0 ℃/W Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.Thermal resistance from junction to case. http://www.microdiode.com Rev:2024A2 Page :1 MBRF2045CT THRU MBRF20200CT Reverse Voltage - 45 to 200 Volts Forward Current - 20.0 Ampere Ratings And Characteristic Curves Fig.2 Typical Reverse Characteristics 20 15 ~2 00 10 V 5 0.0 20 40 60 80 100 120 140 160 180 Instaneous Reverse Current ( mA) 25 45 Average Forward Current (A) Fig.1 Typical Forward Current Derating Curve 100 45~60V 100~200V 10 T J =100°C 1.0 0.1 T J =25°C 0.01 0.001 0 Case Temperature (°C) 10 1 45V 60V 100V 150V 200V 0.1 0.2 0.4 0.6 0.8 60 80 100 1.0 Instaneous Forward Voltage (V) Fig.4 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) Instaneous Forward Current (A) T J =25°C 0 40 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic(per leg) 20 20 1.2 160 140 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 MBRF2045CT THRU MBRF20200CT Reverse Voltage - 45 to 200 Volts Forward Current - 20.0 Ampere Outlitne ITO-220AB Package Outline Dimensions A C E B M N D J L b F L1 b1 H G UNIT max mm mil G A B b b1 C D E F 10.5 2.85 1.4 0.8 4.7 16.0 2.9 2.8 typ 10.0 2.70 1.2 0.6 4.5 15.0 2.7 2.7 min 9.85 2.54 1.1 0.5 4.4 14.7 2.5 2.5 max 413 112 55 31 185 630 114 110 typ 394 106 47 24 177 590 106 106 min 388 100 43 20 173 580 98 98 http://www.microdiode.com G 2.54 TYPICAL 100 TYPICAL H L L1 M 0.70 2.9 14.3 7.0 0.55 2.5 13.5 6.8 0.41 2.3 13.0 6.3 27 114 563 276 22 98 531 267 16 91 512 248 Rev:2024A2 N 3.4 TYPICAL 133 TYPICAL Page :3
