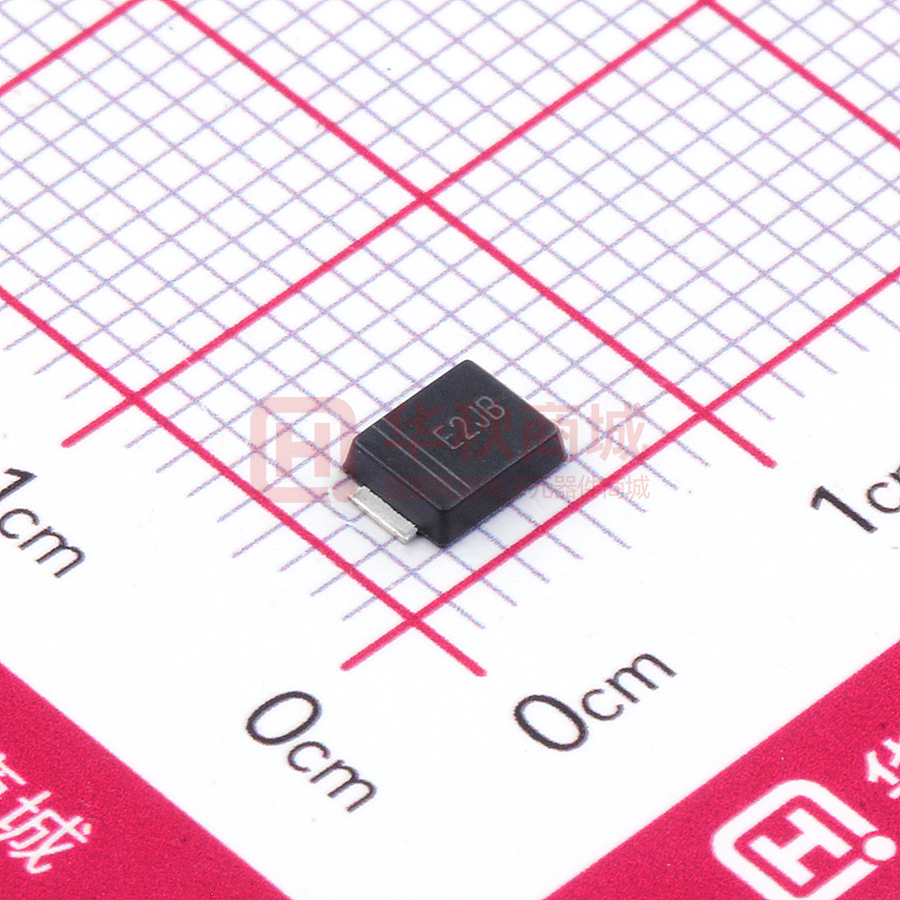

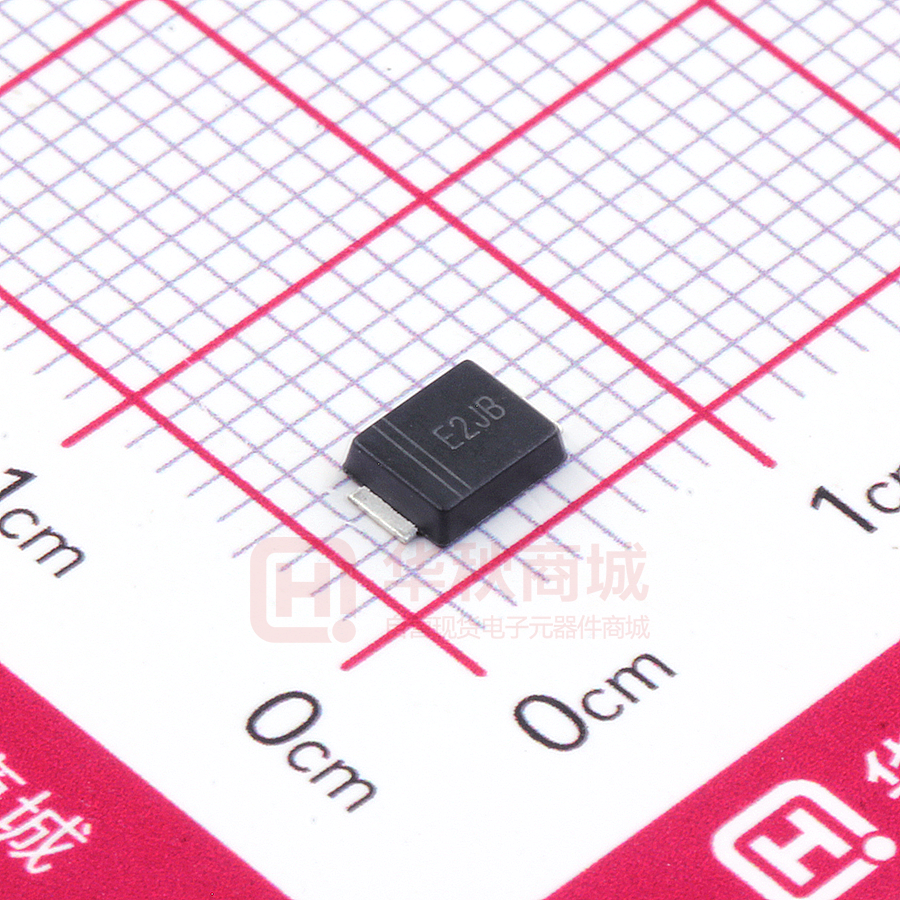

ES2JBF

ES2ABF THRU ES2JBF Reverse Voltage - 50 to 600 Volts Forward Current2.0 Ampere SURFACE MOUNT SUPER FAST RECOVERY RECTIFIER Features SMBF  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Low reverse leakage  Built-in strain relief,ideal for automated  placement High forward surge current capability  High temperature soldering guaranteed: 0.146(3.70) 0.138(3.50) 0.086 (2.20) 0.075 (1.90) 0.173(4.40) 0.165(4.20)  250°C/10 seconds at terminals Glass passivated chip junction 0.051(1.30) 0.043(1.10) 0.010(0.26) 0.007(0.18) 0.048(1.20) 0.031(0.80) Mechanical Data 0.216(5.50) 0.200(5.10) Case : JEDEC SMBF Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002 ounce, 0.055 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=55℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 3.0A Maximum DC reverse current at rated DCblocking voltage Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) VRRM VRMS VDC I(AV) ES2ABF ES2BBF ES2CBF ES2DBF ES2EBF ES2GBF ES2JBF MDD E2AB 50 35 50 MDD E2BB MDD E2CB MDD E2DB MDD E2EB MDD E2GB 100 70 100 150 105 150 200 140 200 300 210 300 400 280 400 IFSM VF IR MDD E2JB 600 420 600 UNITS V V V 2.0 A 50 A 1 1.25 1.70 V 5.0 100.0 μA trr 35 ns CJ 45.0 pF Typical thermal resistance (NOTE 3) RJA 65.0 ℃/W Operating junction and storage temperature range TJ,TSTG -55 to +150 ℃ Typical junction capacitance (NOTE 2) Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 0.5x0.5”(12.7x12.7mm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 ES2ABF THRU ES2JBF Reverse Voltage - 50 to 600 Volts Forward Current - 2.0 Ampere Ratings And Characteristic Curves 50 ohm Noninductive 10 ohm Noninductive t rr +0.5 D.U.T + PULSE GENERATOR Note 2 25Vdc approx 0 - -0.25 1 ohm OSCILLOSCOPE Note 1 NonInductive -1.0 Note：1. Rise Time = 7ns, max. Input Impedance = 1megohm,22pF. 2. Ries Time =10ns, max. Source Impedance = 50 ohms. 10ns/div Set time Base for 10ns/div Fig.3 Typical Reverse Characteristics 2.4 300 2.0 100 I R- Reverse Current ( μ A) Average Forward Current (A) Fig.2 Maximum Average Forward Current Rating 1.6 1.2 0.8 Single phase half wave resistive or inductive P.C.B mounted on 0.5×0.5"(12.7×12.7mm ) pad areas. 0.4 T J =125°C 10 T J =75°C 1.0 T J =25°C 0.1 0.0 25 50 75 100 125 150 175 0 Lead Temperature (°C) 80 60 100 % of PIV.VOLTS Fig.4 Typical Forward Characteristics Fig.5 Typical Junction Capacitance 70 10 T J =25°C Junction Capacitance ( pF) Instaneous Forward Current (A) 40 20 1.0 ES2ABF~ES2DBF ES2EBF/ ES2GBF 0.1 ES2JBF 0.01 0.001 0 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 60 50 40 30 T J =25°C f = 1.0MHz V sig = 50mV p-p 20 10 0.1 1 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.6 Maximum Non-Repetitive Peak Forward Surage Current 60 50 40 30 20 8.3 ms Single Half Sine Wave (JEDEC Method) 10 00 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 ES2ABF THRU ES2JBF Reverse Voltage - 50 to 600 Volts Forward Current - 2.0 Ampere Packing information P0 unit:mm P1 d E F B A W P D2 T D1 C W1 D Item Symbol Tolerance SMBF Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 3.81 5.61 1.60 1 50 . 330.00 50.00 13.00 1.75 5.50 4.00 4.00 2.00 0.30 12.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) BOX (pcs) INNER BOX (mm) REEL DIA, (mm) SMBF 13" 5,000 4.0 10,000 190*190*41 330 CARTON SIZE (mm) 365*365*360 CARTON (pcs) 80,000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 2.54 0.100 B 1.8 0.071 C 4.8 0.189 D 3.0 0.118 E 6.6 0.260 Unit (inch) Rev:2024A2 Page :3
