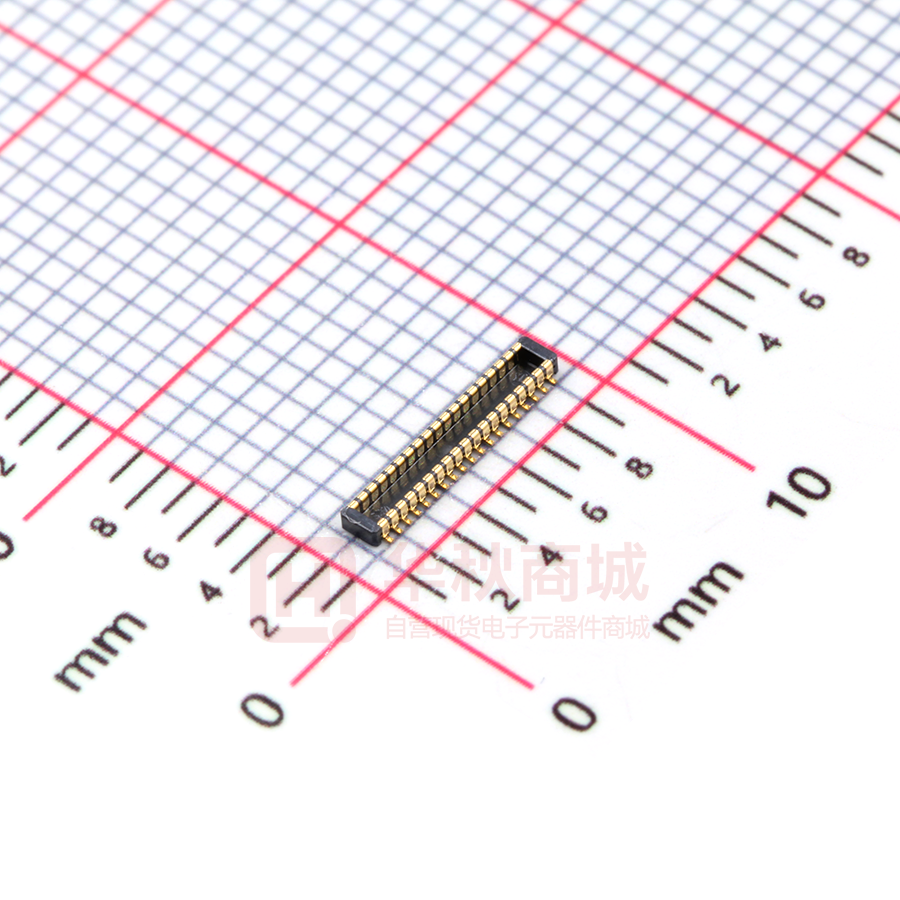

BM20B(0.8)-34DP-0.4V(51)

0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors BM20 Series BM20 2.3mm Existing products 2.98mm ■Receptacle 10.4mm 10.48mm A 22.3% reduction in size! ■Header BM20 Existing products ■Features 1. High density mounting capability A space saving design that keeps the connector compact, but still maintains an adequate vacuum area (no less than 0.7mm wide). Depth DS: 2.3 mm DP: 1.78 mm 2.46mm 2.98 ∞ 10.4 =About 31.0mm2 BM20 2.3 ∞ 10.48 = About 24.1mm2 1.78 mm Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Existing products 9.32mm 9.4mm Board occupied area Existing products 2. Reliable contact performance A 27.1% reduction in size! 2.46 ∞ 9.32 = About 22.9mm2 Even though the mated height is low, the BM20 still leads it class in maximum effective mating lengths for each mating height. Height 0.8 mm: 0.2 mm Height 0.6 mm: 0.15 mm The addition of the two point contact system adds more reliability to the contacts. BM20 1.78 ∞ 9.4 = About 16.7mm2 Vaccum pick-up %#, %#, 3. No restrictions to PCB pattern design for the 0.8 mm height connector *1 This series utilizes a thin wall to insulate the bottom surface of the connector and maintains an effective mating length of 0.2 mm. This removes any restriction for PCB pattern layout design under the connector. Note *1: There are some restrictions for the 0.6 mm height style. 4. Enhanced mating operations The structure uses guide ribs to ease the mating process and offers a self alignment range of up to 0.3 mm. A clear tactile click is used as an indicator to the user that the mating process was completed. Mating diagram (cross section) H=0.8 2-point contact structure Molded Bottom surface structure 5. Drop and shock resistant structure Dimples were designed into the contacts to increase their retention force and to absorb the shock delivered from a drop or other impact. 6. Debris resisting design H=0.6 Molded Bottom surface structure When mated, the connector’s design covers the contacts which help to keep dust and other debris away from the contacts. The SMT leads are kept very close to the connector housing which also helps to prevent shorts caused by debris on the exposed contacts In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information. 2013.11② 1 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors ■Product Specifications Rated Current 0.3A Ratings Rated Voltage AC, DC 30V Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Items Operating Temperature Range - 35 ∼ 85°C (Note 1) Storage Temperature Range - 10 ∼ 60°C (Note 2) Operating Humidity Range 20 ∼ 80％ Storage Humidity Range 40 ∼ 70% (Note 2) Specifications Conditions 1. Insulation Resistance Minimum of 50 Mø Measured with DC 100 V 2. Withstanding Voltage No flashover or breakdown Apply AC 100 V for 1 minute 3. Contact Resistance Maximum of 100 mø Measured with AC 20 mV, 1 kHz and 1 mA 4. Vibration Resistance No electrical discontinuity of 1µs or greater Frequency 10-55 Hz, half amplitude 0.75 mm, 3 directions for 2 hours 5. Humidity Resistance Contact resistance Maximum of 100 mø Insulation resistance Minimum of 25 mø Left at temperature 40±2ç, humidity 90 to 95%, 96 hours 6. Temperature Cycles Contact resistance Maximum of 100 mø Insulation resistance Minimum of 50 mø (-55°C: 30 minutes → 5~35ç: 10 minutes → 85°C: 30 minutes → 5~35ç: 10 minutes) 5 cycles 7. Durability Contact Resistance: maximum of 100 mø 10 mating cycles 8. Soldering Heat Resistance Should be no melting of resin parts that affects its performance Reflow: according to the Recommended Solder Profile Hand solder: Soldering iron temperature 350°C, no more than 3 seconds. Note 1: Includes temperature rise caused by current flow. Note 2: The term "storage" here refers to products stored for a long period prior to board mounting and use. The operating temperature and humidity range covers the non-energized condition of connectors after board mounting and the temporary storage conditions during transportation, etc. ■Materials Product Component Materials Finish UL Regulation Receptacle Insulator LCP Black UL94V-0 Header Contact Phosphorous bronze Gold plating ---------------------- ■Product Number Structure Refer to this page when determining product specifications by model types. Please place orders with part numbers listed in this catalog. The characteristics and specifications of the product described in this catalog are reference values. Please make sure to check the latest delivery specifications at the time of product use. ●Receptacle/Header BM 20 # (**) − * DS − 0.4 V (51) ❶ ❷ ❸ ❹ ❶ Series Name: BM ❷ Series No.: 20 ❸ Shape Symbols B: With reinforcing metal fitting JC: Connector for conductivity testing ❹ Stack height: 0.6 mm, 0.8 mm ❺ No. of Contacts: 2 ❺ ❻ ❼ ❽ ❾ ❻ Connector Type DS: Double row receptacle DP: Double row header ❼ Contact Pitch: 0.4 mm ❽ Terminal Shape V: Vertical SMT ❾ Packaging (51): Embossed tape package (8,000 pieces per reel) BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors ■H=0.8 mm receptacle 6 7 '#( E2%#) & %#%#+- %#&' 8 BRecommended PCB layout【H= 0.6 mm】 Resist coating area BRecommended PCB layout【H= 0.8 mm】 8¤%#%' &#& "%#%* 7¤%#%' % % &#,+ "%#%* %#%* % E2%#)¤%#%' '#+ Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■H=0.6 mm receptacle %#'(¤%#%' %#(¤%#%' 3 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors BRecommended metal mask size (Mask thickness 100 µm)【0.6 mm and 0.8 mm common】 &#&¤%#%& 7¤%#%' '¤%#%& '#+¤%#%& 8¤%#%' E2%#)¤%#%& Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. %#'(¤%#%& %#(¤%#%& Unit: mm D Part No. HRS No. No. of Contacts A B C BM20B(0.6)-10DS-0.4V(51) CL0684-9308-8-51 10 4.48 1.6 4.02 4.06 BM20B(0.6)-20DS-0.4V(51) CL0684-9309-0-51 20 6.48 3.6 6.02 6.06 BM20B(0.6)-24DS-0.4V(51) CL0684-9310-0-51 24 7.28 4.4 6.82 6.86 BM20B(0.6)-30DS-0.4V(51) Under planning 30 8.48 5.6 8.02 8.06 BM20B(0.6)-34DS-0.4V(51) Under planning 34 9.28 6.4 8.82 8.86 BM20B(0.6)-40DS-0.4V(51) CL0684-9313-8-51 40 10.48 7.6 10.02 10.06 Part No. HRS No. No. of Contacts A B C BM20B(0.8)-10DS-0.4V(51) CL0684-9008-4-51 10 4.48 1.6 4.02 BM20B(0.8)-20DS-0.4V(51) CL0684-9009-7-51 20 6.48 3.6 6.02 BM20B(0.8)-24DS-0.4V(51) CL0684-9010-6-51 24 7.28 4.4 6.82 BM20B(0.8)-30DS-0.4V(51) CL0684-9011-9-51 30 8.48 5.6 8.02 BM20B(0.8)-34DS-0.4V(51) CL0684-9020-0-51 34 9.28 6.4 8.82 BM20B(0.8)-40DS-0.4V(51) CL0684-9012-1-51 40 10.48 7.6 10.02 BM20B(0.8)-44DS-0.4V(51) Under planning 44 11.28 8.4 10.82 BM20B(0.8)-50DS-0.4V(51) Under planning 50 12.48 9.6 12.02 Note 1: This product is sold by full reel quantities of 8,000 pieces per reel. Please place orders in full reel quantities. Note 2: This connector is NOT polarized. 4 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors ■H=0.8 mm header 0.4 E F 0.4 1.78 P=0.4 0.66 0.15 BRecommended PCB layout【0.6 mm and 0.8 mm common】 % %#-- "%#%* '#%- %#%* % %#)¤%#%' ;¤%#%' %#)¤%#%' %#'(¤%#%' %#)¤%#%' BRecommended metal mask size (Mask thickness 100 μm)【0.6 mm and 0.8 mm common】 &#&'¤%#%& %#)¤%#%& '#%-¤%#%& Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■H=0.6 mm header ;¤%#%' %#)¤%#%& %#)¤%#%& %#'(¤%#%& 5 Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors Unit: mm F Part No HRS No. No. of Contacts E BM20B(0.6)-10DP-0.4V(51) CL0684-9300-6-51 10 3.4 1.6 BM20B(0.6)-20DP-0.4V(51) CL0684-9301-9-51 20 5.4 3.6 BM20B(0.6)-24DP-0.4V(51) CL0684-9302-1-51 24 6.2 4.4 BM20B(0.6)-30DP-0.4V(51) Under planning 30 7.4 5.6 BM20B(0.6)-34DP-0.4V(51) Under planning 34 8.2 6.4 BM20B(0.6)-40DP-0.4V(51) CL0684-9305-0-51 40 9.4 7.6 Part No HRS No. No. of Contacts E F BM20B(0.8)-10DP-0.4V(51) CL0684-9001-5-51 10 3.4 1.6 BM20B(0.8)-20DP-0.4V(51) CL0684-9002-8-51 20 5.4 3.6 BM20B(0.8)-24DP-0.4V(51) CL0684-9003-0-51 24 6.2 4.4 BM20B(0.8)-30DP-0.4V(51) CL0684-9004-3-51 30 7.4 5.6 BM20B(0.8)-34DP-0.4V(51) CL0684-9019-0-51 34 8.2 6.4 BM20B(0.8)-40DP-0.4V(51) CL0684-9005-6-51 40 9.4 7.6 BM20B(0.8)-44DP-0.4V(51) Under planning 44 10.2 8.4 BM20B(0.8)-50DP-0.4V(51) Under planning 50 11.4 9.6 Note 1: This product is sold by full reel quantities of 8,000 pieces per reel. Please place orders in full reel quantities. Note 2: This connector is NOT polarized. 6 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors BEmbossed Carrier Tape Dimensions (JIS C 0806 compliant) Product label 2±0.5 1 Ø2 H-H H G G G-G (5:1) Ø380±2 Ø80±1 N±0.5 P±1 L±0.1 M±0.15 Unreeling Direction Part No. J K L M Unit: mm N P Unit: mm N P Part No. J K L M BM20B(0.8)-10DS-0.4V(51) 16 7.5 0.3 1 17.5 21.5 BM20B(0.8)-20DS-0.4V(51) 16 7.5 0.3 1 17.5 21.5 BM20B(0.6)-10DS-0.4V(51) 16 7.5 0.25 0.8 17.5 21.5 BM20B(0.8)-24DS-0.4V(51) 16 7.5 0.3 1 17.5 21.5 BM20B(0.6)-20DS-0.4V(51) 16 7.5 0.25 0.8 17.5 21.5 BM20B(0.8)-30DS-0.4V(51) 24 11.5 0.3 1 25.5 29.5 BM20B(0.6)-24DS-0.4V(51) 16 7.5 0.25 0.8 17.5 21.5 BM20B(0.8)-34DS-0.4V(51) 24 11.5 0.3 1 25.5 29.5 BM20B(0.6)-30DS-0.4V(51) 24 11.5 0.25 0.8 25.5 29.5 BM20B(0.8)-40DS-0.4V(51) 24 11.5 0.3 1 25.5 29.5 BM20B(0.6)-34DS-0.4V(51) 24 11.5 0.25 0.8 25.5 29.5 BM20B(0.8)-44DS-0.4V(51) 24 11.5 0.3 1 25.5 29.5 BM20B(0.6)-40DS-0.4V(51) 24 11.5 0.25 0.8 25.5 29.5 BM20B(0.8)-50DS-0.4V(51) 24 11.5 0.3 1 25.5 29.5 1.75±0.1 BEmbossed Carrier Tape Dimensions (JIS C 0806 compliant) 4±0.1 2±0.1 4±0.1 +0.1 Ø1.5 0 ●Reel Dimensions Product label R-R 2±0.5 Q Unit: mm Q-Q Unreeling Direction S T U W±0.5 Y±1 U±0.1 V±0.15 Q Part No. Ø380±2 Ø80±1 12 S±0.3 R Ø1.5 holes for feed mechanism 0˚ 12 0˚ T±0.1 Ø1 0.8 3± 1± 0.2 ●Header Ø2 Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. J±0.3 0˚ 12 Ø1.5 holes for feed mechanism 12 0˚ K±0.1 .8 ±0 H Ø1 3± 0.2 4±0.1 2±0.1 4±0.1 Ø1.5 +0.1 0 ● Reel Condition Dimensions 1.75±0.1 ●Receptacle V Unit: mm W Y Part No. S T U V W Y BM20B(0.8)-10DP-0.4V(51) 12 5.5 0.3 0.88 13.5 17.5 BM20B(0.8)-20DP-0.4V(51) 16 7.5 0.3 0.88 17.5 21.5 BM20B(0.6)-10DP-0.4V(51) 12 5.5 0.25 0.65 13.5 17.5 BM20B(0.8)-24DP-0.4V(51) 16 7.5 0.3 0.88 17.5 21.5 BM20B(0.6)-20DP-0.4V(51) 16 7.5 0.25 0.65 17.5 21.5 BM20B(0.8)-30DP-0.4V(51) 16 7.5 0.3 0.88 17.5 21.5 BM20B(0.6)-24DP-0.4V(51) 16 7.5 0.25 0.65 17.5 21.5 BM20B(0.8)-34DP-0.4V(51) 16 7.5 0.3 0.88 17.5 21.5 BM20B(0.6)-30DP-0.4V(51) 16 7.5 0.25 0.65 17.5 21.5 BM20B(0.8)-40DP-0.4V(51) 24 11.5 0.3 0.88 25.5 29.5 BM20B(0.6)-34DP-0.4V(51) 24 11.5 0.25 0.65 25.5 29.5 BM20B(0.8)-44DP-0.4V(51) 24 11.5 0.3 0.88 25.5 29.5 BM20B(0.6)-40DP-0.4V(51) 24 11.5 0.25 0.65 25.5 29.5 BM20B(0.8)-50DP-0.4V(51) 24 11.5 0.3 0.88 25.5 29.5 7 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors BOperating Precautions 1. Recommended Solder Profile Temperature(ç) 250 250ç 220ç Maximum of 60 seconds 200 180ç 150 150ç 90 to 120 seconds 100 Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 50 Normal temperature 0 50 100 150 200 250 300 Heating time(sec.) [Applicable Conditions] 1. Peak temperature: 250°C peak 2. Heating parts: 220°C or above, within 60 seconds 3. Preheating parts: 150 to 180°C, 90 to 120 seconds 4. Number of times: Maximum of 2 reflow cycles (Note 1)The temperatures mentioned above refer to the PCB surface temperature near the connector leads. (Note 2)When using nitrogen reflow please implement 1,000 [ppm] or higher oxygen density. Please contact the sales representative of our company in case of less than 1,000 [ppm]. 2. Recommended hand solder conditions The temperature of the soldering iron should fall within the range of 340 ±10°C and should not make contact for longer than 3 seconds 3. Recommended screen thickness: Opening ratio (pattern area ratio) Thickness: 0.1 mm Opening ratio: DS side 70% DP side 80%(H=0.8mm) DP side 70%(H=0.6mm) 4. Leaning of PCB Maximum of 0.02 mm at the center of connector (using both edges of connector as criteria) 5. Washing Cleaning is not recommended for this connector. Cleaning agents can deteriorate the mechanical operation and the environmental resistance of this connector. 6. Precautions 8 ■Do not mate or unmate these connectors until they are mounted, failure to follow this precaution can lead to deformation or damage to these connectors. ■Provide another form of support to the PCB, this connector was not designed to be the main form of support. ■Using excessive force to mate or unmate this connector can damage the contacts. ■Do not apply excessive amounts of flux as it may cause the solder and flux to wick. ■There may be a slight variance in the color of the molding between production lots, this variance will not affect the performance of the connector. ■Refer to the next page for the handling precautions when mating and unmating the connectors. ■If the connector becomes disconnected due to impact, a fall or a counterforce to the FPC, it may be necessary to hold the connector in place with an addition to the device’s case or other cushioning material to hold the connector in place. BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors ●Handling precautions when mating 7B'%"9E"%#)K Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 7B'%"9H"%#)K Prior to mating, locate the guidance ribs and align the header. Do not apply excessive force during the mating process as it may damage the contacts. Make sure that the connector is parallel to the other side, then press it down until it is fully mated while maintaining the angle. 9 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors ●Handling precautions for unmating BM20*(#)-*DP-0.4V Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BM20*(#)-*DS-0.4V To unmate this connector, lift evenly across the header. Make sure that each side of the connector stays parallel to the other. If circumstances prevent the connectors from staying parallel to each other, then one side may be lifted as shown in the diagram. This method is only approved if the connector is mounted onto an extremely rigid circuit board. If the board were to warp during this process it may result in damage to the connector or its solder joints. Pitch direction Do not try to disconnect these connectors by pulling on one side or a single corner, or to unmate it when it is hasn’t been securely mounted onto a rigid FPC. These actions may lead to deformities and ultimately a damaged connector. Prior to the mounting of these connectors we recommend that you check the rigidity of your FPC to ensure that it meets the standards needed to support these connectors. Corner direction If the FPC is not strong enough by itself, a stiffening backing may be applied. If the FPC has a low rigidity the connector may break (as shown in the illustration to the left). We recommend a backing of no less than 0.3 mm of glass epoxy and 0.2 mm of stainless material. 10 BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. MEMO : 11 Aug.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved. BM20 Series●0.4 mm Pitch, 0.6 and 0.8 mm Height, Board-to-Board and Board-to-FPC Connectors USA: HIROSE ELECTRIC (U.S.A.), INC. Headquarters 2688 Westhills Court, Simi Valley, CA 93065-6235 Phone : +1-805-522-7958 Fax : +1-805-522-3217 http://www.hiroseusa.com USA: HIROSE ELECTRIC (U.S.A.), INC. San Jose Office 3255 Scott Boulevard, Building 7, Suite 101 Santa Clara, CA 95054 Phone : +1-408-253-9640 Fax : +1-408-253-9641 http://www.hiroseusa.com USA: HIROSE ELECTRIC (U.S.A.), INC. Detroit Office (Automotive) 37677 Professional Center Drive, Suite #100C Livonia, MI 48154 Phone : +1-734-542-9963 Fax : +1-734-542-9964 http://www.hiroseusa.com THE NETHERLANDS: HIROSE ELECTRIC EUROPE B.V. Hogehillweg #8 1101 CC Amsterdam Z-O Phone : +31-20-6557460 Fax : +31-20-6557469 http://www.hiroseeurope.com GERMANY: HIROSE ELECTRIC EUROPE B.V. German Branch Herzog-Carl-Strasse 4 D-73760 Ostfildern (Scharnhauser Park) Phone : +49-711-4560-02-1 Fax : +49-711-4560-02-299 http://www.hirose.de UNITED KINGDOM: HIROSE ELECTRIC EUROPE B.V. UK Branch 22 Vincent Avenue, Crownhill Business Centre, Crownhill, Milton Keynes, MK8 0AB Phone : +44-1908-305750 Fax : +44-1908-305768 http://www.hirose.co.uk CHINA: HIROSE ELECTRIC TRADING (SHANGHAI) CO., LTD. 1601,Henderson Metropolitan,NO.300 ,East Nanjing Road,Huangpu District, Shanghai,China 200001 Phone : +86-21-6391-3355 Fax : +86-21-6391-3335 http://www.hirose-china.com.cn CHINA: HIROSE ELECTRIC TRADING (SHANGHAI) CO., LTD. Beijing Branch A1001, Ocean International Center, Building 56# East 4th Ring Middle Road, Chao Yang District, Beijing, 100025 Phone : +86-10-5165-9332 Fax : +86-10-5908-1381 http://www.hirose-china.com.cn CHINA: HIROSE ELECTRIC TECHNOLOGIES (SHENZHEN) CO., LTD. Room 09-13, 19/F, Office Tower Shun Hing Square, Di Wang Commercial Centre 5002, ShenNanDong Road, ShenZhen City, Guangdong Province, 518008 Phone : +86-755-8207-0851 Fax : +86-755-8207-0873 http://www.hirose-china.com.cn HONG KONG: HIROSE ELECTRIC HONGKONG TRADING CO., LTD. Room 1001, West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Phone : +852-2803-5338 Fax : +852-2591-6560 http://www.hirose-hongkong.com.hk TAIWAN: HIROSE ELECTRIC TAIWAN CO., LTD. 103 8F, No.87, Zhengzhou Rd., Taipei Phone : +886-2-2555-7377 Fax : +886-2-2555-7350 http://www.hirose-taiwan.com.tw KOREA: HIROSE KOREA CO., LTD. 1261-10, Jeoungwhang-Dong, Shihung-City, Kyunggi-Do 429-450 Phone : +82-31-496-7000,7124 Fax : +82-31-496-7100 http://www.hirose.co.kr SINGAPORE: INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD. Bangalore Liaison office HIROSE ELECTRIC SINGAPORE PTE. LTD. 10 Anson Road #26-1 International Plaza Unit No.03, Ground Floor, Explorer Building International Tech Park Whitefield Road, Bangalore 560066 Karnataka, India 079903 Phone : +65-6324-6113 Phone : +65-6324-6113 Fax : +65-6324-6123 Fax : +65-6324-6123 http://www.hirose-singapore.com.sg http://www.hirose-singapore.com.sg INDIA: HIROSE ELECTRIC SINGAPORE PTE. LTD Delhi Liaison Office Suite No. 606 5th Floor SB Tower 1A/1 Sector 16 A Filmcity Noida 201301 Uttar Pradesh-India Phone : +91-120-4804917 Fax : +91-120-4804949 http://www.hirose.com/sg/ MALAYSIA: HIROSE ELECTRIC SINGAPORE PTE. LTD (Representative office) 1-10-07, Suntech @ Penang Cybercity (1164),Lintang Mayang Pasir 3,11950, Bayan Baru, Penang, Malaysia. Phone : +604-619-2564 Fax : +604-619-2574 http://www.hirose.com/sg/ ® 12 6-3,Nakagawa Chuoh-2-Chome,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN TEL: +81-45-620-3526 Fax: +81-45-591-3726 http://www.hirose.com http://www.hirose-connectors.com The characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use. The contents of this catalog are current as of date of 11/2013. Contents are subject to change without notice for the purpose of improvements.
