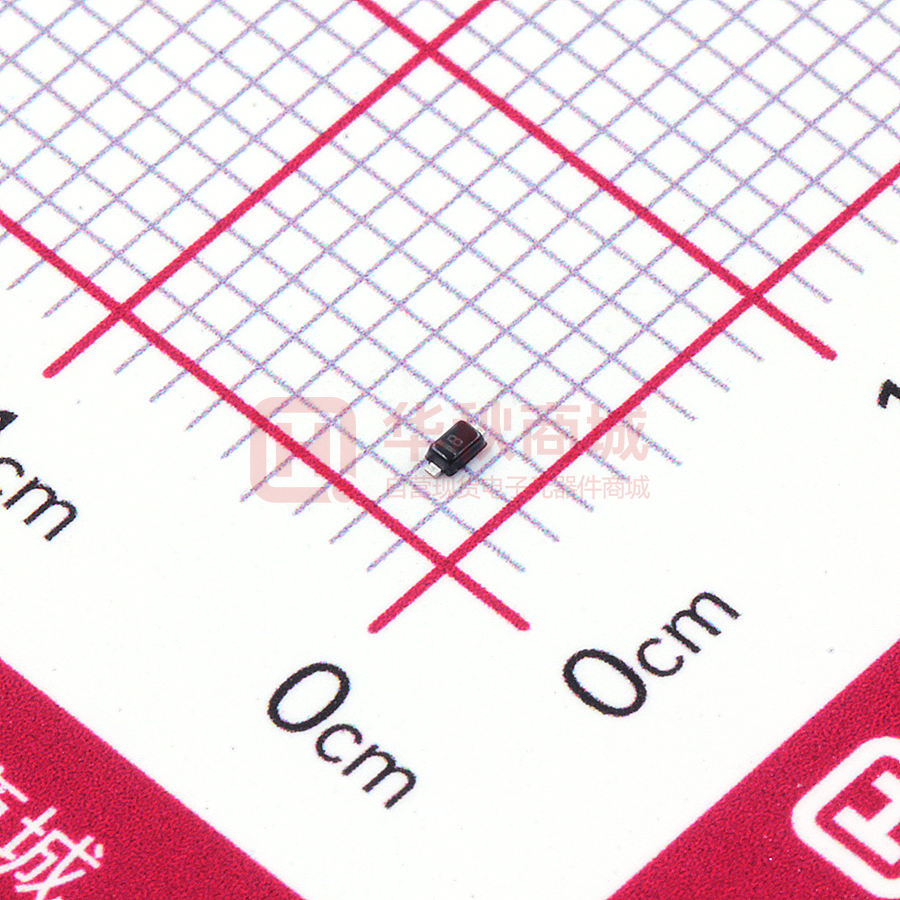

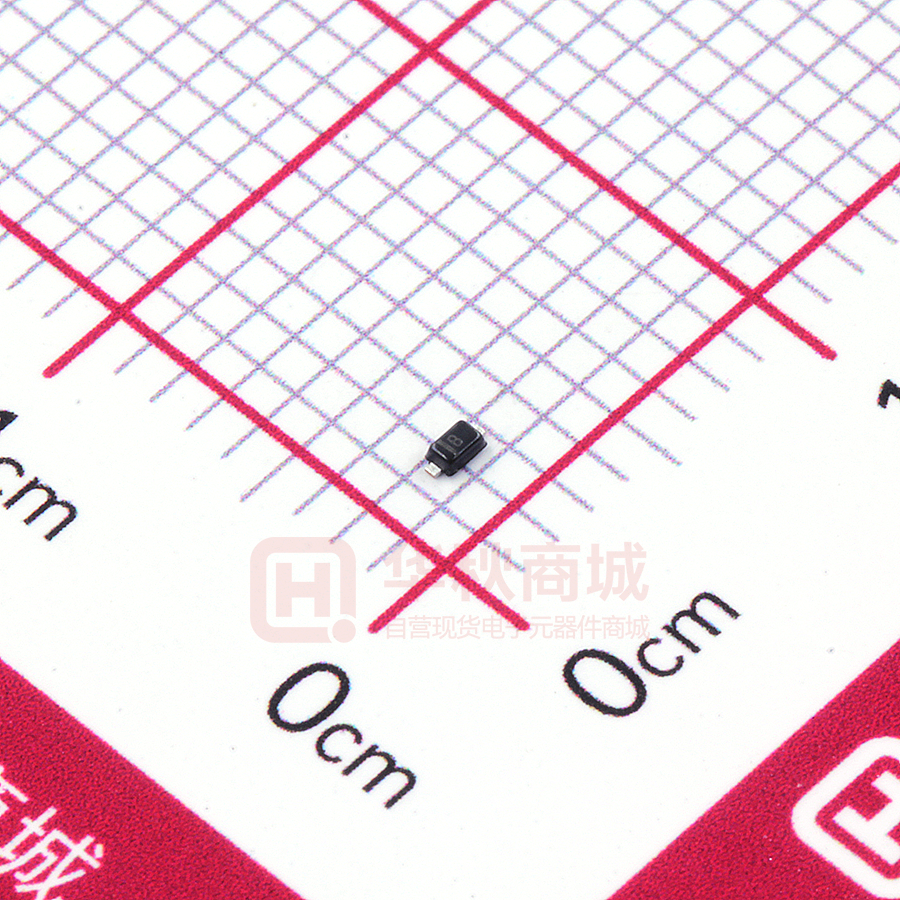

RB520S30-2/TR

RB520S30 RB520S30 Schottky Barrier Diode Http://www.sh-willsemi.com Features  Small surface mounting type  High reliability  Low leakage current  These are Pb-Free Devices SOD-523 Applications  Circuit Low Current rectification Marking Absolute maximum ratings Parameter Symbol Value Unit Reverse voltage (DC) VR 30 V Average rectified forward current IO 200 mA IFSM 1 A Junction temperature TJ 125 O C Storage temperature Tstg -40 ~ 125 O C Peak forward surge current Electronics characteristics (TA=25oC) Parameter Symbol Condition Min. Reverse Voltage VR IR=100uA 30 Forward Voltage VF Reverse current IR Typ. Max. Unit IF=200mA 0.6 V VR=10V 1 uA Order Informations Device RB520S30-2/TR Will Semiconductor Ltd. Package Marking Shipping SOD-523 B 3000/Reel&Tape 1 Oct, 2019 - Rev. 2.2 RB520S30 o 1 1m 100m 100P REVERSE CURRENT : IR (A) qC 100P qC 25 1m 25 12 5q C 75 qC 10m Ta FORWARD CURRENT : IF (A) Ta=125qC 10P 1P 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 FORWARD VOLTAGE : VF (V) 10P 75qC 1P 25qC 100n 25qC 10n 1n 0 10 20 30 REVERSE VOLTAGE : VR (V) Fig. 1 Forward characteristics Fig. 2 Reverse characteristics CAPACITANCE BETWEEN TERMINALS : CT (pF) Typical characteristics (Ta=25 C, unless otherwise noted) 100 f 1MHz 10 1 0 10 20 30 REVERSE VOLTAGE : VR (V) Fig. 3 Capacitance between terminals characteristics Io CURRENT (%) 100 80 60 40 20 0 25 50 75 100 125 AMBIENT TEMPERATURE : Ta (˚C) Fig 4. Derating curve (mounting on glass epoxy PCBs) Will Semiconductor Ltd. 2 Oct, 2019 - Rev. 2.2 RB520S30 PACKAGE OUTLINE DIMENSIONS SOD-523 A E 1 2 b D E2 E1 TOP VIEW c SIDE VIEW SIDE VIEW Symbol Dimensions in Millimeters Min. Typ. Max. A 0.50 - 0.70 b 0.25 - 0.35 c 0.07 - 0.20 D 0.70 - 0.90 E 1.10 - 1.30 E1 1.50 - 1.70 E2 0.15 - 0.25 zLand size figure (Unit : mm) 㪈㪅㪎 㪇㪅㪍 㪅 㪇㪅 㪏 㪅 Will Semiconductor Ltd. 3 Oct, 2019 - Rev. 2.2 RB520S30 TAPE AND REEL INFORMATION Reel Dimensions RD Reel Dimensions Tape Dimensions W P=2mm P1=4mm Quadrant Assignments For PIN1 Orientation In Tape Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 RD Reel Dimension W Overall width of the carrier tape P1 Pitch between successive cavity centers Pin1 Pin1 Quadrant Will Semiconductor Ltd. 4 User Direction of Feed 7inch 13inch 1 8mm 12mm 16mm 2mm 4mm 8mm Q1 Q2 Q3 Q4 Oct, 2019 - Rev. 2.2
